| Official Model |

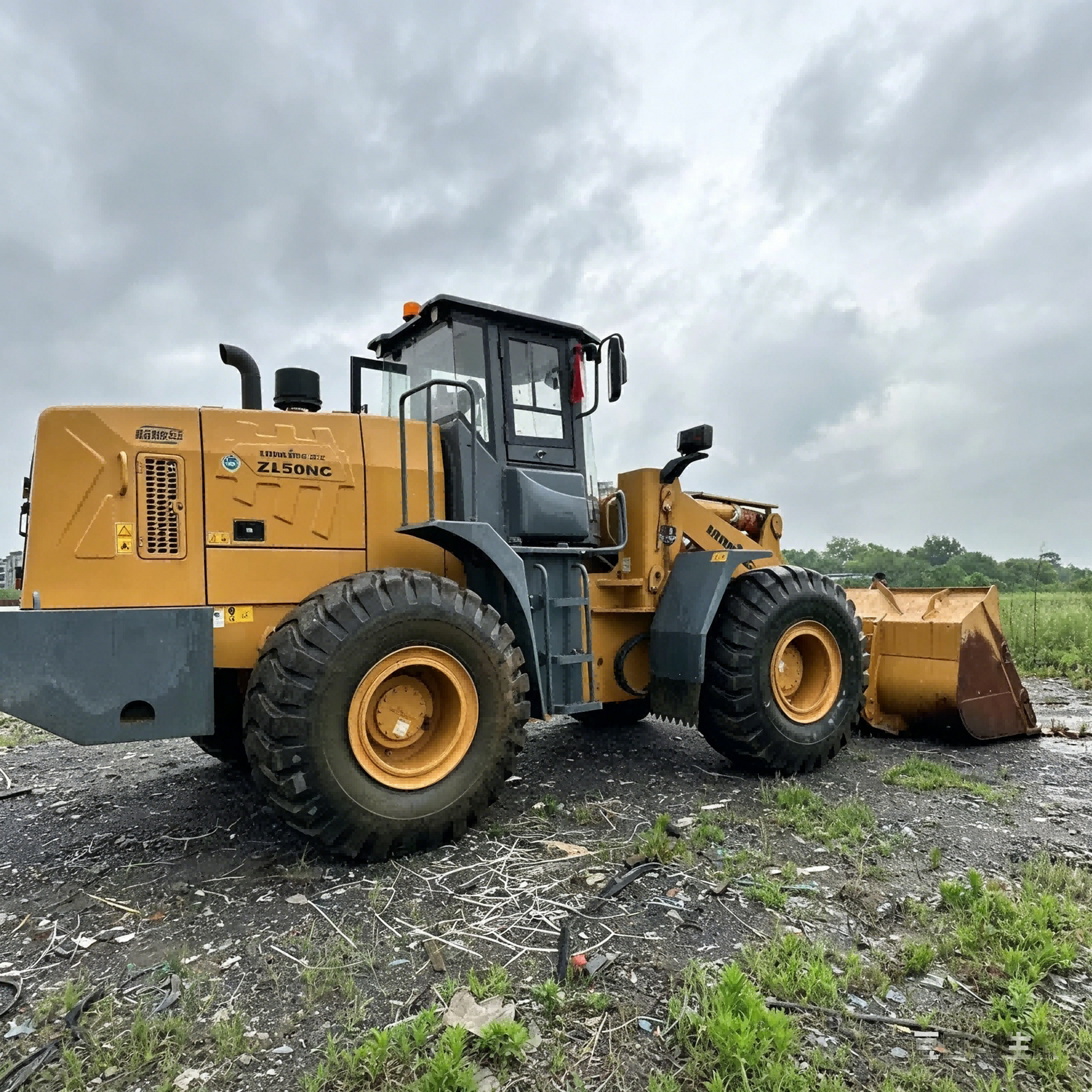

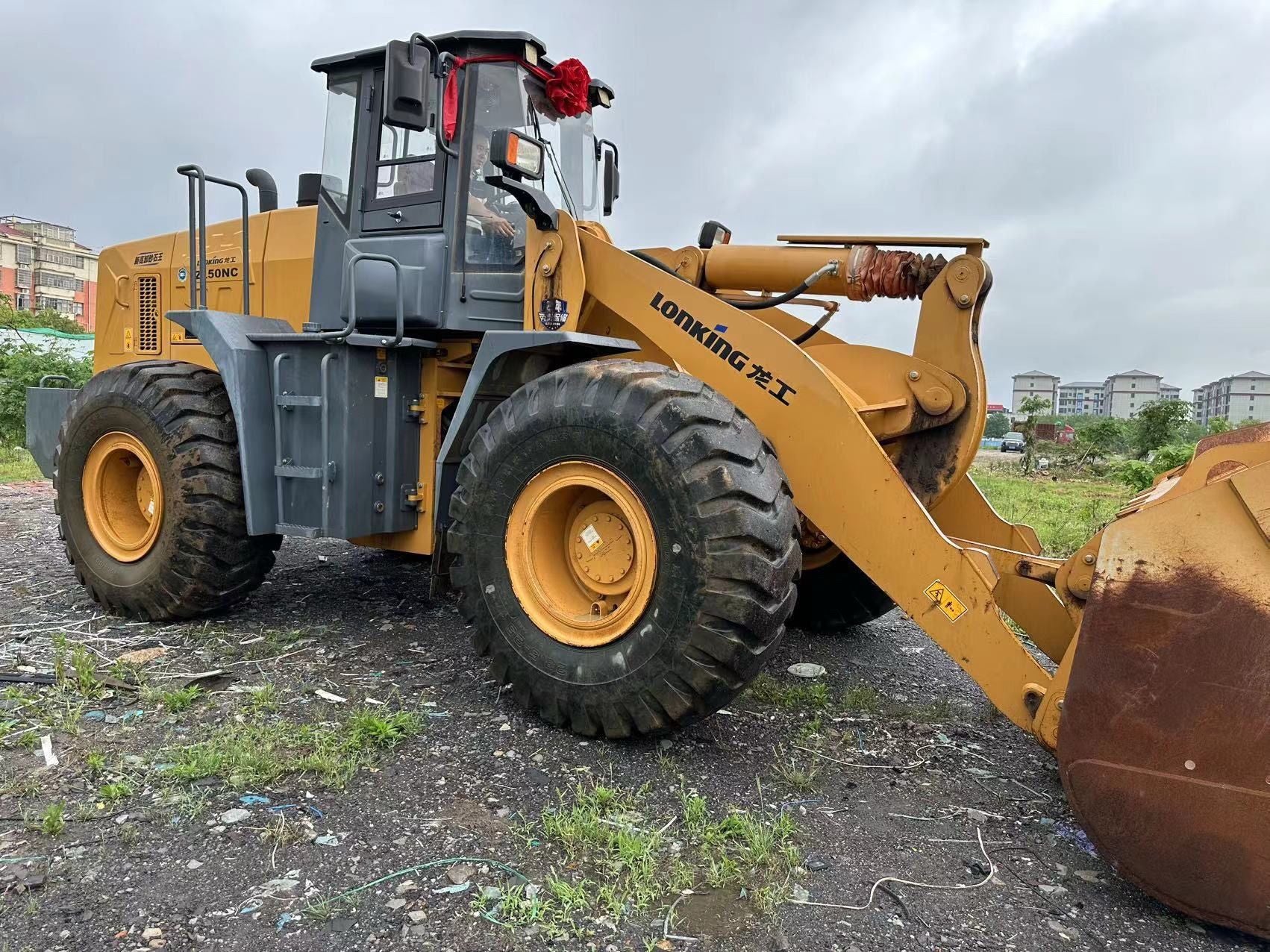

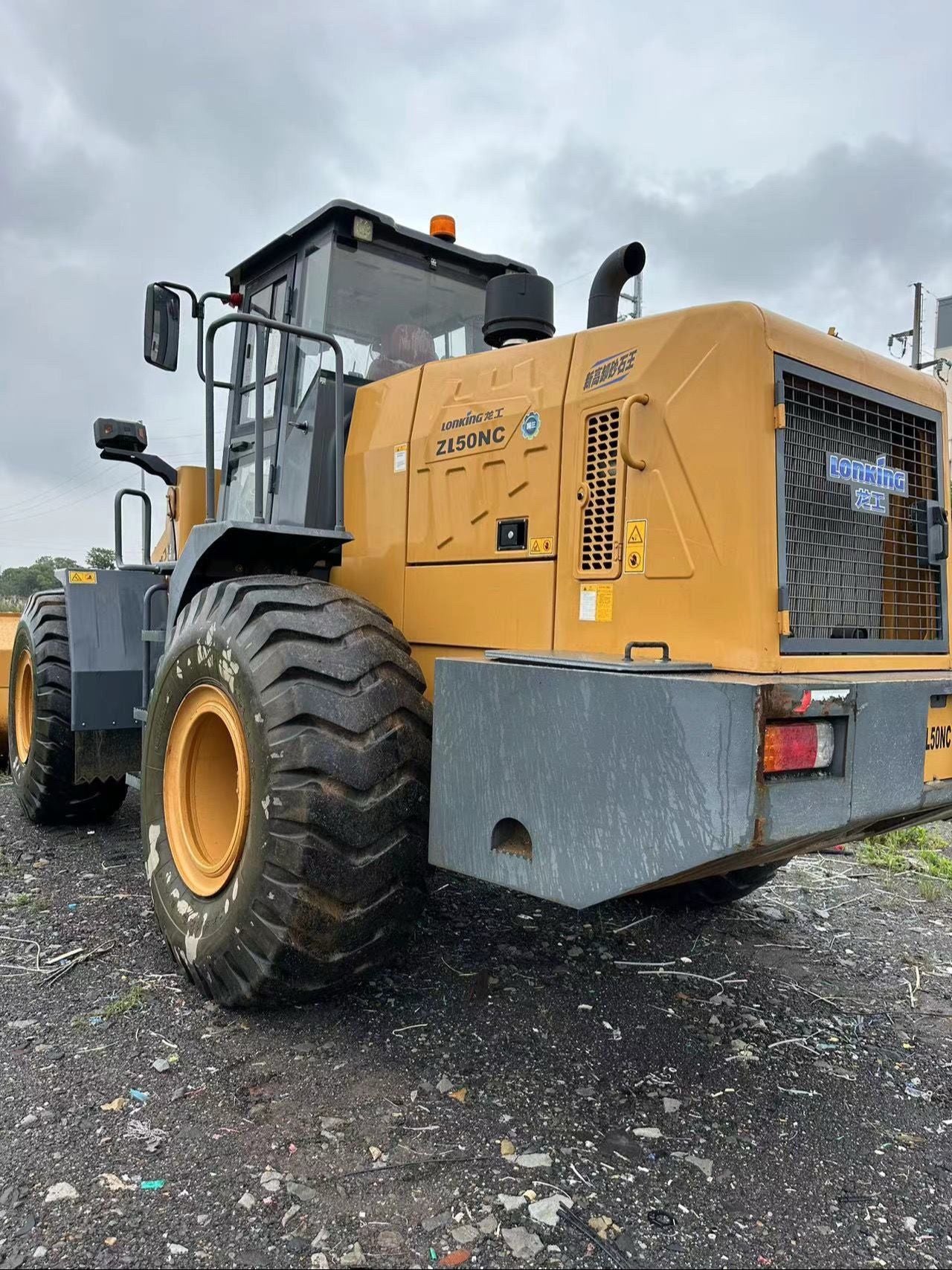

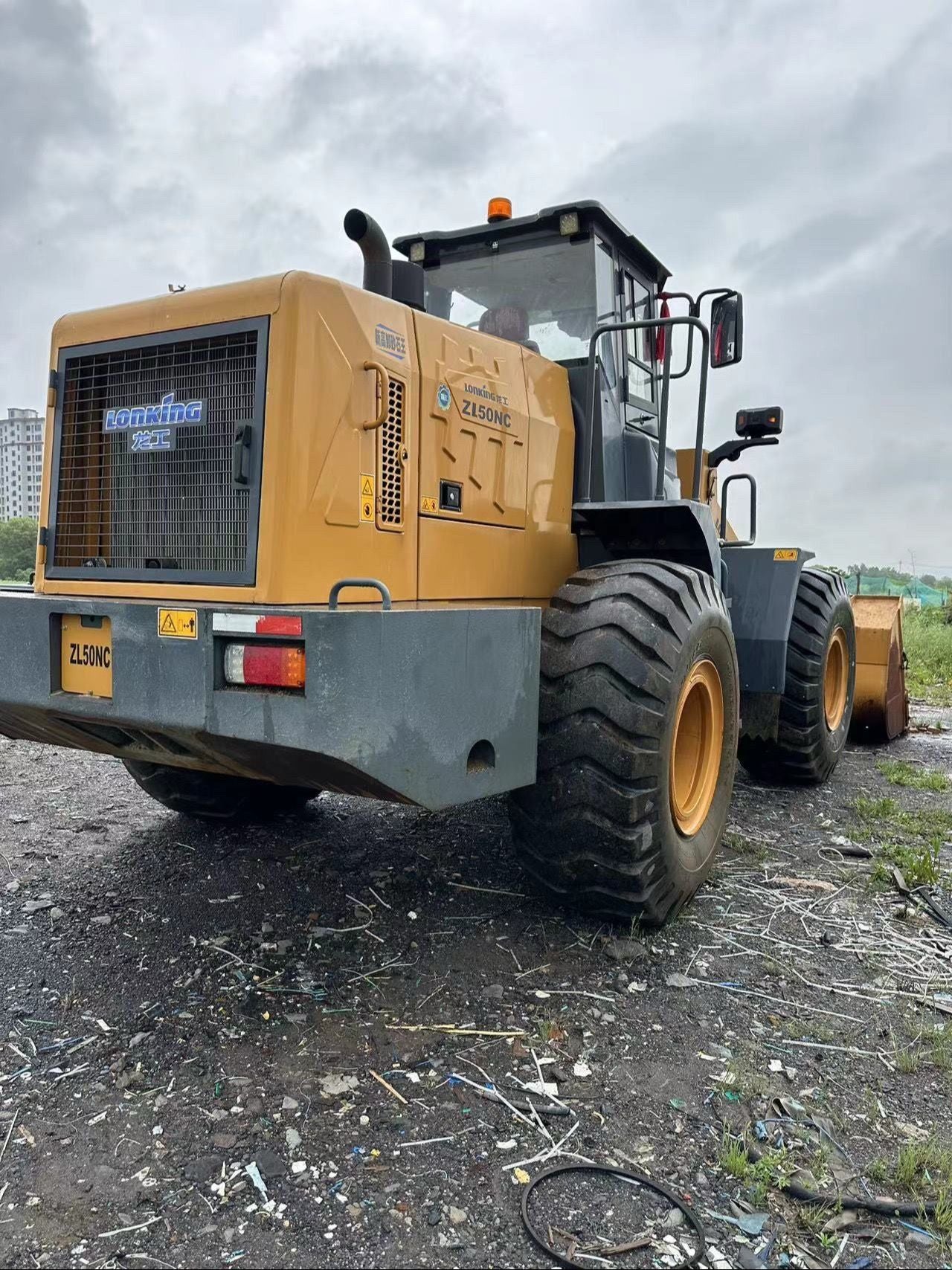

LONKING ZL50NC |
| Machine Type |
5‑Ton Heavy‑Duty Wheel Loader |
| Rated Load Capacity |
5000 kg |
| Operating Weight |
17200 kg |
| Standard Bucket Capacity |
2.8–4.5 m³ (rock bucket optional) |
| Engine Model |
Weichai WP10G220E341 (China National Stage III) |
| Rated Power |
162 kW (220 HP) @ 2200 rpm |
| Fuel Type |
Diesel |
| Fuel Tank Capacity |
285 L |
| Hydraulic System Pressure |
19 MPa |
| Max Breakout Force |
185 kN |
| Max Traction Force |
160 kN |
| Three‑Cycle Time (Lift+Dump+Lower) |
11.0 s |
| Max Dump Height |
3078 mm |
| Max Dump Reach |
1306 mm |
| Overall Dimensions (L×W×H) |
8730 × 3090 × 3400 mm |
| Wheelbase |
3430 mm |
| Tire Size |
23.5‑25 (20PR front, 16PR rear) |
| Transmission |
Planetary powershift, 2F/1R |
| Steering |
Full‑hydraulic load‑sensing, ±38° |
| Brakes |
4‑wheel disc service brake, air‑controlled disc parking brake |
| Cab |
ROPS, panoramic glass, air conditioning, pilot control optional |
| Main Applications |
Quarries, mines, highways, ports, heavy earthmoving, material handling |
