| Official Model |

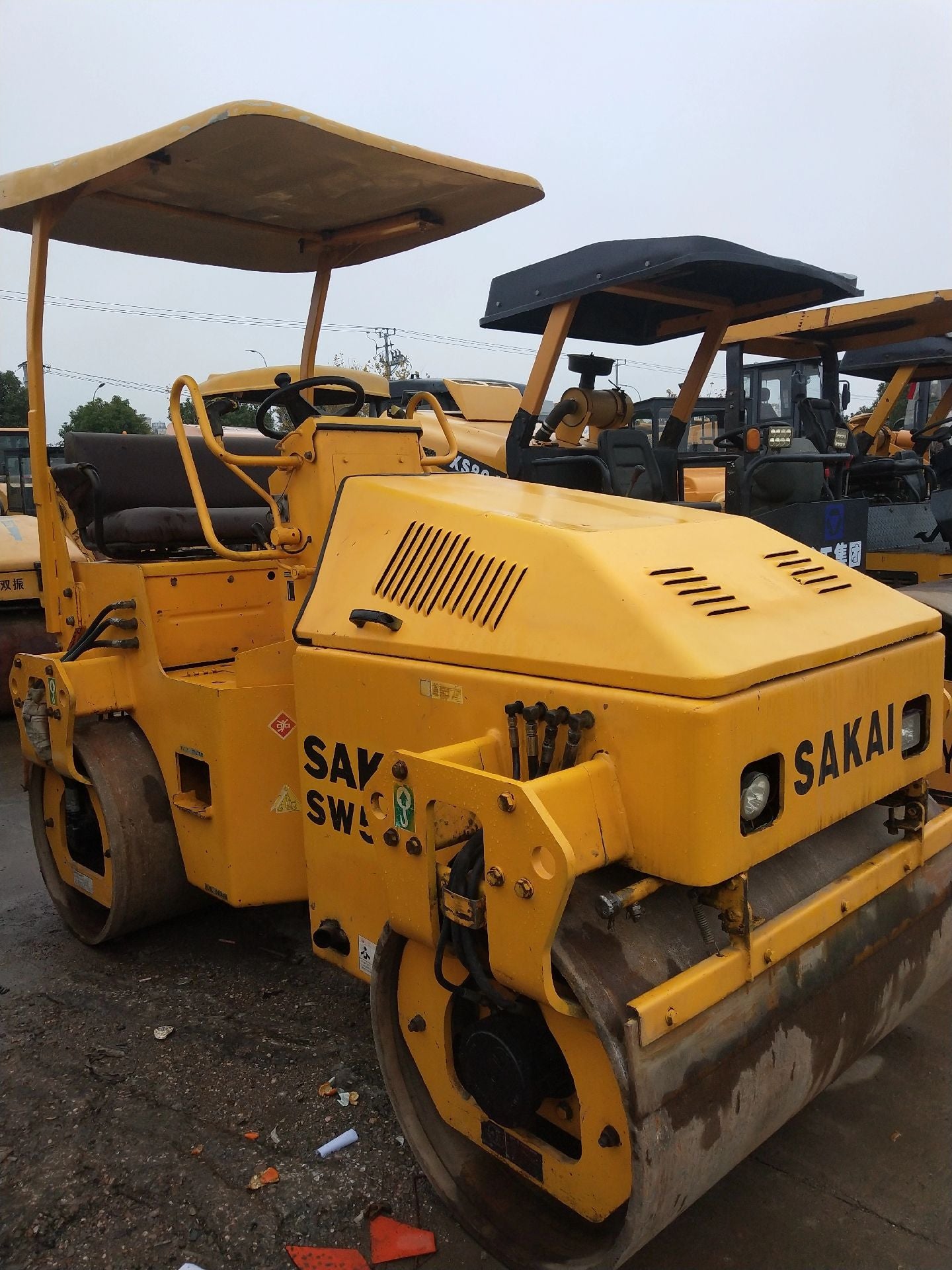

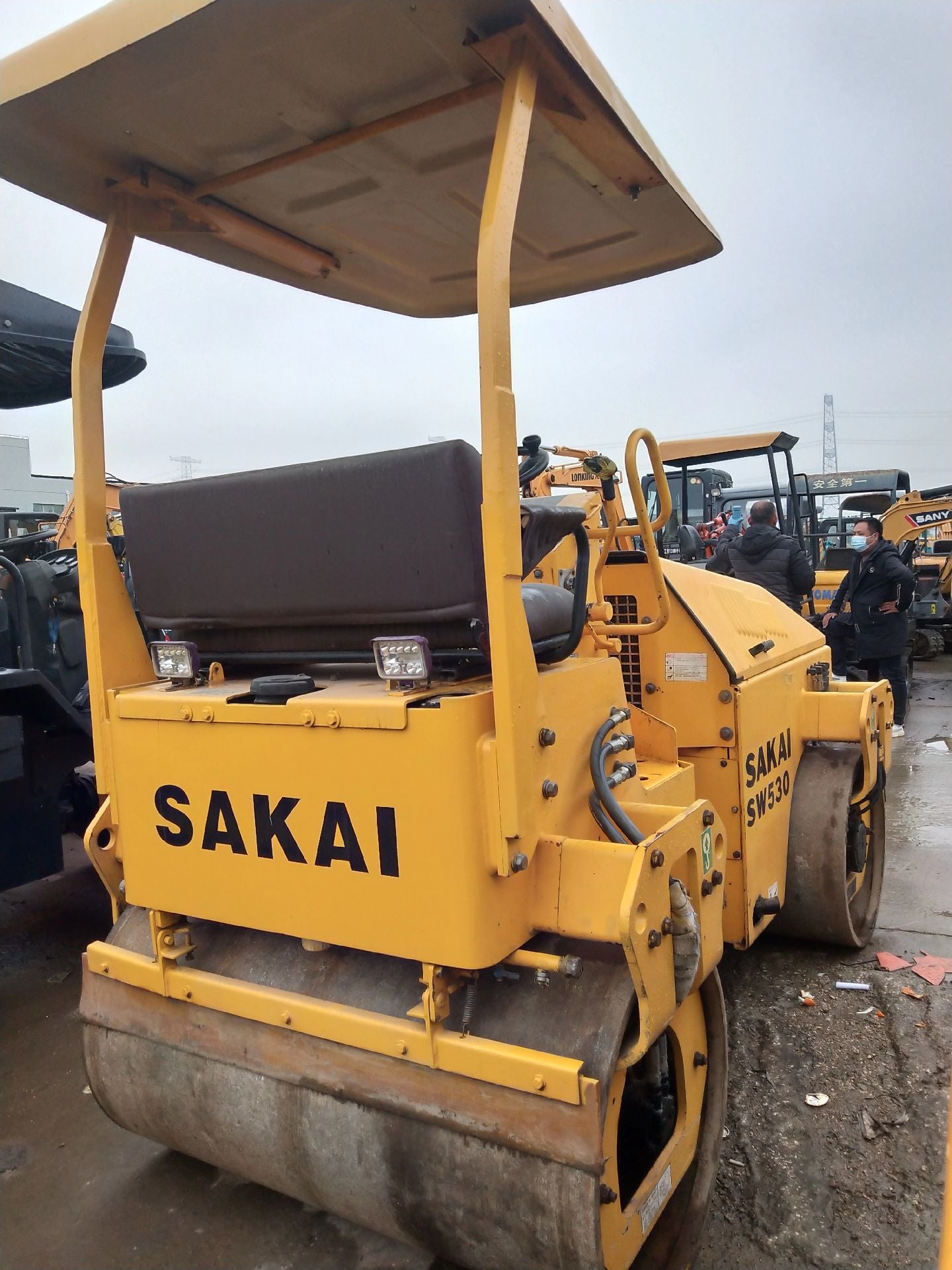

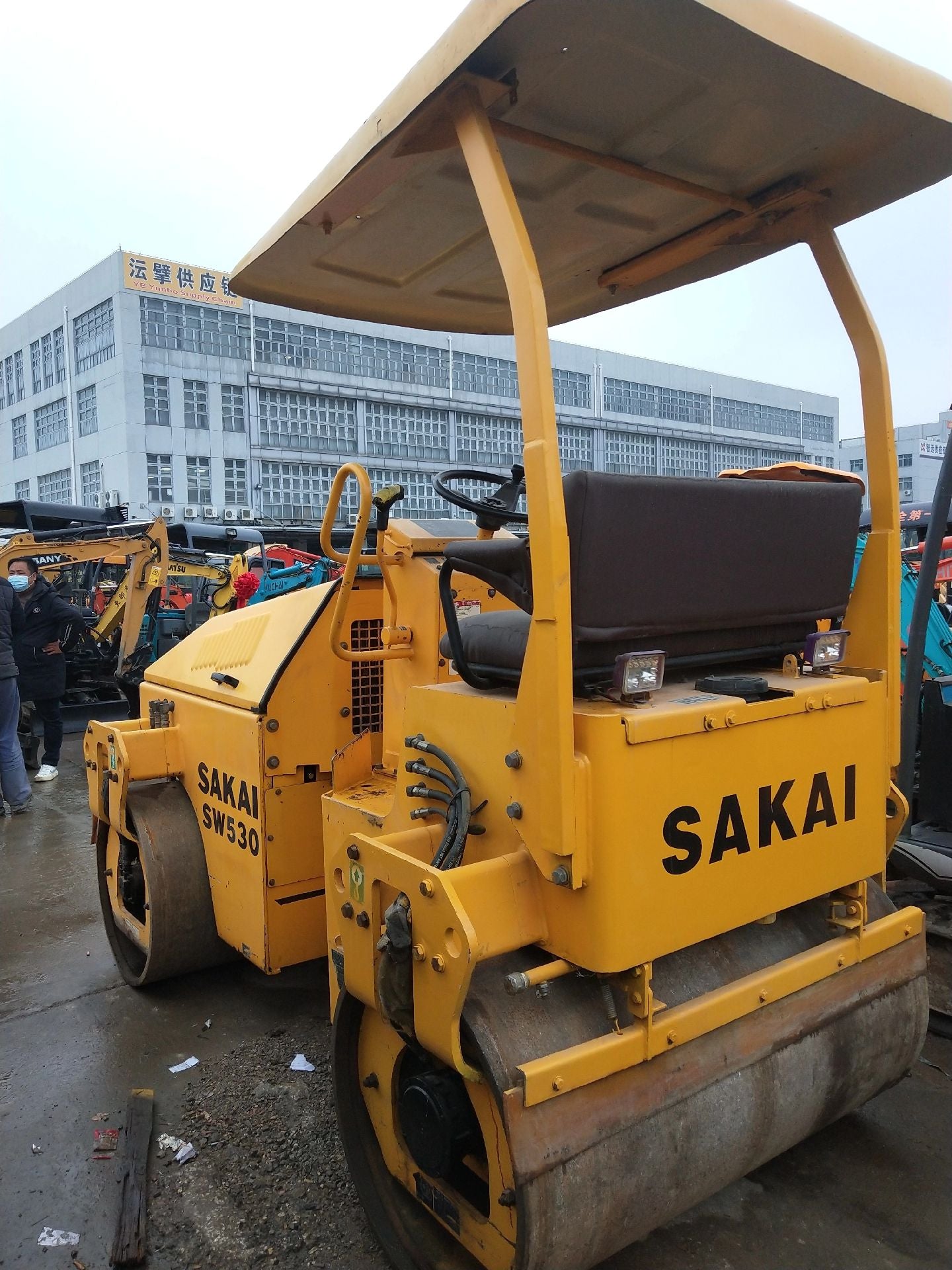

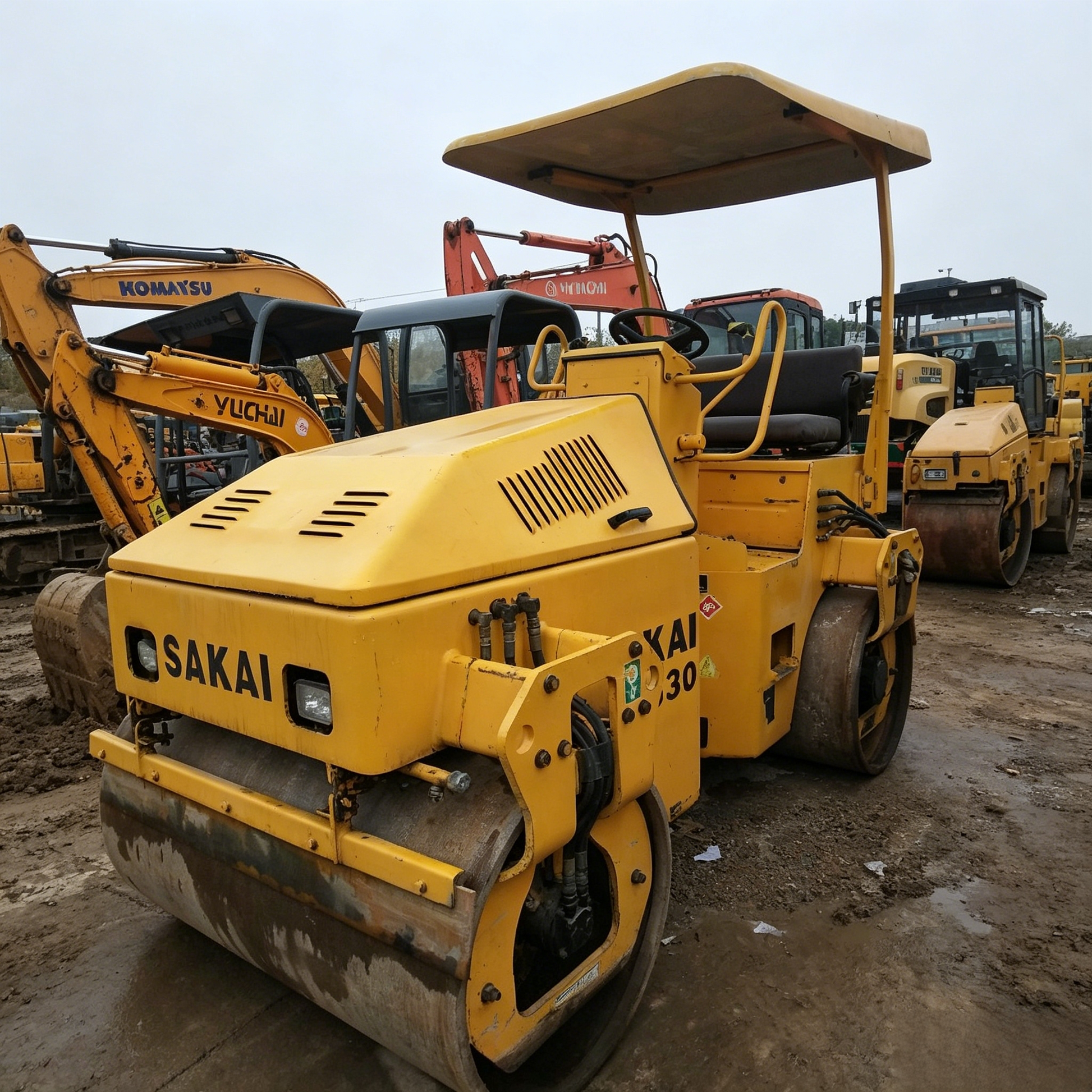

SAKAI SW530‑1 |
| Machine Type |
5‑Ton Double‑Drum Vibratory Asphalt Compactor |
| Operating Weight |
4980 kg |
| Front Drum Load |
2420 kg |
| Rear Drum Load |
2560 kg |
| Drum Spec (Diameter × Width) |
800 mm × 1450 mm |
| Vibration Mode |
Dual‑Frequency & Dual‑Amplitude |
| Vibration Frequency |
High: 66.7 Hz (4000 vpm) / Low: 52 Hz (3120 vpm) |
| Centrifugal Exciting Force |
High: 46.2 kN / Low: 34.3 kN |
| Amplitude |
High: 0.40 mm / Low: 0.30 mm |
| Engine Model |

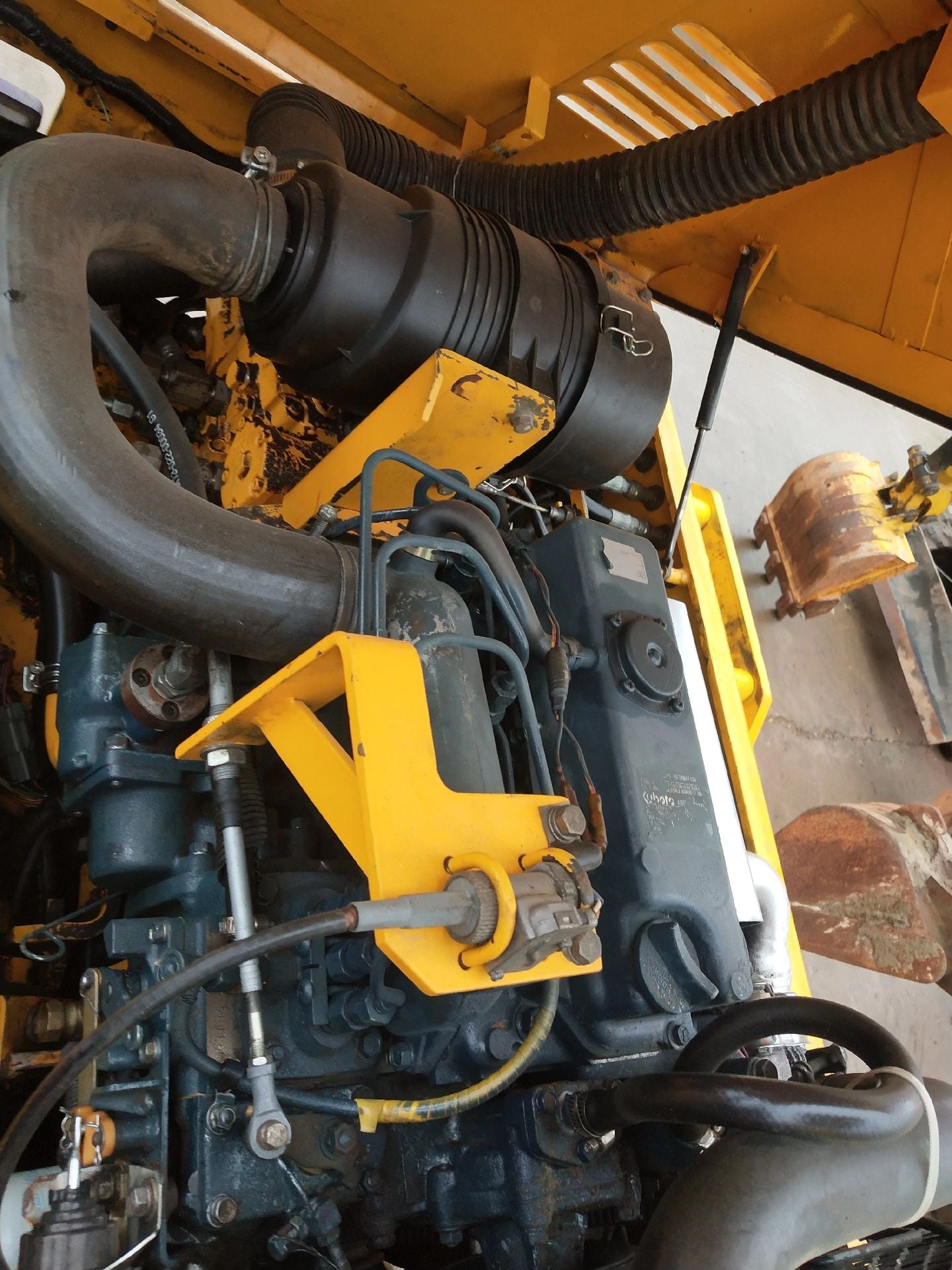

Kubota V2203‑KA‑E2B 4‑cylinder Water‑cooled Diesel Engine |
| Rated Power |
34.3 kW (46 HP) @ 2700 rpm |
| Fuel Type |
Diesel |
| Fuel Tank Capacity |
65 L |
| Water Spray Tank Capacity |
220 L |
| Max Travel Speed |
12 km/h |
| Gradeability |
38% |
| Minimum Outside Turning Radius |
4300 mm |
| Overall Dimensions (L×W×H) |
3105 × 1575 × 2260 mm |
| Wheelbase |
2350 mm |
| Ground Clearance |
280 mm |
| Transmission System |
Full‑hydrostatic 2‑wheel drive |
| Steering System |
Articulated Full‑hydraulic Steering |
| Braking System |
Hydrostatic Service Brake + Multi‑disc Emergency/Parking Brake |
| Cab Configuration |
Open‑type ROPS Frame, Optional Closed Cab with Air‑Conditioning |
| Main Applications |
Urban road construction, asphalt pavement compaction, parking lot, municipal road maintenance, narrow‑zone construction |
