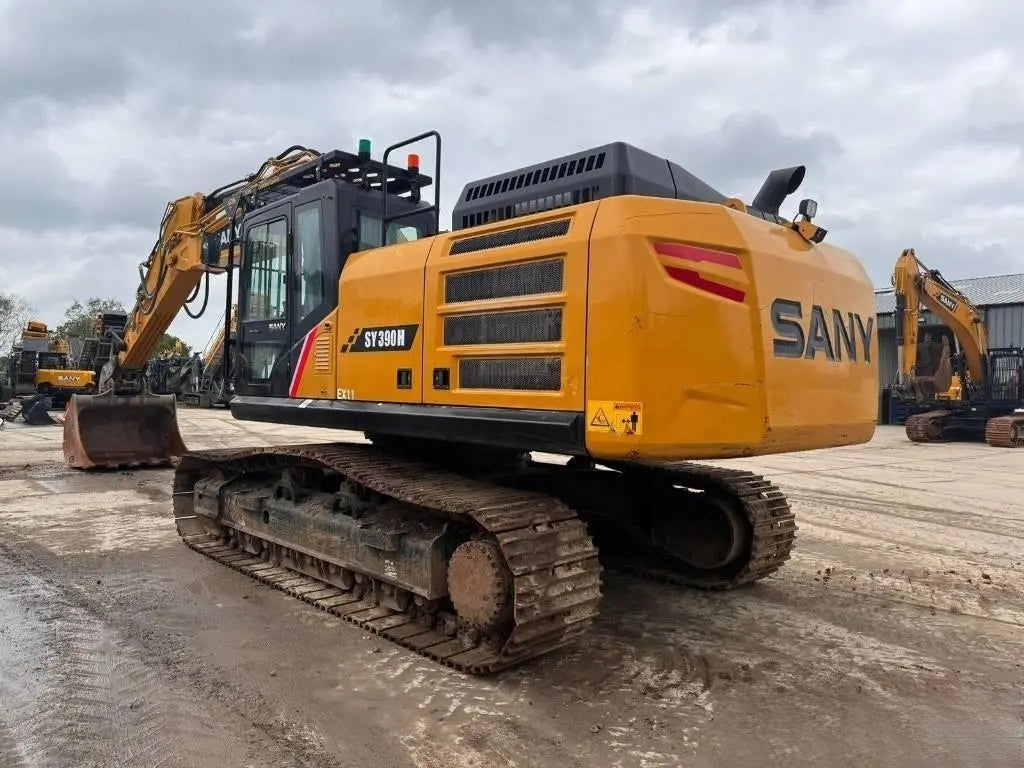

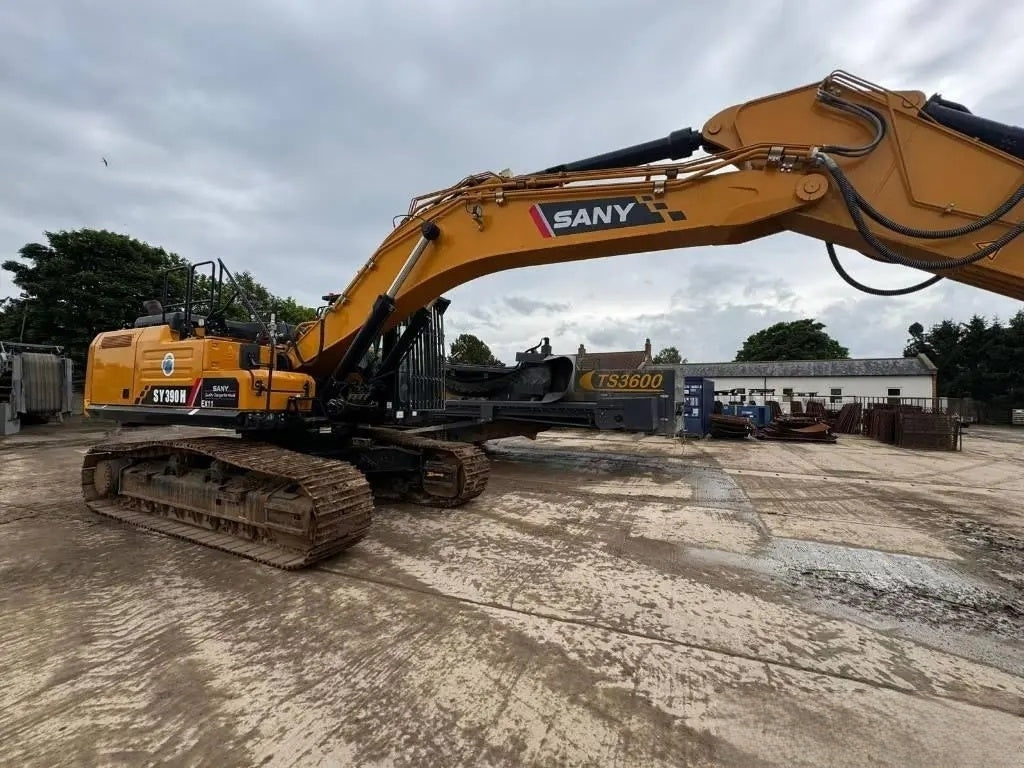

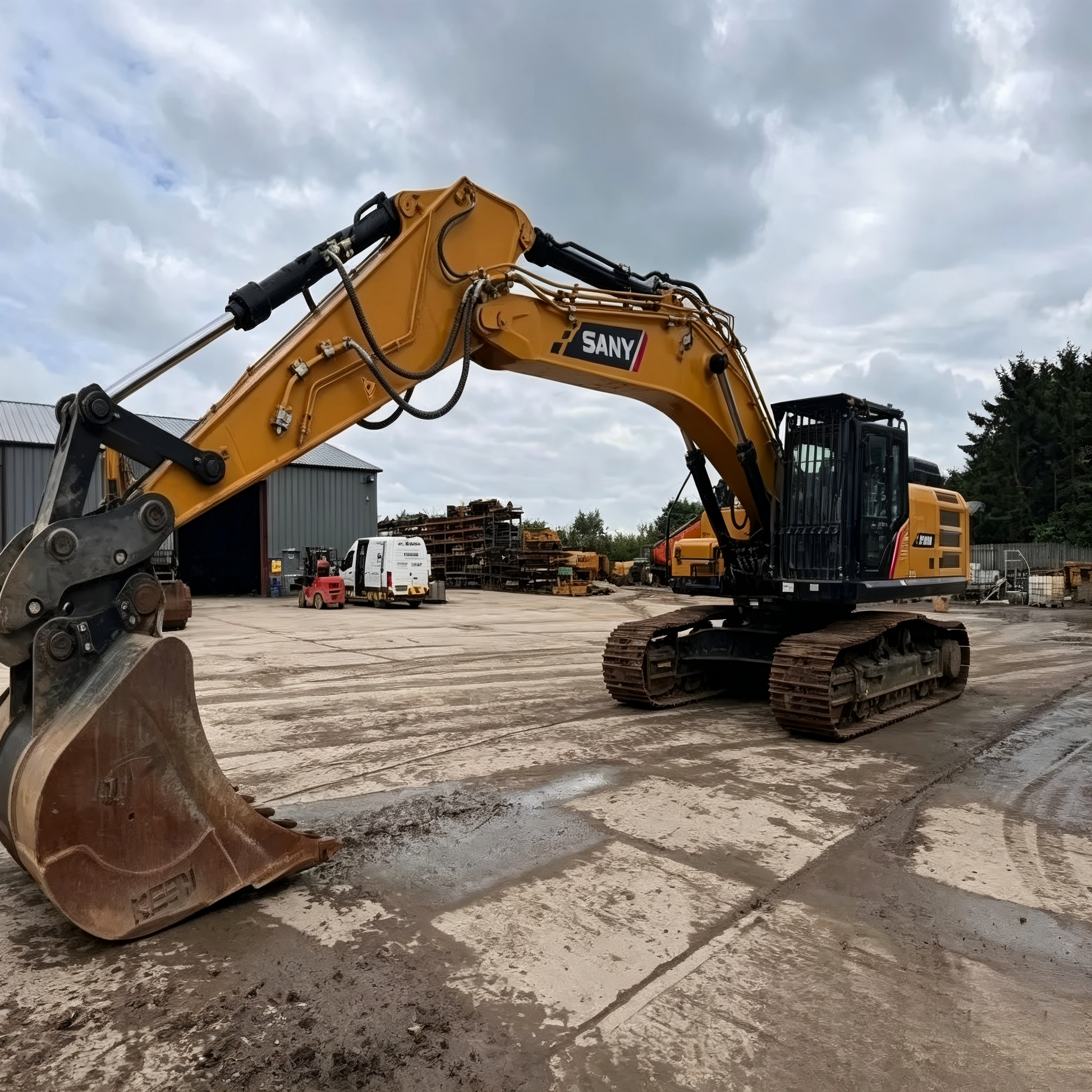

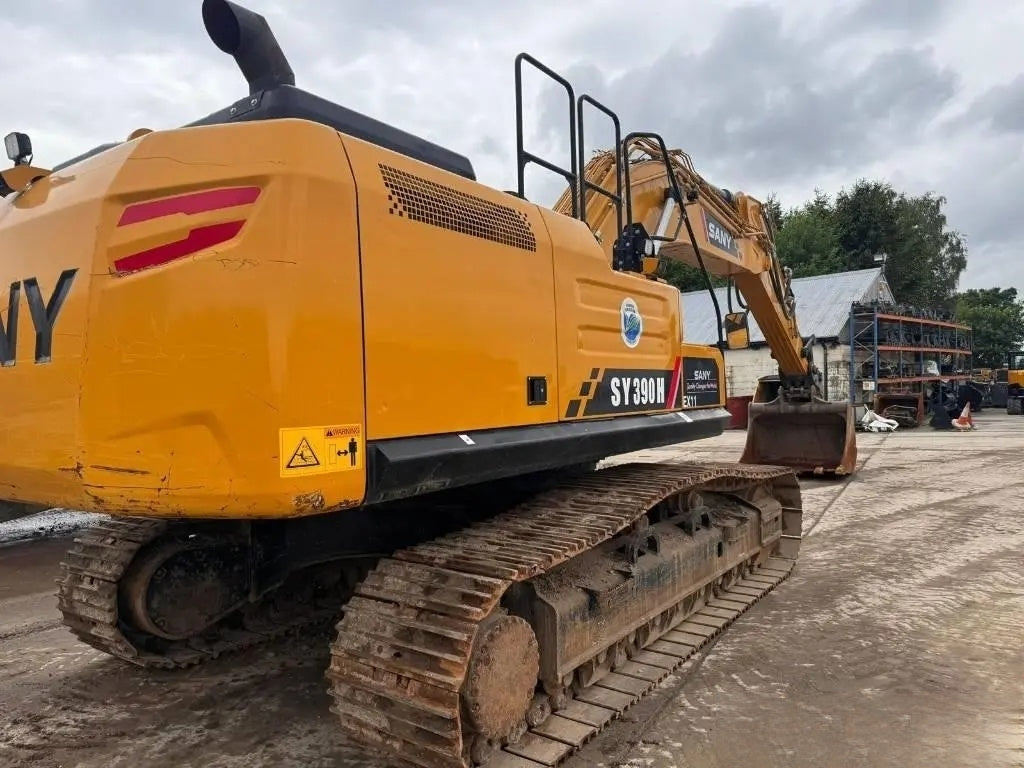

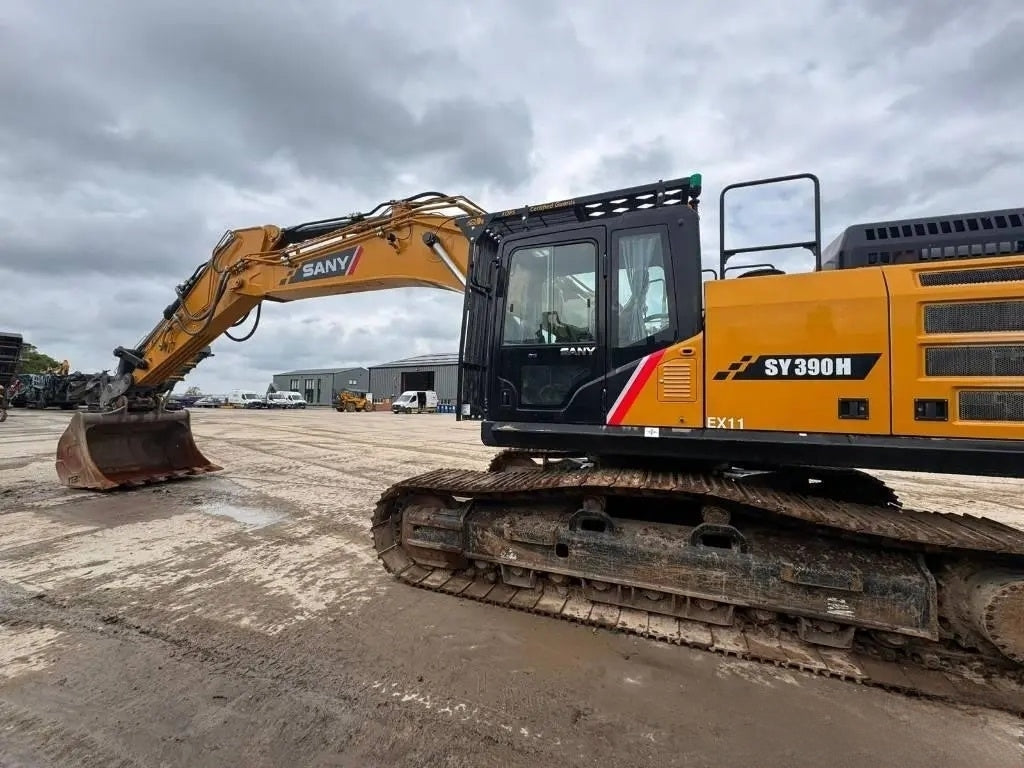

USED SANY 390H

USED SANY 390H

$35,000.00 USD
$35,000.00 USD
Oferta Agotado
Parameter Value
Model SANY SY390H
Machine Type Large Crawler Excavator
Operating Weight 38800 kg
Standard Bucket Capacity 2.2 m³
Engine Model Isuzu 6HK1
Rated Power 221 kW @ 2000 rpm
Engine Displacement 7.8 L
High Travel Speed 5.5 km/h
Low Travel Speed 3.2 km/h
Swing Speed 9.3 rpm
Gradeability 70%
Bucket Digging Force 252 kN
Arm Digging Force 196 kN
Max Digging Depth 7920 mm
Max Digging Radius 11750 mm
Max Digging Height 11150 mm
Max Dumping Height 7810 mm
Overall Transport Length 11420 mm
Overall Width 3340 mm
Overall Height 3520 mm
Track Shoe Width 600 mm
Fuel Tank Capacity 550 L
Hydraulic System Pressure 35.3 MPa
Electrical System Voltage 24 V
