| Official Model |
SANY SPR300C‑8S |
| Machine Type |
30‑Ton Heavy‑Duty Pneumatic Tyred Compactor |
| Max Operating Weight |
30000 kg |
| Min Operating Weight |
11000 kg |

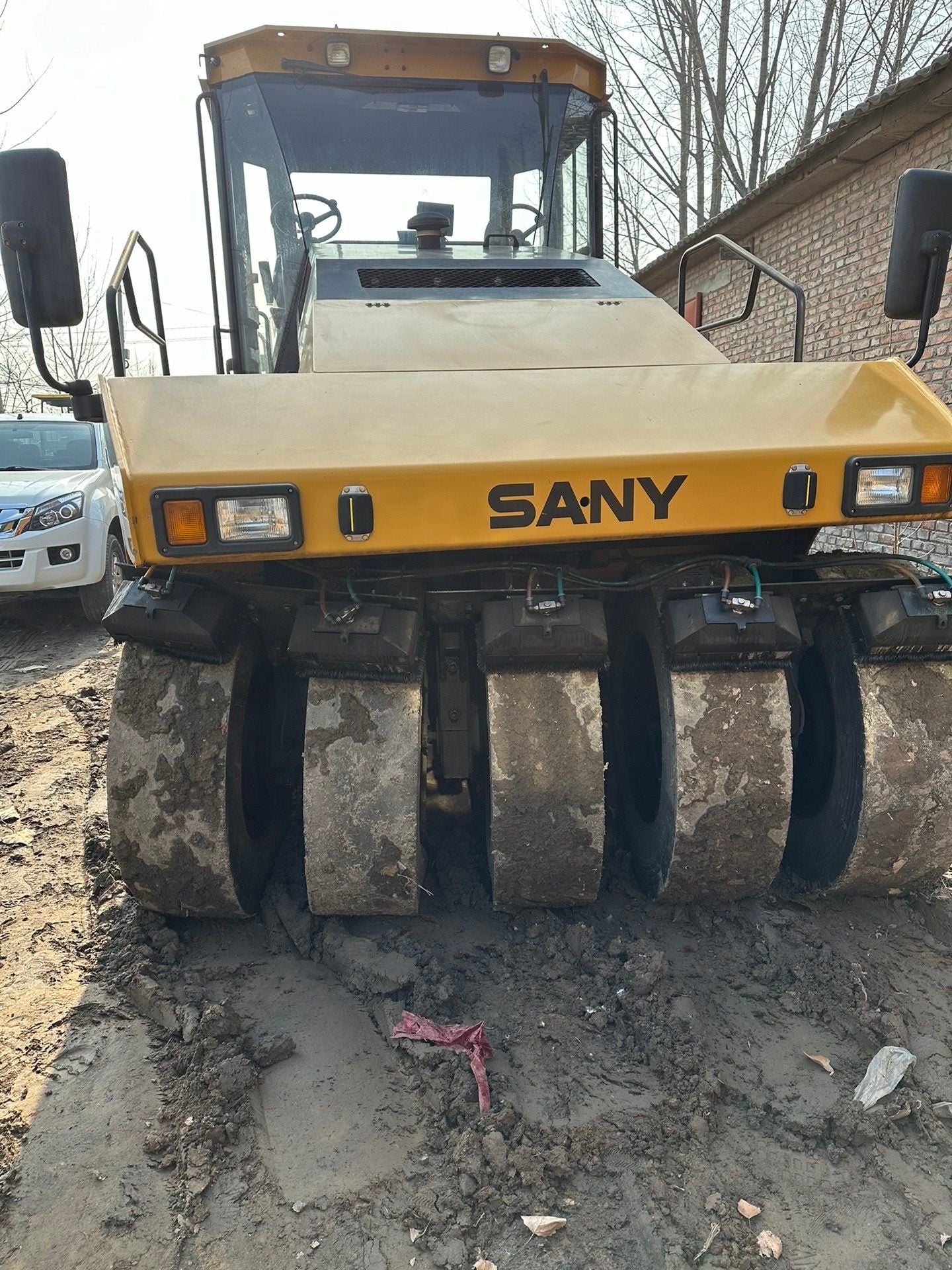

| Tire Configuration |
11 tires (5 front + 6 rear) |
| Compaction Width |
2368 mm / 2740 mm |
| Tire Overlap Width |
63 mm / 45 mm |
| Single‑Tire Load |
3.33 t / 2.73 t |
| Ground Contact Pressure |
200‑540 kPa / 200‑460 kPa |
| Tire Inflation Pressure |
200‑800 kPa (adjustable from cab) |
| Engine Model |
WEICHAI WP6G190E301 (6‑cylinder water‑cooled diesel) |
| Rated Power |
140 kW @ 2200 rpm |
| Emission Standard |
China National Stage III |
| Fuel Tank Capacity |
200 L |
| Hydraulic Tank Capacity |
100 L |
| Water Tank Capacity |
500 L |
| Battery Spec |
24V‑120Ah |
| Working Speed |
0‑5.5 / 0‑8 / 0‑10 km/h |
| Max Travel Speed |
0‑14 km/h |
| Theoretical Gradeability |
25% |
| Steering Angle |
±30° |
| Swing Distance |
±50 mm |
| Wheelbase |
4170 mm |
| Ground Clearance |
350 mm |
| Min Outside Turning Diameter |
19000 mm |
| Overall Dimensions (L×W×H) |
5435 × 2368/2740 × 3330 mm |
| Transmission System |
Full‑hydrostatic drive, infinitely variable speed |
| Steering System |
Articulated full‑hydraulic steering |
| Braking System |
Hydraulic service brake + closed‑type parking brake |

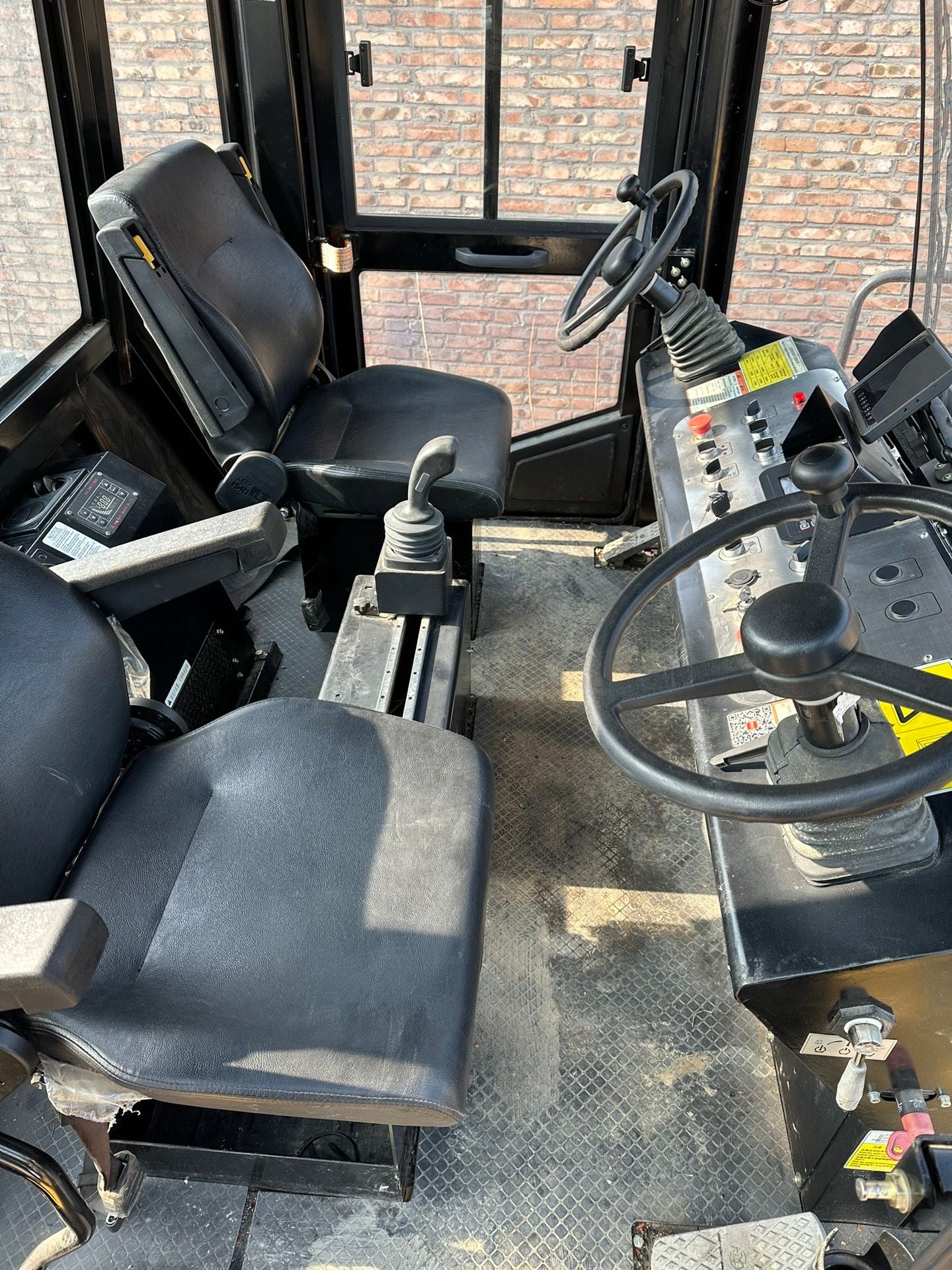

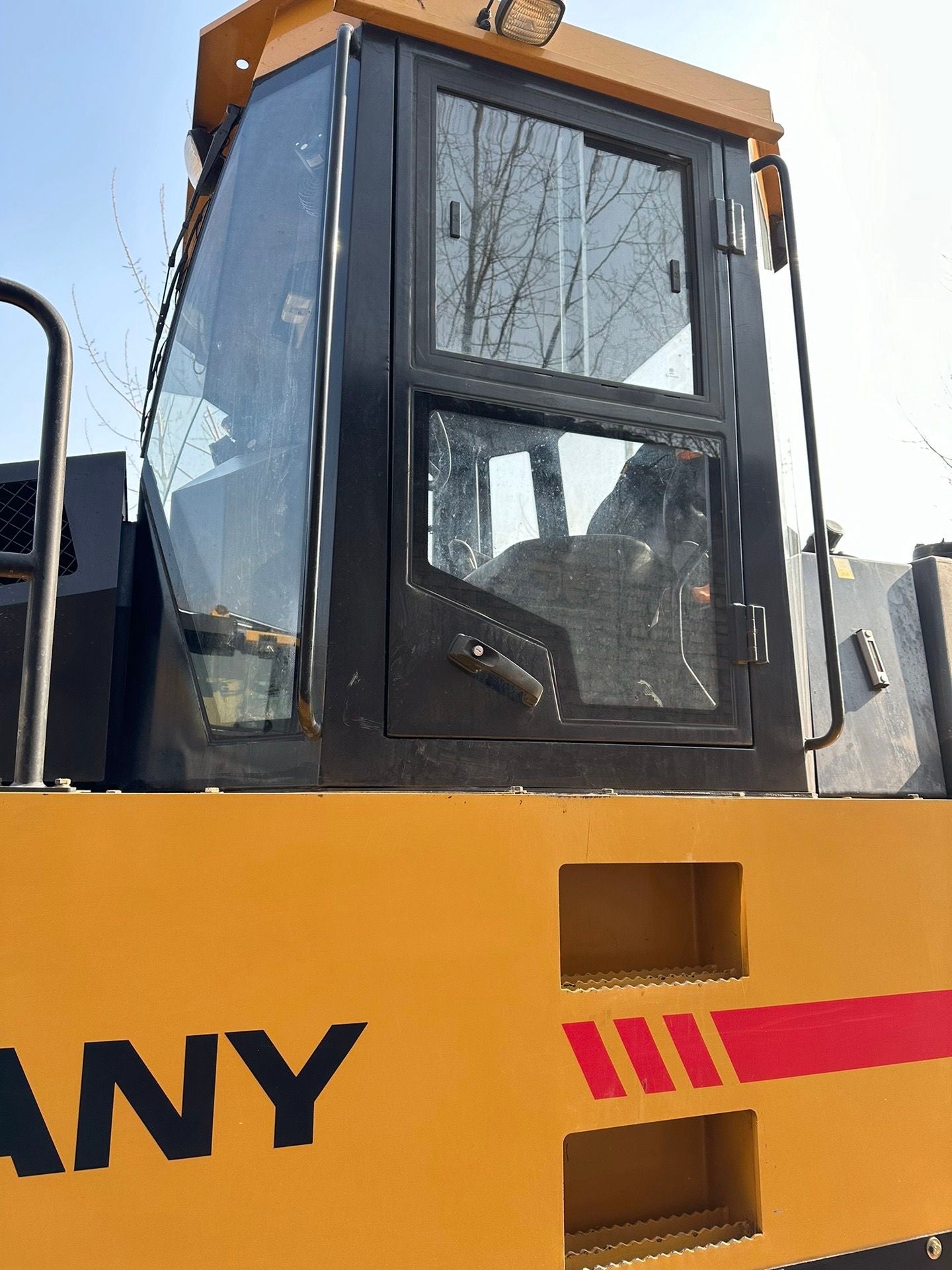

| Cab Configuration |
ROPS‑FOPS enclosed cab, air‑conditioning optional, automatic oil‑spray & tire inflation system |
| Main Applications |
Asphalt surface finishing compaction, highway, airport runway, port pavement, large‑scale road construction |
