SANY

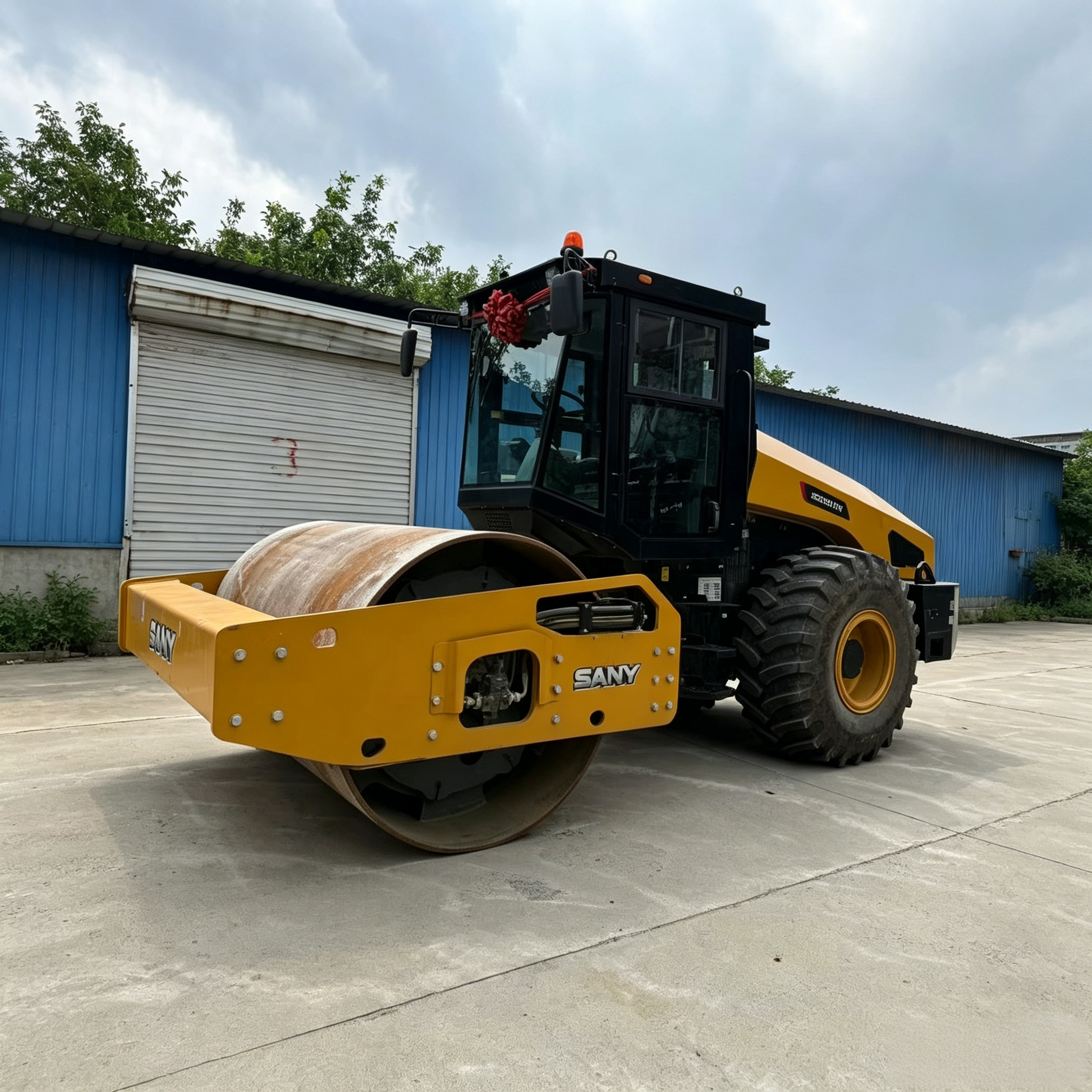

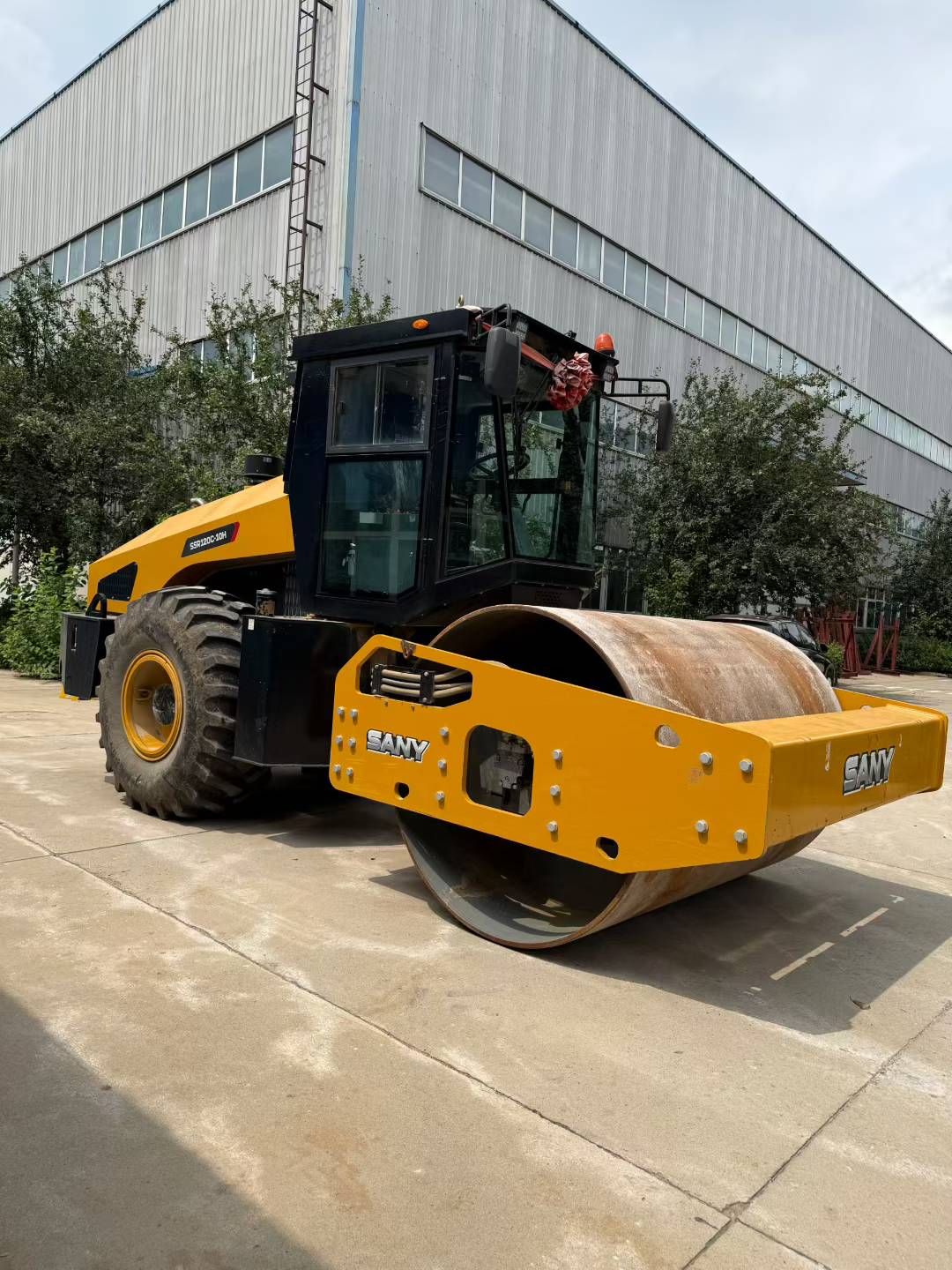

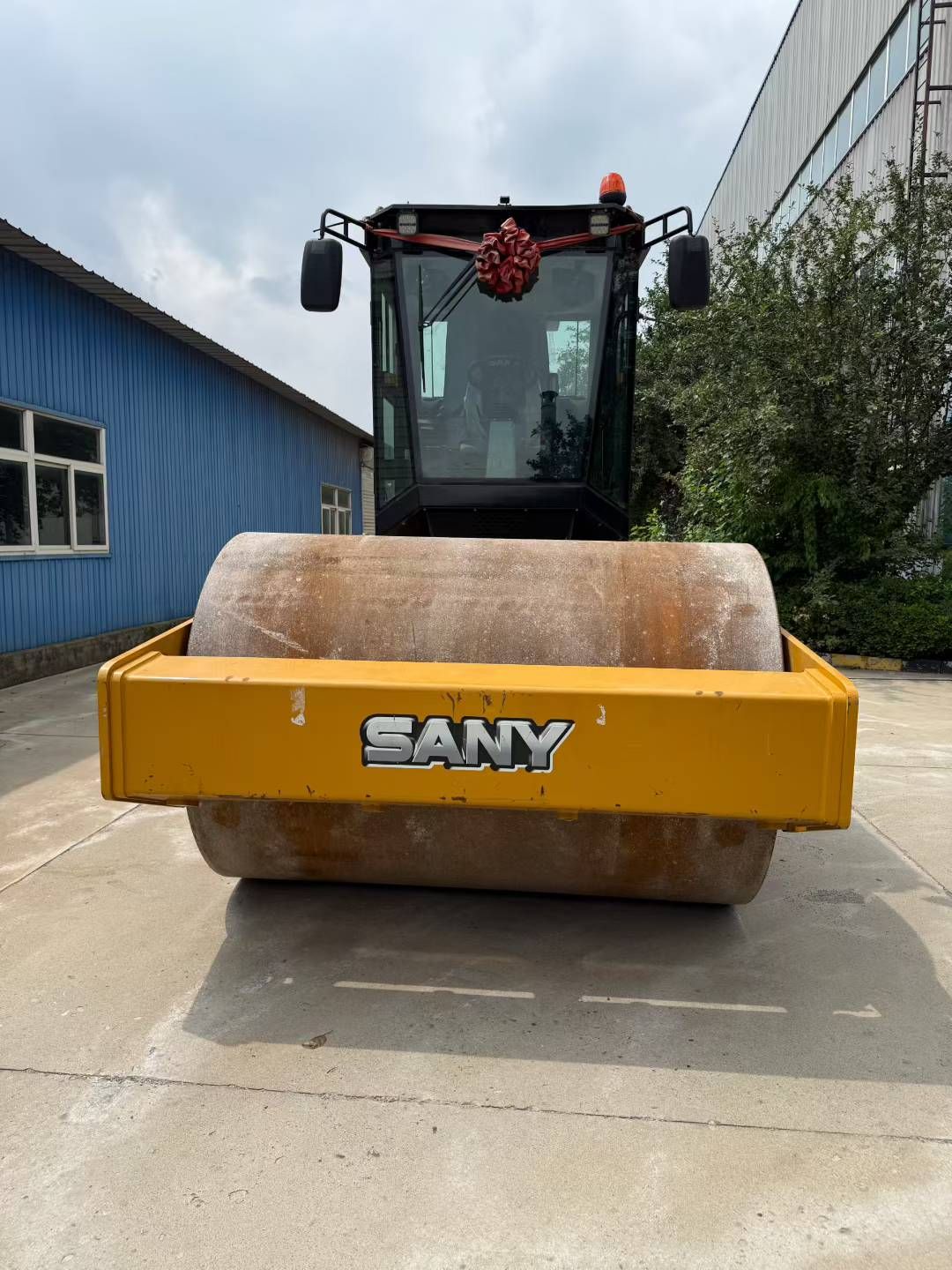

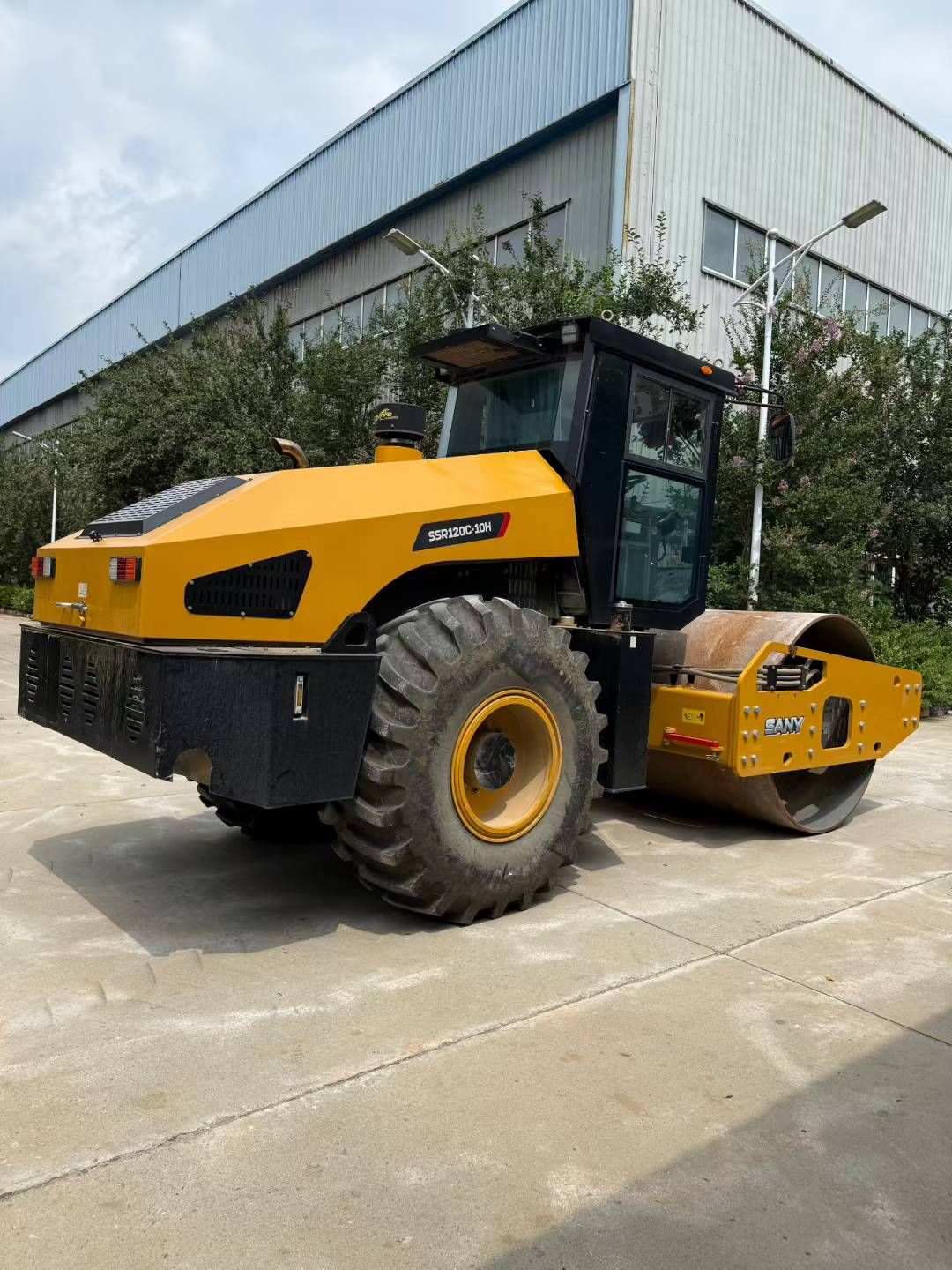

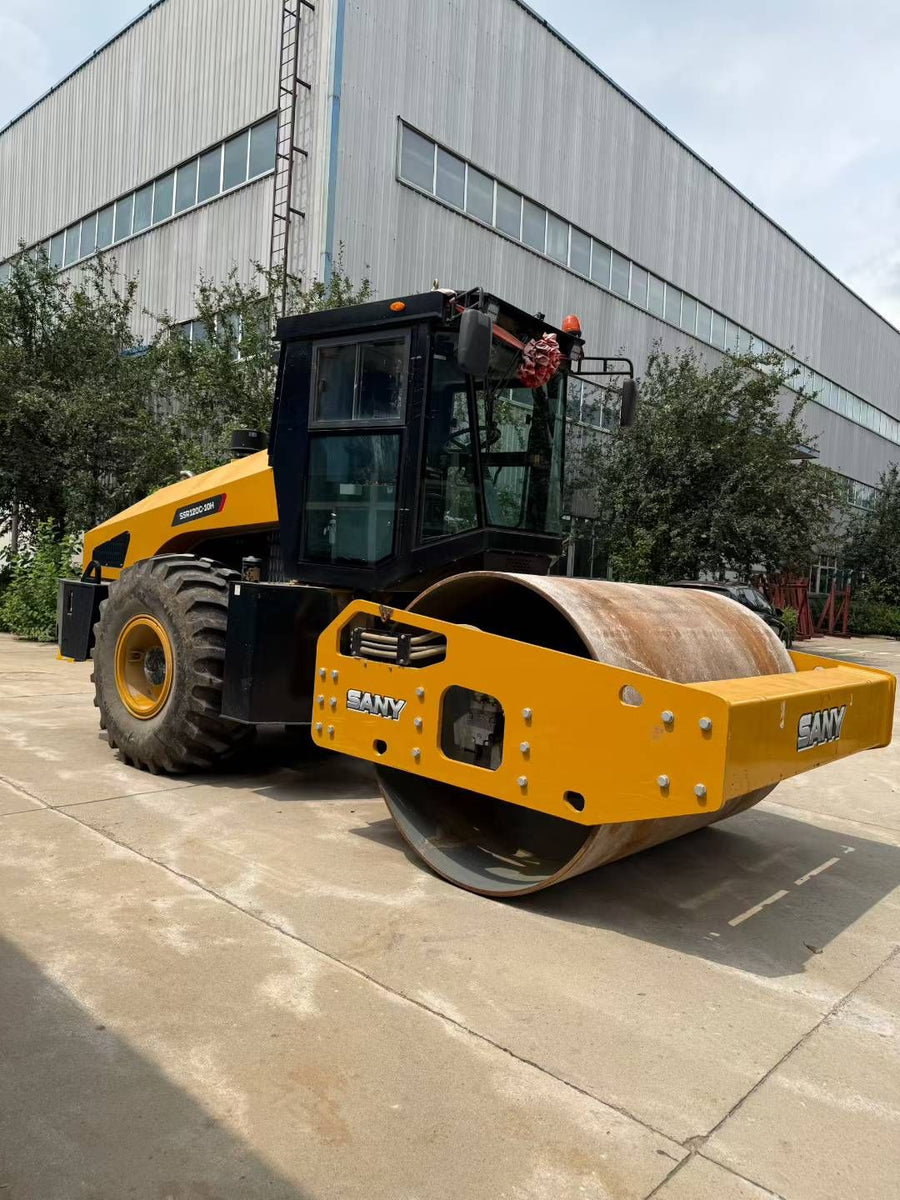

USED SANY SSR120
USED SANY SSR120
Precio habitual
$15,000.00 USD
Precio habitual
Precio de oferta
$15,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
| Specification Item | Core Parameter Value |
|---|---|
| Official Model | SANY SSR120 (SSR120‑5) |
| Machine Type | 12‑Ton Single‑Drum Vibratory Soil Compactor |
| Operating Weight | 12000 kg |
| Drum Load | 7000 kg |
| Rear Axle Load | 5000 kg |
| Static Linear Load of Drum | 329 N/cm |
| Drum Spec (Diameter × Width) | 1500 mm × 2130 mm |
| Vibration Mode | Dual‑Frequency & Dual‑Amplitude |
| Vibration Frequency | 32 / 36 Hz |
| Nominal Amplitude | 1.8 / 0.9 mm |
| Centrifugal Exciting Force | 280 / 178 kN |
| Engine Model | Cummins 4BTAA3.9‑C125 Diesel Engine |
| Rated Power | 93 kW (125 HP) @ 2200 rpm |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 220 L |
| Max Travel Speed | 0‑12.5 km/h |
| Theoretical Gradeability | 50% |
| Steering Angle | ±35° |
| Swing Angle | ±12° |
| Wheelbase | 2950 mm |
| Ground Clearance | 430 mm |
| Minimum Outside Turning Diameter | 11600 mm |
| Overall Dimensions (L×W×H) | 5750 × 2240 × 3190 mm |

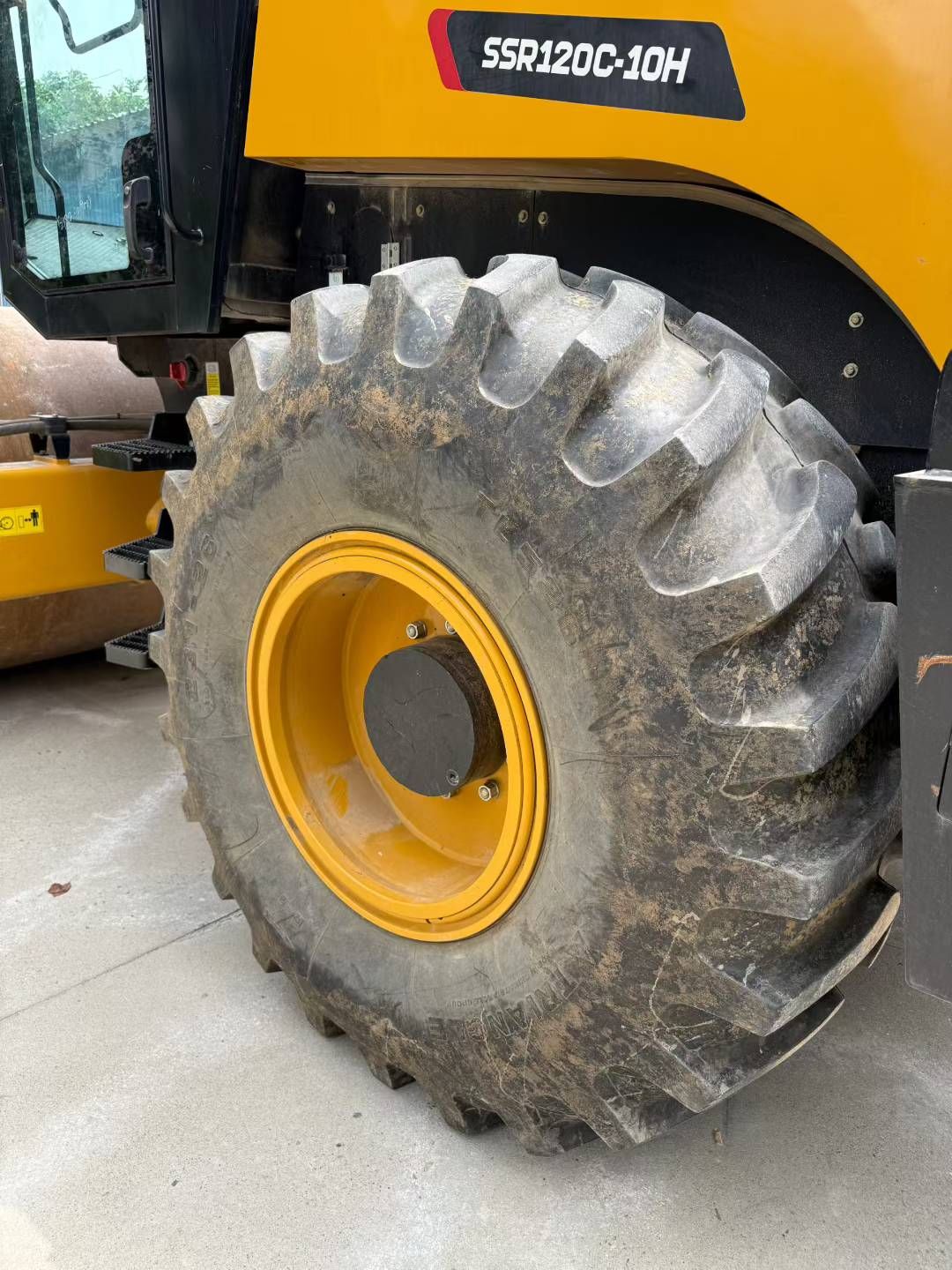

| Tire Specification | 23.1‑26 Heavy‑Duty Off‑road Tire |
| Transmission System | Full‑hydrostatic Dual‑wheel Drive |
| Steering System | Articulated Full‑hydraulic Steering |
| Braking System | Hydrostatic Service Brake + Mechanical Parking Brake |
| Cab Configuration | ROPS‑FOPS Enclosed Cab, Air‑Conditioning Optional, Vibration‑Damping Mounts |
| Main Applications | Earth‑rock foundation compaction, highway subgrade, municipal engineering, water conservancy projects, large‑scale site leveling |
