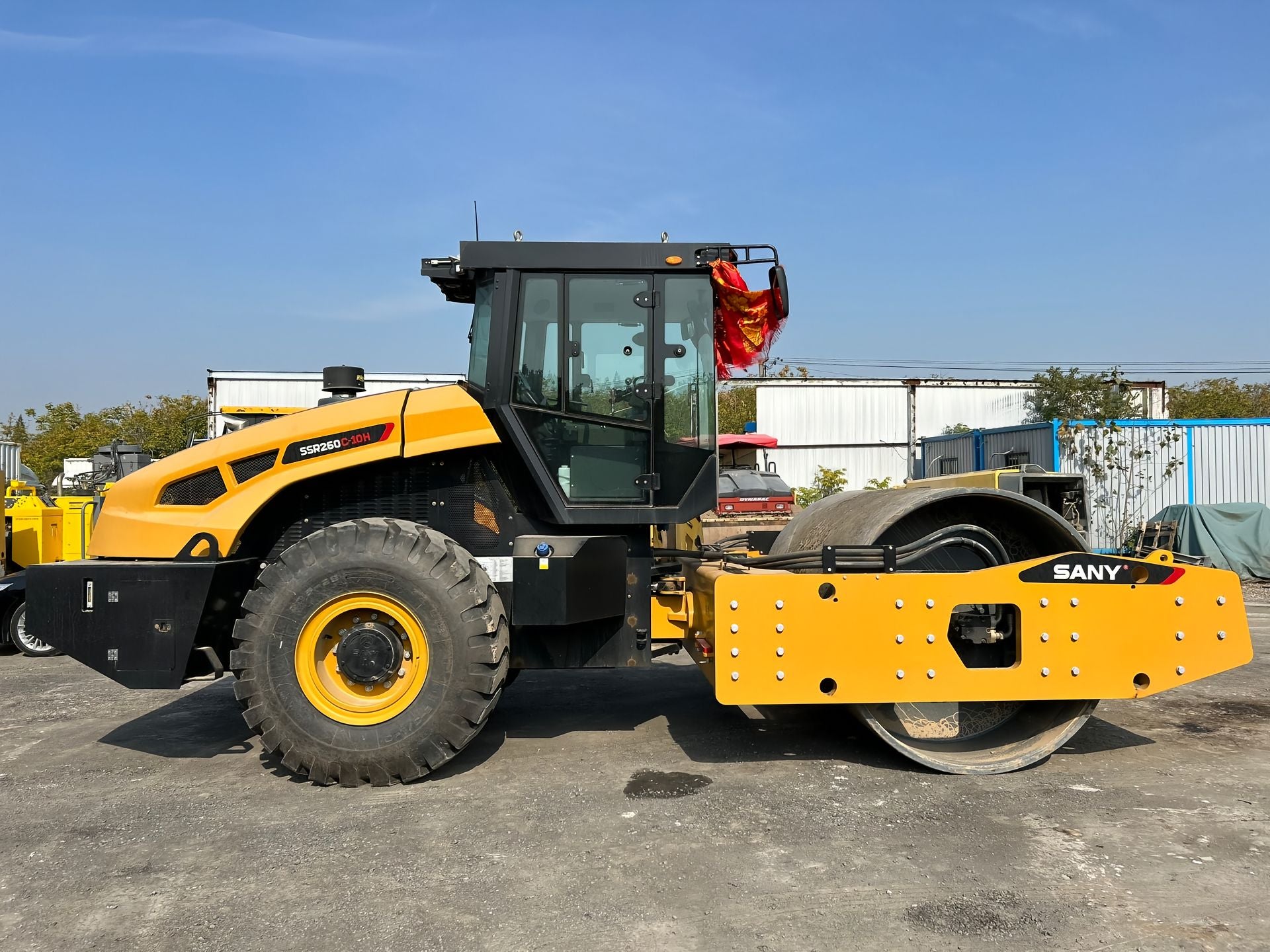

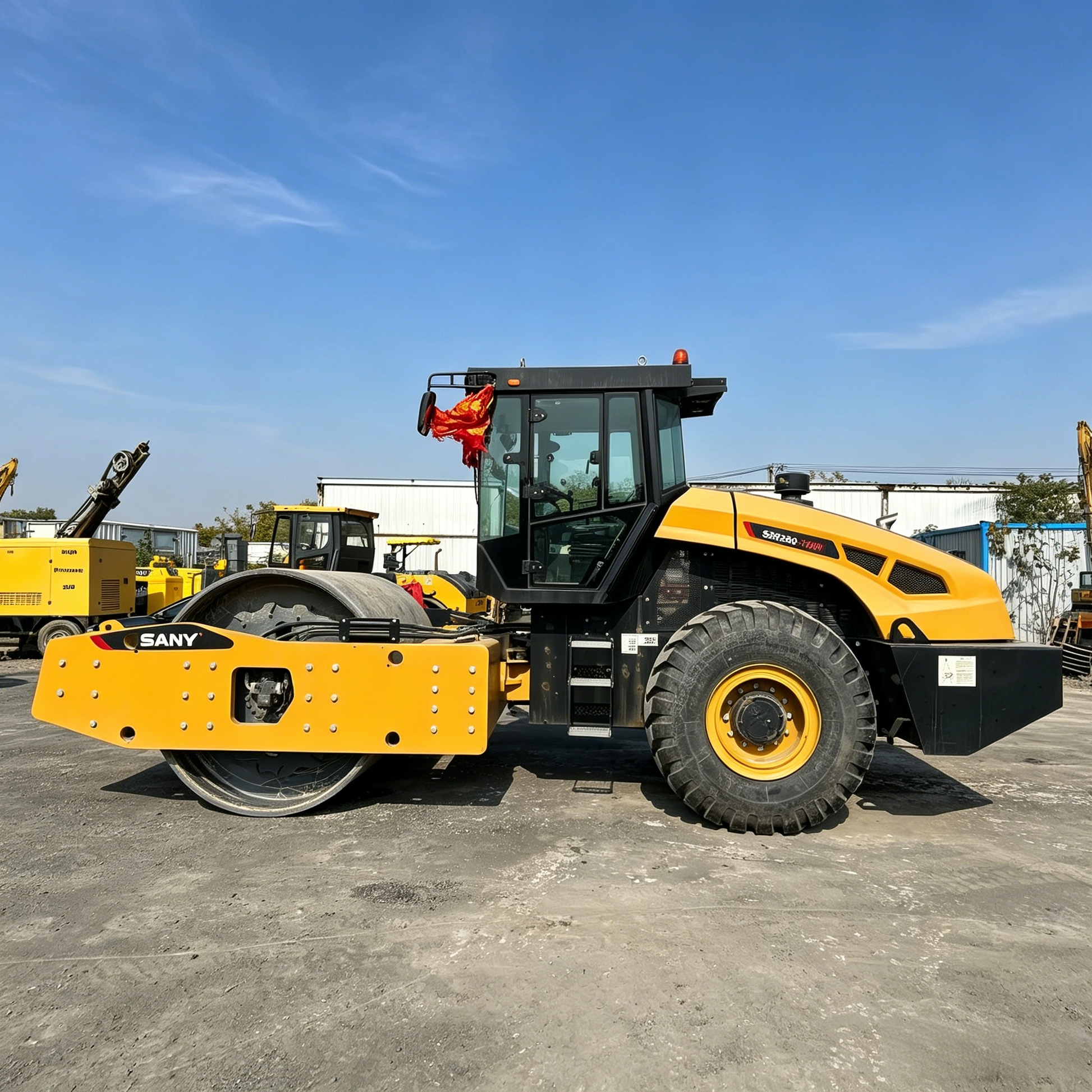

USED SANY SSR260C-10H
USED SANY SSR260C-10H
Precio habitual
$25,000.00 USD
Precio habitual
Precio de oferta
$25,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
| Specification Item | Core Parameter Value |
|---|---|
| Official Model | SANY SSR260C‑10H |
| Machine Type | 26‑Ton Full‑Hydraulic Dual‑Drive Single‑Drum Vibratory Soil Compactor |
| Operating Weight | 26000 kg |
| Drum Load | 13000 kg |
| Rear Axle Load | 13000 kg |
| Static Linear Load of Drum | 760 N/cm |
| Drum Spec (Diameter × Width) | 1700 mm × 2170 mm |
| Vibration Mode | Dual‑Frequency & Dual‑Amplitude |
| Vibration Frequency | 27 Hz / 32 Hz |
| Nominal Amplitude | 2.05 mm / 1.03 mm |
| Centrifugal Exciting Force | 435 kN / 315 kN |
| Engine Model | Shangchai SC7H240G4 Diesel Engine (China National Stage IV) |
| Rated Power | 177 kW (240 HP) @ 2200 rpm |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 300 L |
| Max Travel Speed | Low: 0‑5.5 km/h; High: 0‑8 km/h |
| Theoretical Gradeability | 50% |
| Steering Angle | ±35° |
| Swing Angle | ±12° |
| Wheelbase | 3300 mm |
| Ground Clearance | 450 mm |
| Minimum Outside Turning Diameter | 13640 mm |
| Overall Dimensions (L×W×H) | 7090 × 2470 × 3340 mm |
| Tire Specification | Heavy‑Duty Rock‑Resistant Off‑road Tire |
| Transmission System | Full‑hydraulic Dual‑wheel Drive |
| Steering System | Articulated Full‑hydraulic Steering |
| Braking System | 3‑Stage Braking: Service Brake + Parking Brake + Emergency Brake |

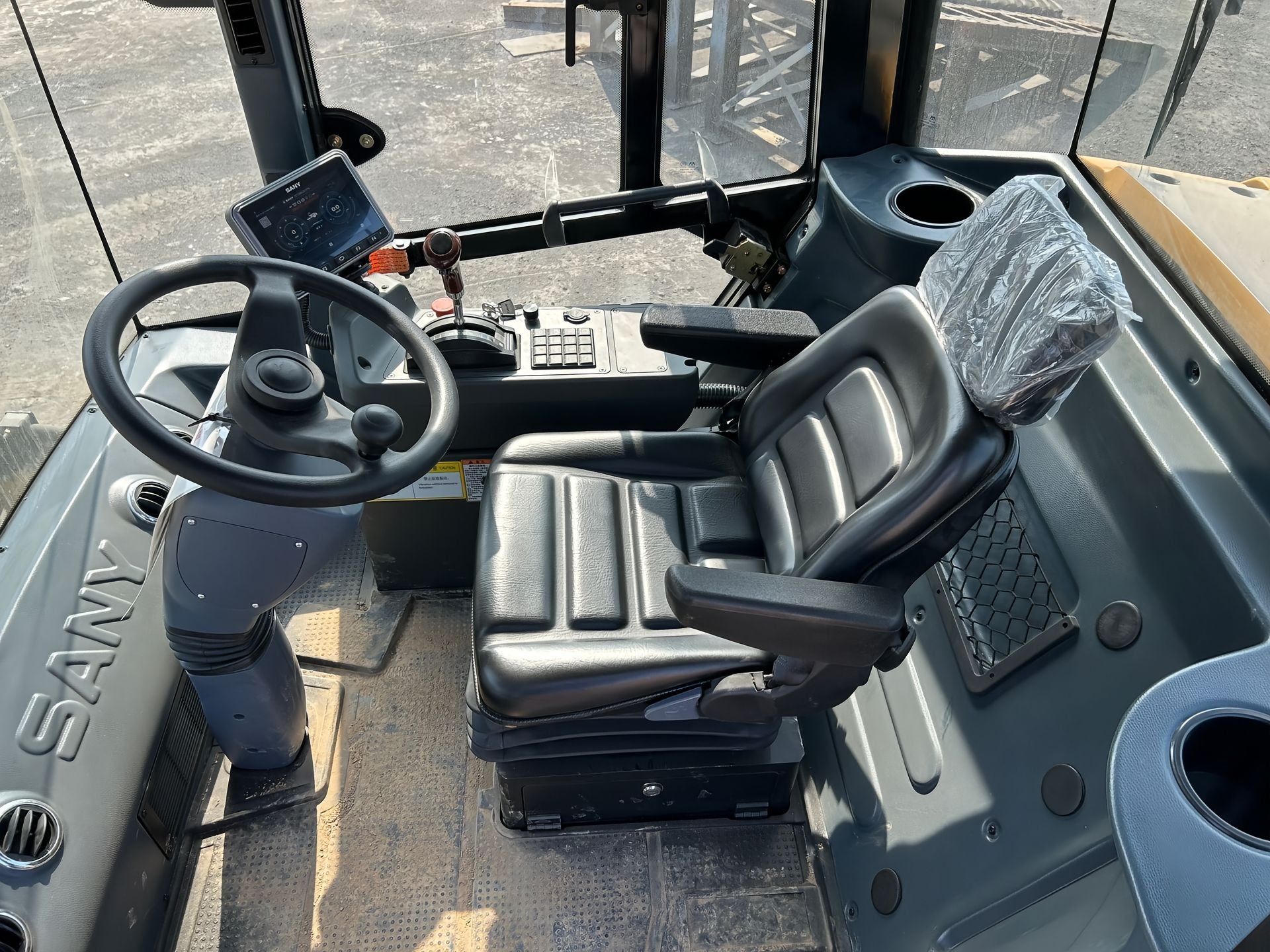

| Cab Configuration | ROPS‑FOPS Enclosed Cab, Full‑Surround Air‑Conditioning, Low‑Noise Interior, Shock‑Absorbing Mounts |
| Main Applications | Dam construction, high‑speed railway subgrade, large‑scale earth‑rock filling, highway subgrade, water conservancy projects, heavy‑duty foundation compaction |
