SANY

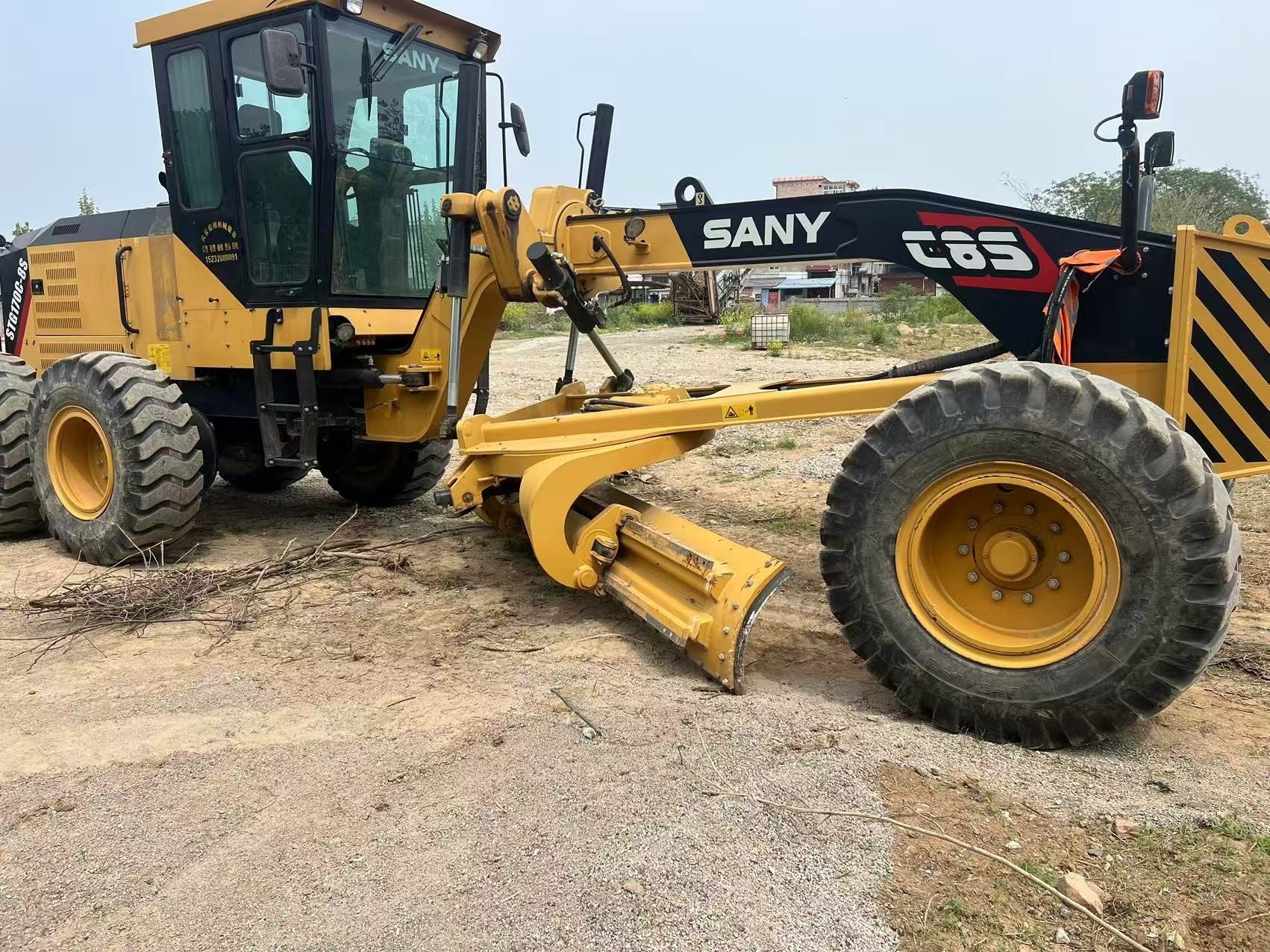

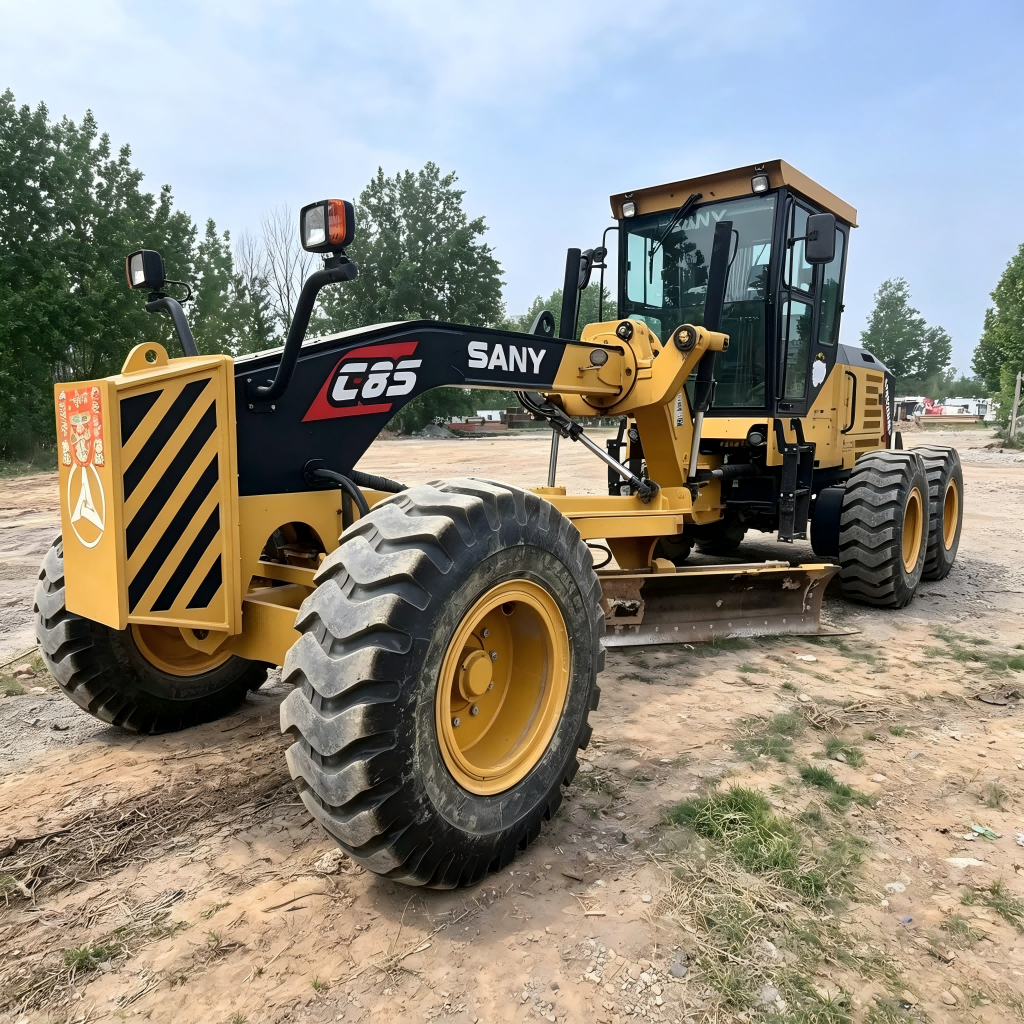

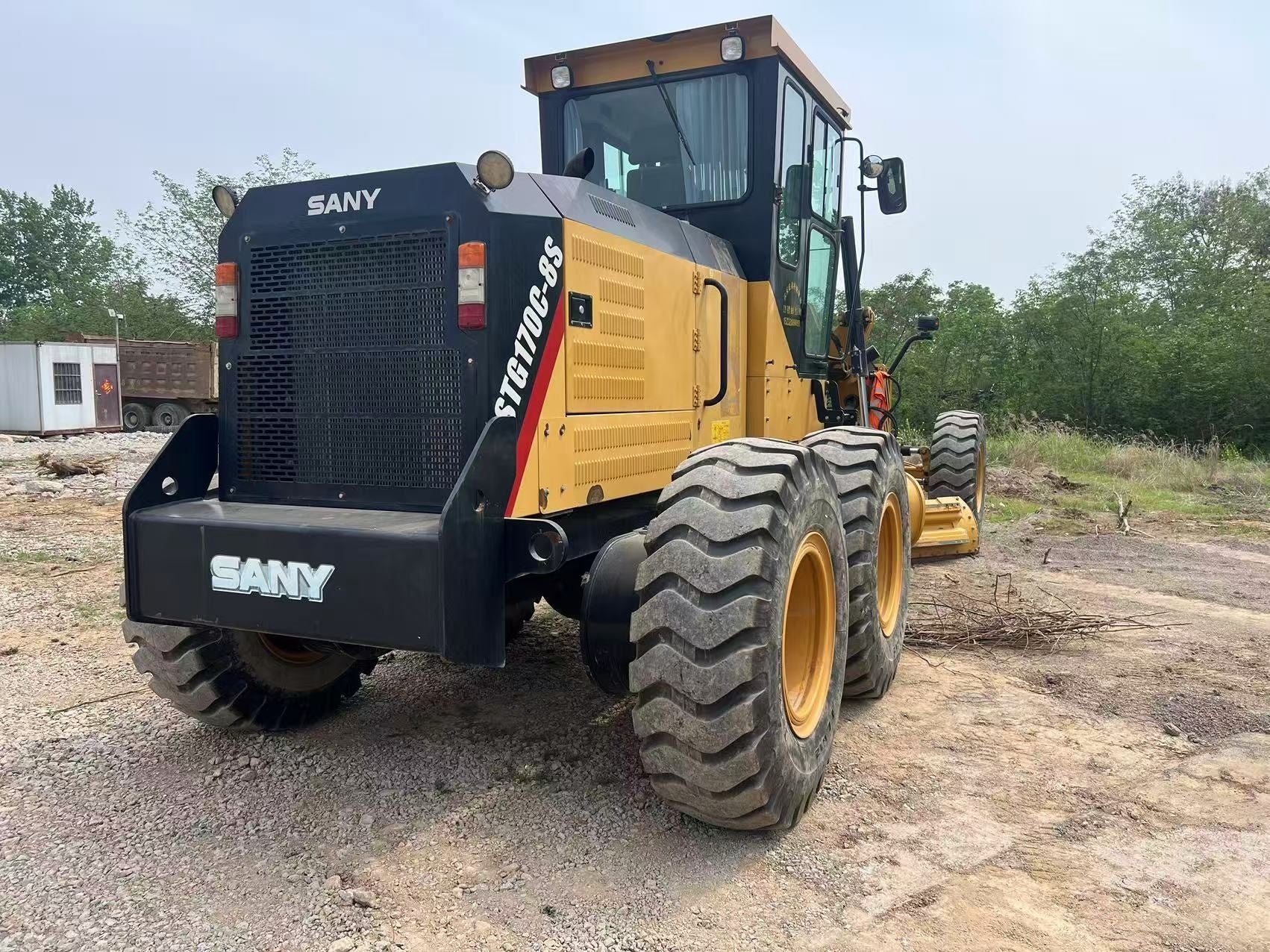

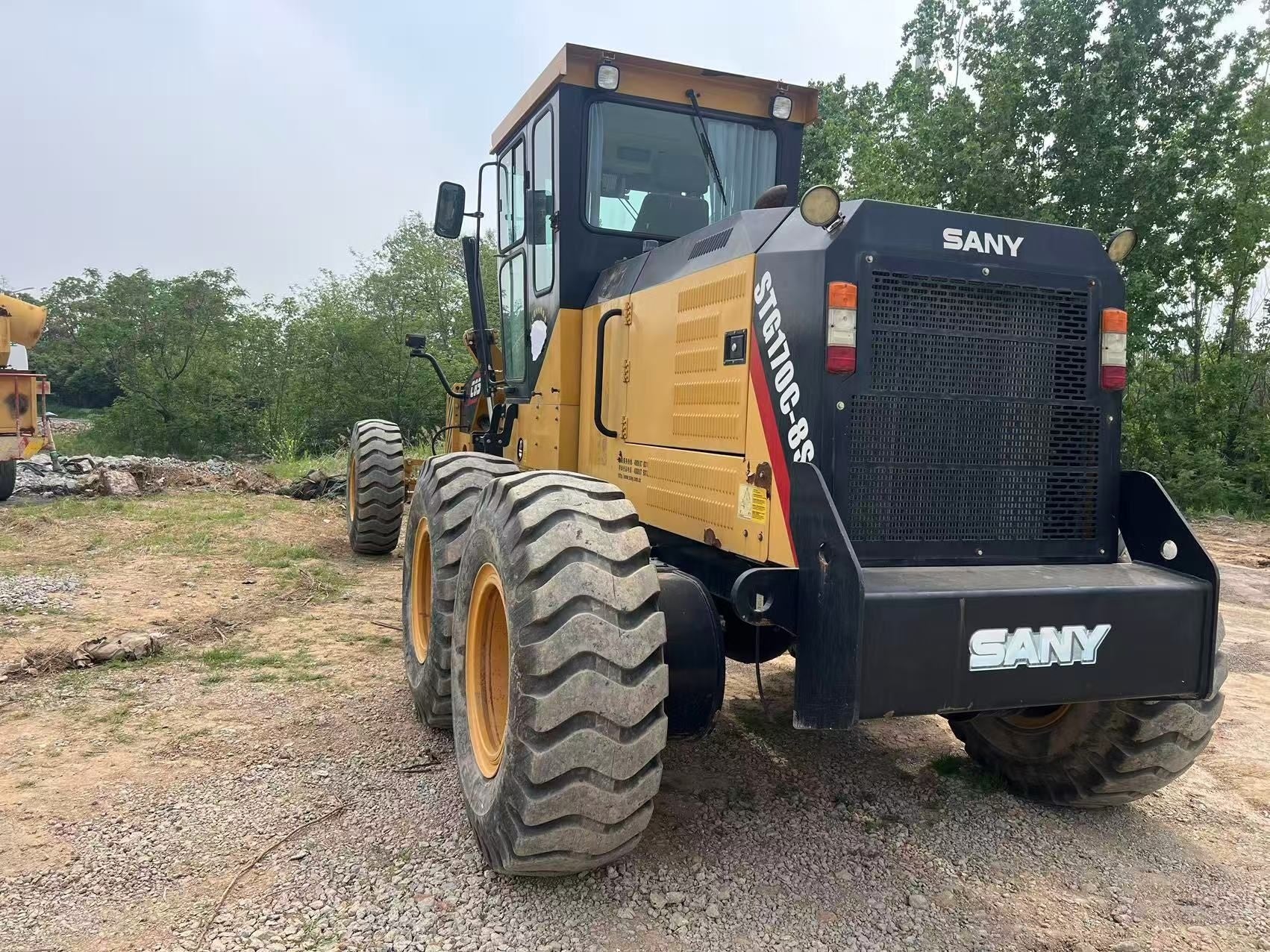

USED SANY STG170C-8

$14,000.00 USD

Oferta Agotado

Parameter	Value
Model	SANY STG170C-8
Machine Type	Road Motor Grader
Operating Weight	15200 kg
Standard Moldboard Length	3965 mm
Moldboard Height	610 mm
Max Cutting Depth	650 mm
Max Blade Lifting Height	450 mm
Blade Rotation Angle	360°
Engine Model	Cummins B6.7
Rated Power	125 kW @ 2200 rpm
Engine Displacement	6.7 L
Transmission Type	Power Shift Transmission
Forward Gears	6
Reverse Gears	3
Max Forward Speed	38 km/h
Max Reverse Speed	24 km/h
Min Turning Radius	7.2 m
Front Wheel Lean Angle	±18°
Articulation Steering Angle	±25°
Gradeability	25%
Tire Specification	14.00-24
Overall Length	8850 mm
Overall Width	2580 mm
Overall Height	3350 mm
Fuel Tank Capacity	280 L
Hydraulic Oil Tank Capacity	95 L
Working Hydraulic Pressure	20.5 MPa
System Voltage	24 V
