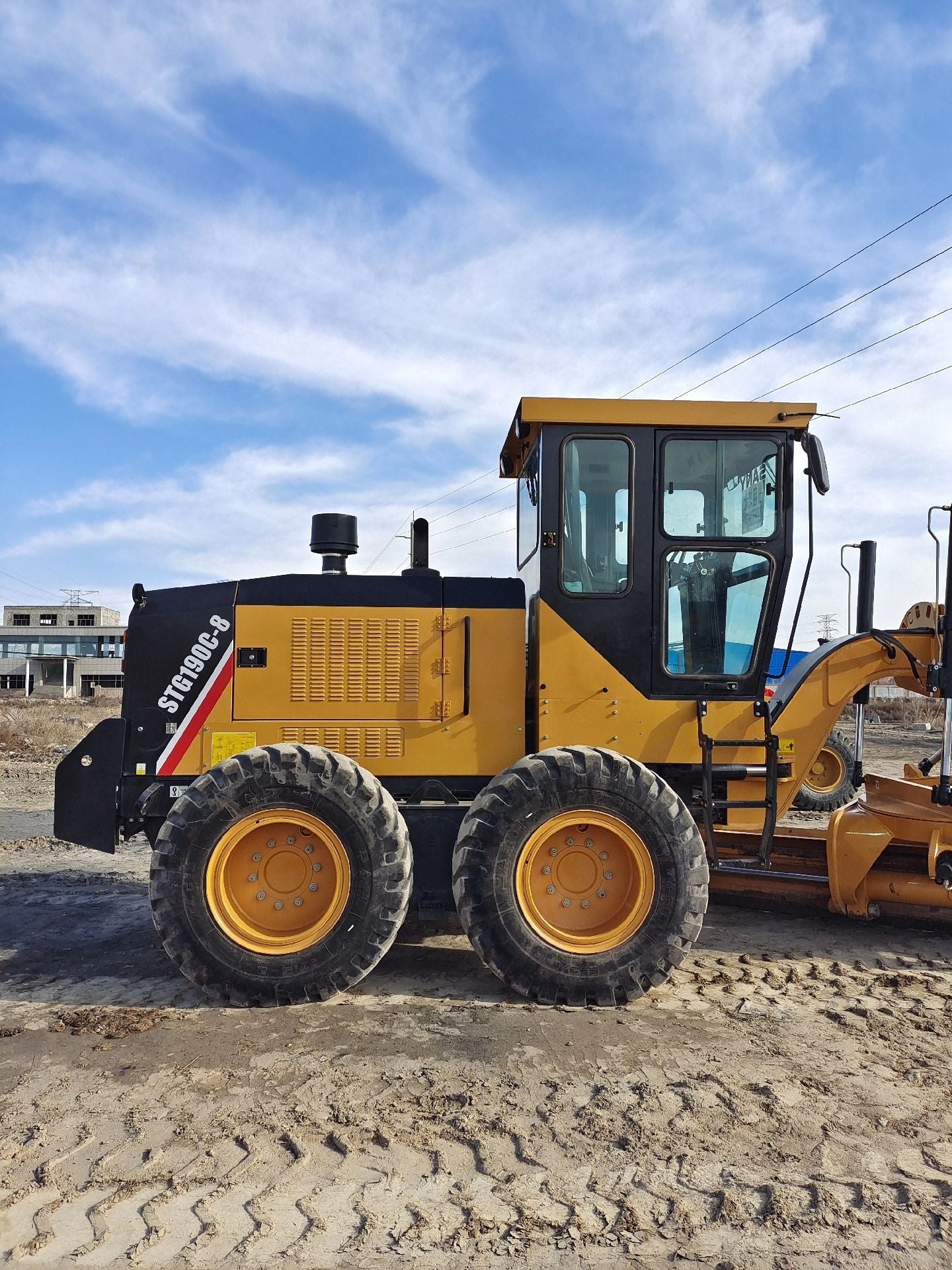

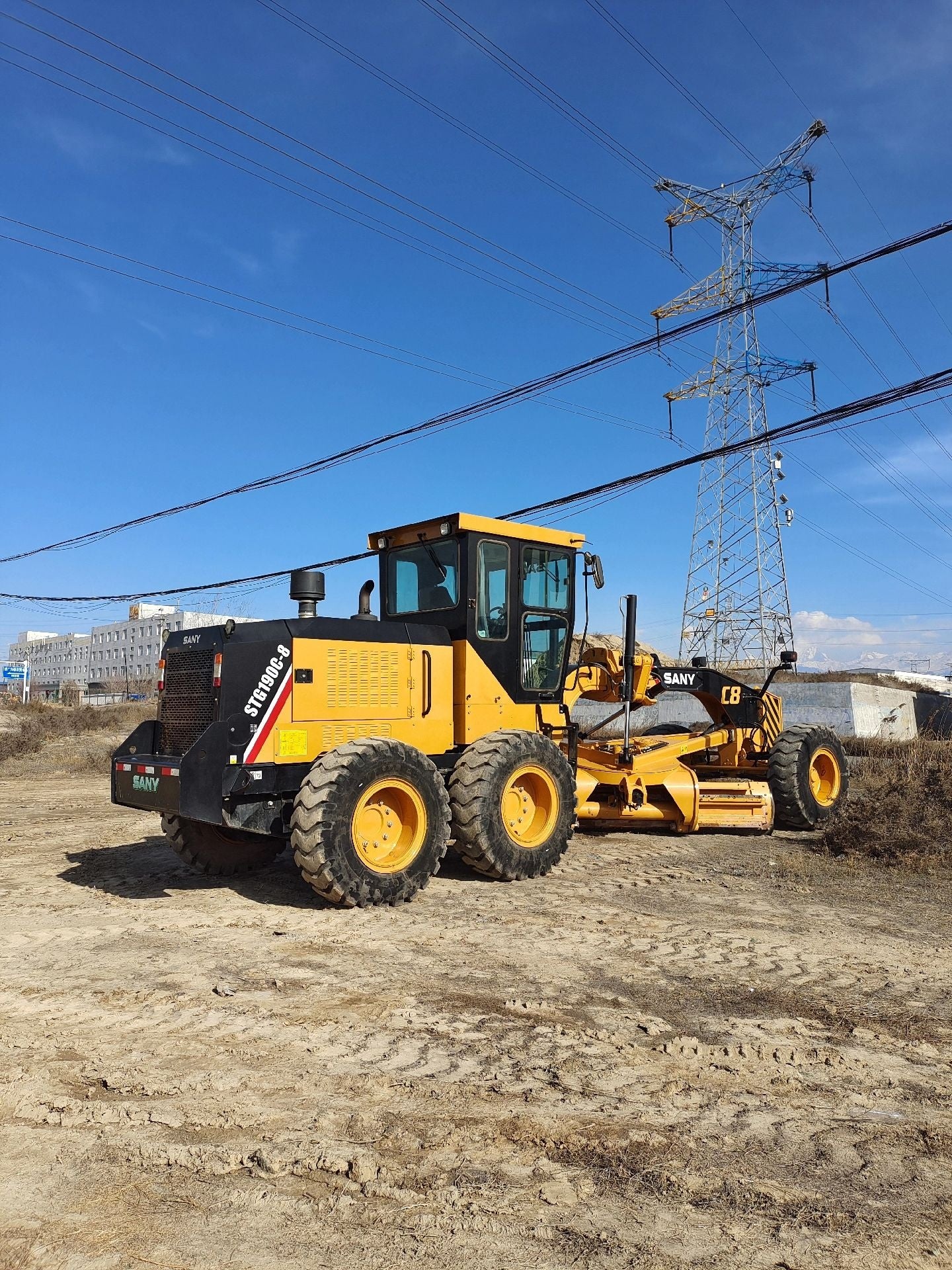

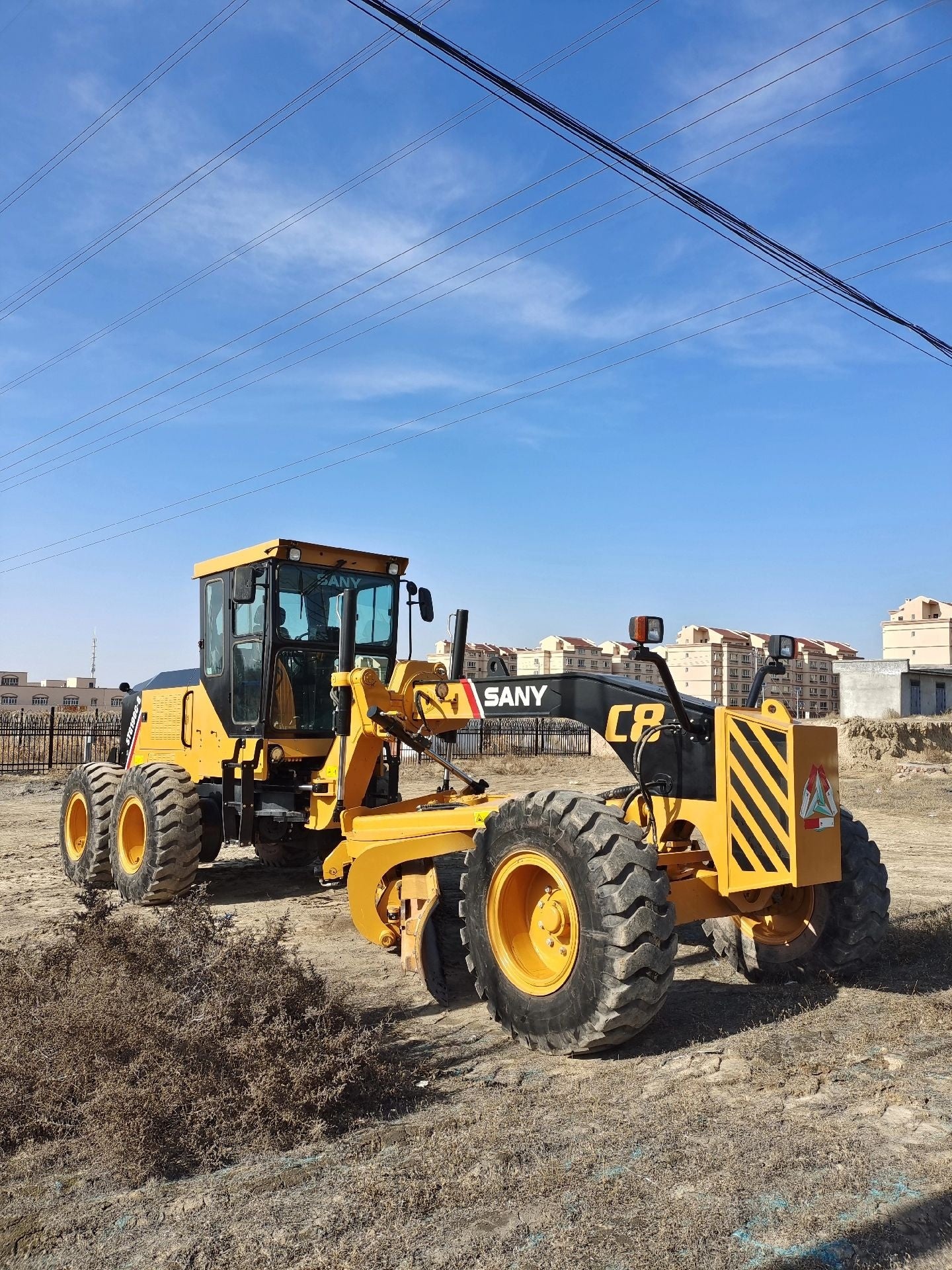

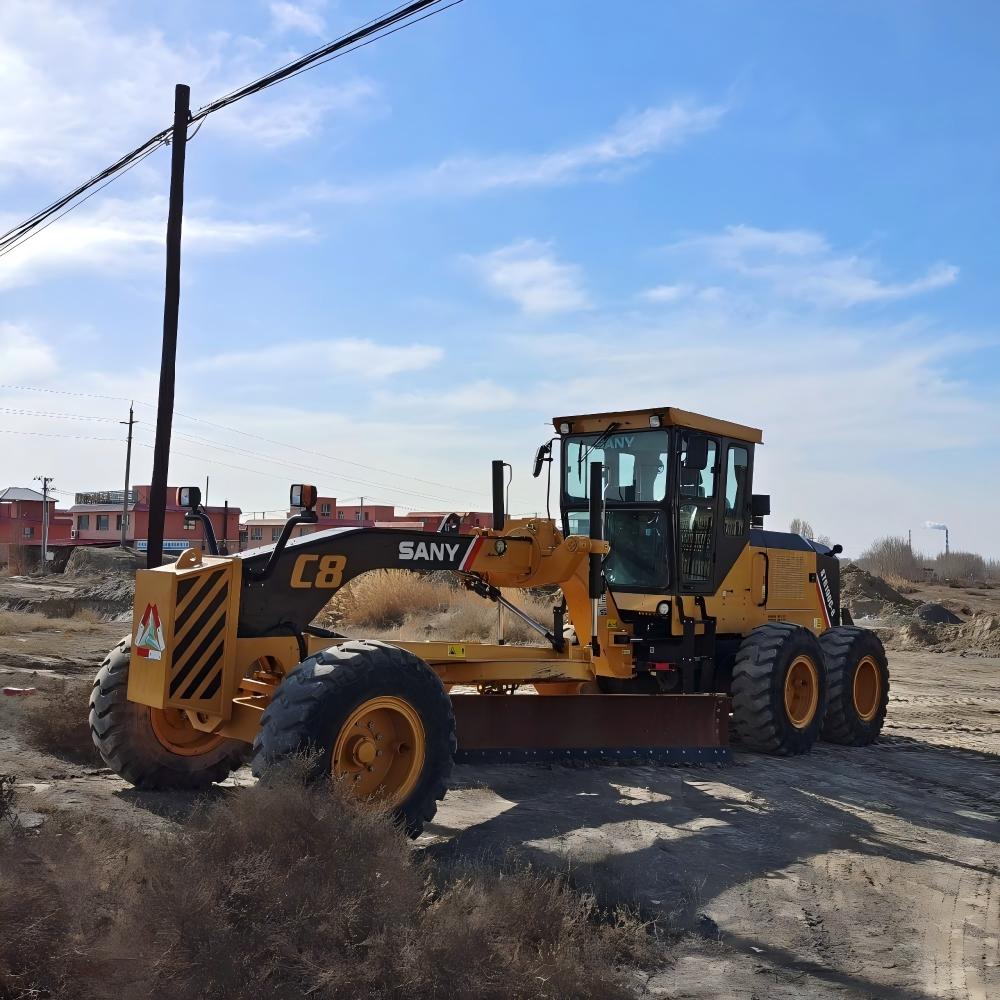

USED SANY STG190C-8

USED SANY STG190C-8

$14,000.00 USD
$14,000.00 USD
Oferta Agotado
Parameter Value
Model SANY STG190C-8
Machine Type Motor Grader
Operating Weight 16300 kg
Standard Moldboard Length 3965 mm
Moldboard Height 610 mm
Max Cutting Depth 680 mm
Max Blade Lifting Height 470 mm
Blade Rotation Angle 360°
Engine Model Cummins B6.7
Rated Power 140 kW @ 2200 rpm
Engine Displacement 6.7 L
Transmission Type Hydraulic Power Shift
Forward Gears 6
Reverse Gears 3
Max Forward Speed 40 km/h
Max Reverse Speed 26 km/h
Minimum Turning Radius 7.4 m
Front Wheel Lean Angle ±18°
Articulated Steering Angle ±25°
Gradeability 25%
Tire Specification 14.00-24
Overall Length 8980 mm
Overall Width 2580 mm
Overall Height 3380 mm
Fuel Tank Capacity 300 L
Hydraulic Oil Tank Capacity 100 L
Working Hydraulic Pressure 20.5 MPa
Electrical System Voltage 24 V
