| Model |

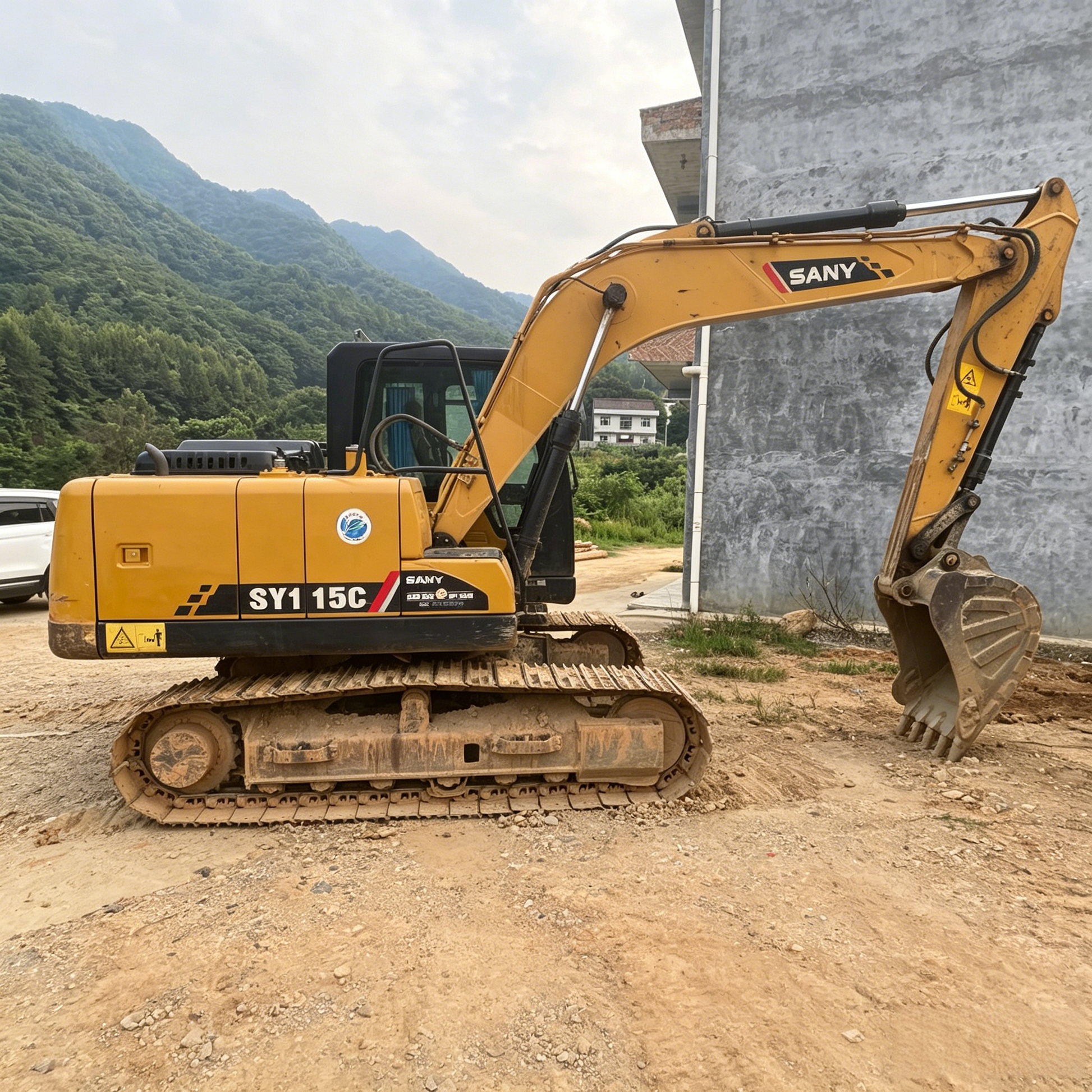

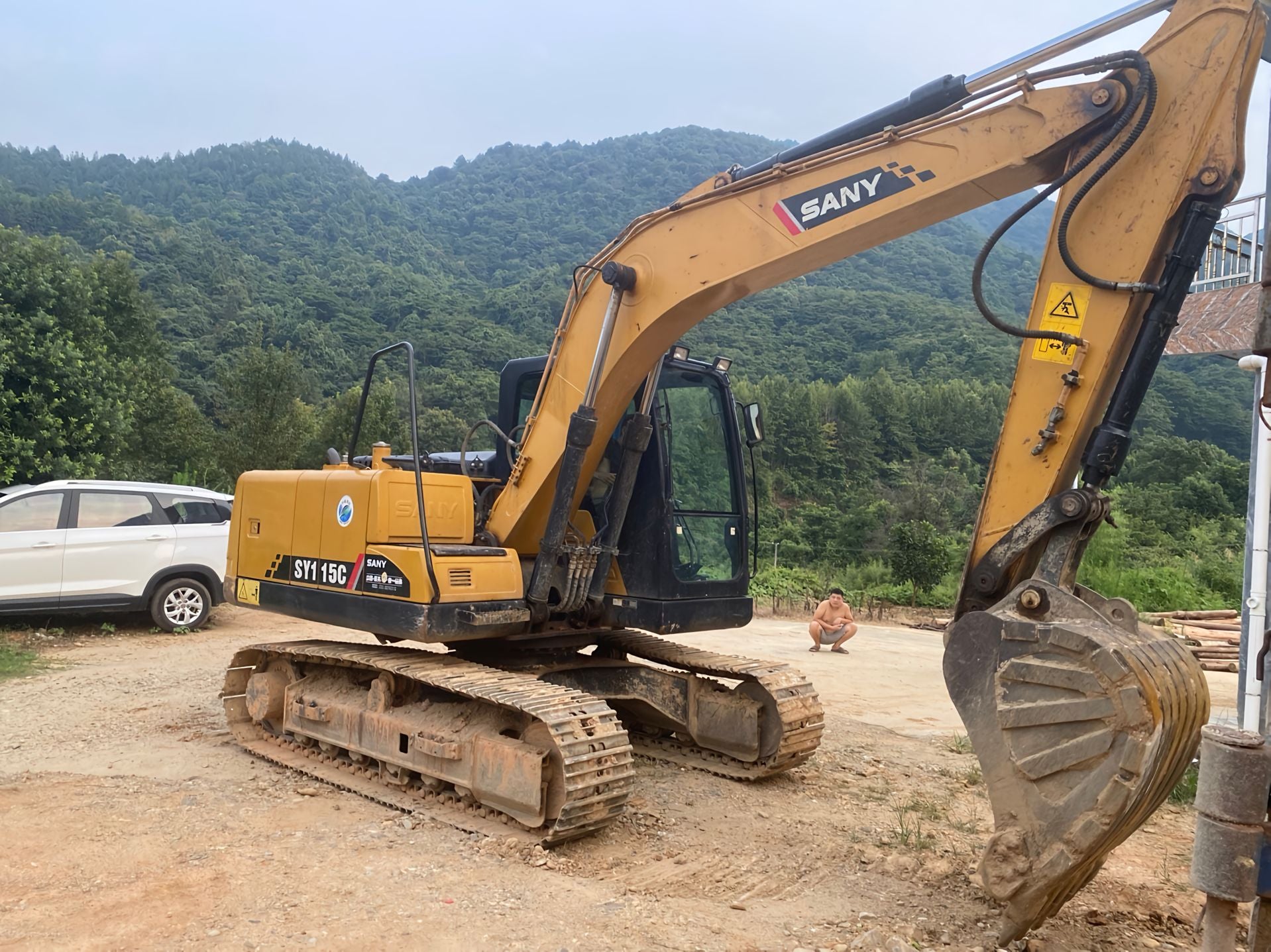

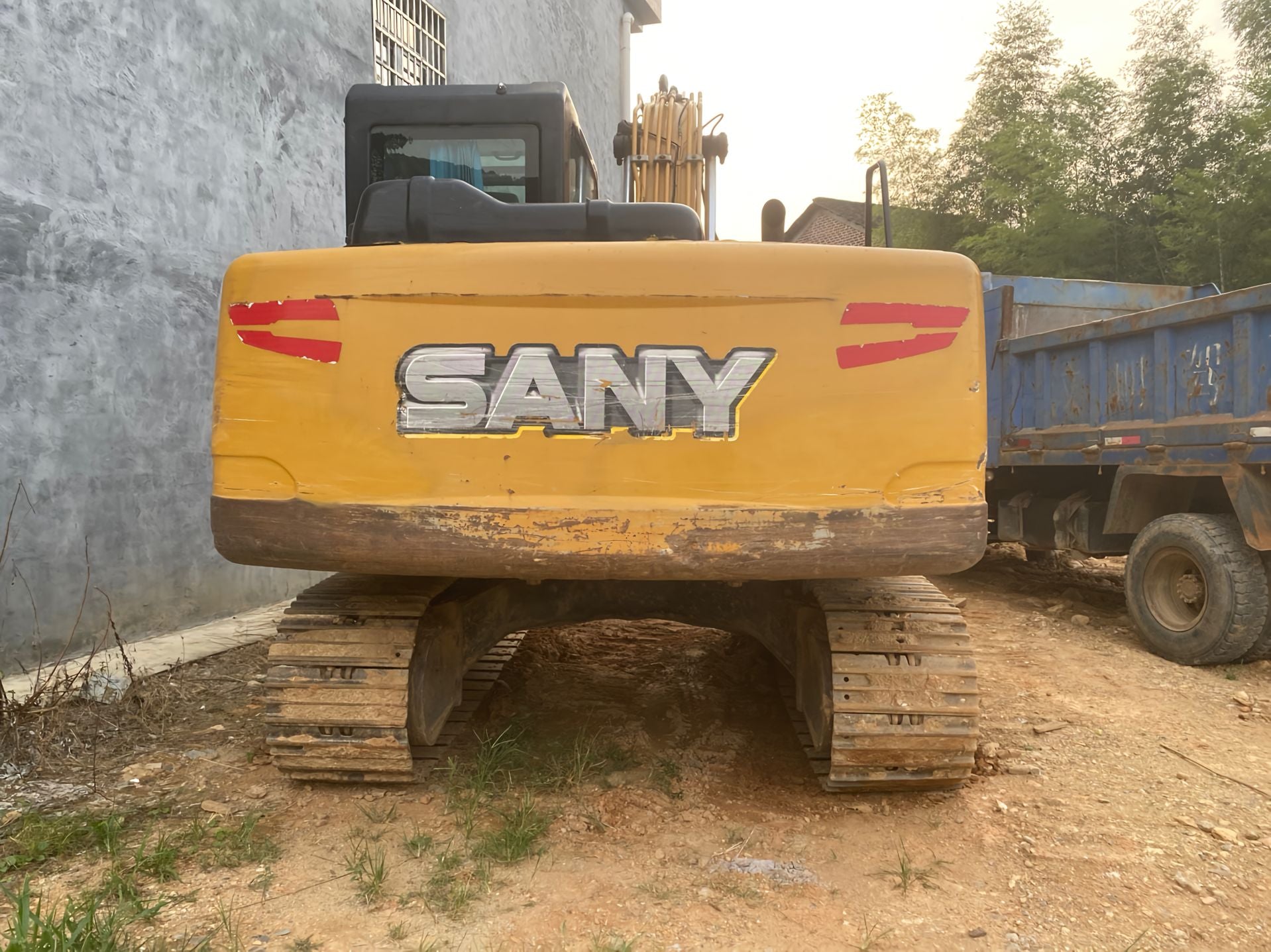

SANY SY115C Medium Small Crawler Hydraulic Excavator |
| Operating Weight |
12,400 kg |
| Standard Heaped Bucket Capacity |
0.50 m³ (Range:0.22~0.70 m³) |
| Overall Transport Length |
7,280 mm |
| Overall Transport Width |
2,550 mm |
| Overall Transport Height(Cab Top) |
2,890 mm |
| Standard Track Shoe Width |
500 mm |
| Track Gauge |
2,050 mm |
| Track Length on Ground |
2,780 mm |
| Ground Clearance |
410 mm |
| Minimum Tail Swing Radius |
2,120 mm |
| Engine Model |
ISUZU 4JJ1-XDJAG-01-C3 4-Cylinder Diesel |
| Engine Type |
Water-cooled,4-stroke turbocharged direct injection diesel engine |
| Rated Net Power |
73 kW @ 2000 rpm |
| Engine Displacement |
2.999 L |
| Max Engine Torque |
365 N·m @1600 rpm |
| Fuel Tank Capacity |
240 L |
| Hydraulic Oil Tank Capacity |
150 L |
| Main Hydraulic Working Pressure |
28.0 MPa |
| Max Digging Reach(Ground Level) |
7,735 mm |
| Max Digging Depth |
5,190 mm |
| Max Vertical Wall Digging Depth |
4,420 mm |
| Max Digging Height |
8,150 mm |
| Max Dumping Height |
5,440 mm |
| Bucket Digging Force(ISO) |
90.6 kN |
| Arm Digging Force(ISO) |
57.2 kN |
| Swing Speed |
13.06 rpm |
| Travel Speed(Low/High) |
3.5 km/h / 5.5 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
41.6 kPa |
| Standard Boom Length |
4,350 mm |
| Standard Stick Length |
2,100 mm |
