| Model |

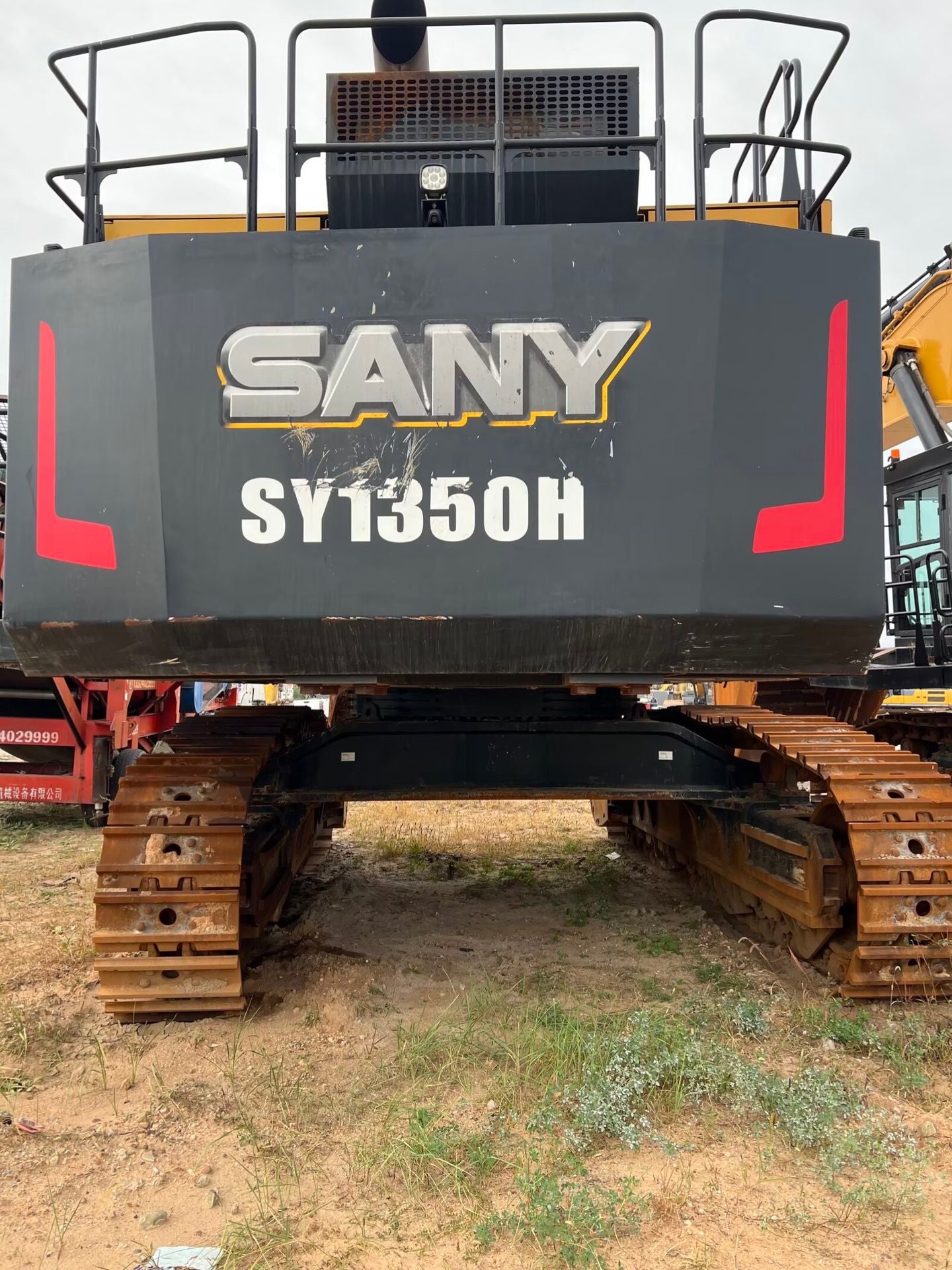

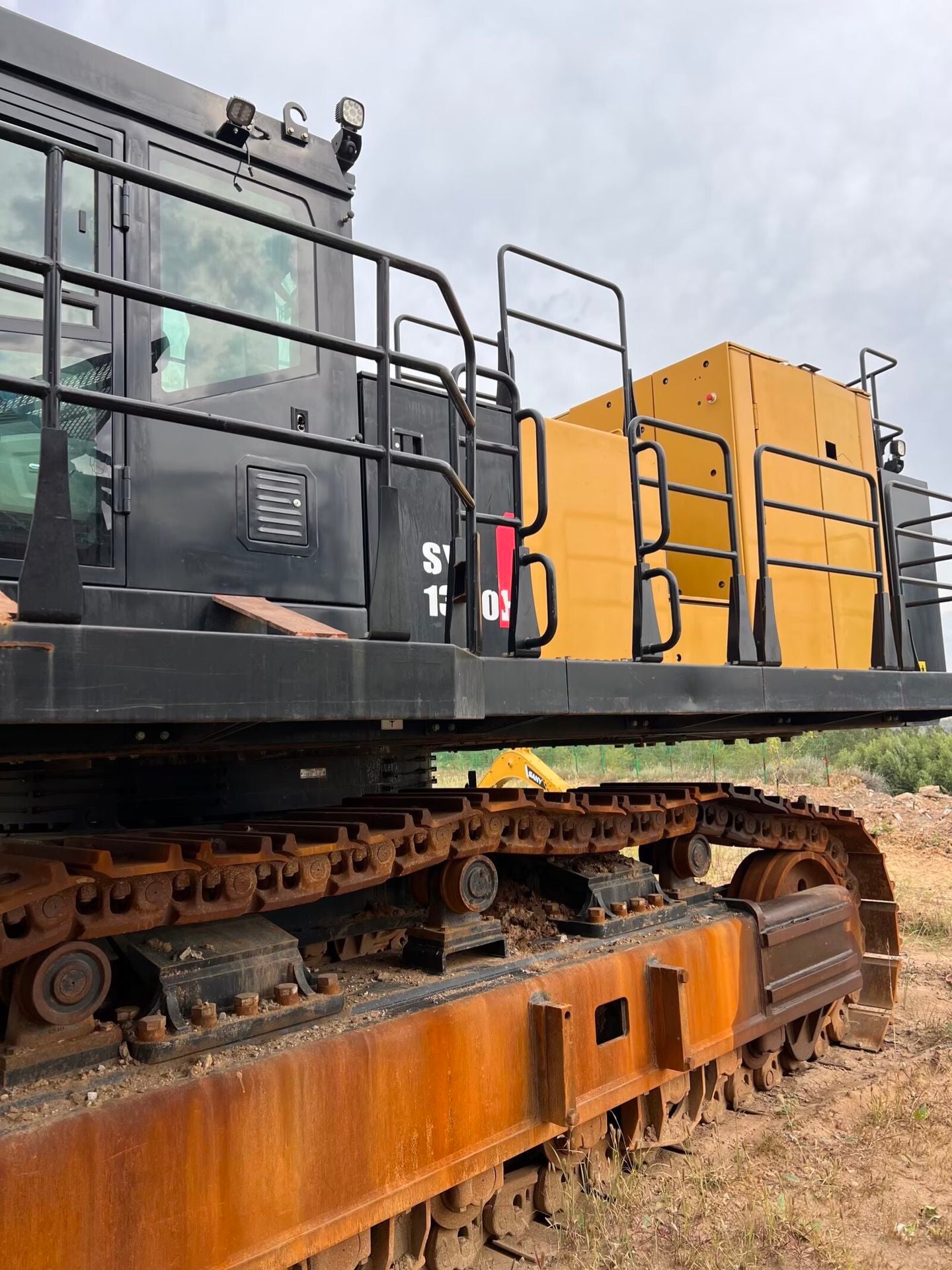

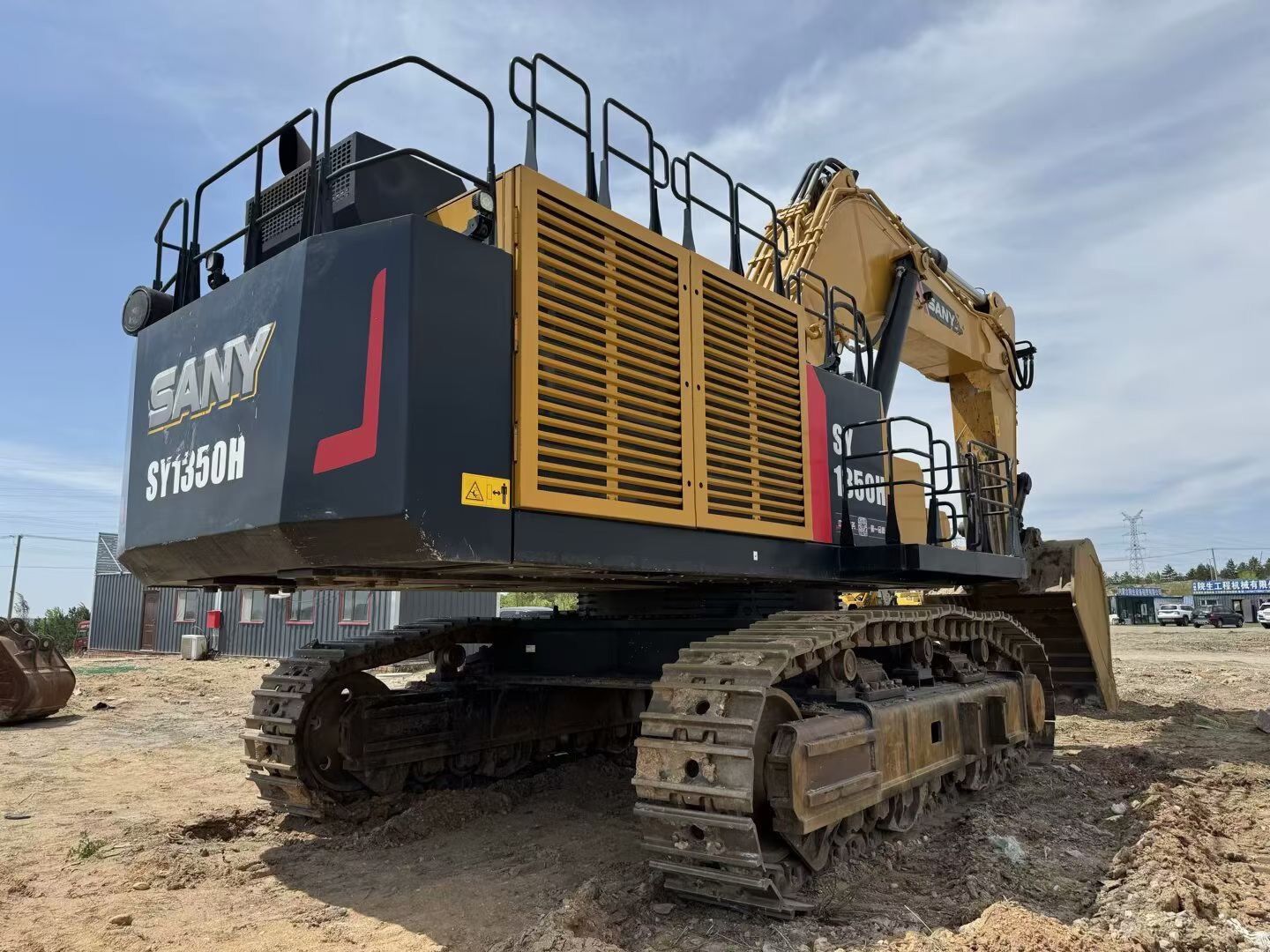

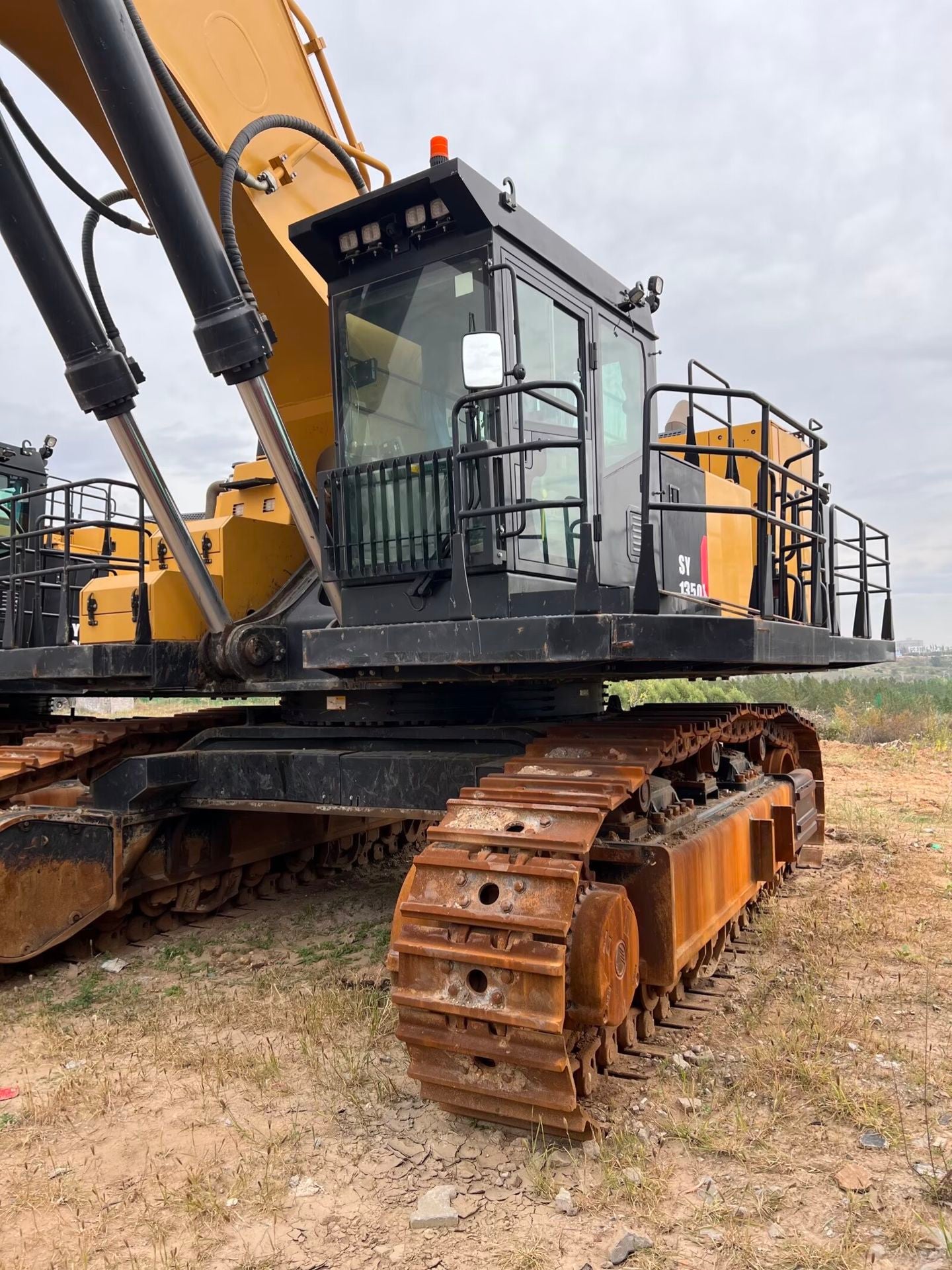

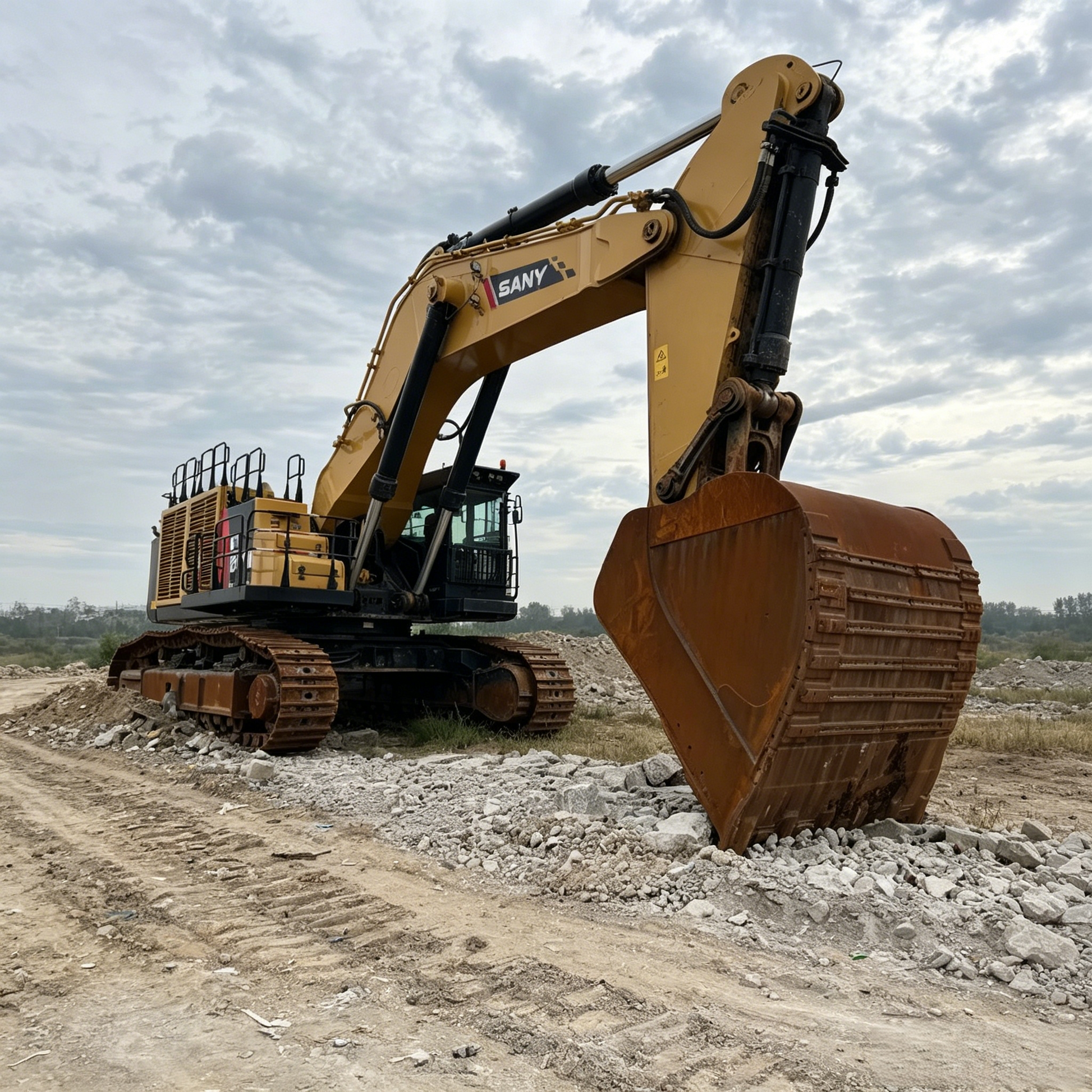

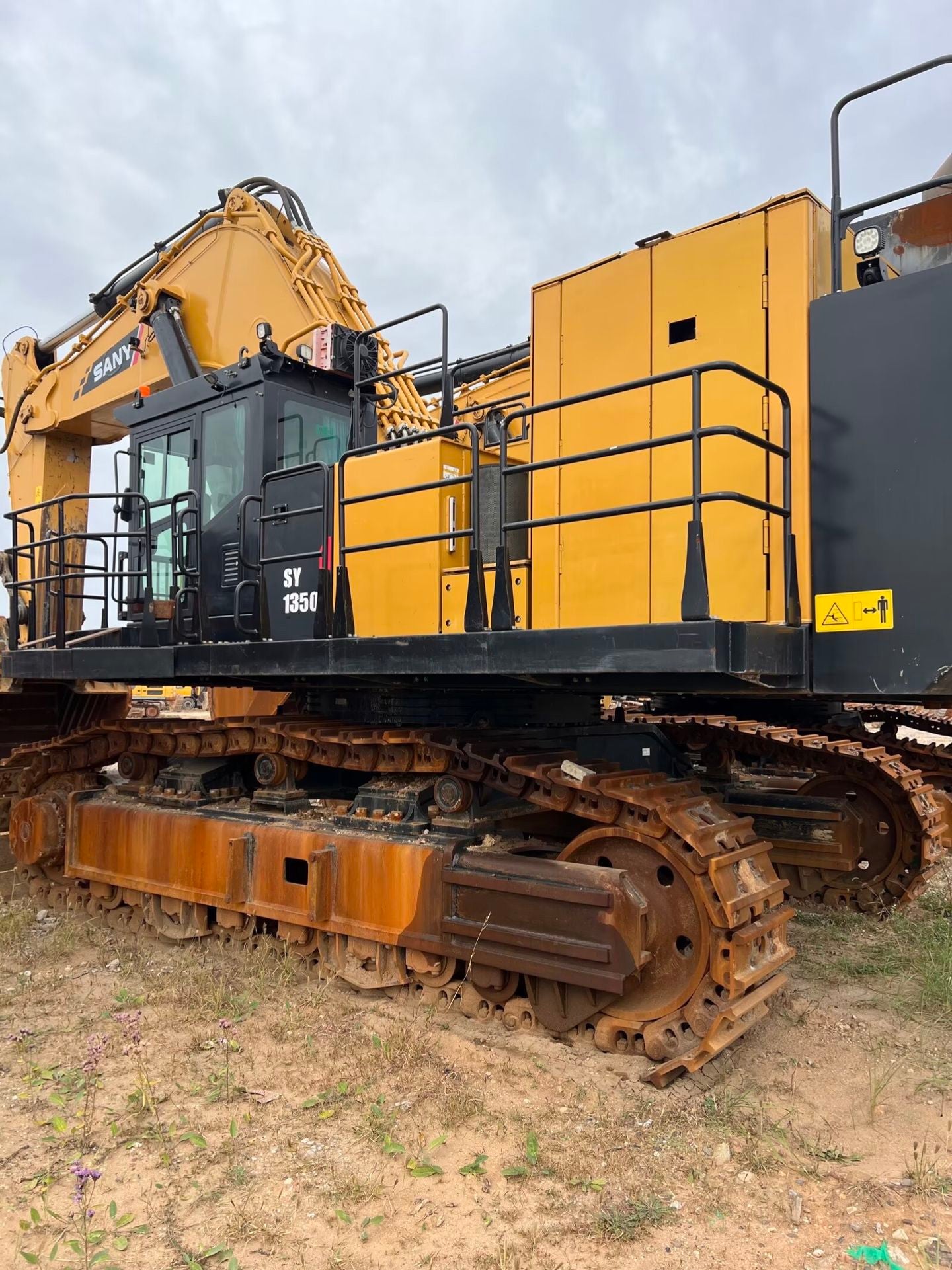

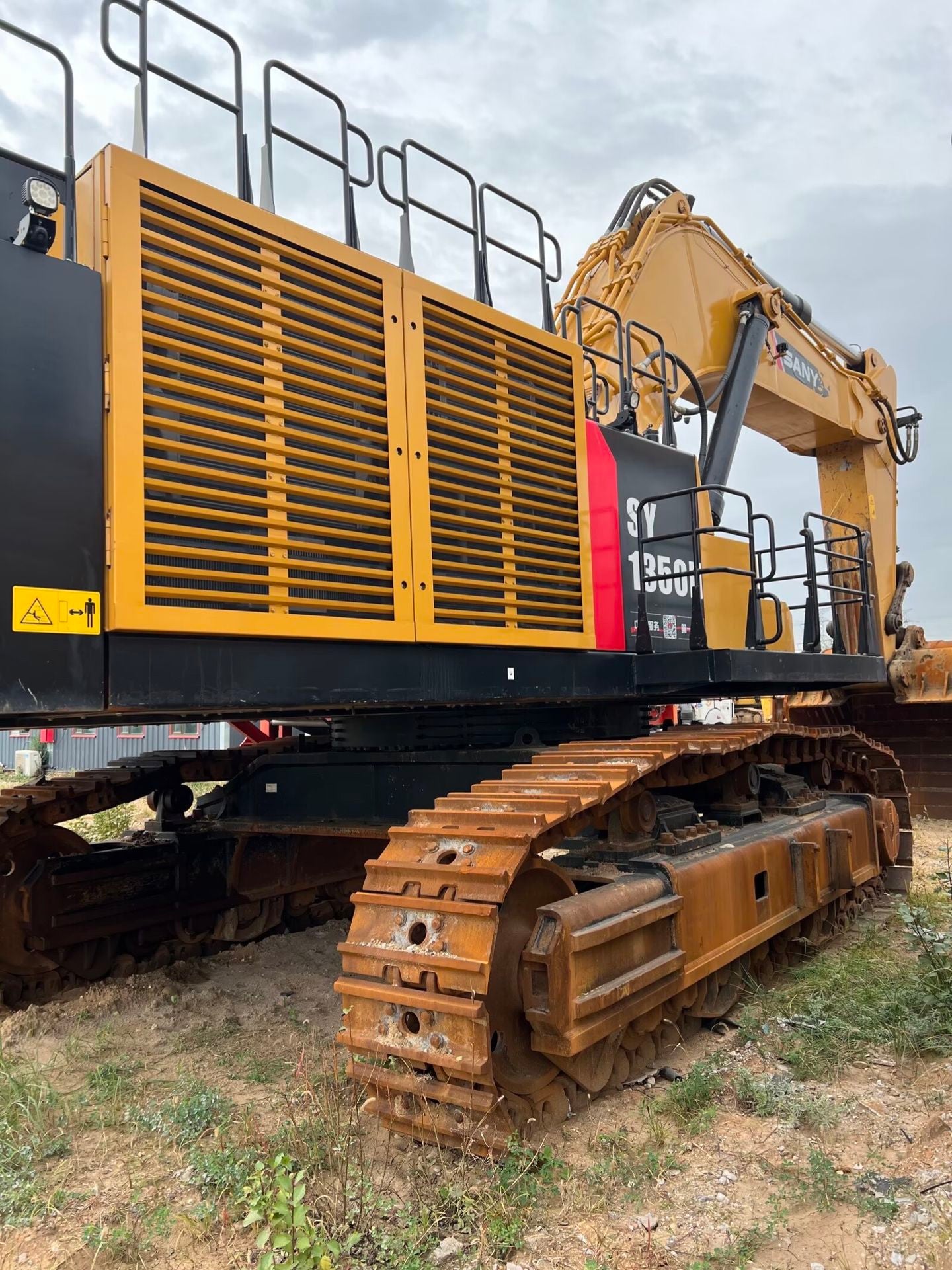

SANY SY1350H Heavy-Duty Mining Hydraulic Crawler Excavator |
| Operating Weight |
122,000 kg |
| Standard Heaped Rock Bucket Capacity |
9.1 m³ (Optional:8.0~10.0 m³) |
| Overall Transport Length |
14710 mm |
| Overall Transport Width |
5560 mm |
| Overall Height (Cab Top) |
4375 mm |
| Standard Track Shoe Width |
700 mm |
| Track Gauge |
3900 mm |
| Track Length on Ground |
5150 mm |
| Ground Clearance |
1085 mm |
| Minimum Tail Swing Radius |
4950 mm |
| Engine Model |
CUMMINS QSK23-FR 6-Cylinder Diesel Engine |
| Engine Type |
Water-cooled,4-stroke,turbocharged & intercooled direct injection diesel |
| Rated Net Power |
567 kW @1800 rpm |
| Engine Displacement |
23.0 L |
| Max Engine Torque |
3468 N·m @1350 rpm |
| Fuel Tank Capacity |
1580 L |
| Hydraulic Oil Tank Capacity |
1100 L |
| Main Hydraulic Working Pressure |
35.5 MPa |
| Max Digging Reach (Ground Level) |
13220 mm |
| Max Digging Depth |
8065 mm |
| Max Vertical Wall Digging Depth |
5085 mm |
| Max Digging Height |
12550 mm |
| Max Dumping Height |
7945 mm |
| Bucket Digging Force (ISO) |
605.0 kN |
| Arm Digging Force (ISO) |
540.0 kN |
| Swing Speed |
5.0 rpm |
| Travel Speed (Low/High) |
2.1 km/h / 3.2 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
148.0 kPa |
| Standard Boom Length |
7600 mm |
| Standard Stick Length |
3400 mm |
