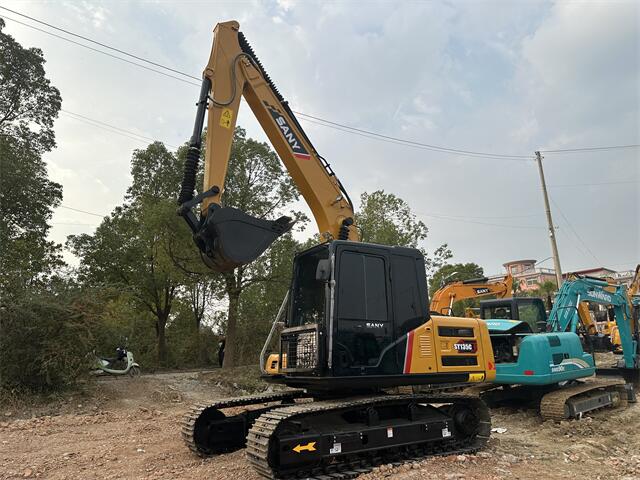

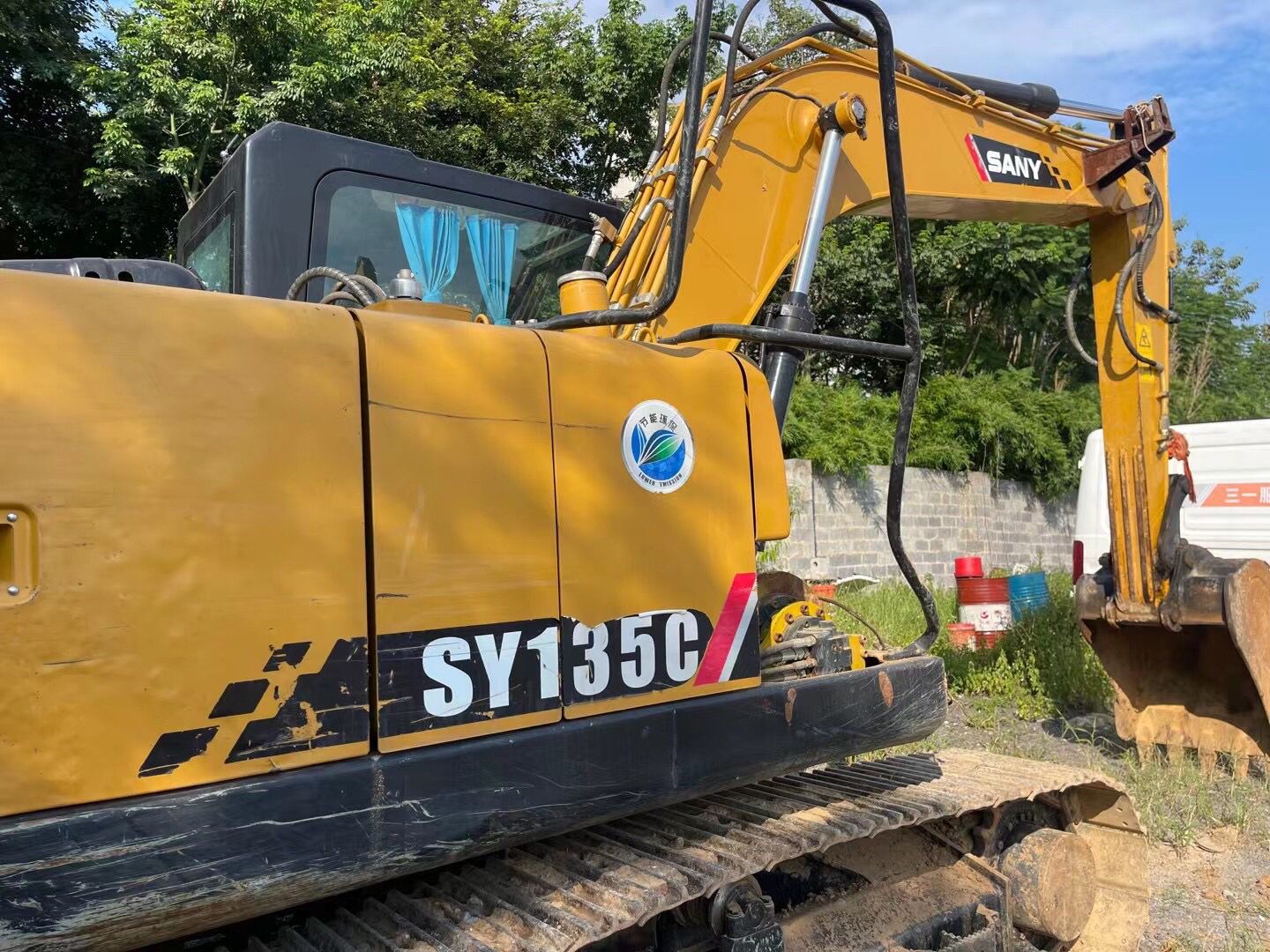

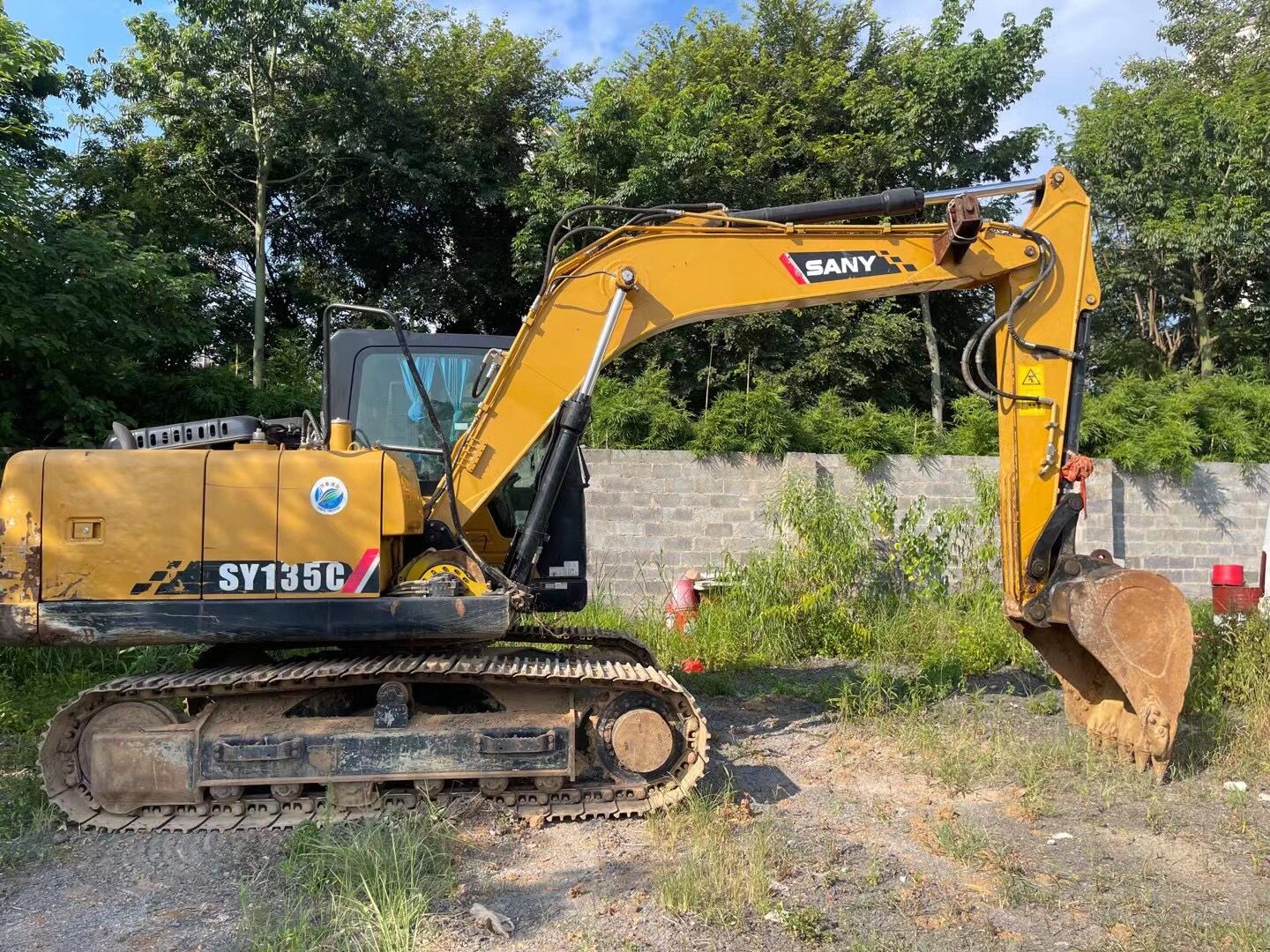

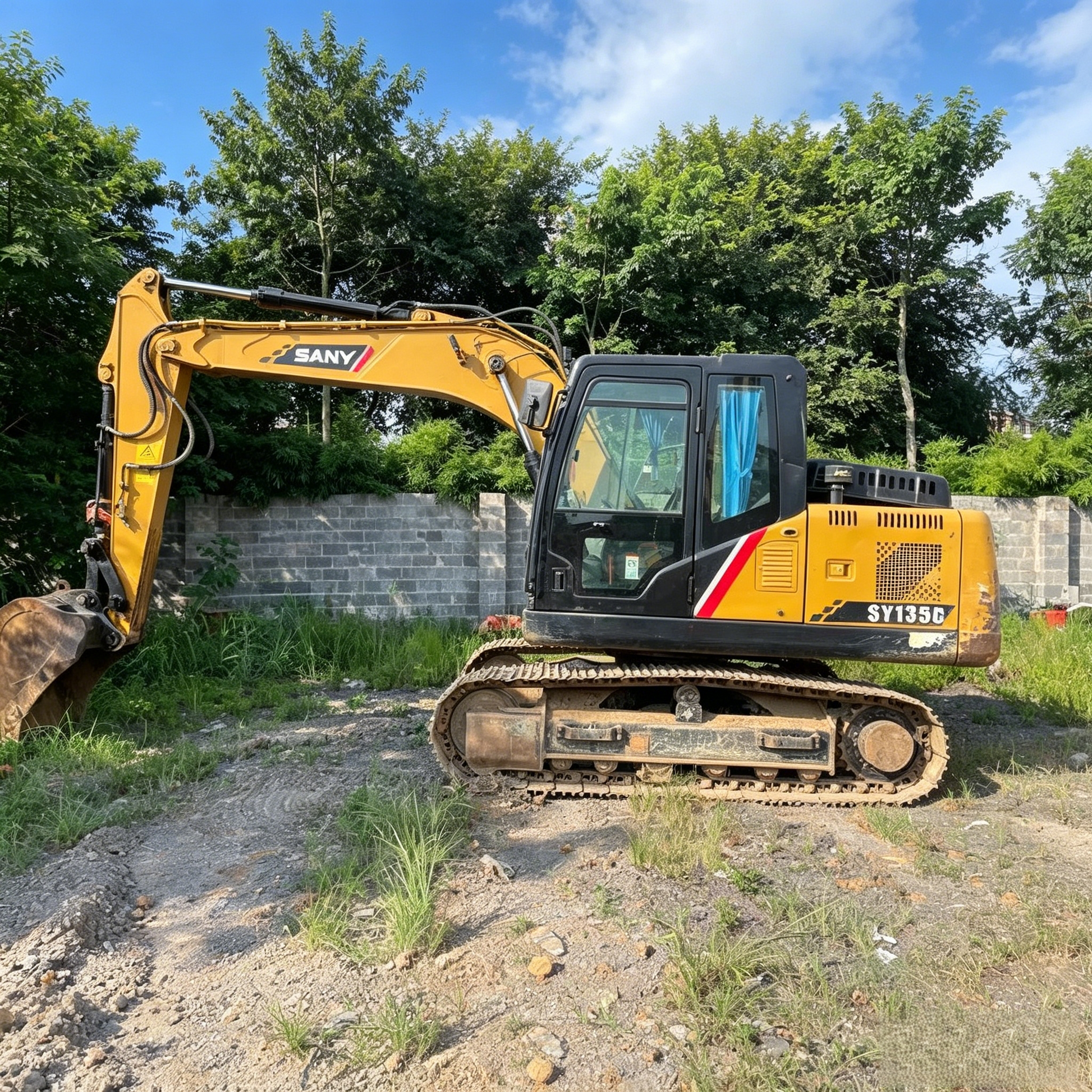

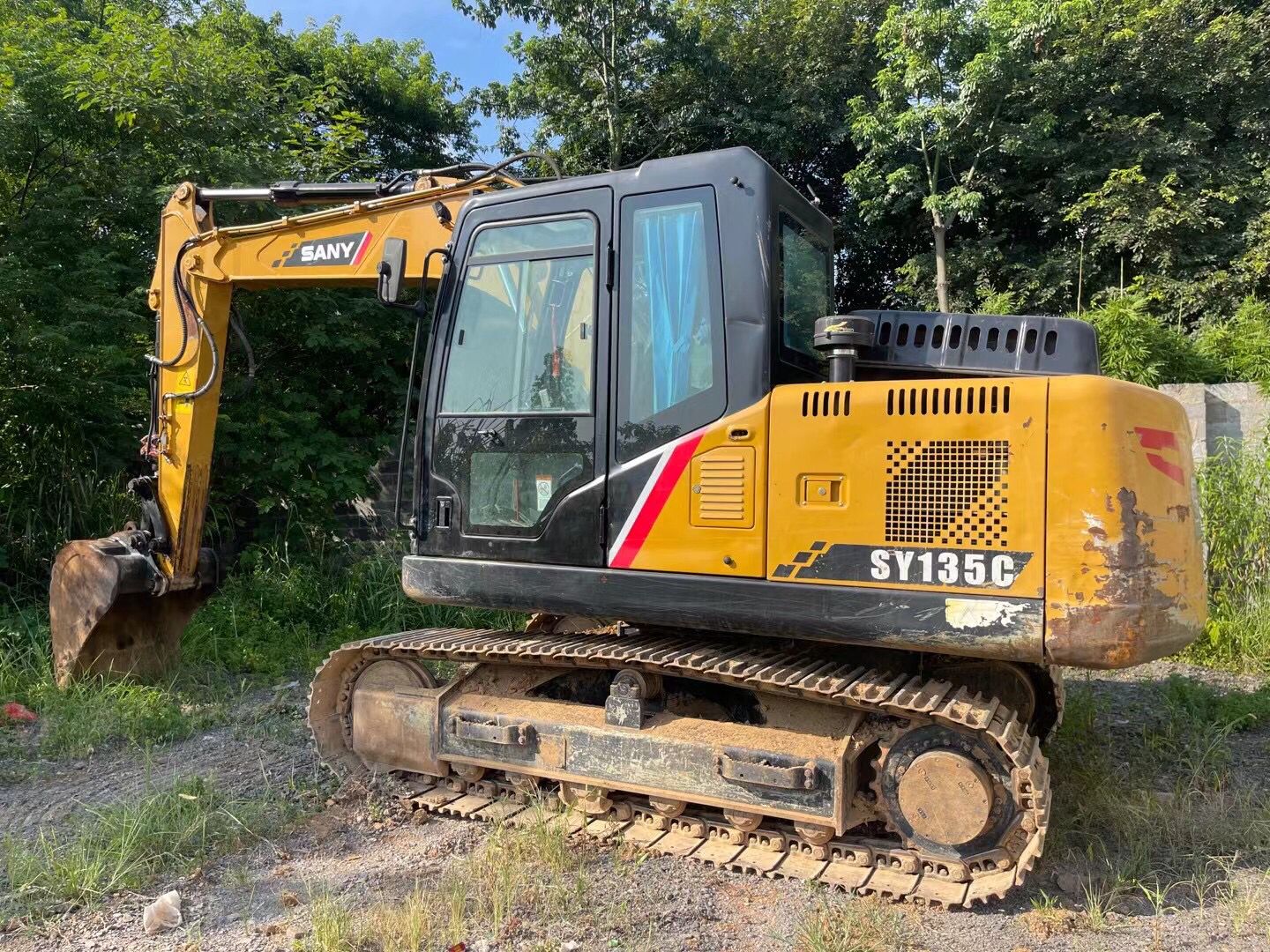

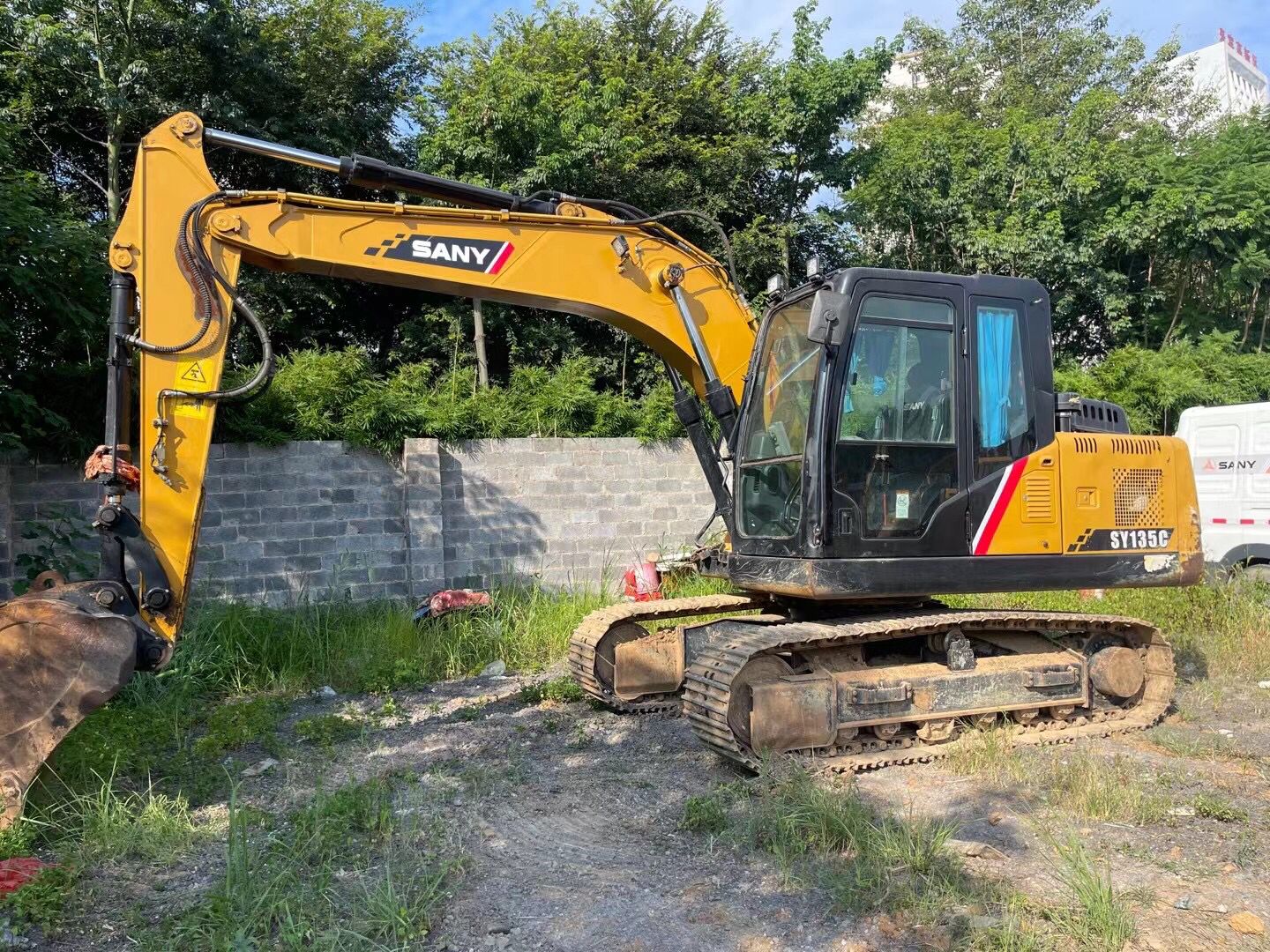

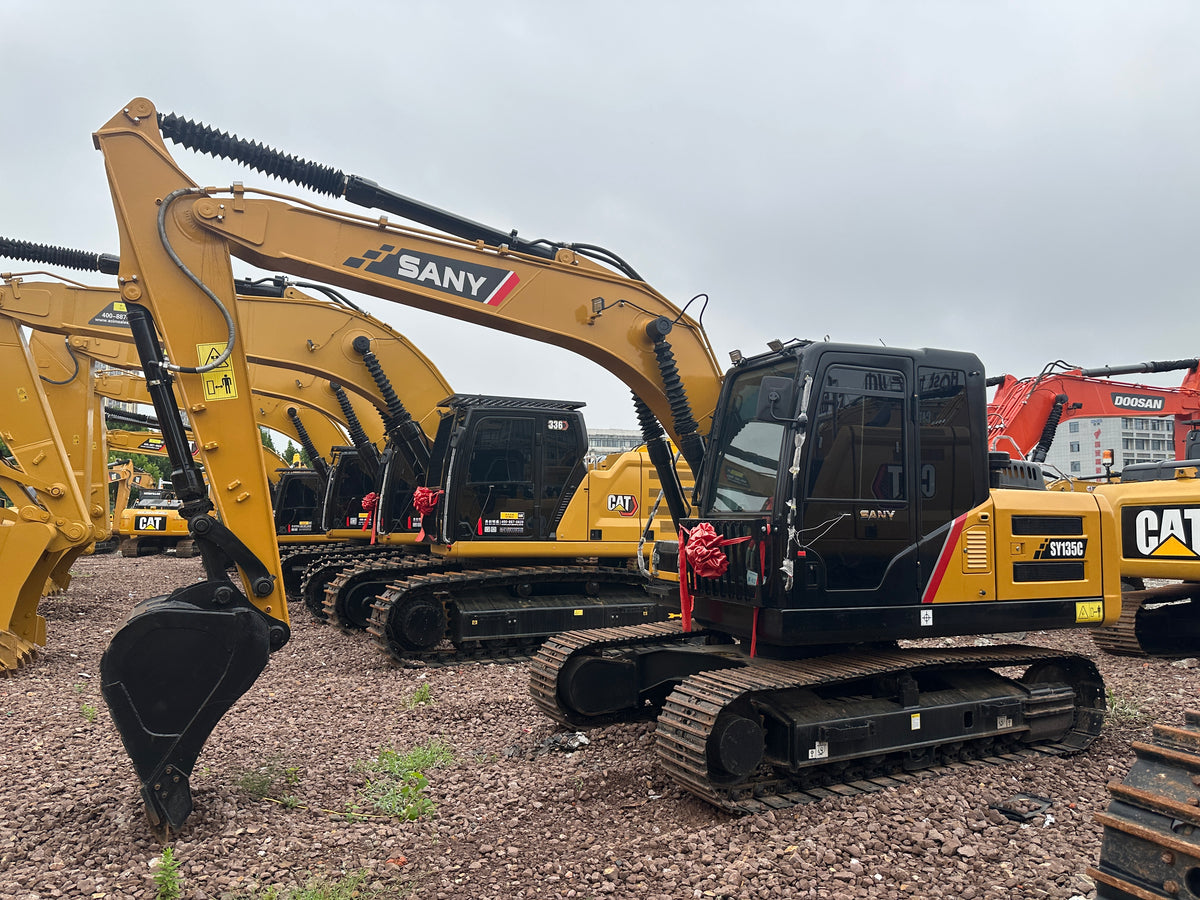

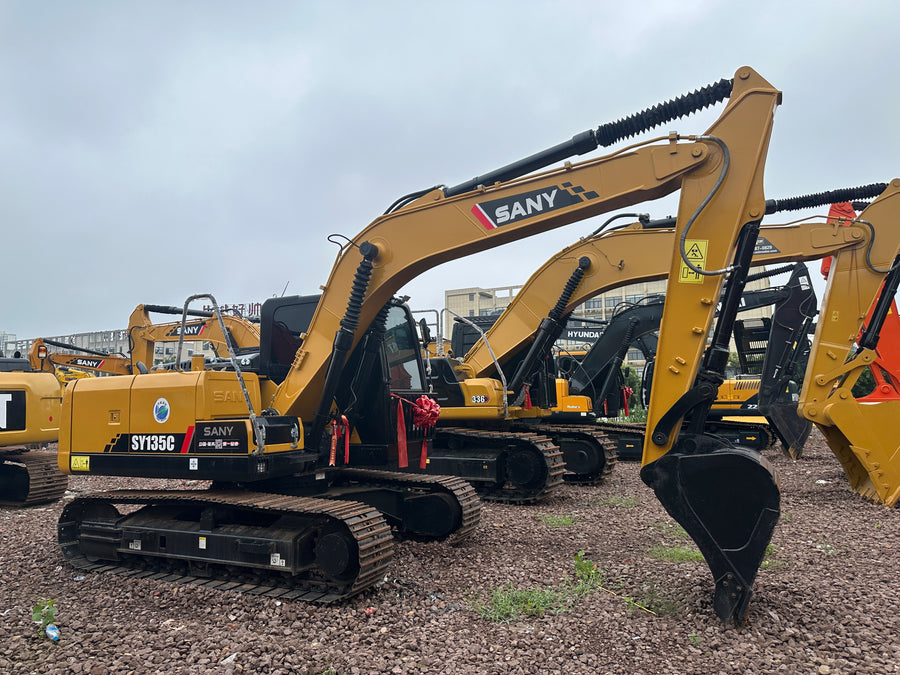

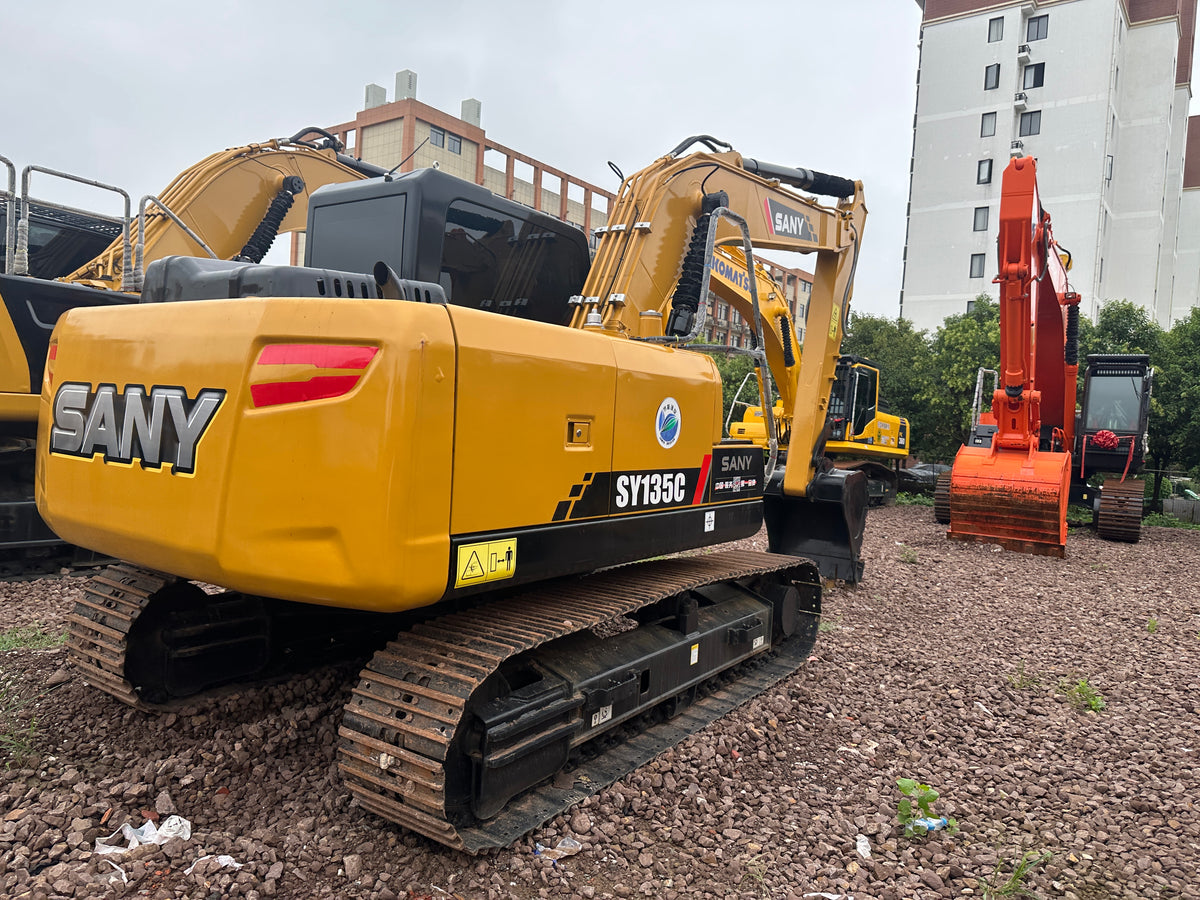

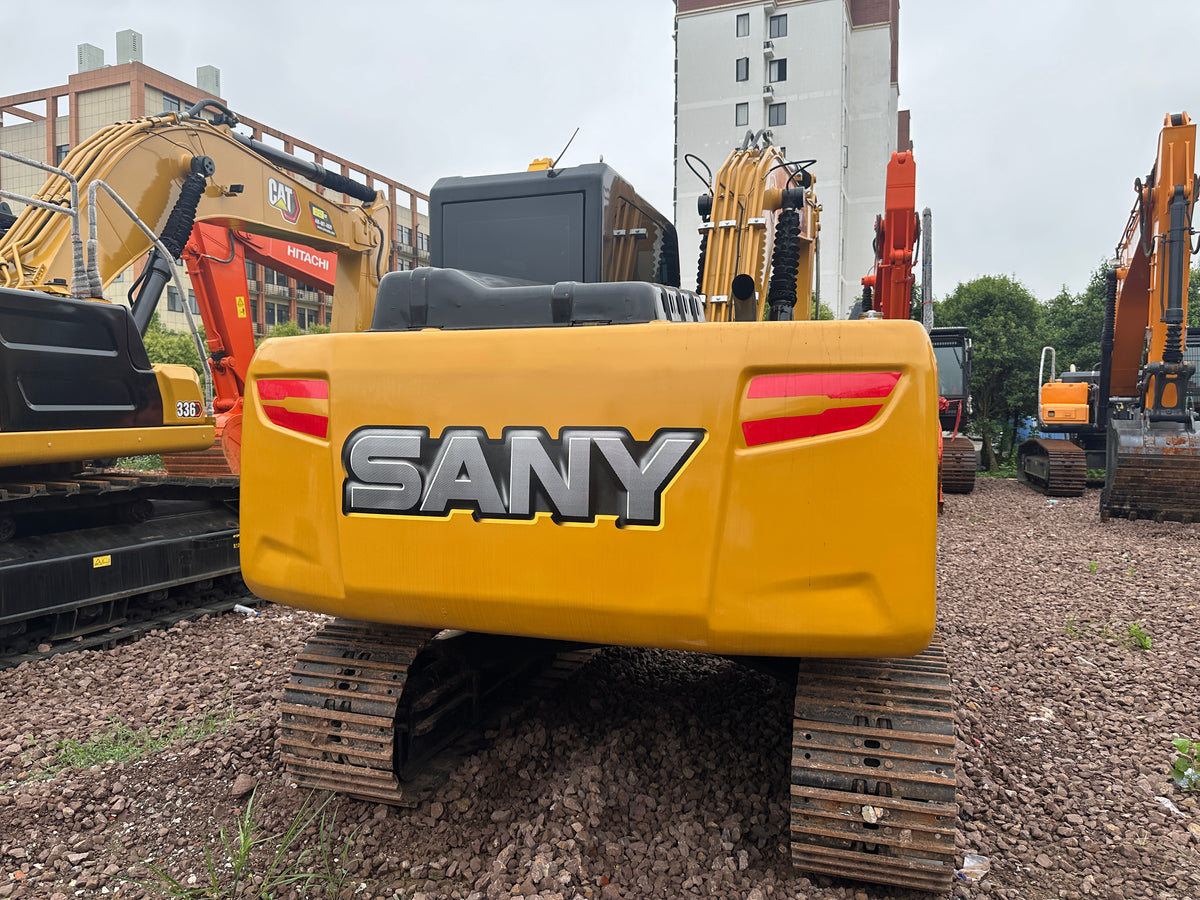

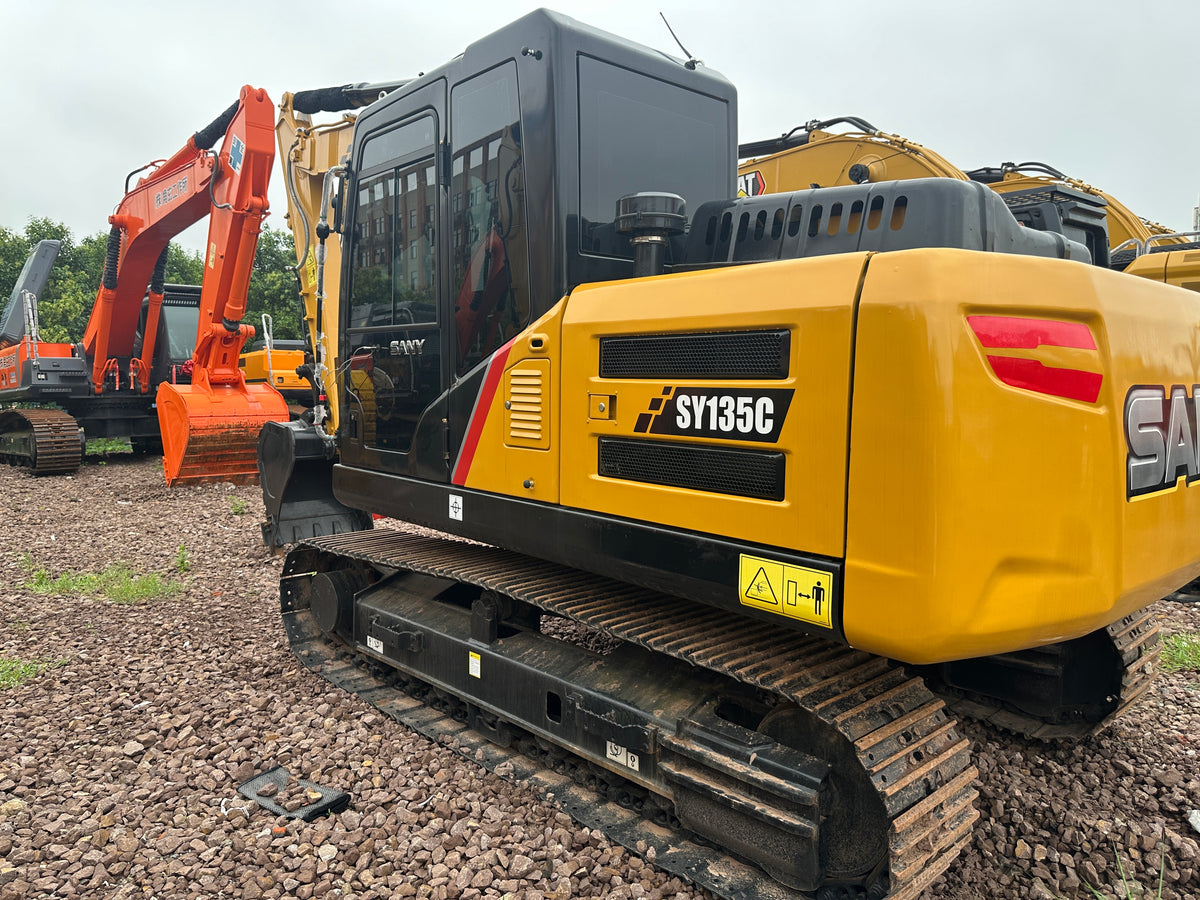

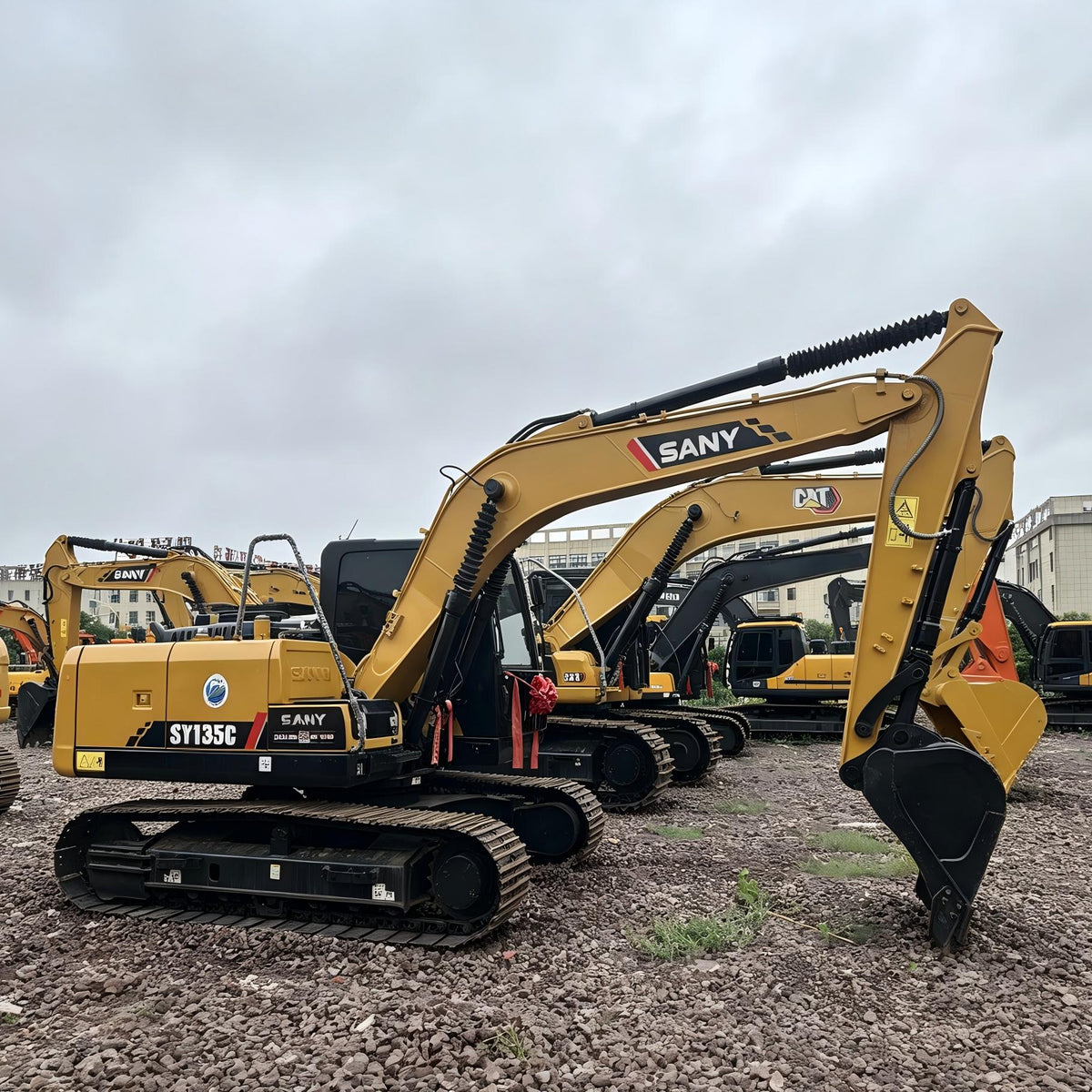

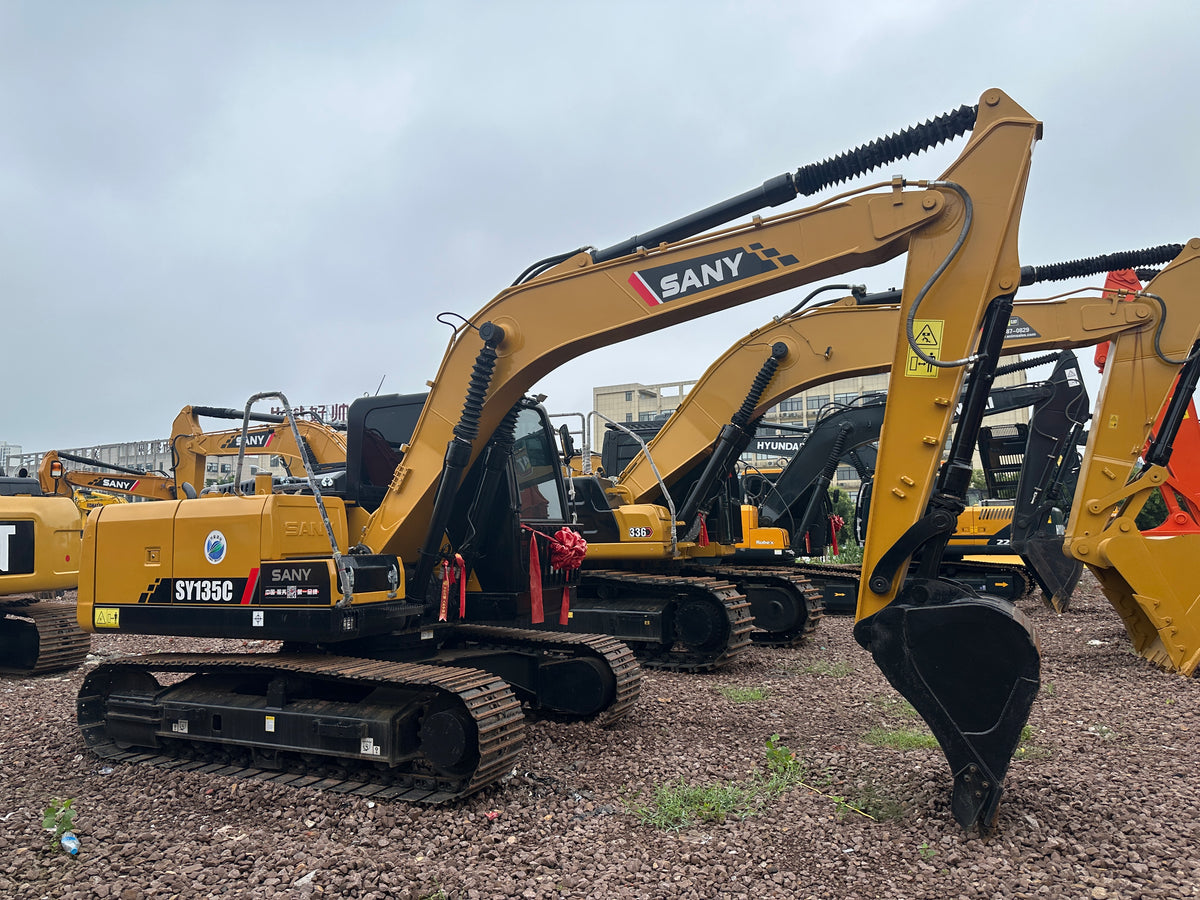

USED SANY SY135C

USED SANY SY135C

$18,000.00 USD
$18,000.00 USD
Oferta Agotado
Parameter China National Ⅳ Version Tier 4F/Stage Ⅴ Version
Model SANY SY135C (China National Ⅳ) SANY SY135C (Tier 4F/Stage Ⅴ)
Operating Weight 13500 kg 14870 kg
Engine Model Isuzu 4JJ1 Isuzu 4JJ1X
Engine Displacement 2.999 L 2.999 L
Rated Power 86 kW @ 2200 rpm 78.5 kW @ 2000 rpm
Bucket Capacity (Standard) 0.6 m³ 0.6 m³
Bucket Digging Force (ISO) 103 kN 93 kN
Arm Digging Force (ISO) 67 kN 66 kN
Boom Length (Standard) 4600 mm 4600 mm
Arm Length (Standard) 2500 mm 2500 mm
Max. Excavation Depth 5500 mm 5500 mm
Max. Digging Reach 8290 mm 8290 mm
Max. Dumping Height 6000 mm 6000 mm
Swing Speed 12 rpm 12 rpm
Travel Speed (High/Low) 5.5/3.5 km/h 5.5/3.5 km/h
Gradeability 70% (35°) 70% (35°)
Ground Pressure 41.7 kPa 45 kPa
Max. Hydraulic Flow 242 L/min 242 L/min
Max. Hydraulic Pressure 34.3 MPa 34.3 MPa
Fuel Tank Capacity 280 L 240 L
Hydraulic Tank Capacity 200 L 175 L
Track Shoe Width (Standard) 500 mm 500 mm
