| Model |

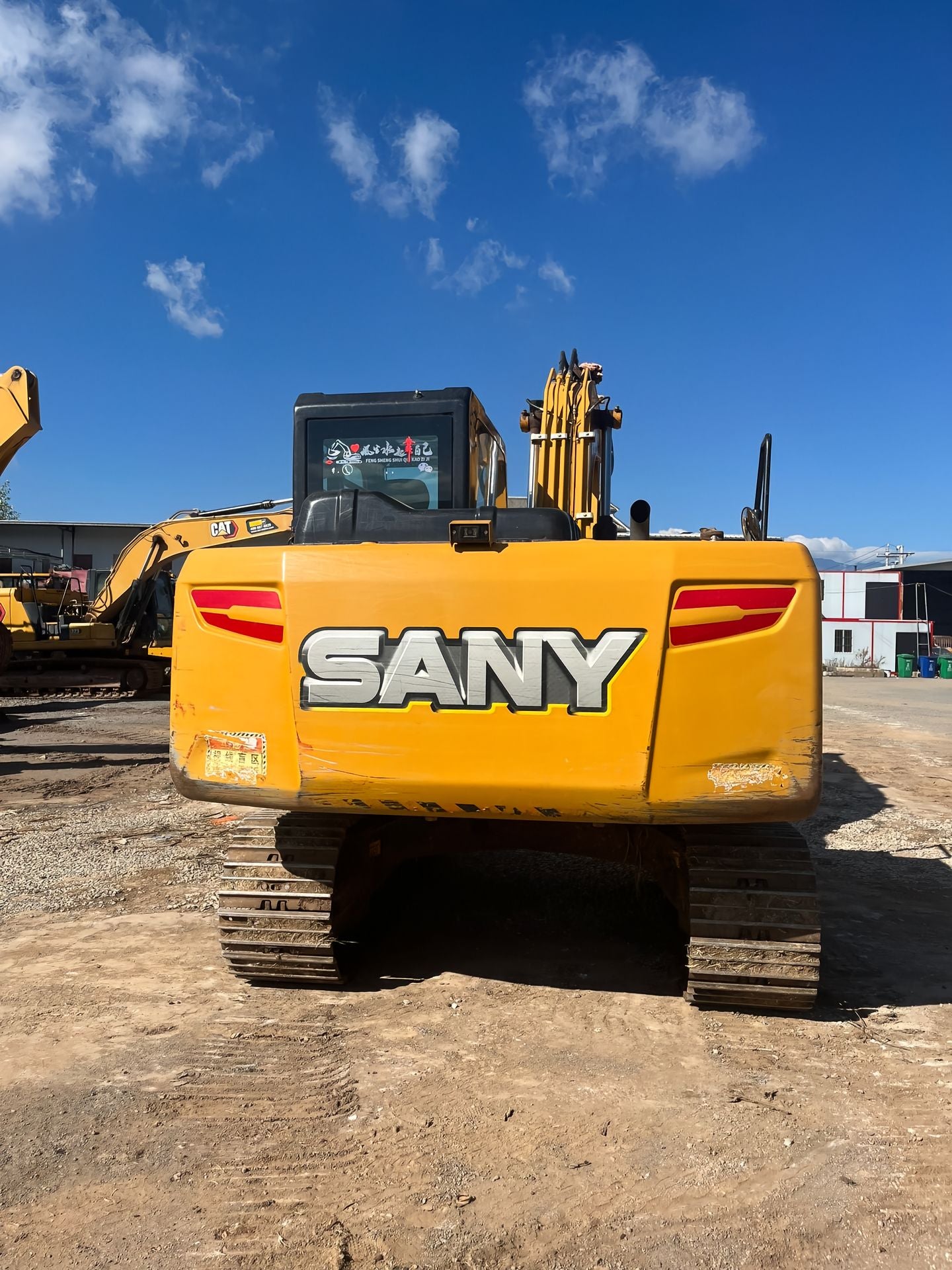

SANY SY135C PRO Medium Crawler Hydraulic Excavator |
| Operating Weight |
13,500 kg |
| Standard Heaped Bucket Capacity |
0.55 m³ (Range:0.25~0.72 m³) |
| Overall Transport Length |
7,770 mm |
| Overall Transport Width |
2,550 mm |
| Overall Transport Height(Cab Top) |
2,815 mm |
| Standard Track Shoe Width |
500 mm |
| Track Gauge |
2,040 mm |
| Track Length on Ground |
2,830 mm |
| Ground Clearance |
425 mm |
| Minimum Tail Swing Radius |
2,310 mm |
| Engine Model |
ISUZU 4JJ1-XDJAG-07-C3 4-Cylinder Diesel |
| Engine Type |
Water-cooled,4-stroke turbocharged common rail diesel engine |
| Rated Net Power |
73 kW @ 2200 rpm |
| Engine Displacement |
2.999 L |
| Max Engine Torque |
375 N·m @1800 rpm |
| Fuel Tank Capacity |
240 L |
| Hydraulic Oil Tank Capacity |
175 LSANY Group
|
| Main Hydraulic Working Pressure |
32.0 MPa |
| Max Digging Reach(Ground Level) |
8,290 mm |
| Max Digging Depth |
5,510 mm |
| Max Vertical Wall Digging Depth |
4,750 mm |
| Max Digging Height |
8,580 mm |
| Max Dumping Height |
6,180 mm |
| Bucket Digging Force(ISO) |
103.0 kN |
| Arm Digging Force(ISO) |
67.4 kN |
| Swing Speed |
12.0 rpm |
| Travel Speed(Low/High) |
3.5 km/h / 5.3 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
41.7 kPa |
| Standard Boom Length |
4,600 mmSANY Group
|
| Standard Stick Length |
2,500 mmSANY Group
|
