| Model |

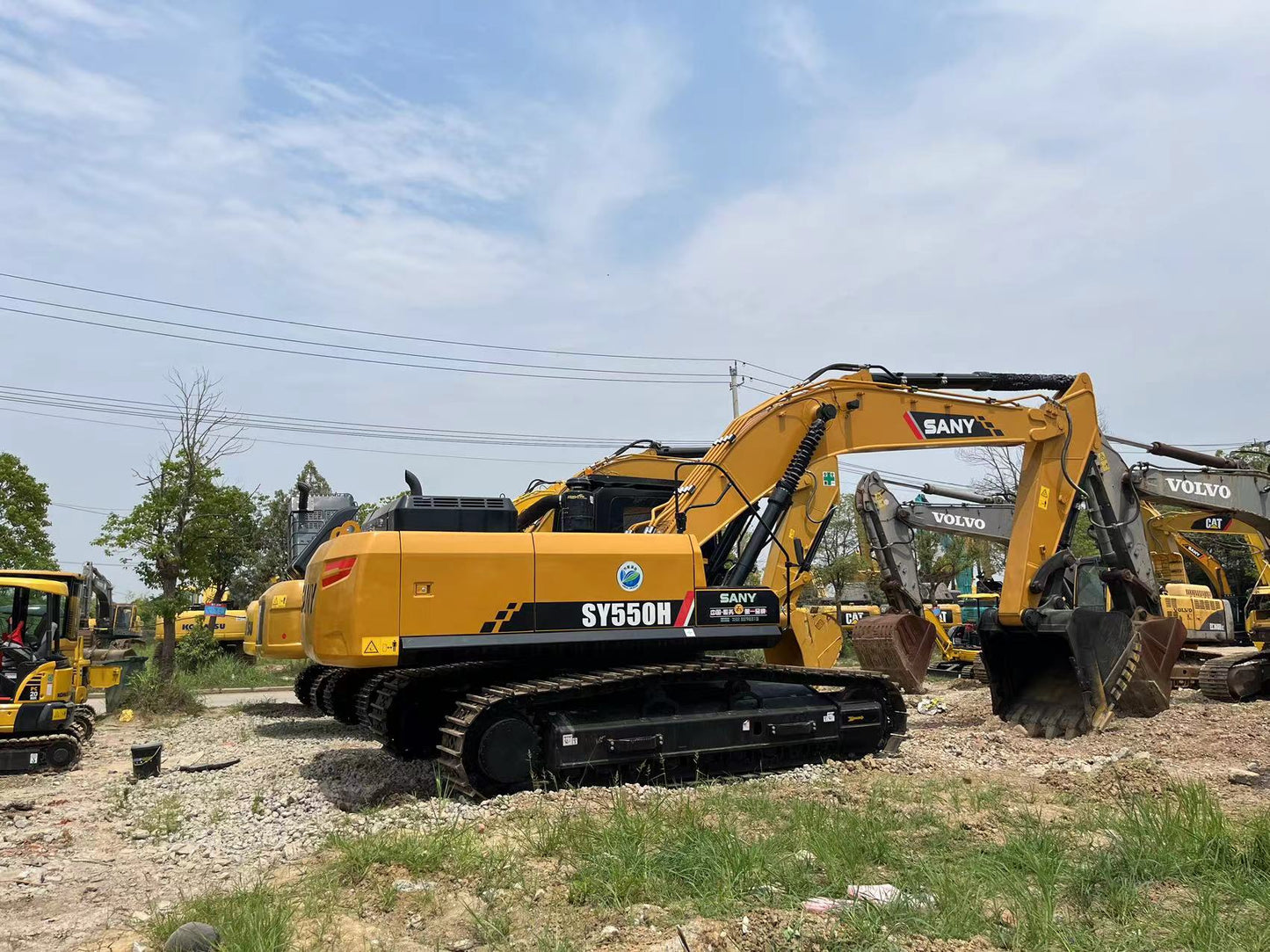

SANY SY550H |
| Operating Weight |
54000 kg (SY550H - S)/51000 kg (Standard Version |
| Engine Model |
Isuzu 6WG1 (Tier 3/China National Ⅳ) |
| Engine Displacement |
15.68 L |
| Rated Power |
310 kW @ 1800 rpm (SY550H - S)/300 kW @ 1800 rpm (Standard Version) |
| Bucket Capacity (Standard) |
3.2 m³ (SY550H - S)/2.2-3.2 m³ (Optional) |
| Bucket Digging Force (ISO) |
293 kN (SY550H - S)/280 kN (Standard Version) |
| Arm Digging Force (ISO) |
262 kN (SY550H - S)/245 kN (Standard Version) |
| Boom Length (Standard) |
7000 mmSANY Group
|
| Arm Length (Standard) |
2500 mmSANY Group
|
| Max. Excavation Depth |
7700 mm |
| Max. Digging Reach |
11800 mm |
| Max. Dumping Height |
7600 mm |
| Swing Speed |
8 rpm |
| Travel Speed (High/Low) |
5.3/3.1 km/h |
| Gradeability |
70% (35° |
| Ground Pressure |
80.42 kPa |
| Max. Hydraulic Flow |
2×340 L/min |
| Max. Hydraulic Pressure |
34.3 MPa |
| Fuel Tank Capacity |
750 L (SY550H - S)/680 L (Standard Version |
| Hydraulic Tank Capacity |
480 LSANY Group
|
| Track Shoe Width (Standard) |
600 mm |
