| Model |

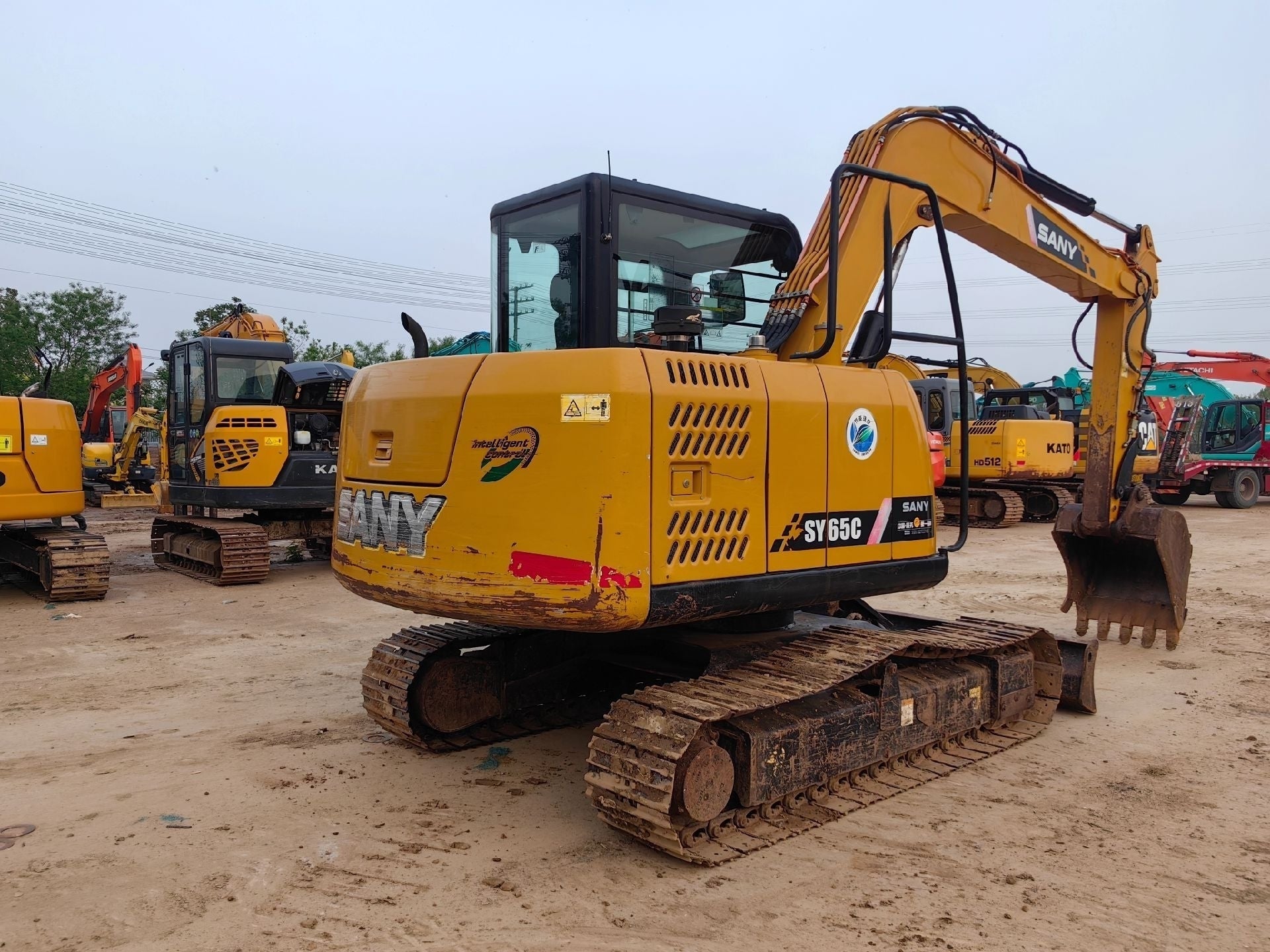

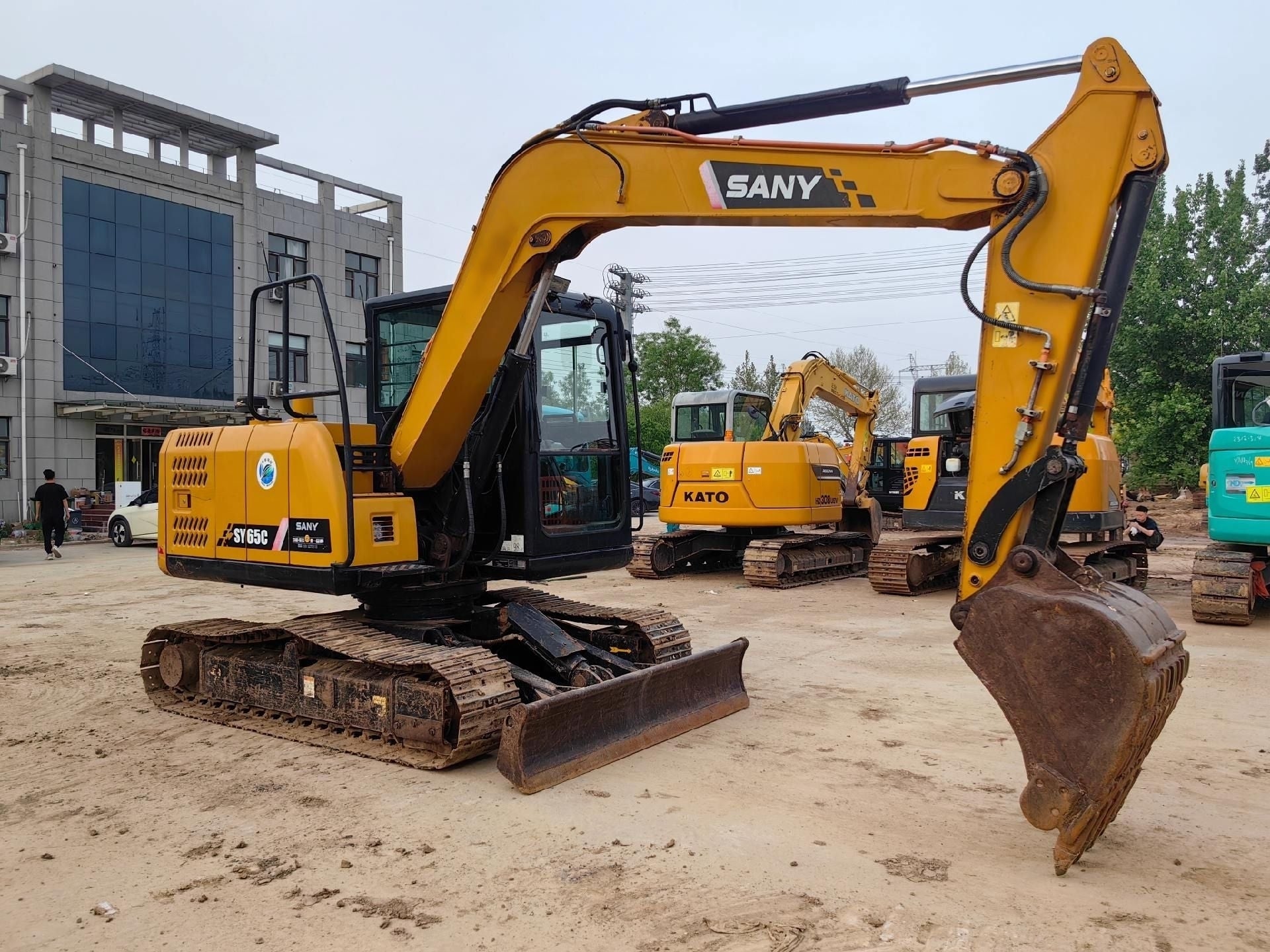

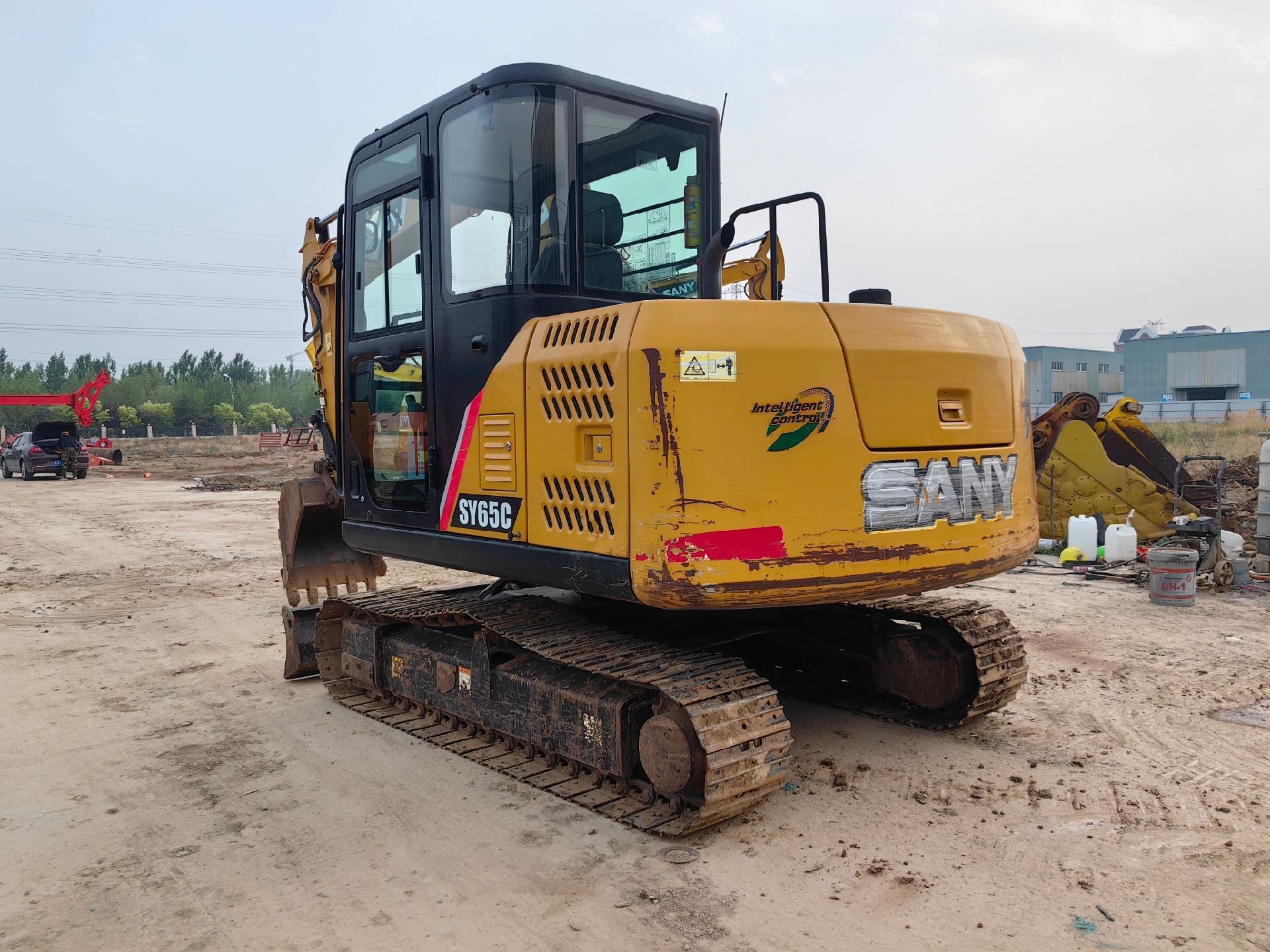

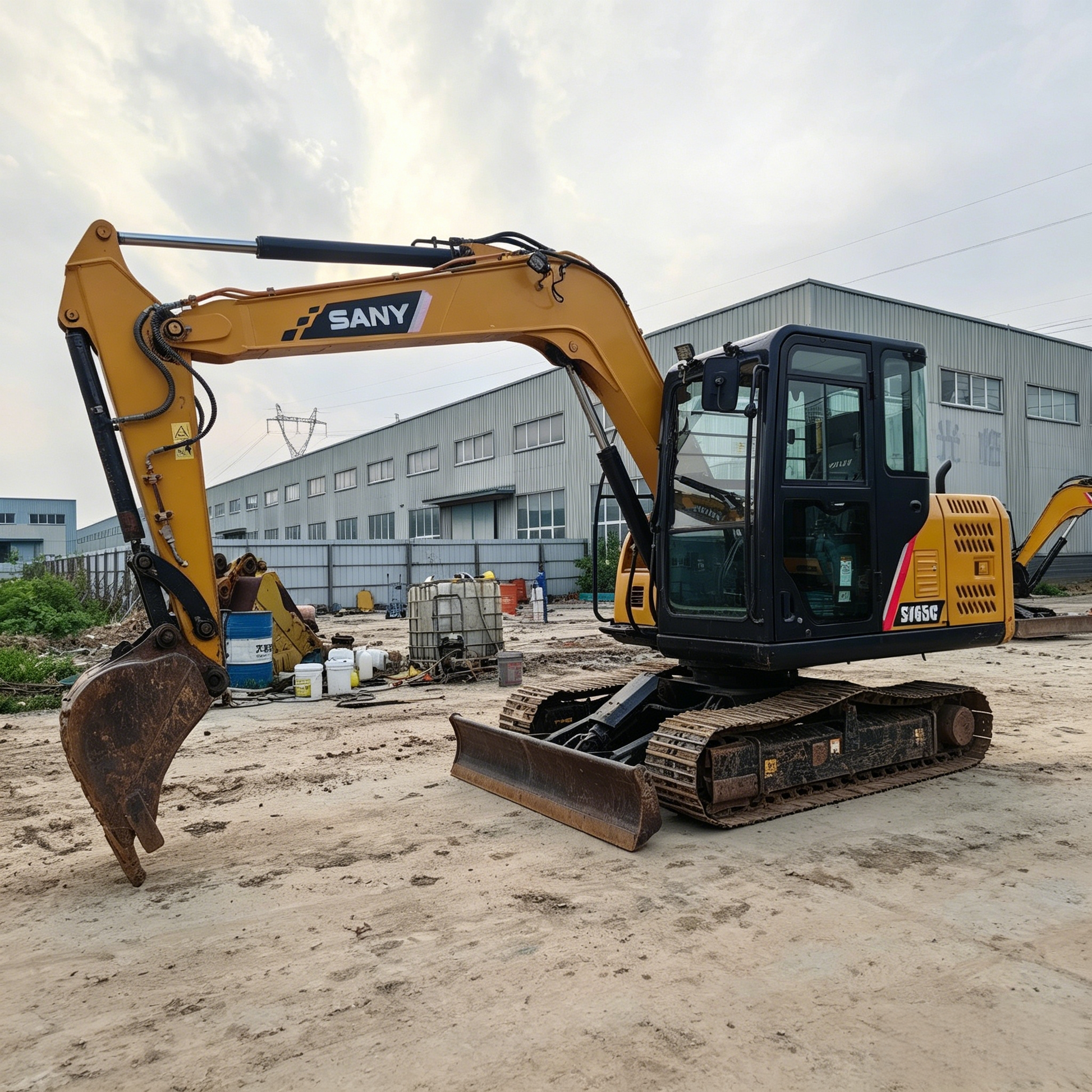

SANY SY65C Small Hydraulic Crawler Excavator |
| Operating Weight |
6,700 kg |
| Standard Heaped Bucket Capacity |
0.25 m³ (Range:0.12~0.32 m³) |
| Overall Transport Length |
6,095 mm |
| Overall Transport Width |
2,120 mm |
| Overall Transport Height(Cab Top) |
2,580 mm |
| Standard Track Shoe Width |
400 mm |
| Track Gauge |
1,680 mm |
| Track Length on Ground |
2,180 mm |
| Ground Clearance |
370 mm |
| Tail Swing Radius |
1,800 mm |

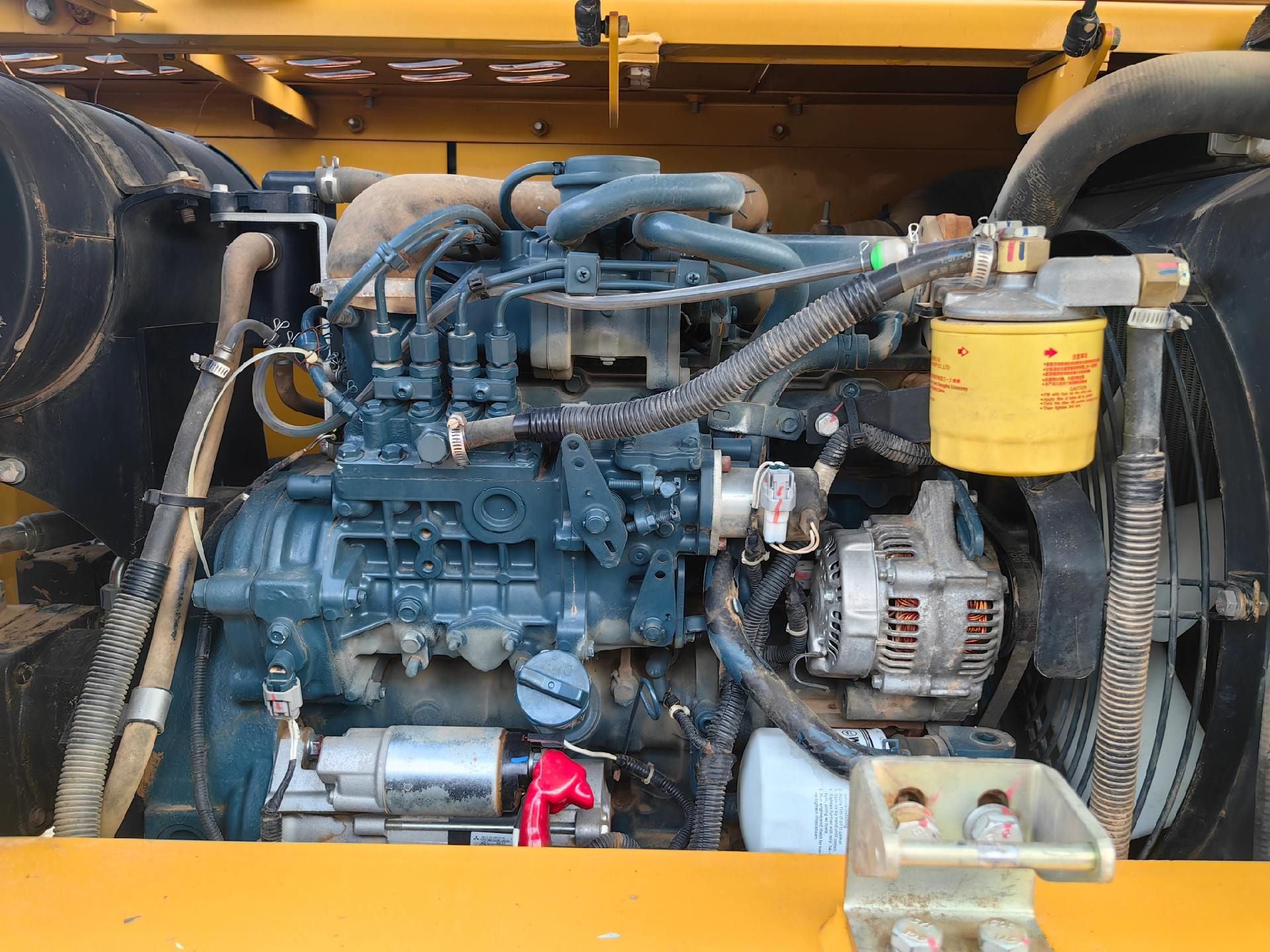

| Engine Model |
SANY D03S3 4-Cylinder Diesel |
| Engine Type |
Water-cooled,4-stroke direct injection diesel engine |
| Rated Net Power |
42 kW @ 2100 rpm |
| Engine Displacement |
2.77 L |
| Max Engine Torque |
190 N·m @1600~2000 rpm |
| Fuel Tank Capacity |
130 L |
| Hydraulic Oil Tank Capacity |
100 L |
| Main Hydraulic System Pressure |
26.0 MPa |
| Main Pump Max Flow |
149 L/min |
| Max Digging Reach(Ground Level) |
6,235 mm |
| Max Digging Depth |
3,985 mm |
| Max Vertical Wall Digging Depth |
3,360 mm |
| Max Digging Height |
7,010 mm |
| Max Dumping Height |
5,110 mm |
| Bucket Digging Force(ISO) |
56 kN |
| Arm Digging Force(ISO) |
35.6 kN |
| Swing Speed |
11.5 rpm |
| Travel Speed(Low/High) |
2.4 km/h / 4.2 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
33 kPa |
| Standard Boom Length |
3,720 mm |
| Standard Stick Length |
1,620 mm |
