| Model |

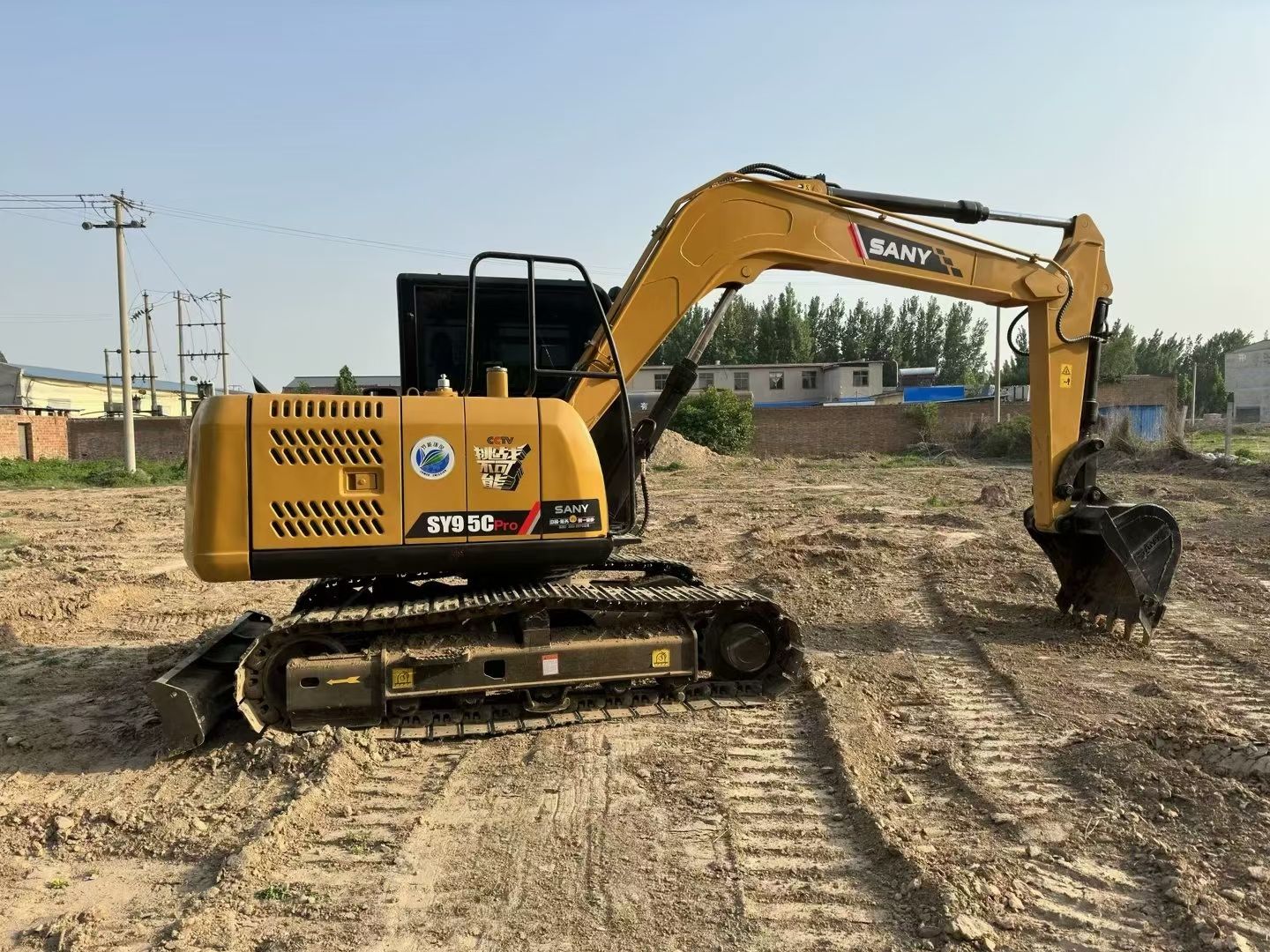

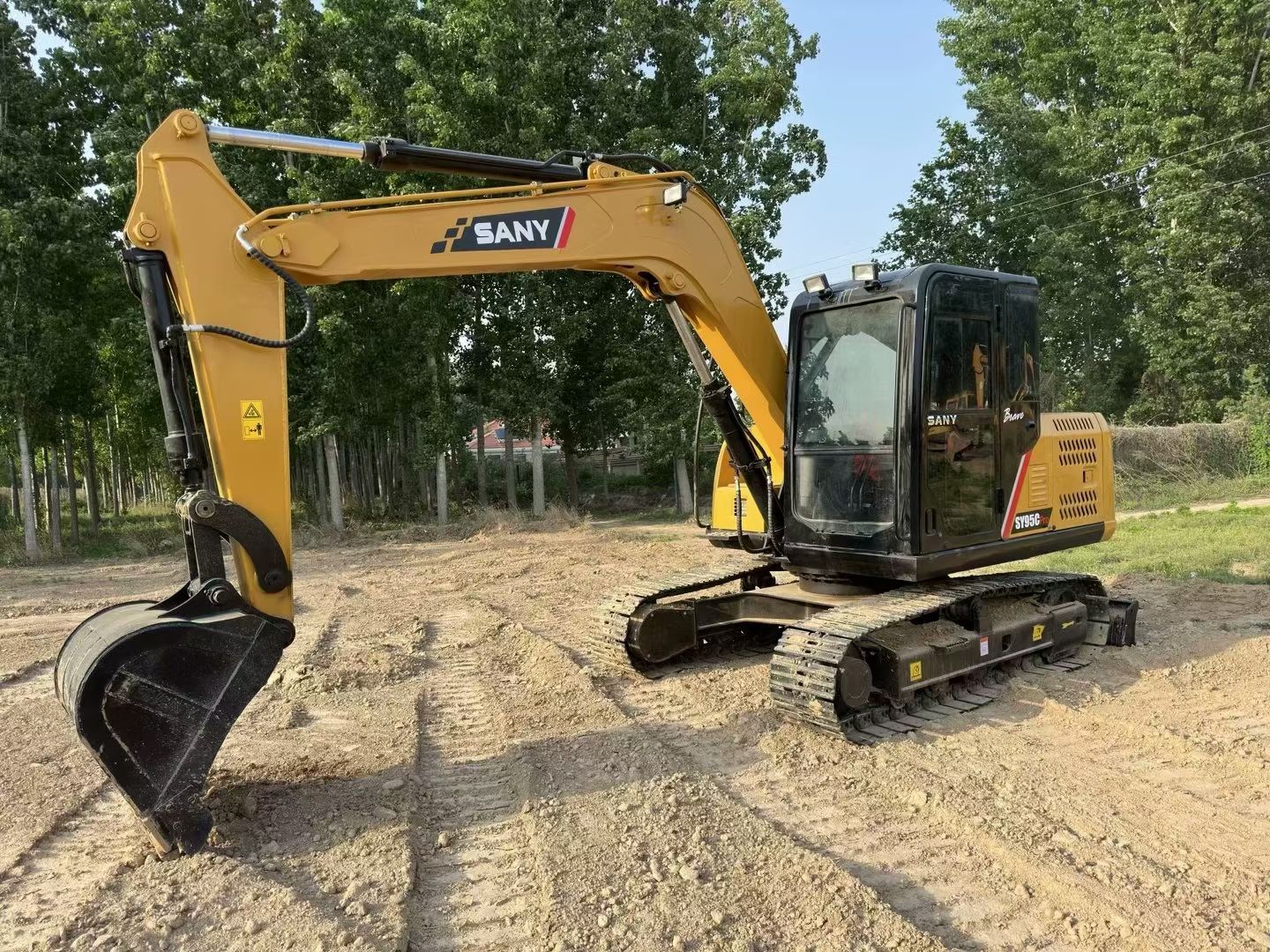

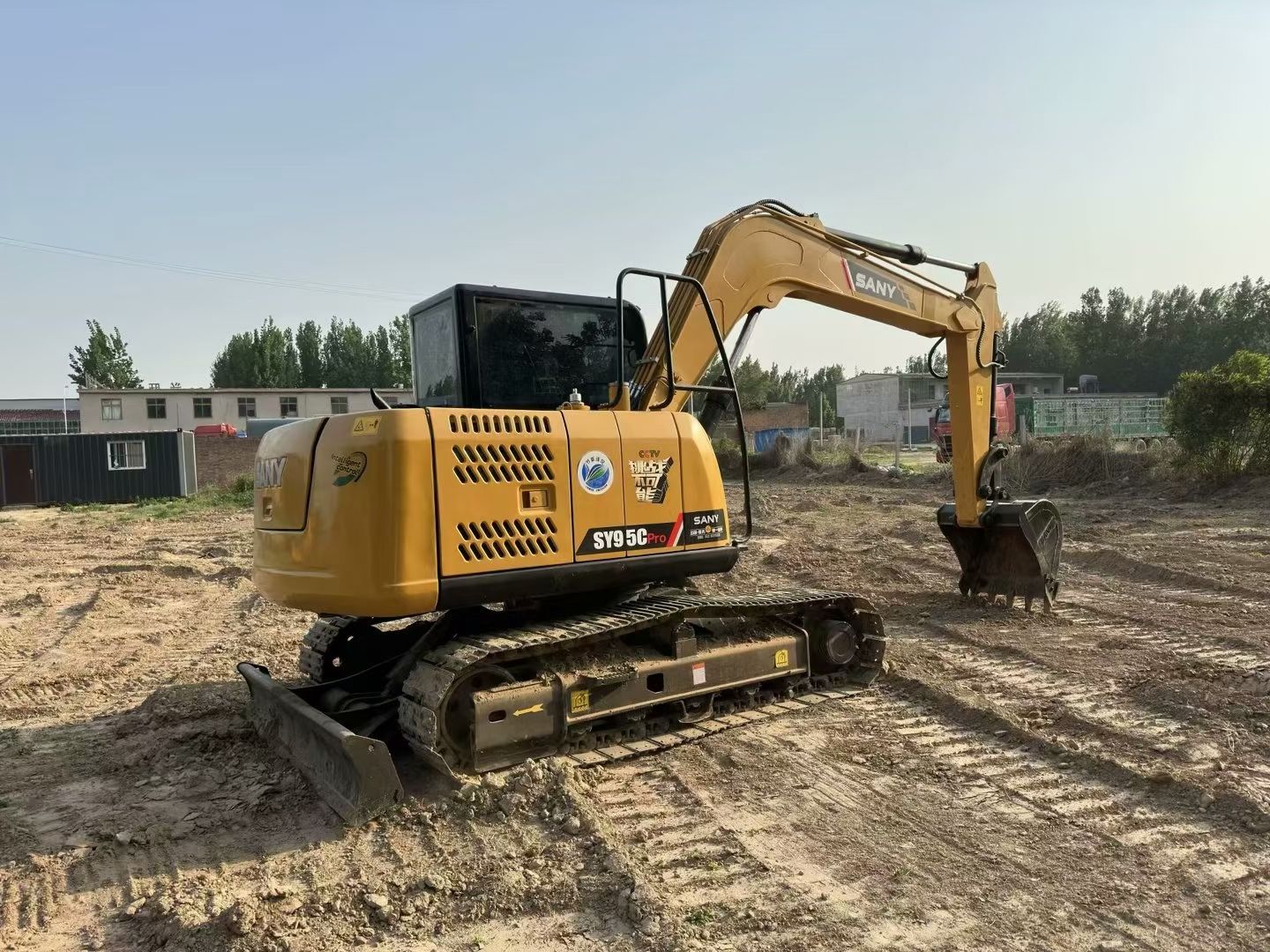

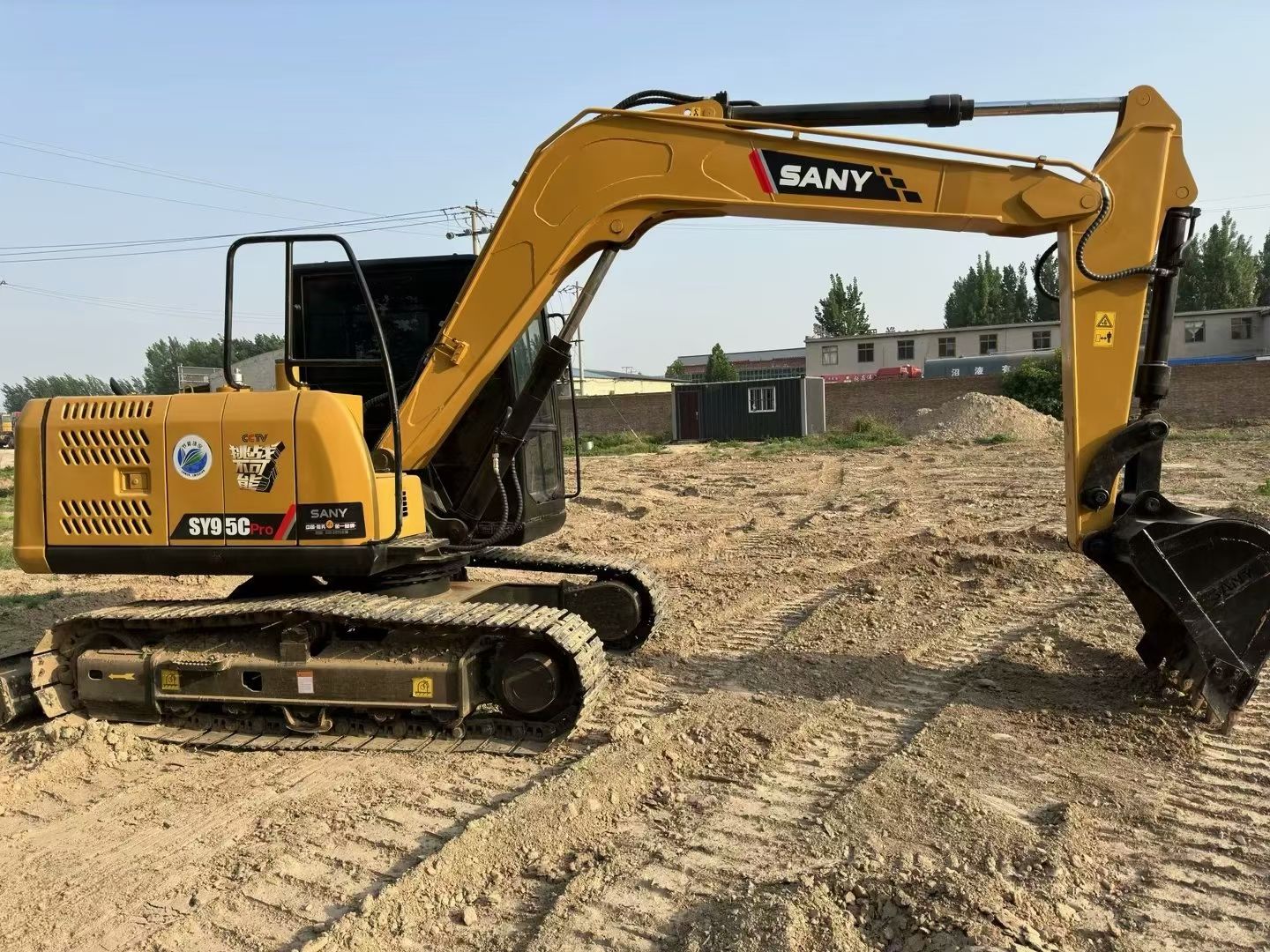

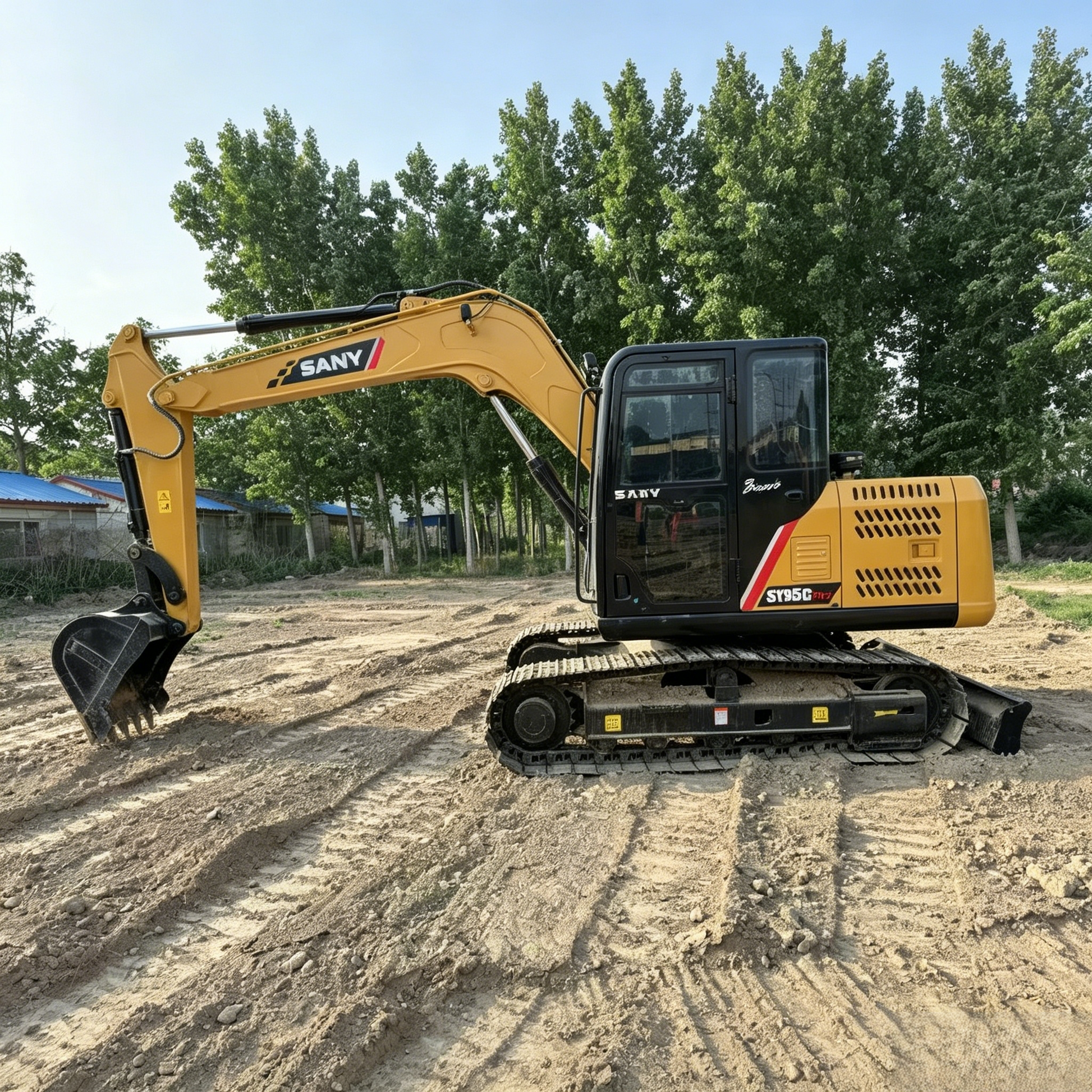

SANY SY95C PRO Small Crawler Hydraulic Excavator |
| Operating Weight |
9,180 kg |
| Standard Heaped Bucket Capacity |
0.38 m³ (Range:0.34~0.40 m³) |
| Overall Transport Length |
6,560 mm |
| Overall Transport Width |
2,260 mm |
| Overall Transport Height(Cab Top) |
2,720 mm |
| Standard Track Shoe Width |
450 mm |
| Track Gauge |
1,820 mm |
| Track Length on Ground |
2,390 mm |
| Ground Clearance |
360 mm |
| Minimum Tail Swing Radius |
1,885 mm |
| Engine Model |
KUBOTA V3800DI-T-E3B 4-Cylinder Diesel |
| Engine Type |
Water-cooled,4-stroke turbocharged direct injection diesel engine |
| Rated Net Power |
60.7 kW @ 2200 rpm |
| Engine Displacement |
3.769 L |
| Max Engine Torque |
305.4 N·m @ 1600 rpm |
| Fuel Tank Capacity |
160 L |
| Hydraulic Oil Tank Capacity |
120 L |
| Main Hydraulic Working Pressure |
27.0 MPa |
| Max Digging Reach(Ground Level) |
6,790 mm |
| Max Digging Depth |
4,330 mm |
| Max Vertical Wall Digging Depth |
3,680 mm |
| Max Digging Height |
7,520 mm |
| Max Dumping Height |
5,510 mm |
| Bucket Digging Force(ISO) |
63.6 kN |
| Arm Digging Force(ISO) |
46.8 kN |
| Swing Speed |
11.2 rpm |
| Travel Speed(Low/High) |
2.9 km/h / 5.0 km/h |
| Gradeability |
35° (70%) |
| Average Ground Pressure |
38.6 kPa |
| Standard Boom Length |
4,000 mm |
| Standard Stick Length |
2,000 mm |
