1 6

SDLG

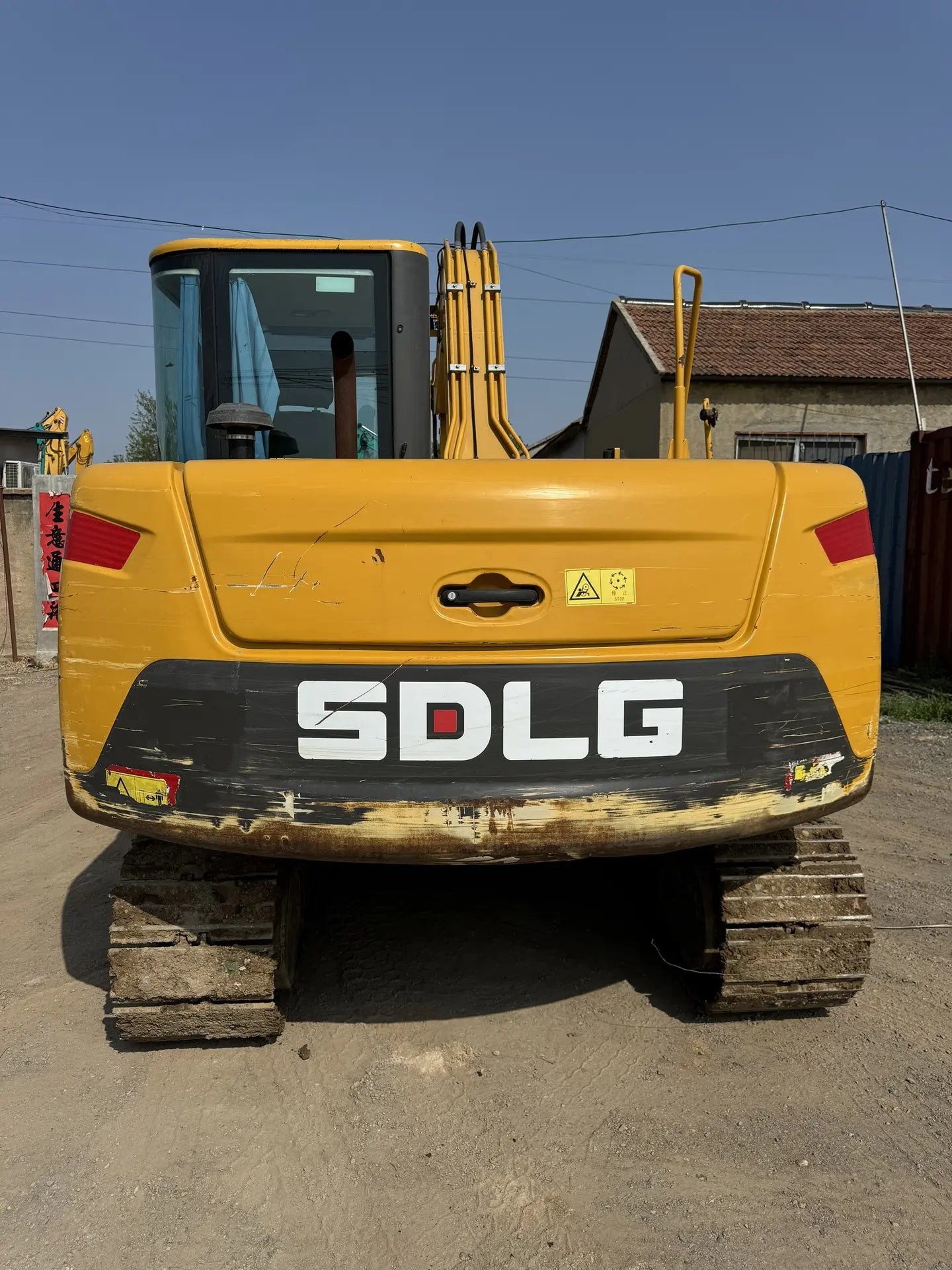

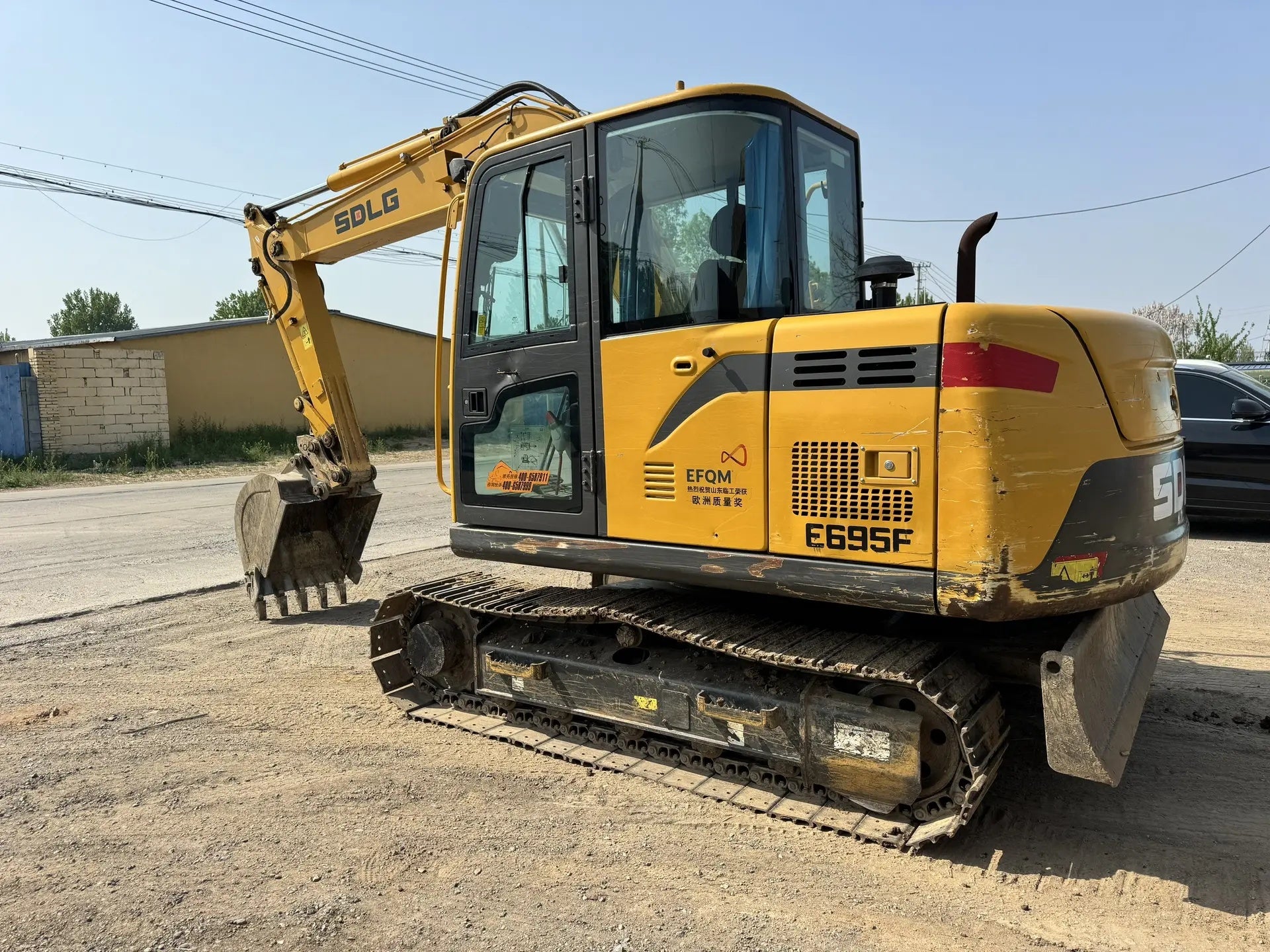

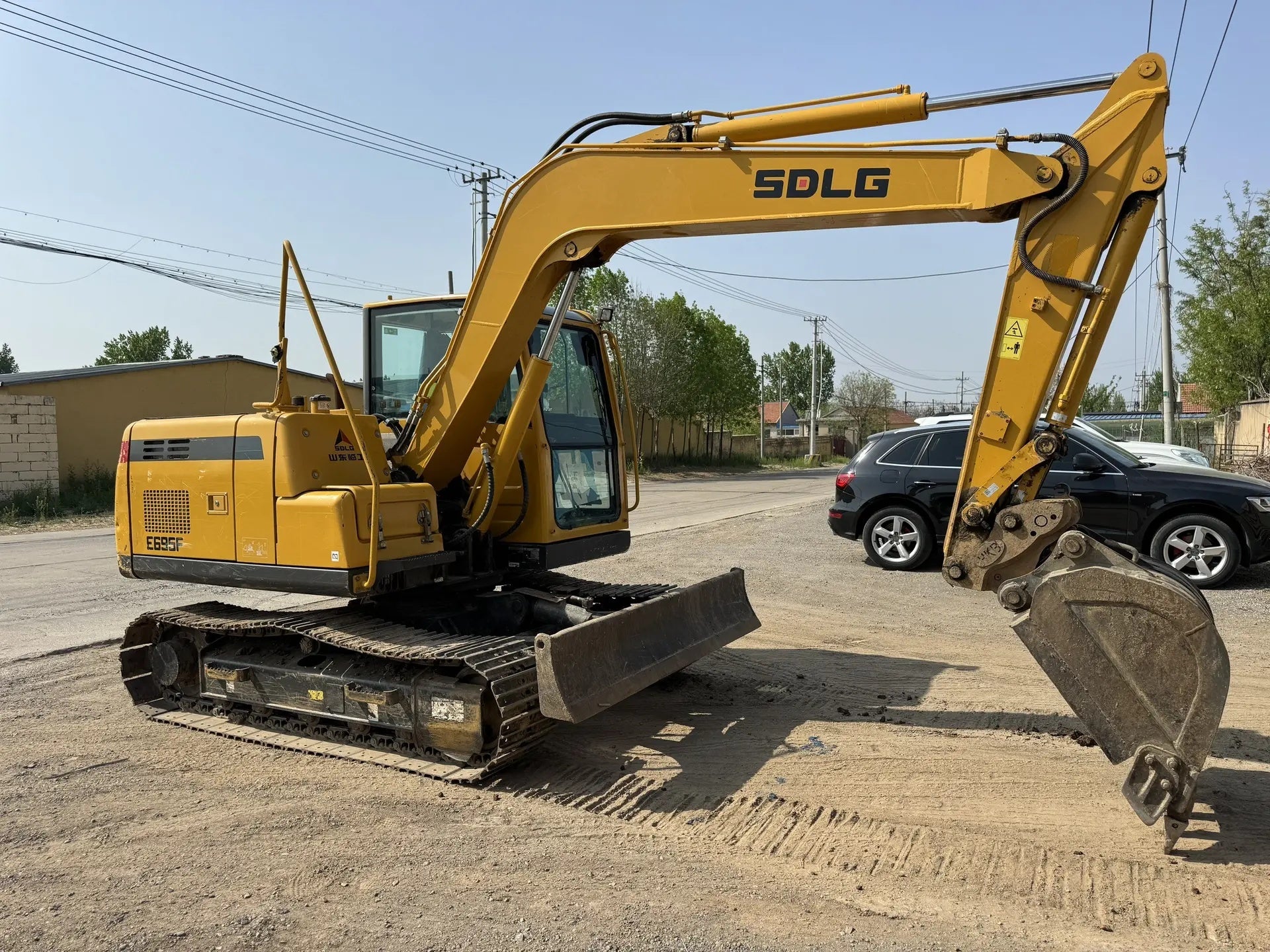

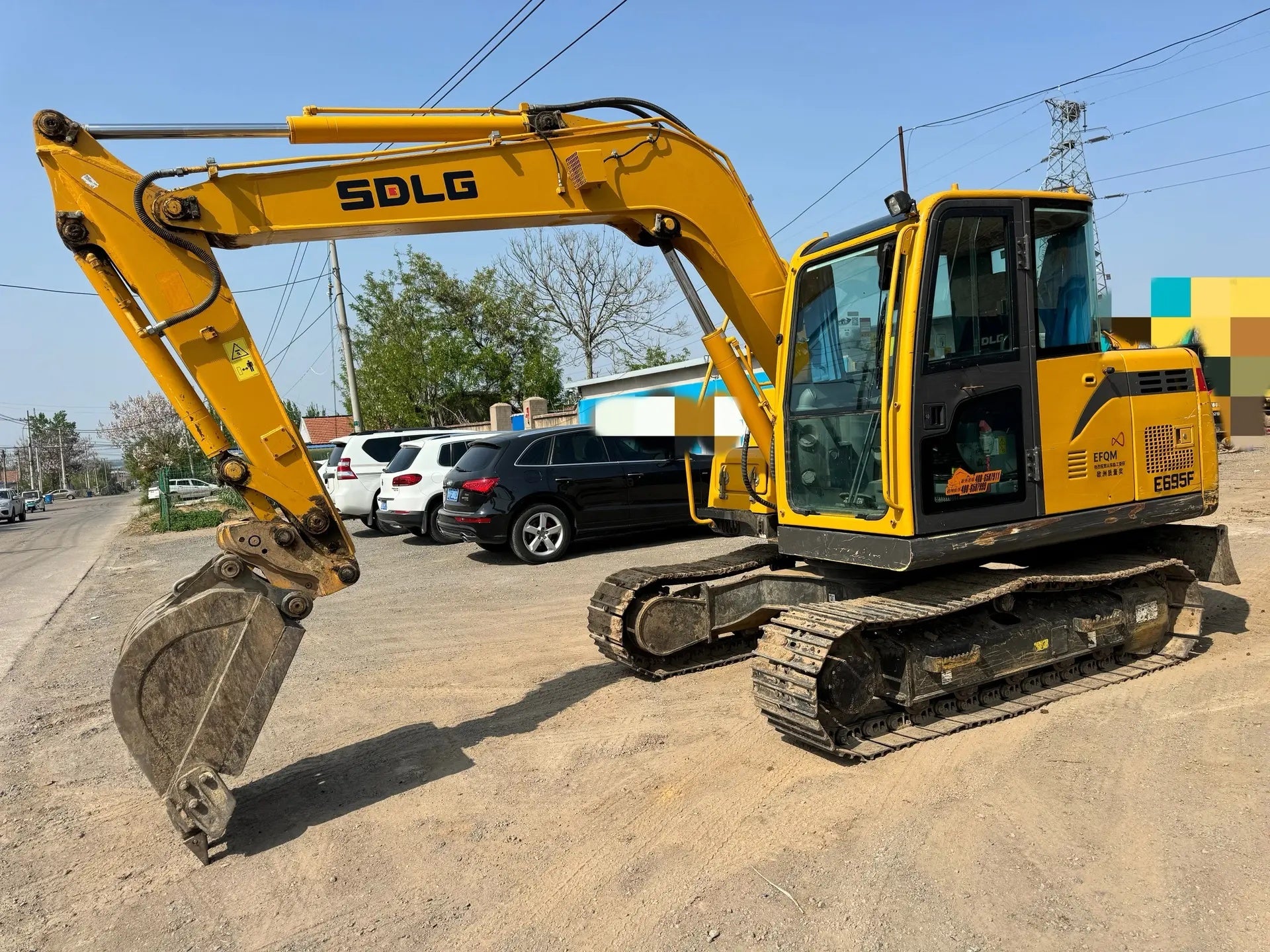

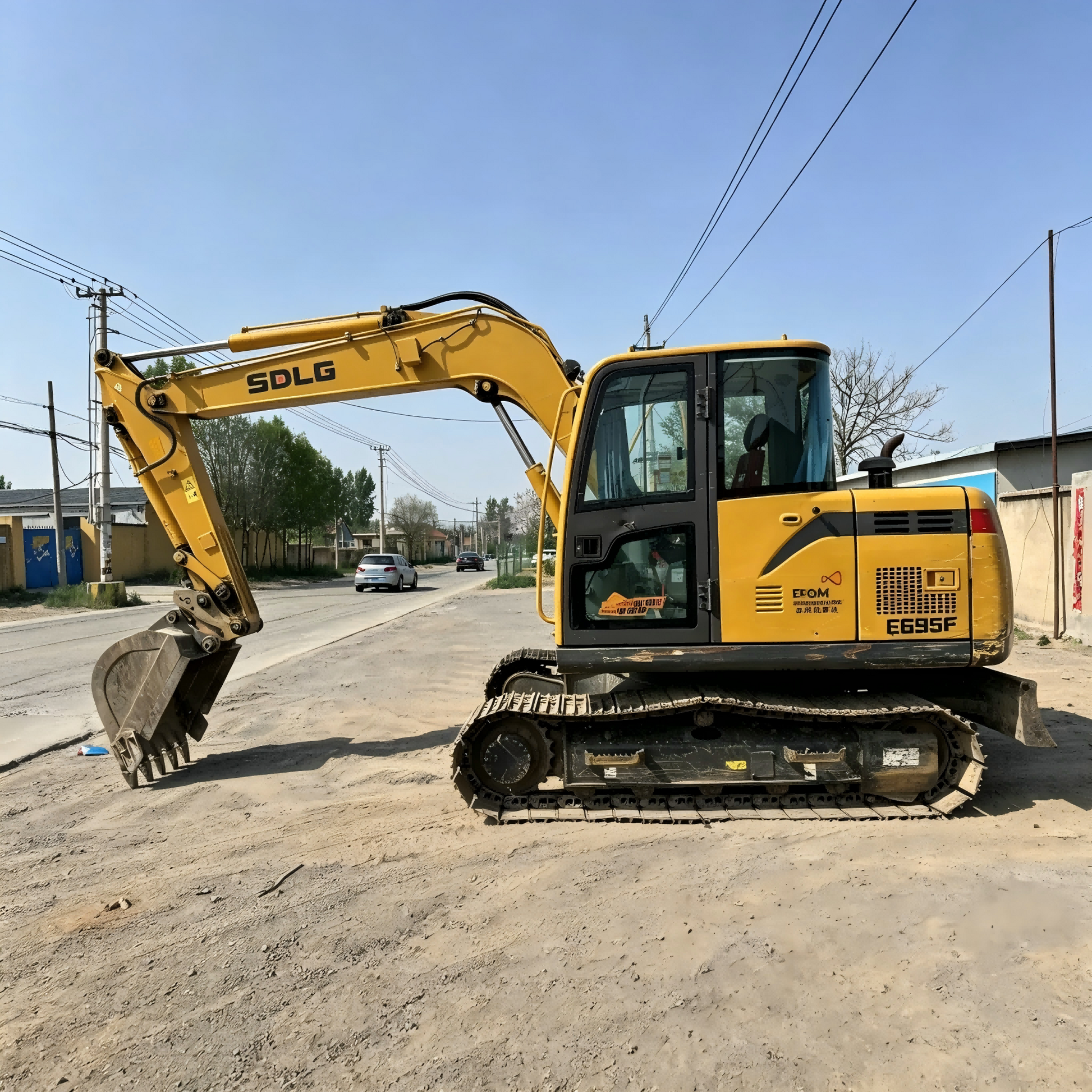

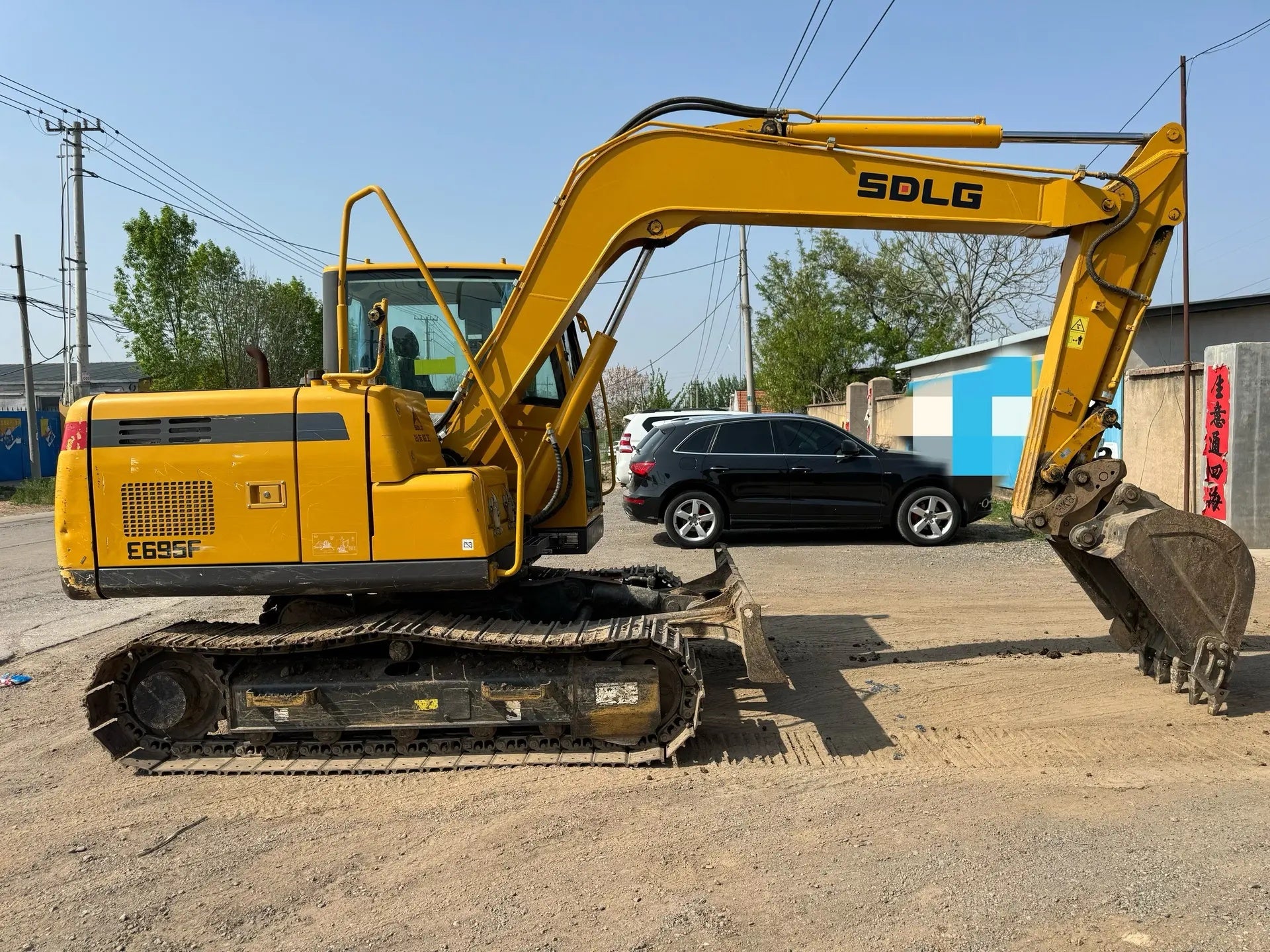

USED SDLG E695F

USED SDLG E695F

$13,000.00 USD
$13,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 9500
Standard Bucket Capacity m³ 0.40
Engine Model - Kubota V3800-CR
Rated Power kW/rpm 66.2/2200
Emission Standard - China Stage IV
Low Travel Speed km/h 2.8
High Travel Speed km/h 5.3
Swing Speed r/min 11
Max Digging Radius mm 7420
Max Digging Depth mm 4680
Max Digging Height mm 6950
Max Dumping Height mm 5100
Bucket Digging Force kN 68
Arm Digging Force kN 50
Overall Transport Length mm 6850
Overall Transport Width mm 2380
Overall Transport Height mm 2900
Track Shoe Width mm 500
Ground Contact Pressure kPa 43
Max Gradeability ° 35
Fuel Tank Capacity L 195
Hydraulic Tank Capacity L 220
Ver todos los detalles
