SDLG

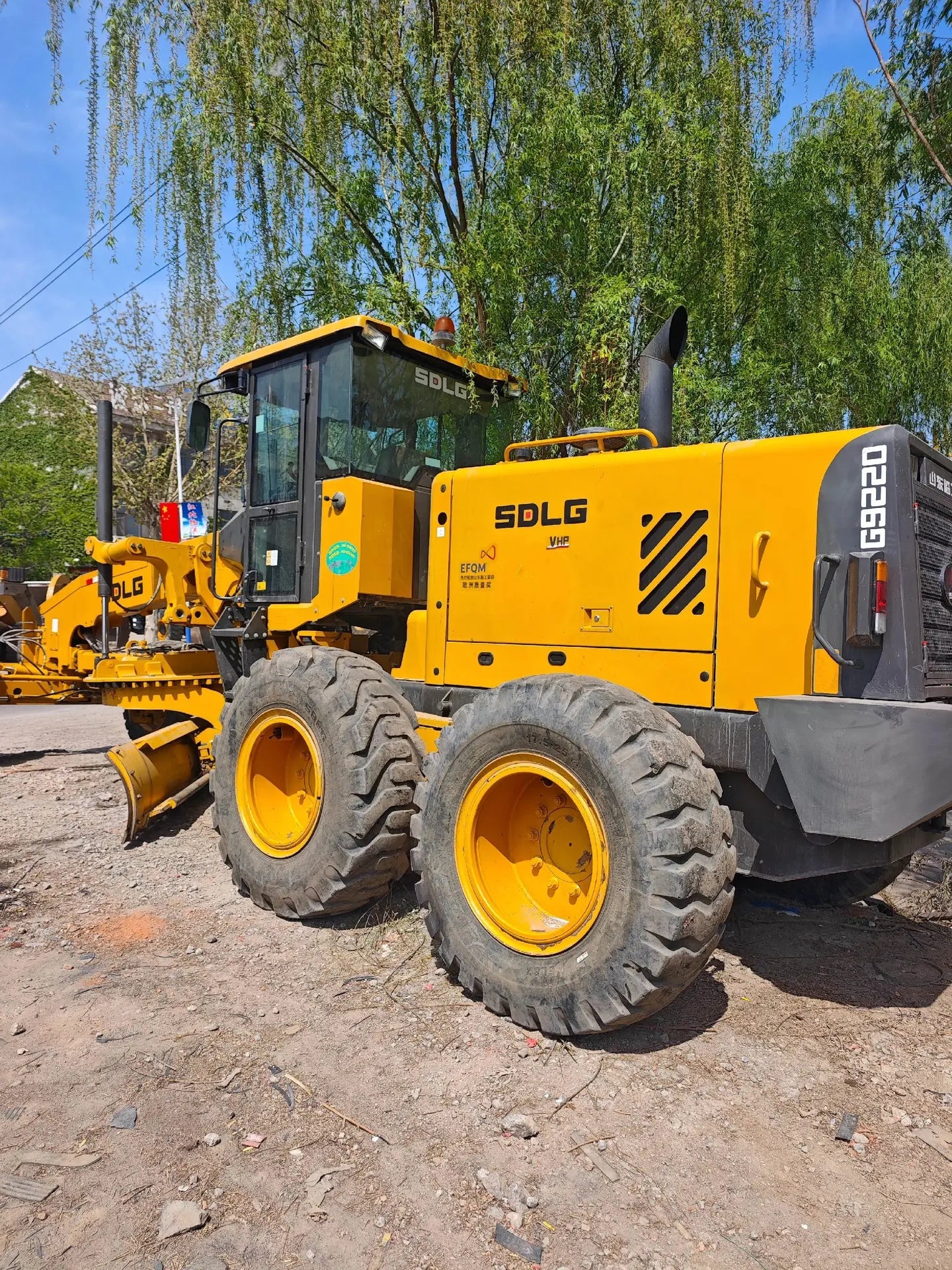

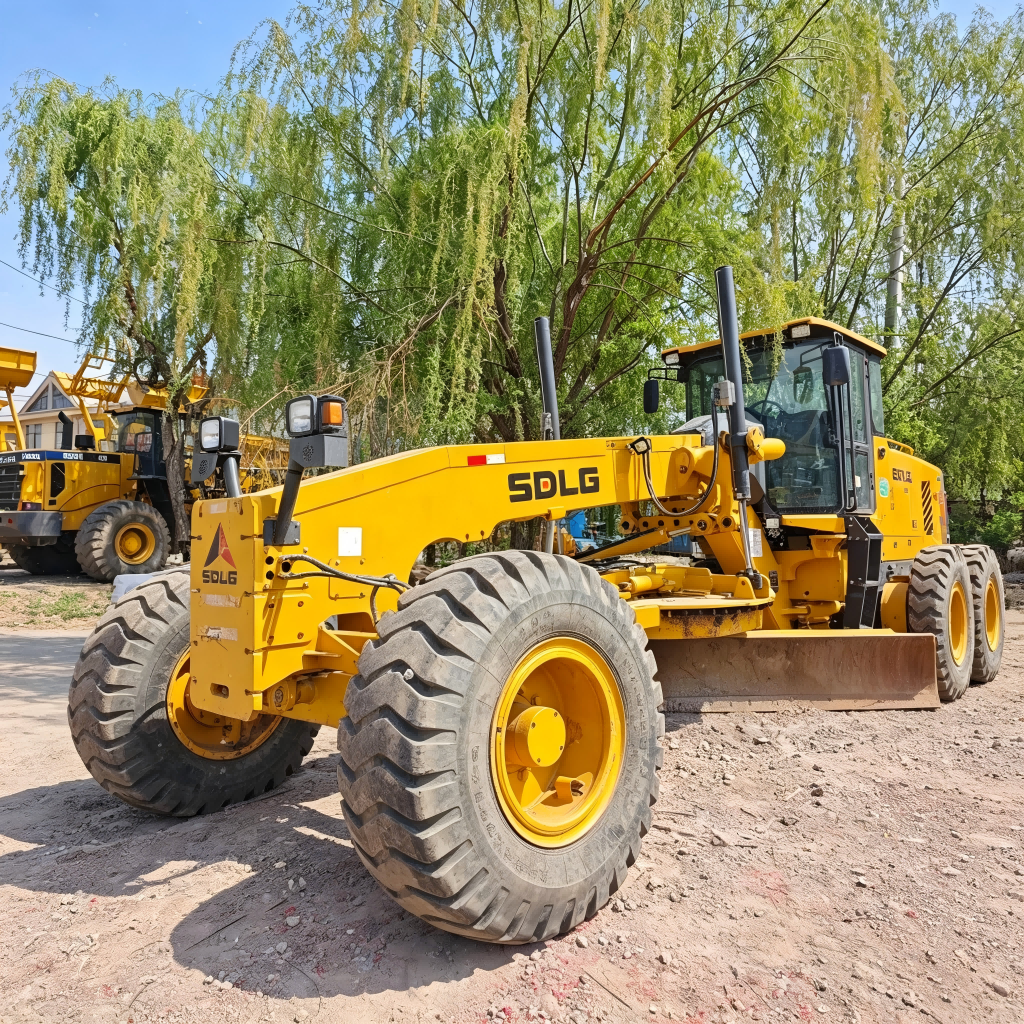

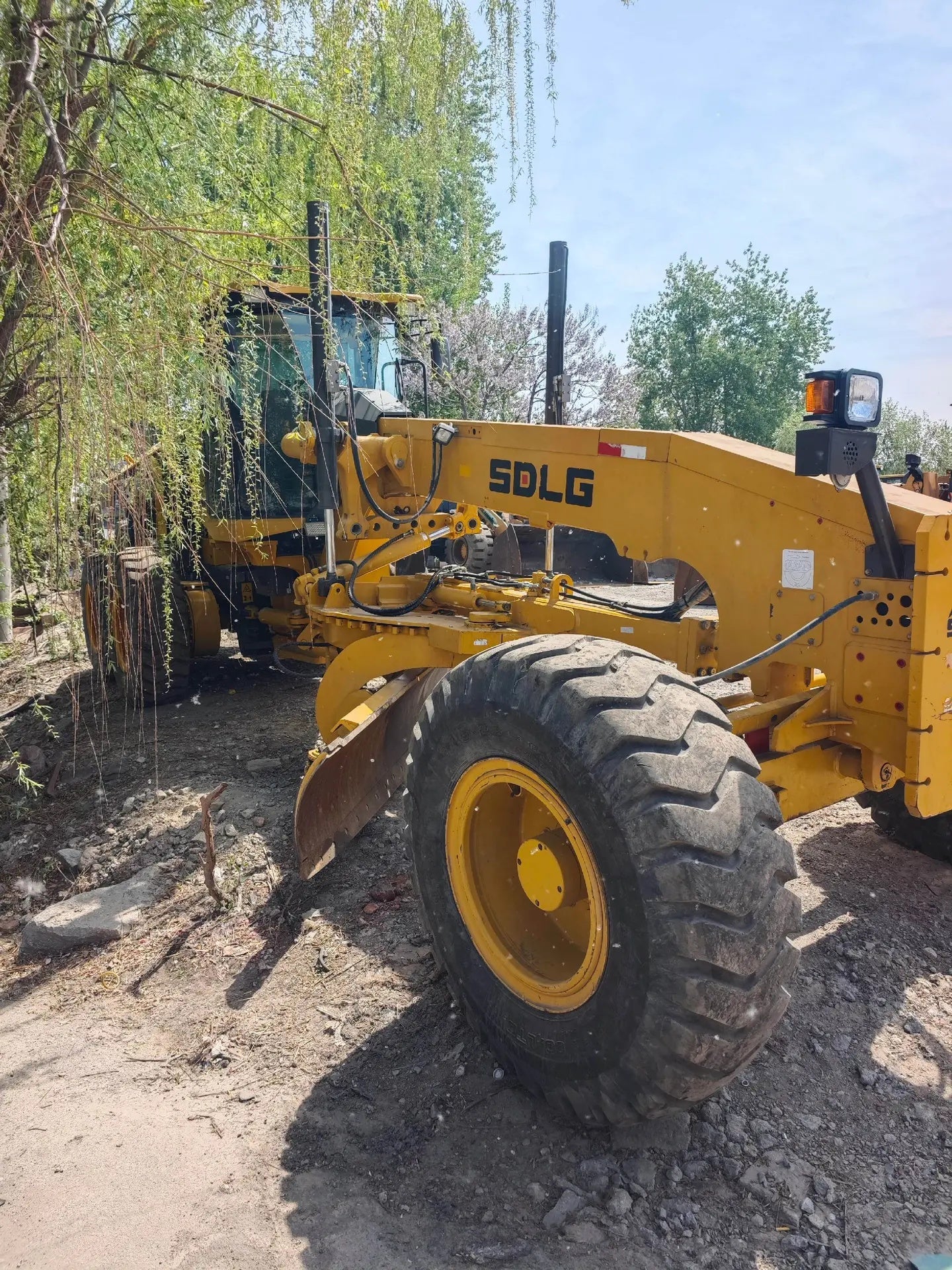

USED SDLG G9220H

USED SDLG G9220H

$16,000.00 USD
$16,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 17500
Standard Blade Dimension mm 4320×610×25
Blade Deflection Angle ° ±36
Engine Model - Weichai WP7H
Rated Power kW/rpm 162/2200
Emission Standard - China Stage IV
Maximum Forward Speed km/h 46
Maximum Reverse Speed km/h 32
Minimum Turning Radius m 7.6
Front Wheel Steering Angle ° ±50
Articulation Angle ° ±23
Max Cutting Depth mm 790
Max Blade Lift Height mm 490
Overall Length mm 9020
Overall Width mm 2780
Overall Height mm 3230
Wheelbase mm 6550
Fuel Tank Capacity L 310
Hydraulic Tank Capacity L 290
