SDLG

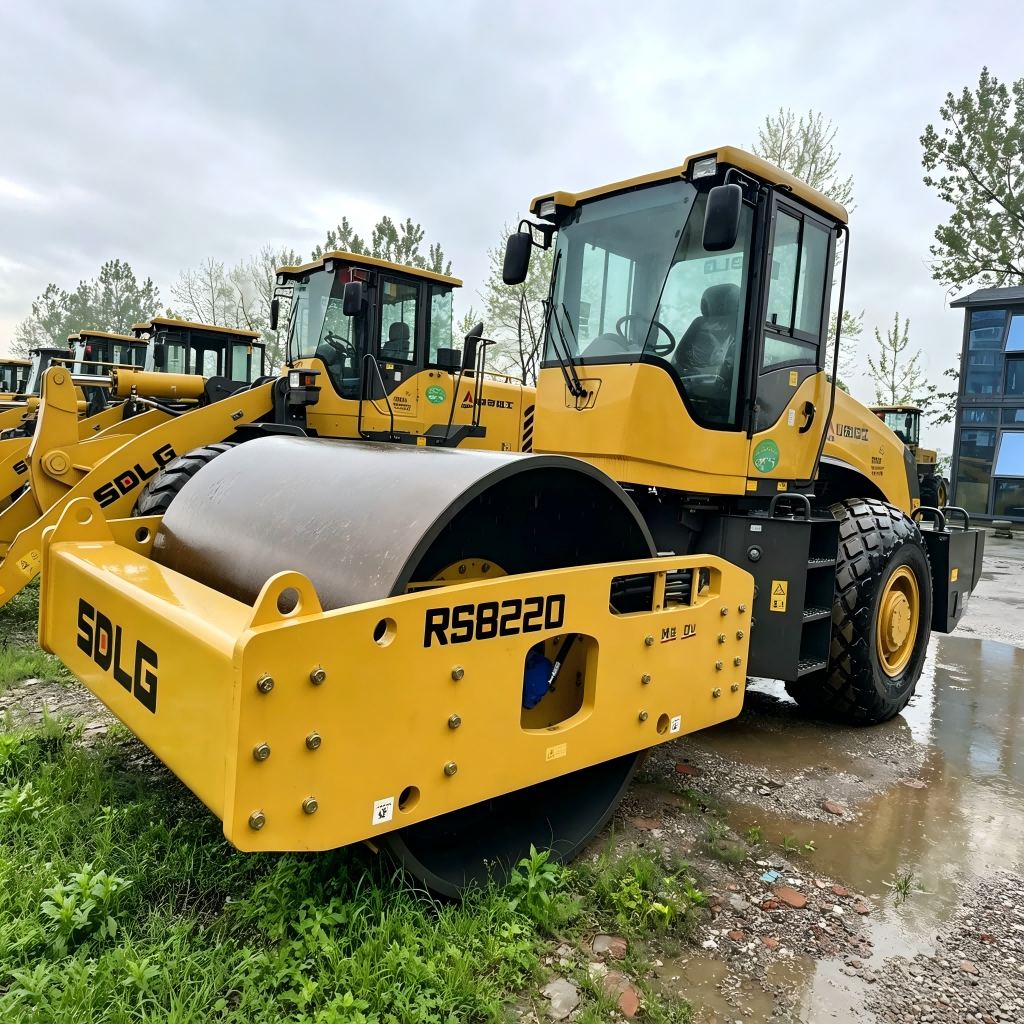

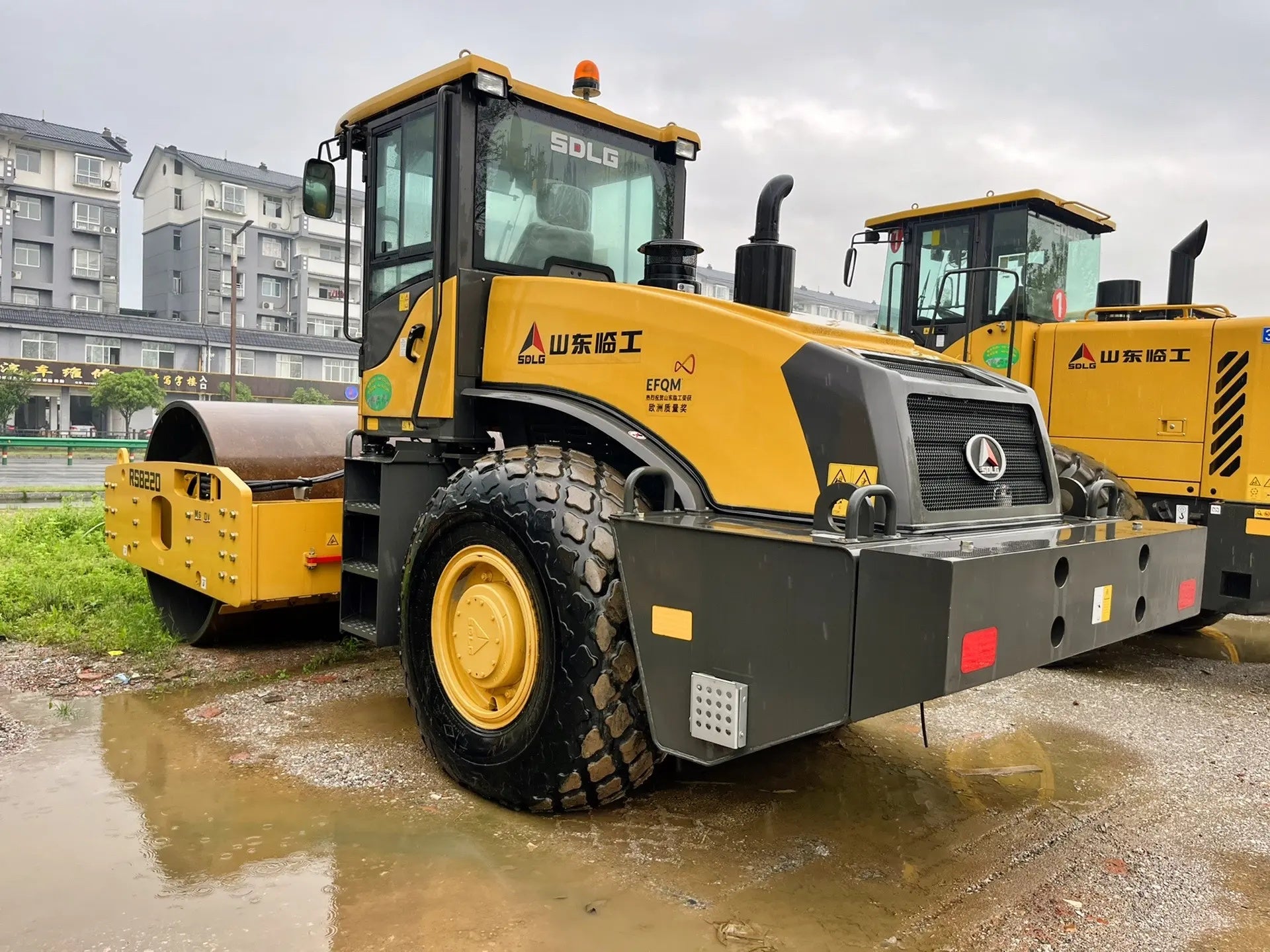

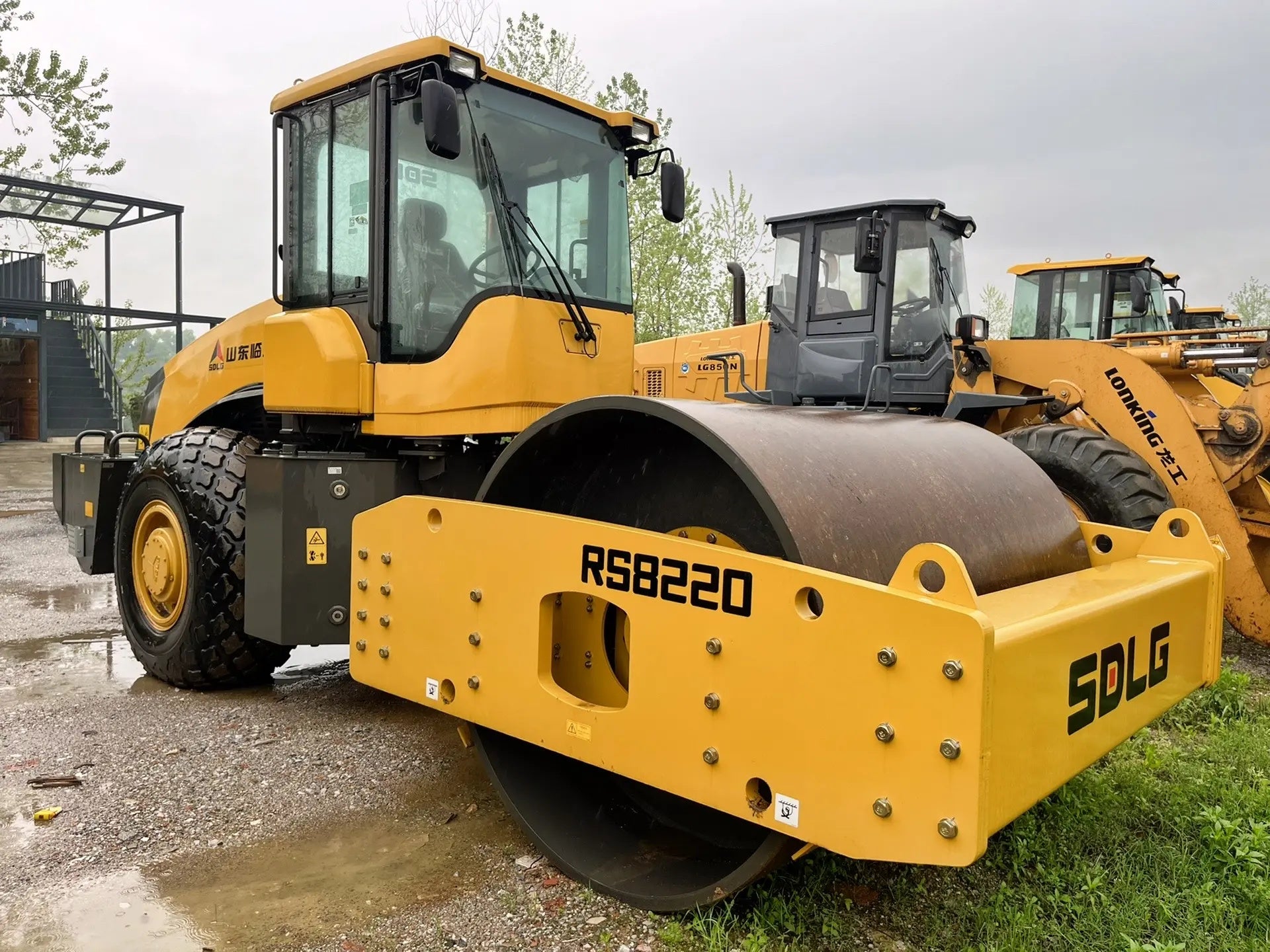

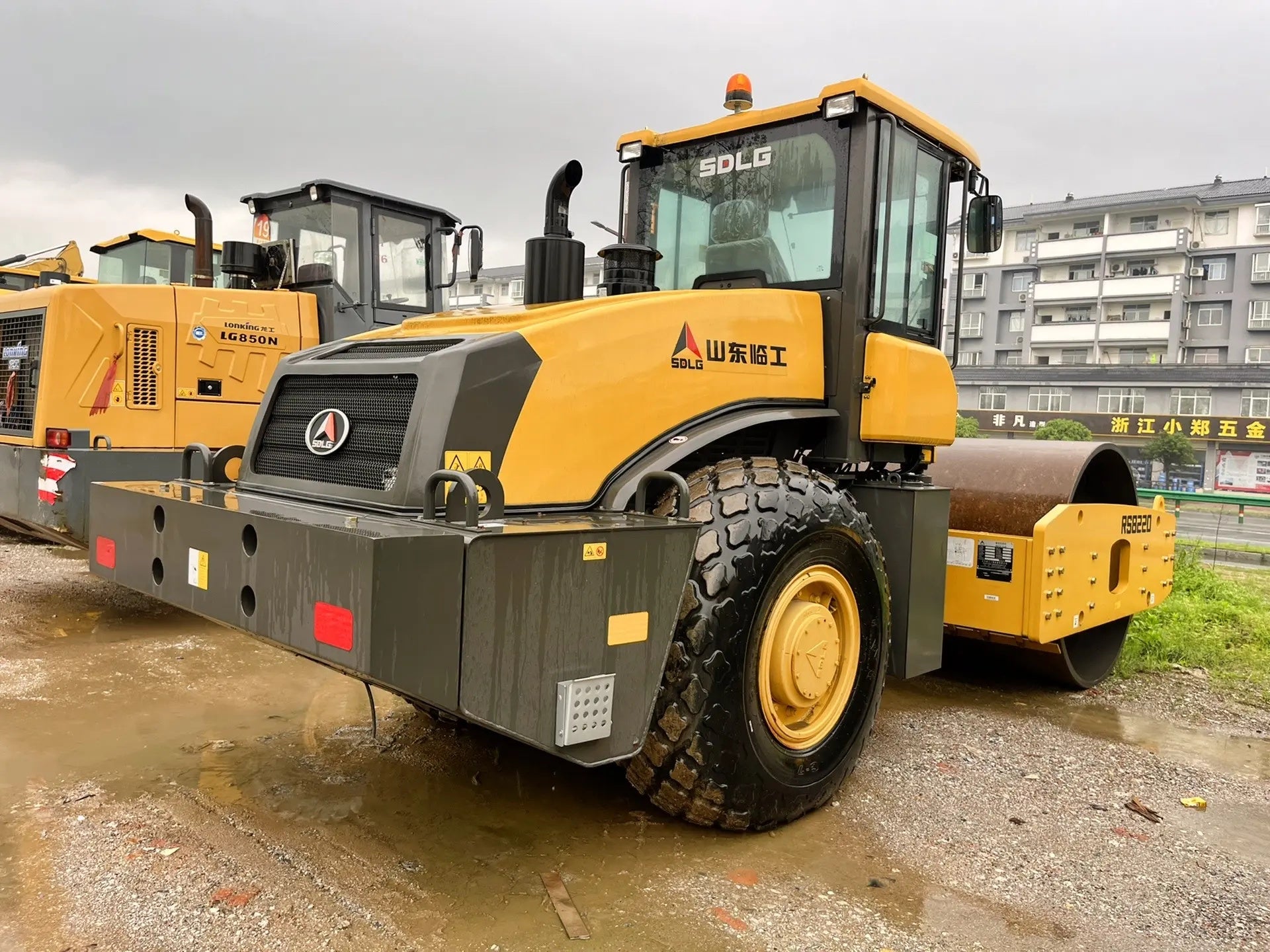

USED SDLG RS8220

USED SDLG RS8220

$20,000.00 USD
$20,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 22000
Front Drum Weight kg 11000
Rear Axle Weight kg 11000
Drum Width mm 2150
Drum Diameter mm 1600
Engine Model - Weichai WP6G190E301
Rated Power kW/rpm 140/2000
Emission Standard - China Stage III
Vibration Frequency Hz 28/35 (high/low)
Nominal Amplitude mm 2.0/1.0 (high/low)
Exciting Force kN 390/300 (high/low)
Static Linear Pressure N/cm 511
Travel Speed km/h 0–11.7
Gradeability % 30
Steering Angle ° ±35
Oscillation Angle ° ±12
Min Turning Radius mm 6600
Wheelbase mm 3441
Min Ground Clearance mm 407
Overall Length mm 6370
Overall Width mm 2360
Overall Height mm 3185
Fuel Tank Capacity L 220
Hydraulic Tank Capacity L 180
Ver todos los detalles
