| Model |

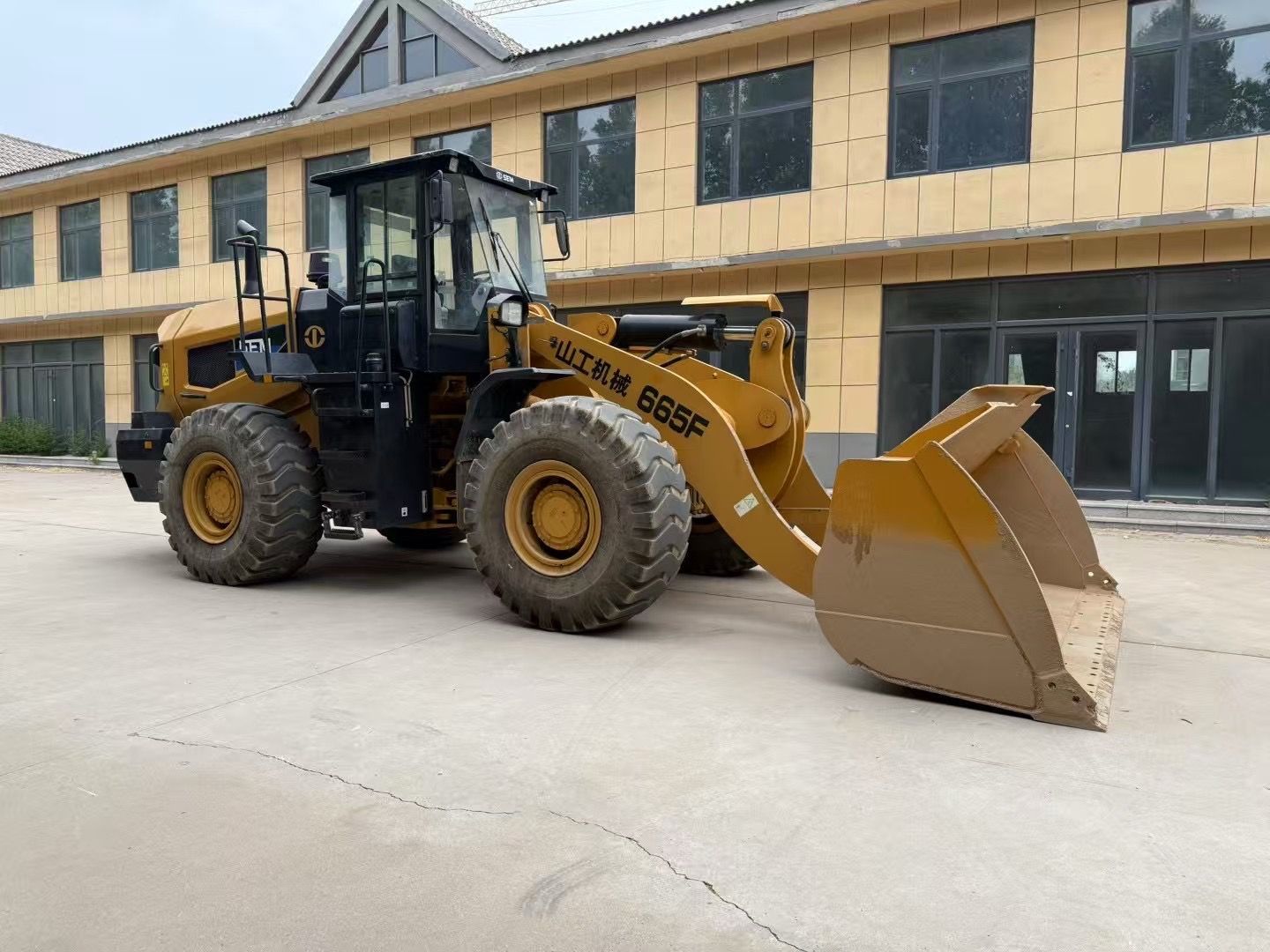

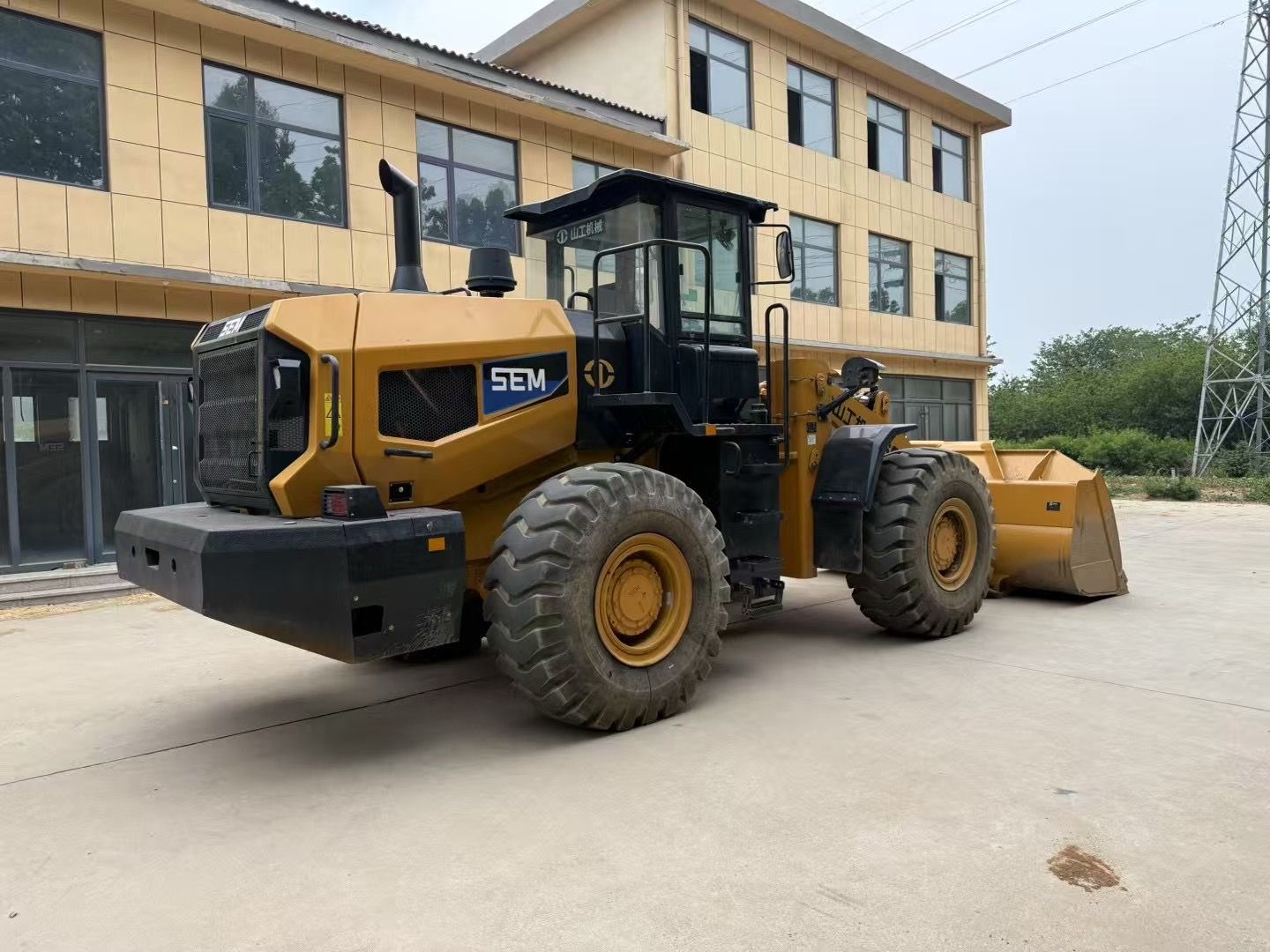

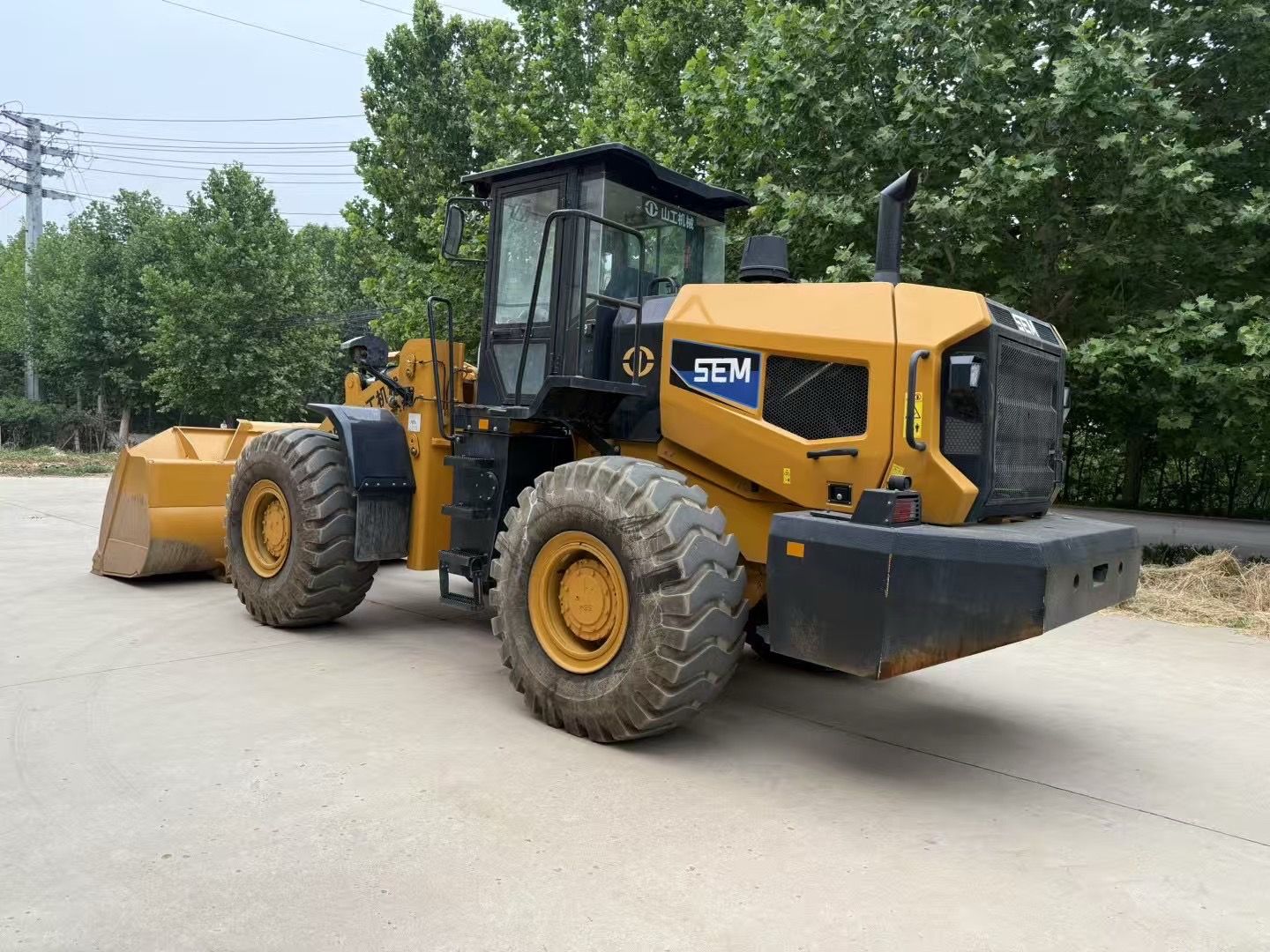

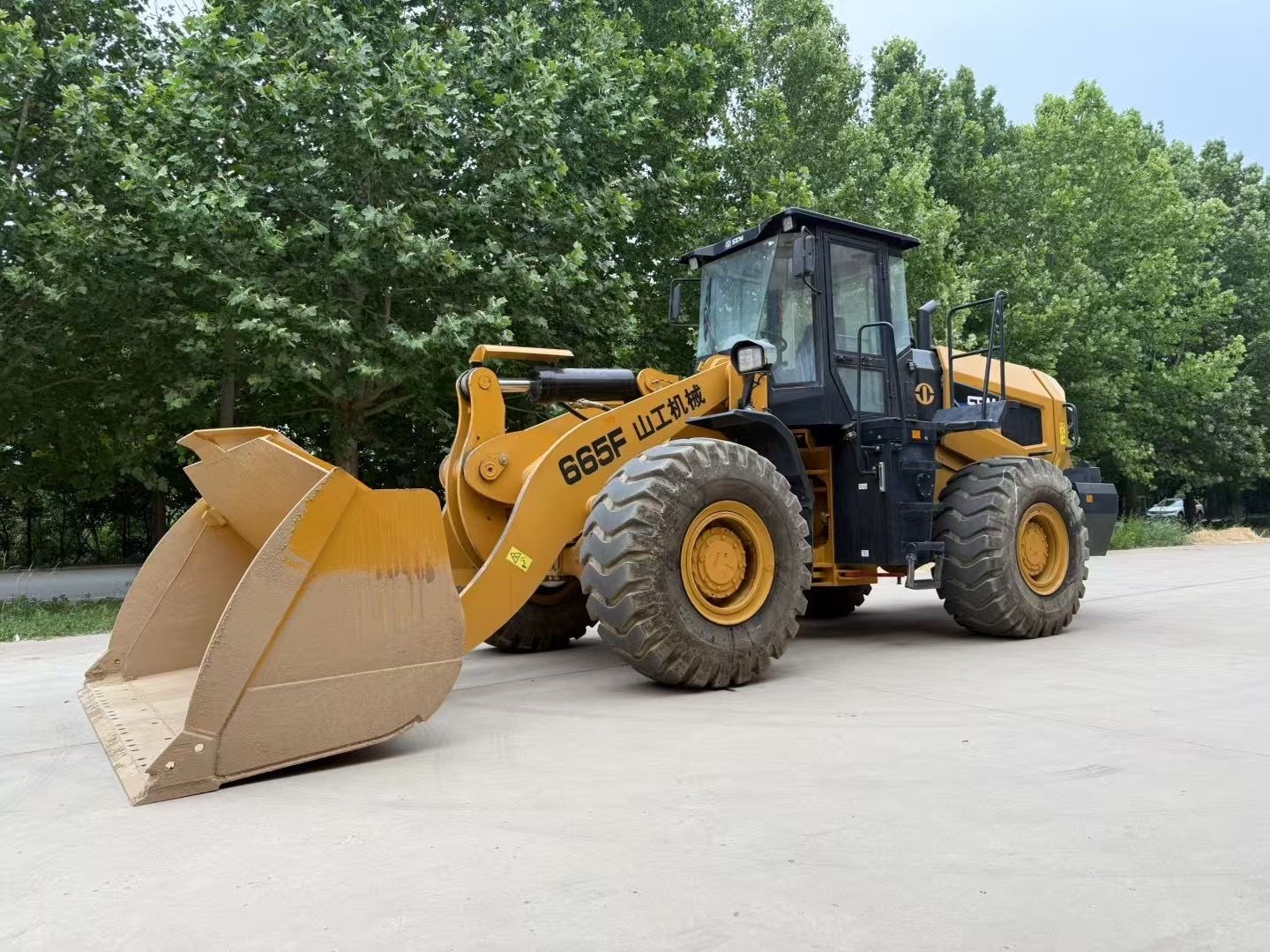

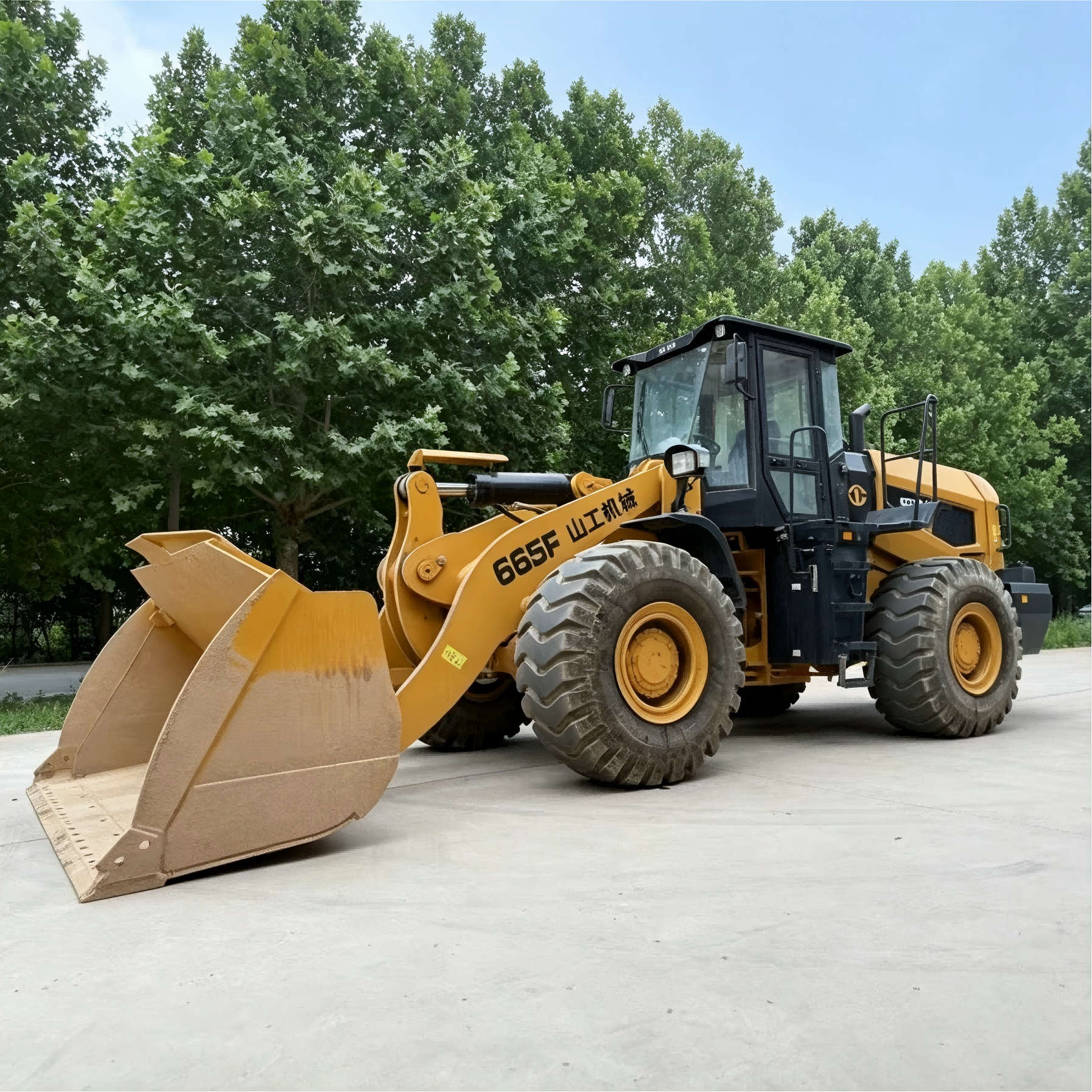

SEM 665F (6.5-ton Heavy-duty Wheel Loader, Tier 4) |
| Operating Weight |
20,500 kg (45,195 lb) |
| Rated Load |
6,500 kg (6.5 ton) |
| Bucket Capacity (Std) |
2.9–5.5 m³ (4.0 m³ std) |
| Engine Model |

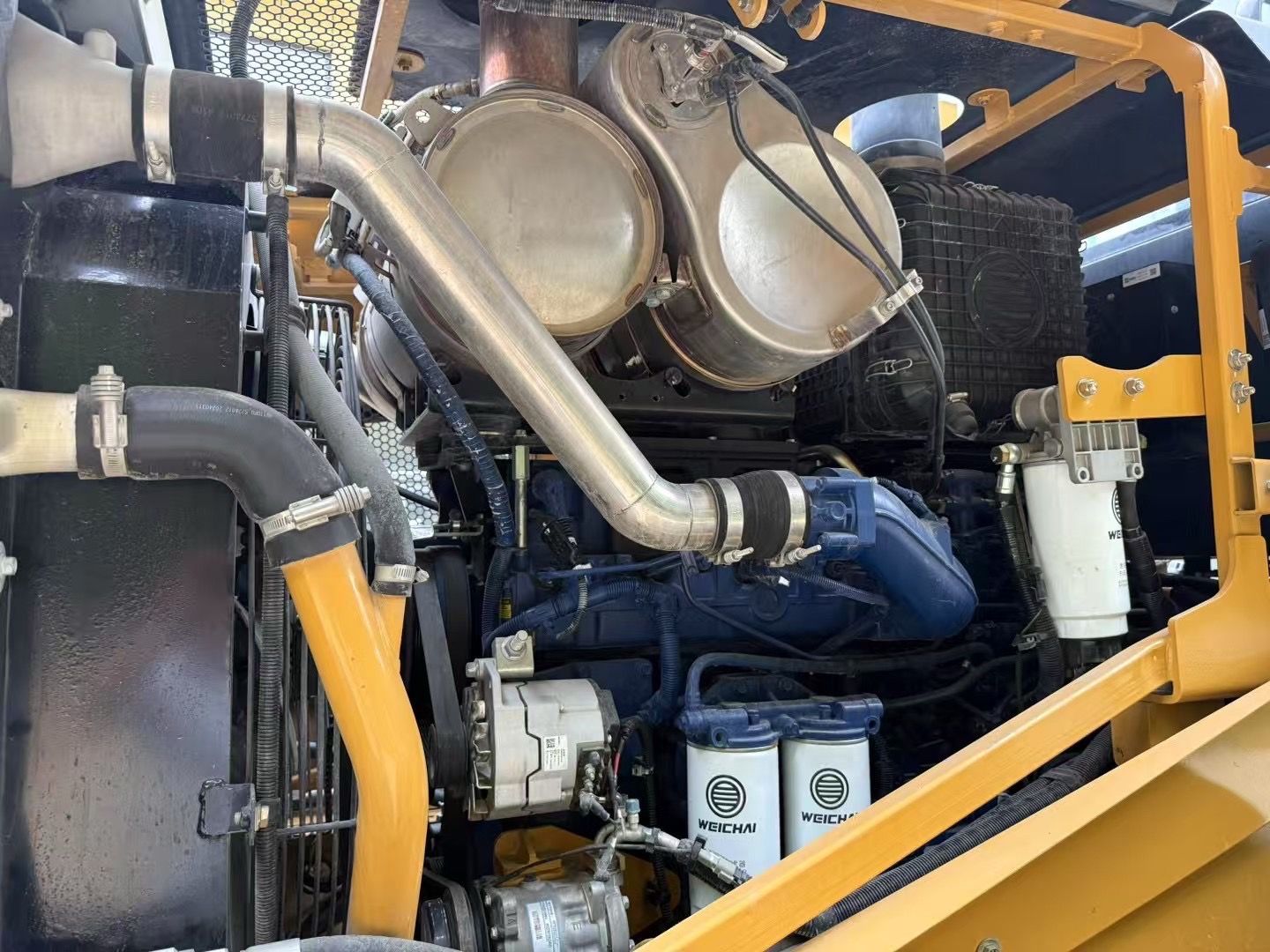

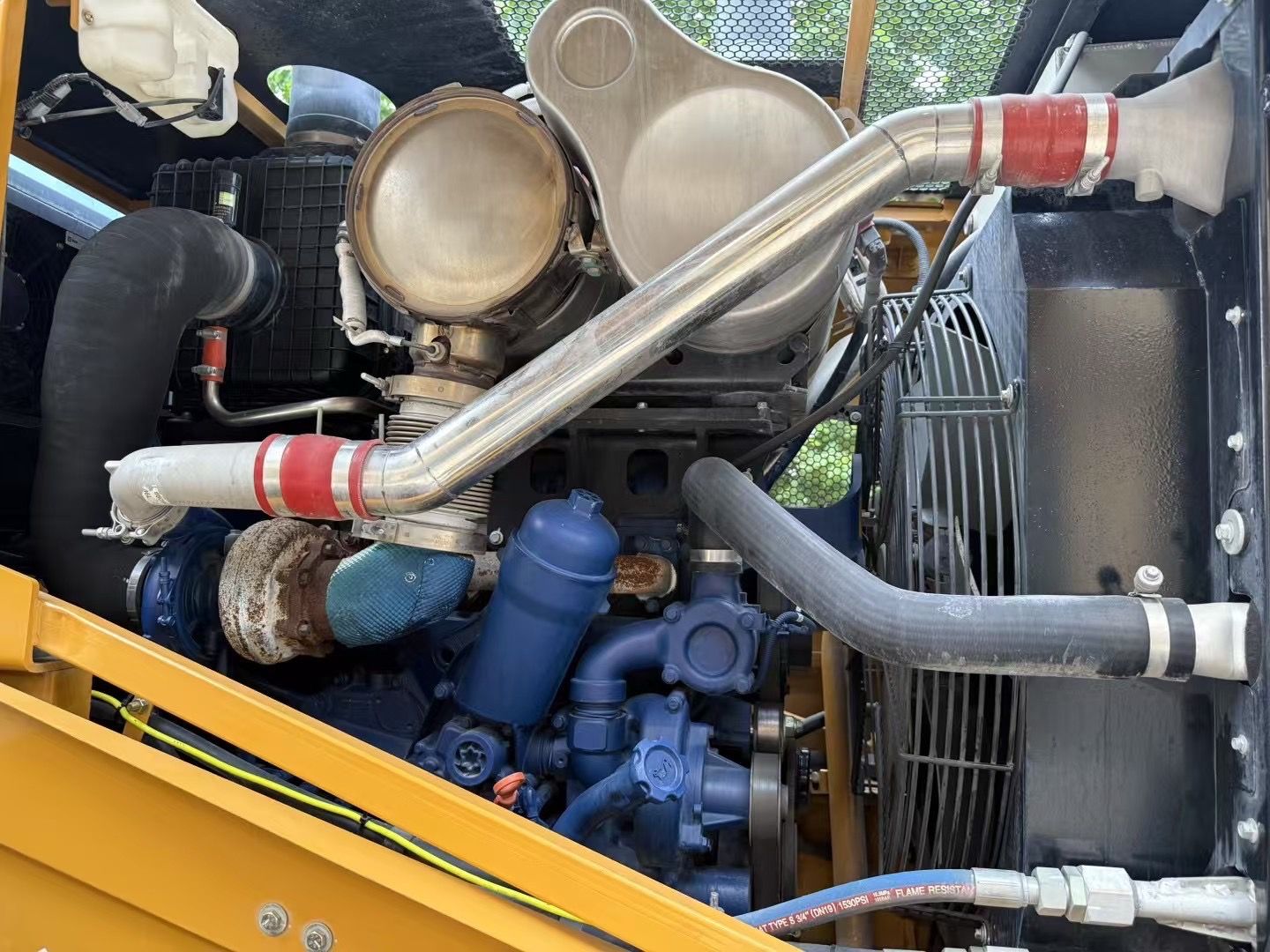

Weichai WP10HG240 (6-cyl turbo diesel, 9.5L, Tier 4) |
| Rated Power |
178 kW / 240 HP @ 2,000 rpm |
| Emission |
Euro 4 / Tier 4 / 国四 (DPF+SCR) |
| Max Breakout Force |
190 kN |
| Max Traction Force |
185 kN |
| Travel Speed (Fwd 1–4) |
7.6 / 15 / 23 / 39 km/h |
| Hydraulic Pressure |
200 bar (20 MPa) |
| Lift Time |
5.3 s |
| Total Cycle Time |
9.8 s |
| Max Dump Height |
3,100 mm |
| Wheelbase |
3,400 mm (100mm longer than 656D) |
| Turning Radius (Outer) |
7,150 mm |
| Tire Size |
26.5–25 (PR20) |
| Fuel Tank |
300 L |
| Hydraulic Tank |
180 L |
| Key Features |
6.5t heavy-duty, 240HP Weichai Tier4, Cat electronic control, 3.4m long wheelbase, reinforced frame, high stability, heavy-load mining/port |
