| Model |

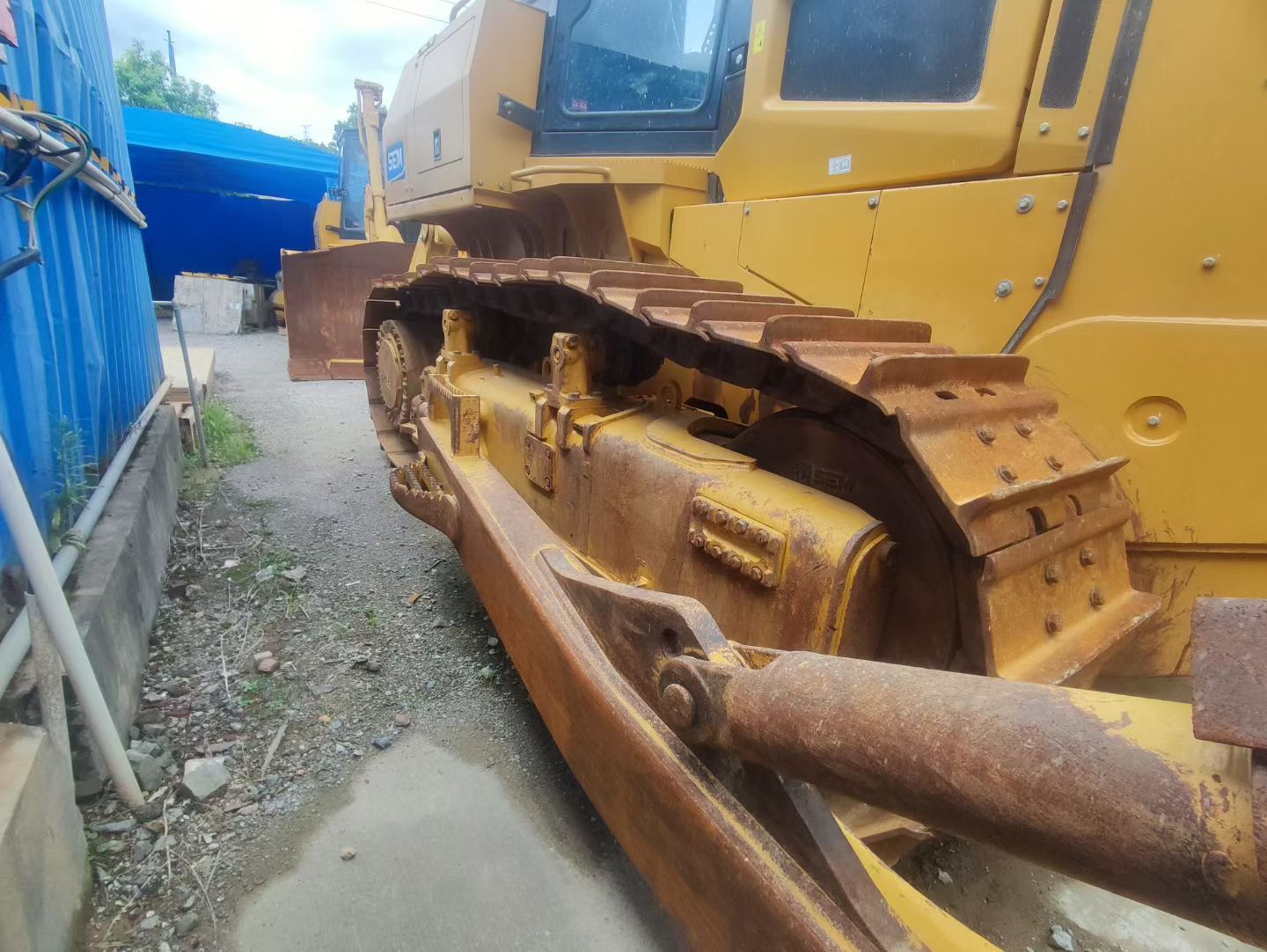

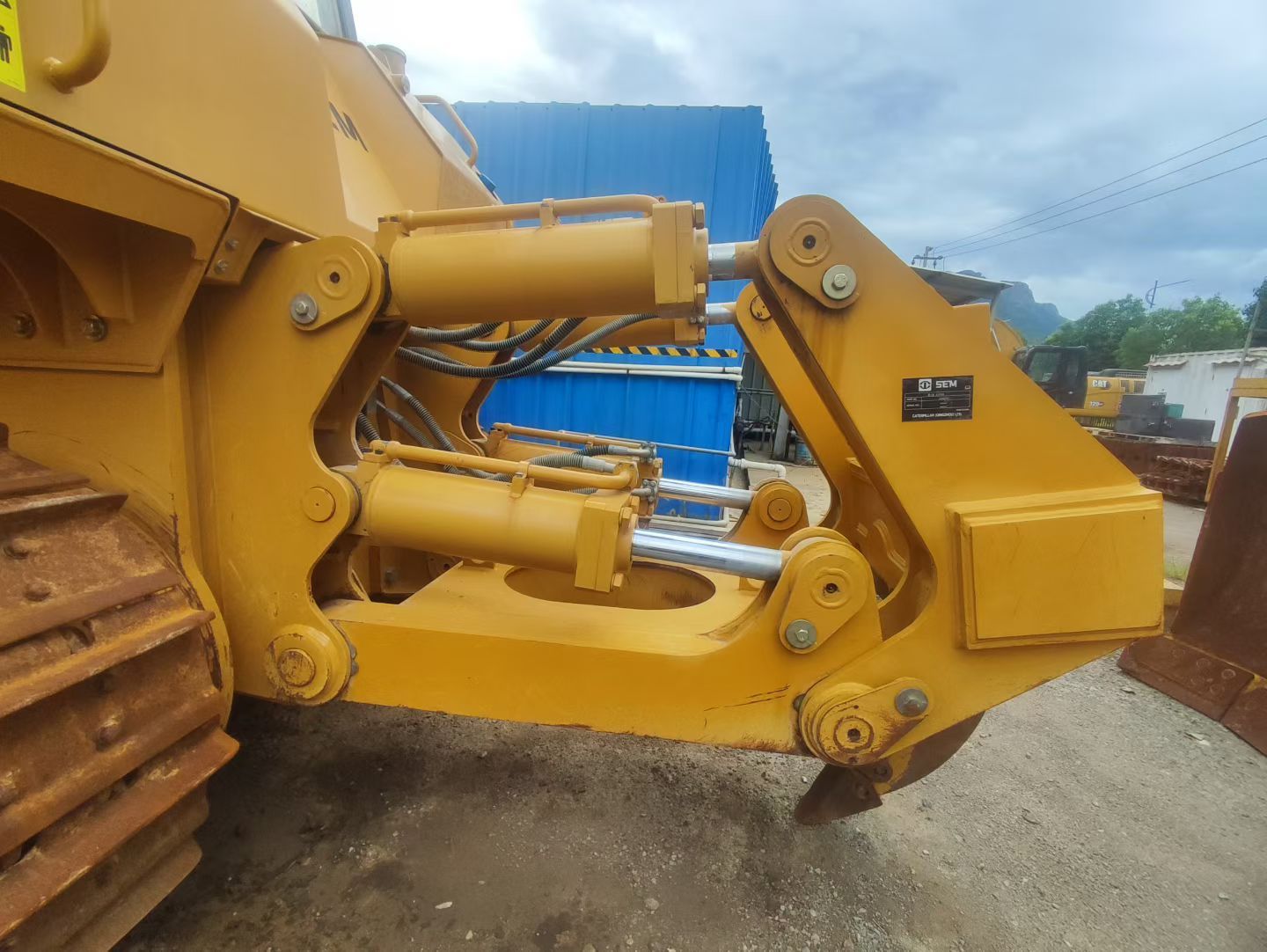

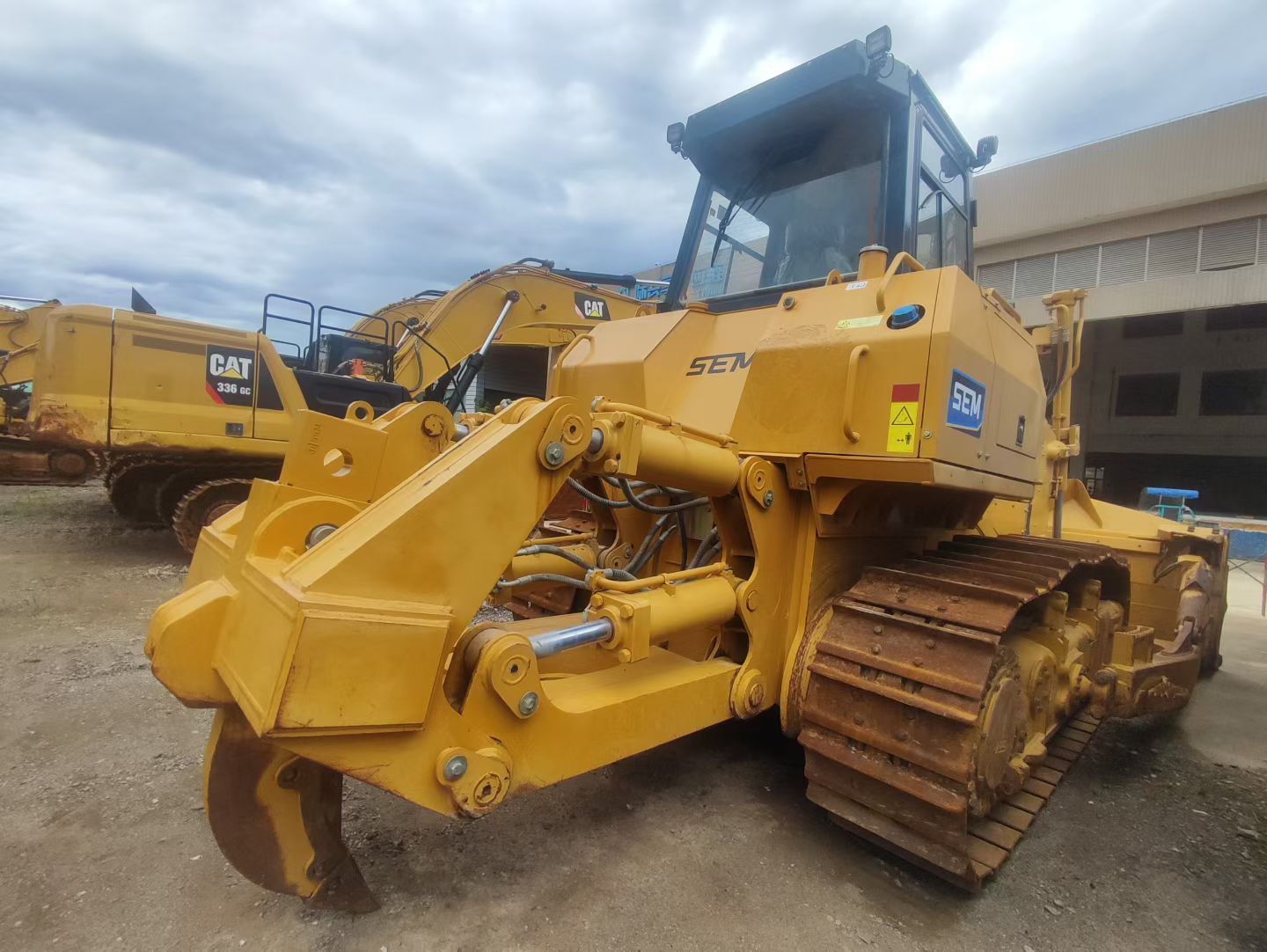

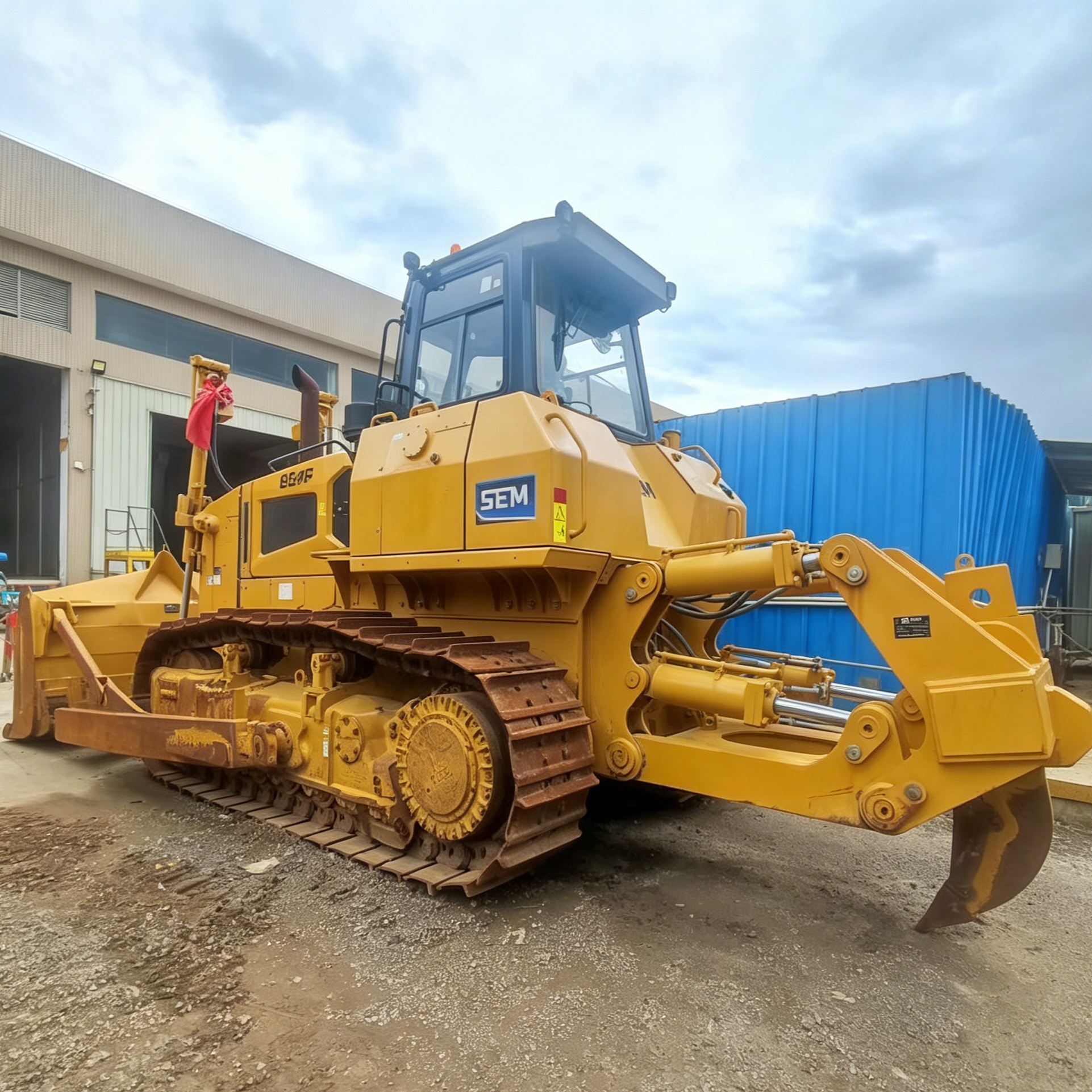

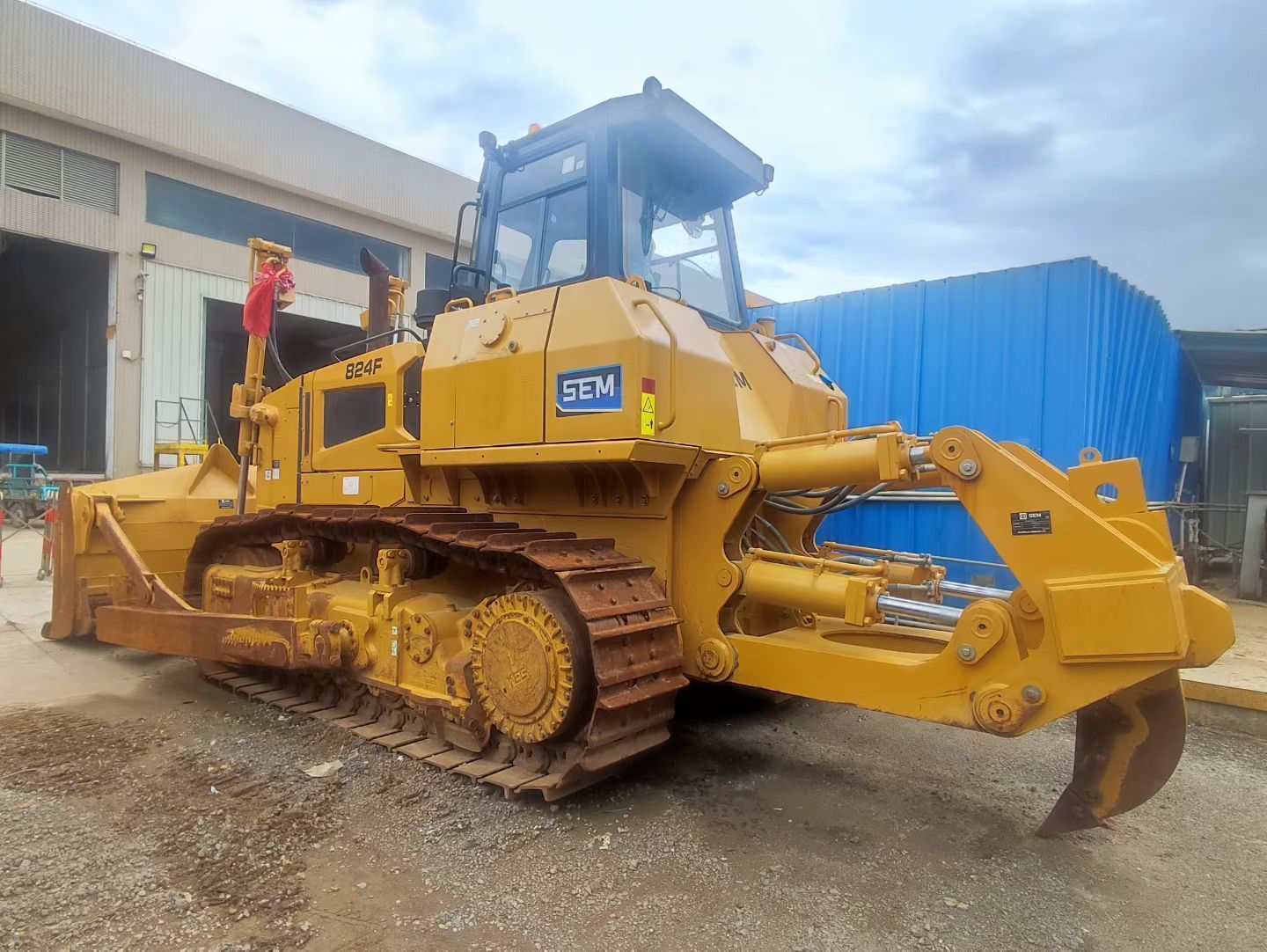

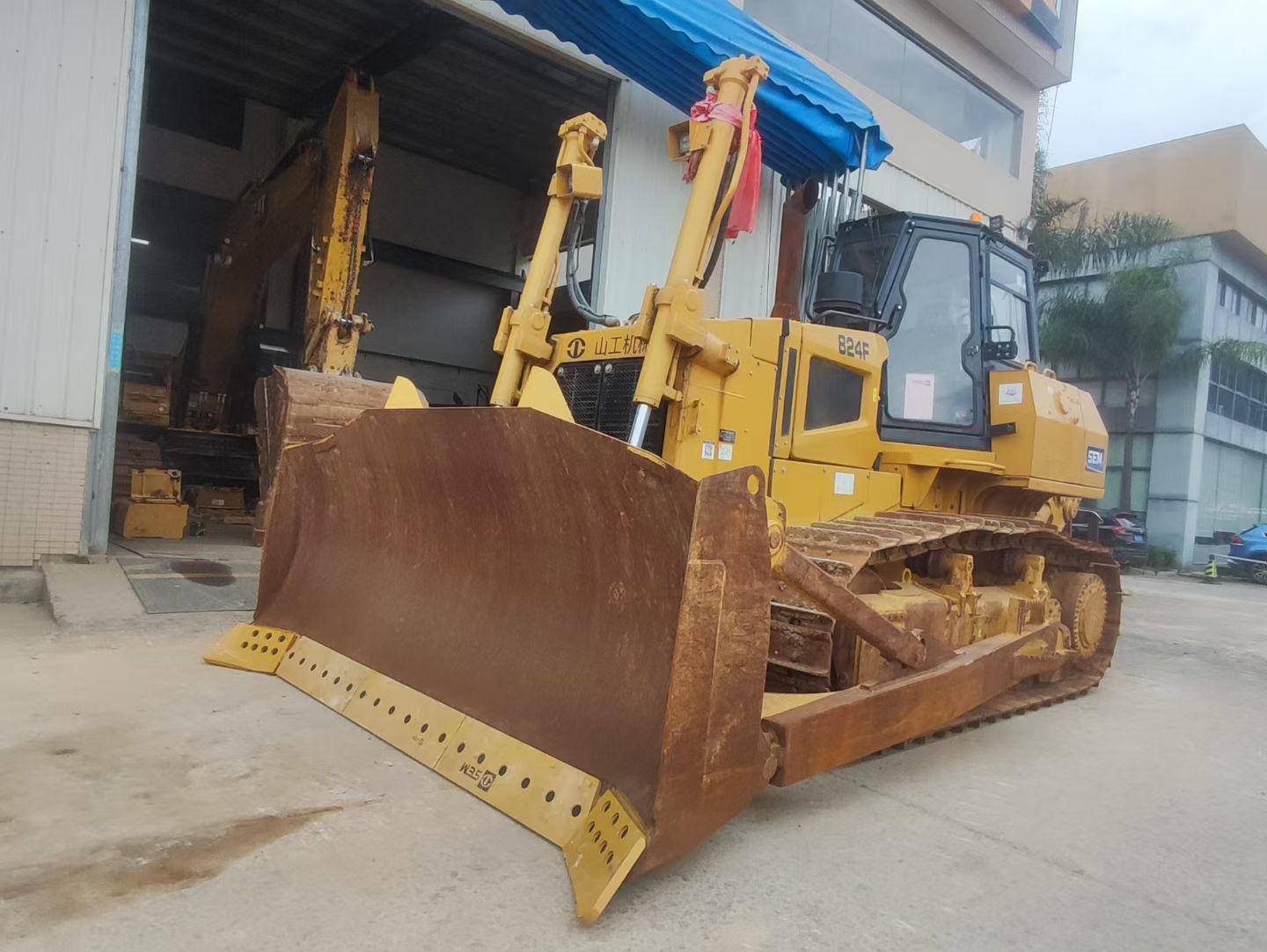

SEM 824F (26-ton Tracked Dozer, Stage IV / 国四) |
| Operating Weight |
23,730 kg（标准）/ 27,580 kg（湿地） |
| Rated Power |
211 kW / 283 HP @ 2,200 rpm |
| Engine Model |

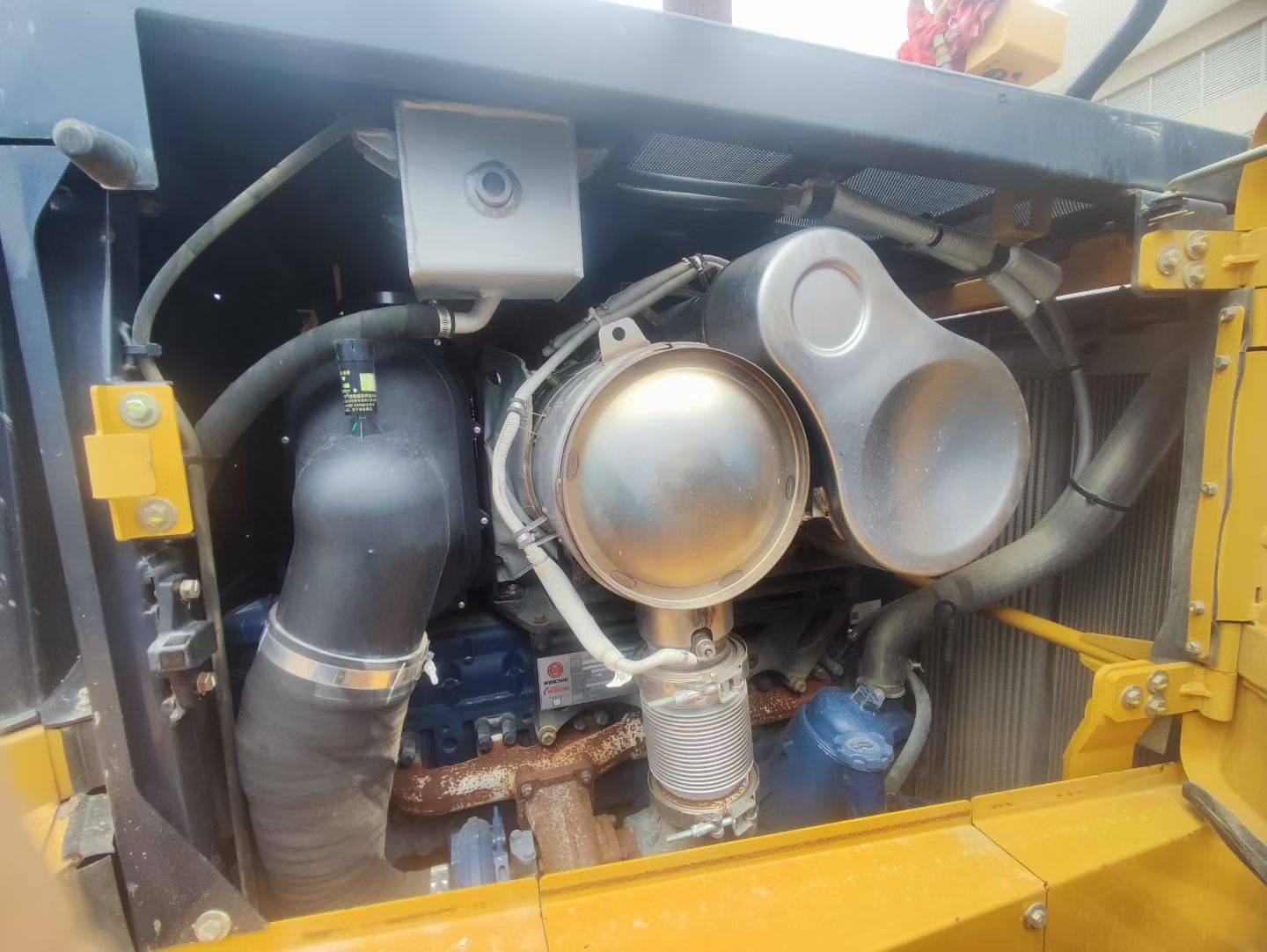

Weichai WP10HG270E471 (6-cyl turbo diesel, Stage IV) |
| Emission |
Euro 4 / Tier 4 Final / 国四 |
| Max Drawbar Pull |
380 kN |
| Blade Type (Std) |
SU Blade (Semi-U) |
| Blade Capacity |
6.4 m³（标准）/ 9.2 m³（推煤） |
| Blade Width × Height |
3,605 mm × 1,520 mm |
| Max Lift Height |
1,140 mm |
| Max Digging Depth |
570 mm |
| Travel Speed |
0–12 km/h (Infinitely Variable) |
| Drive System |
CAT Electronically Controlled Hydrostatic Drive |
| Steering/Brake |
Hydrostatic In-place Turn / Wet Multi-disc Brake |
| Track Shoe Width |
560 mm（标准）/ 915 mm（湿地 LGP） |
| Ground Pressure |
62 kPa（标准）/ 38 kPa（湿地） |
| Ground Clearance |
400 mm |
| Fuel Tank |
520 L |
| Key Features |
26t flagship dozer, CAT hydrostatic, 380kN pull, 6.4m³ blade, Stage IV, heavy-duty undercarriage, mining/waterworks/mass earthmoving |
