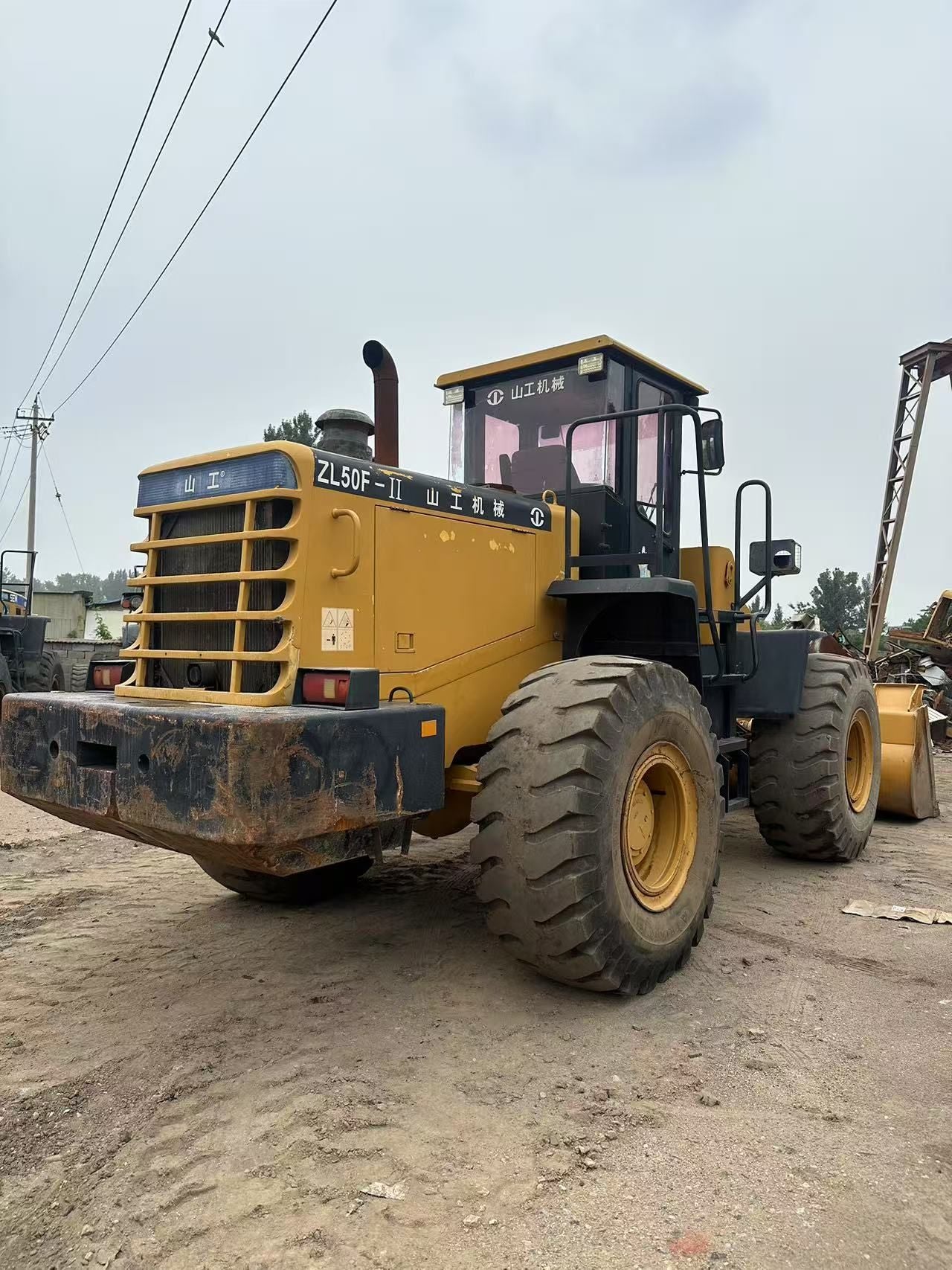

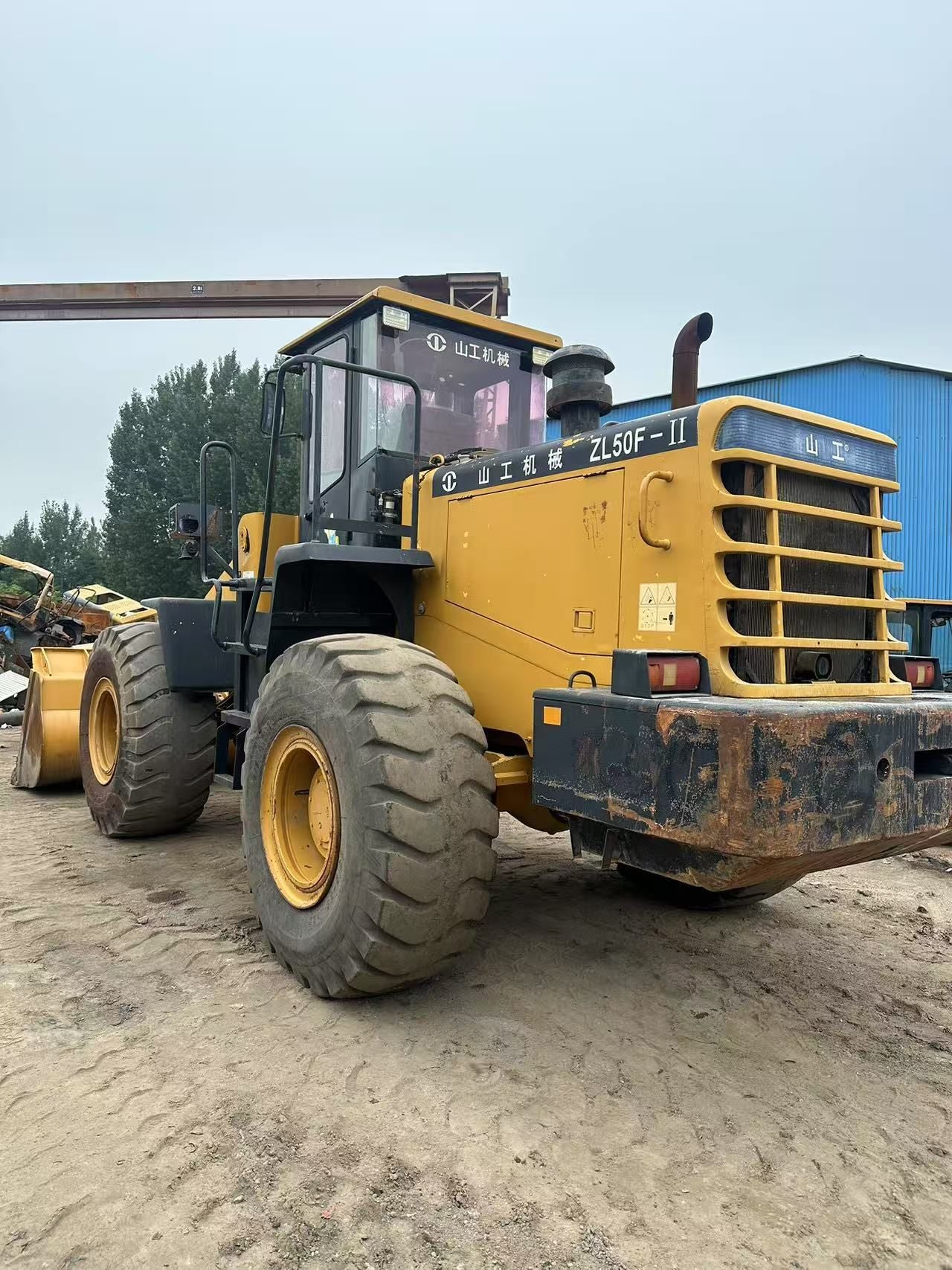

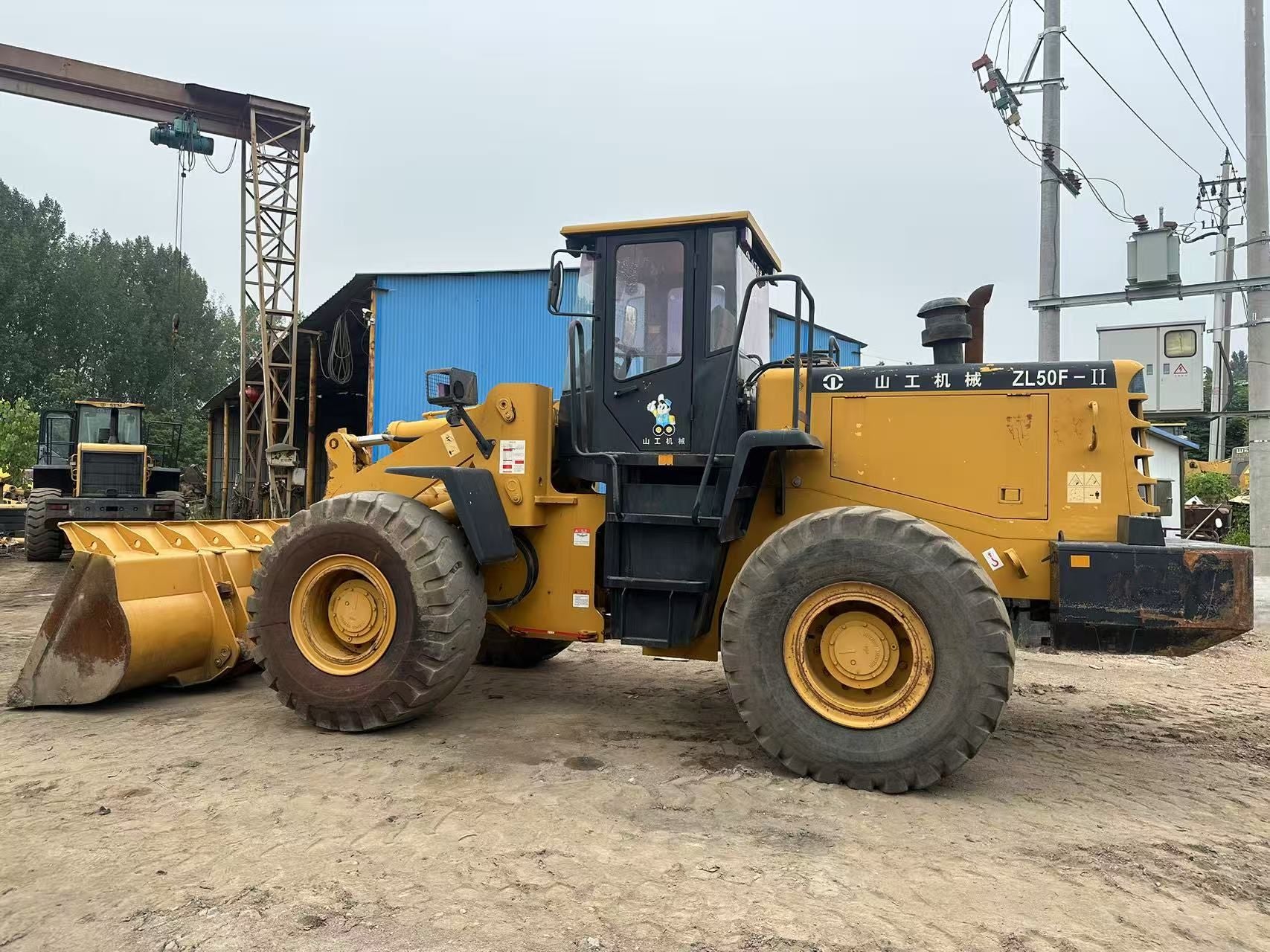

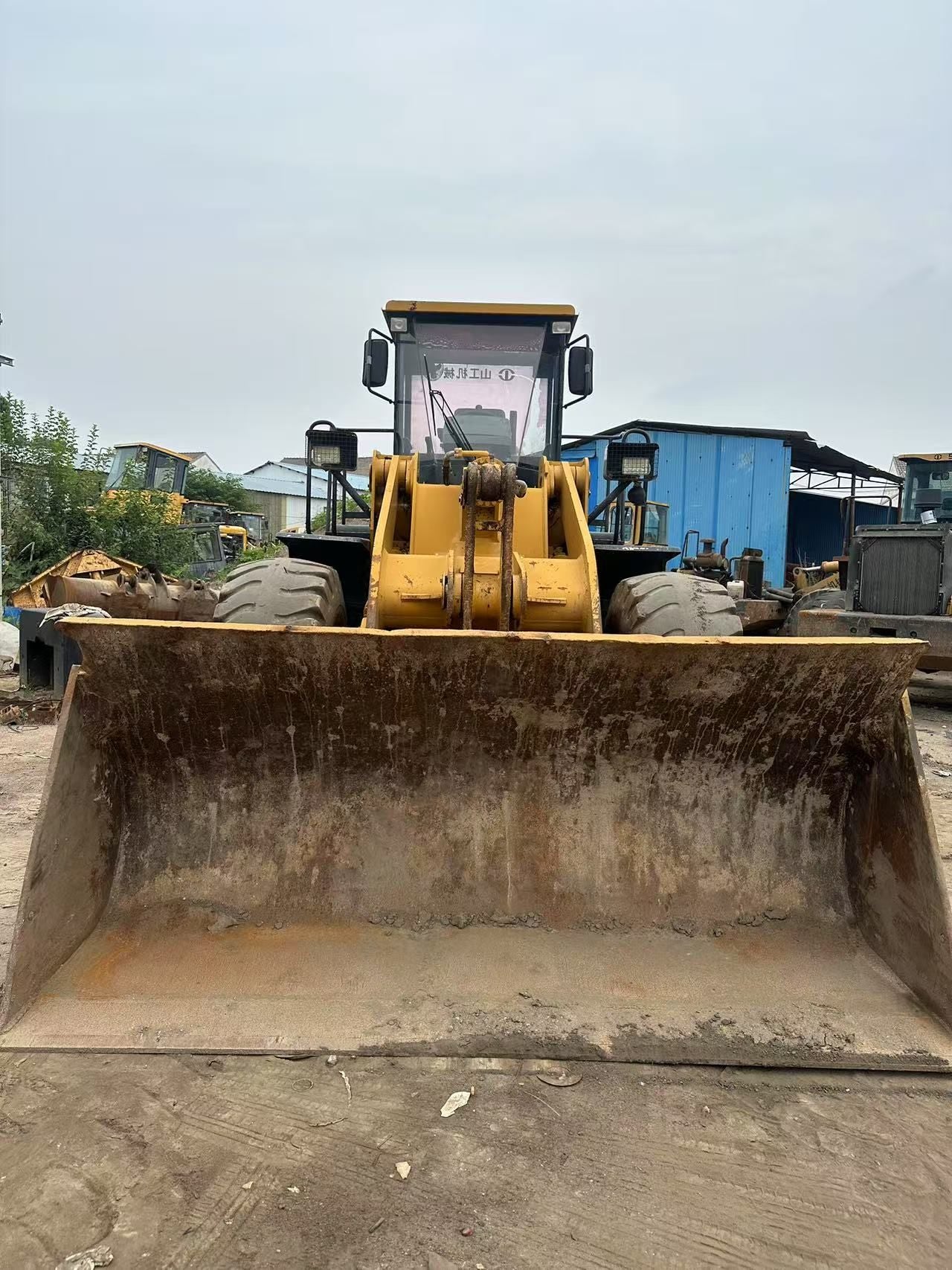

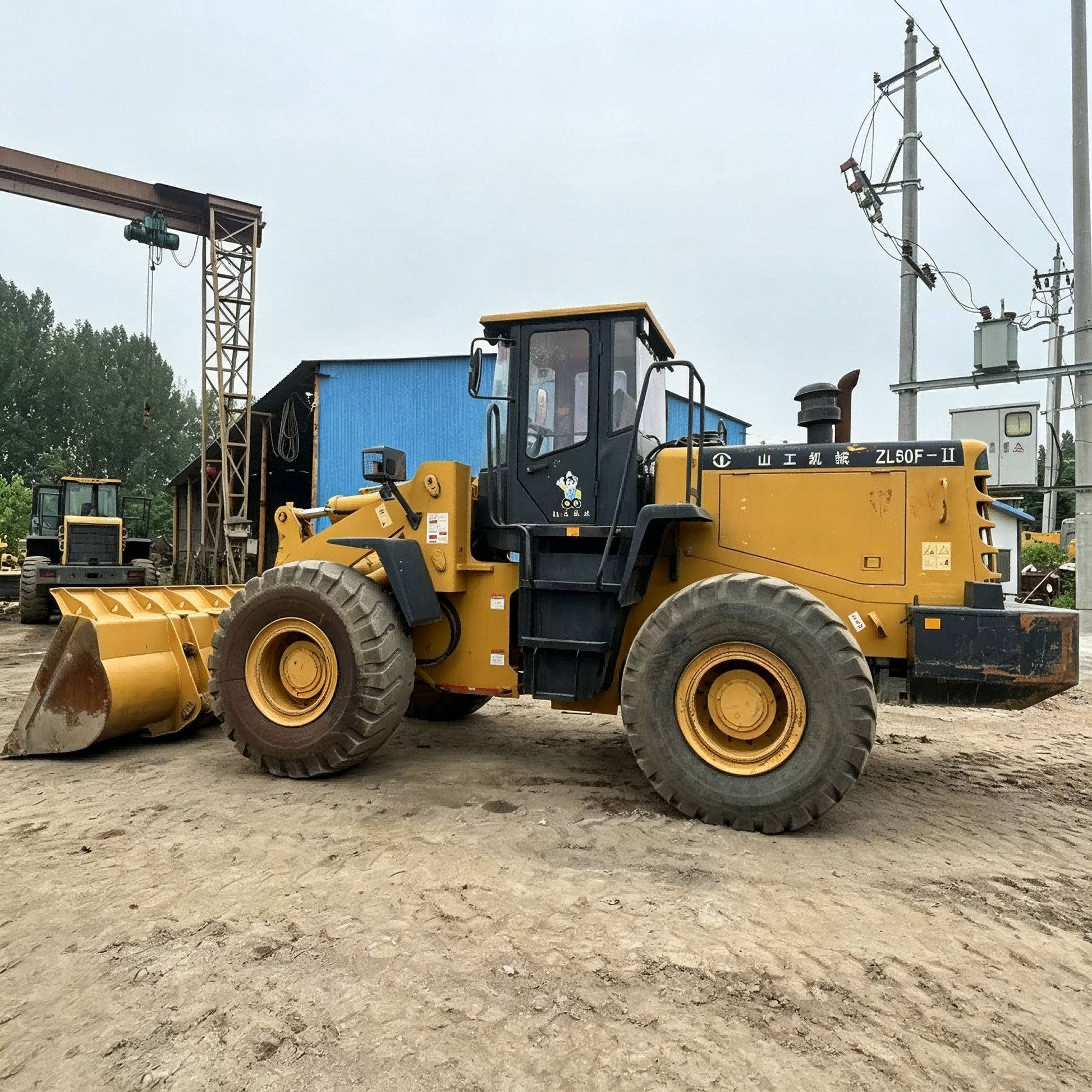

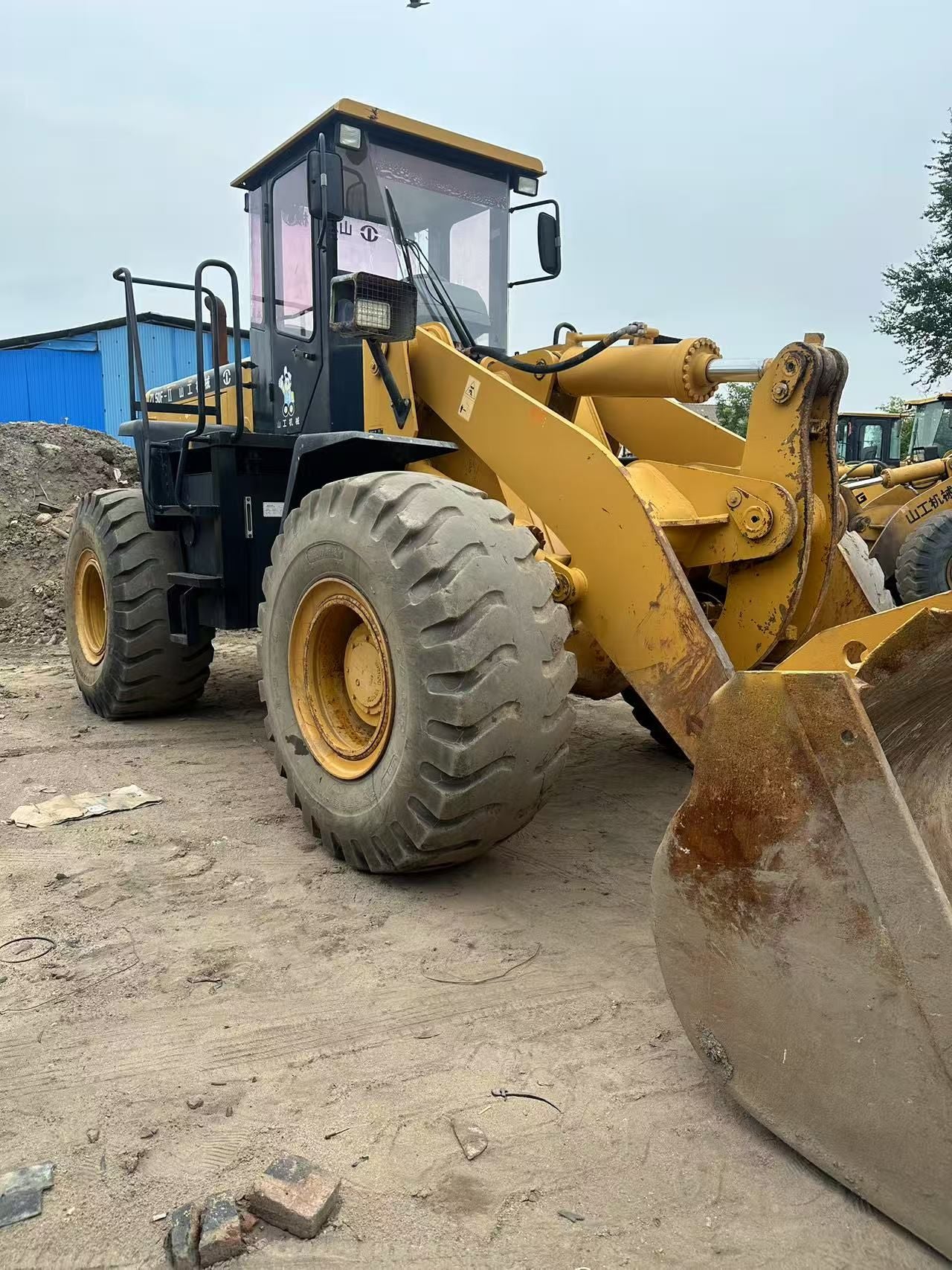

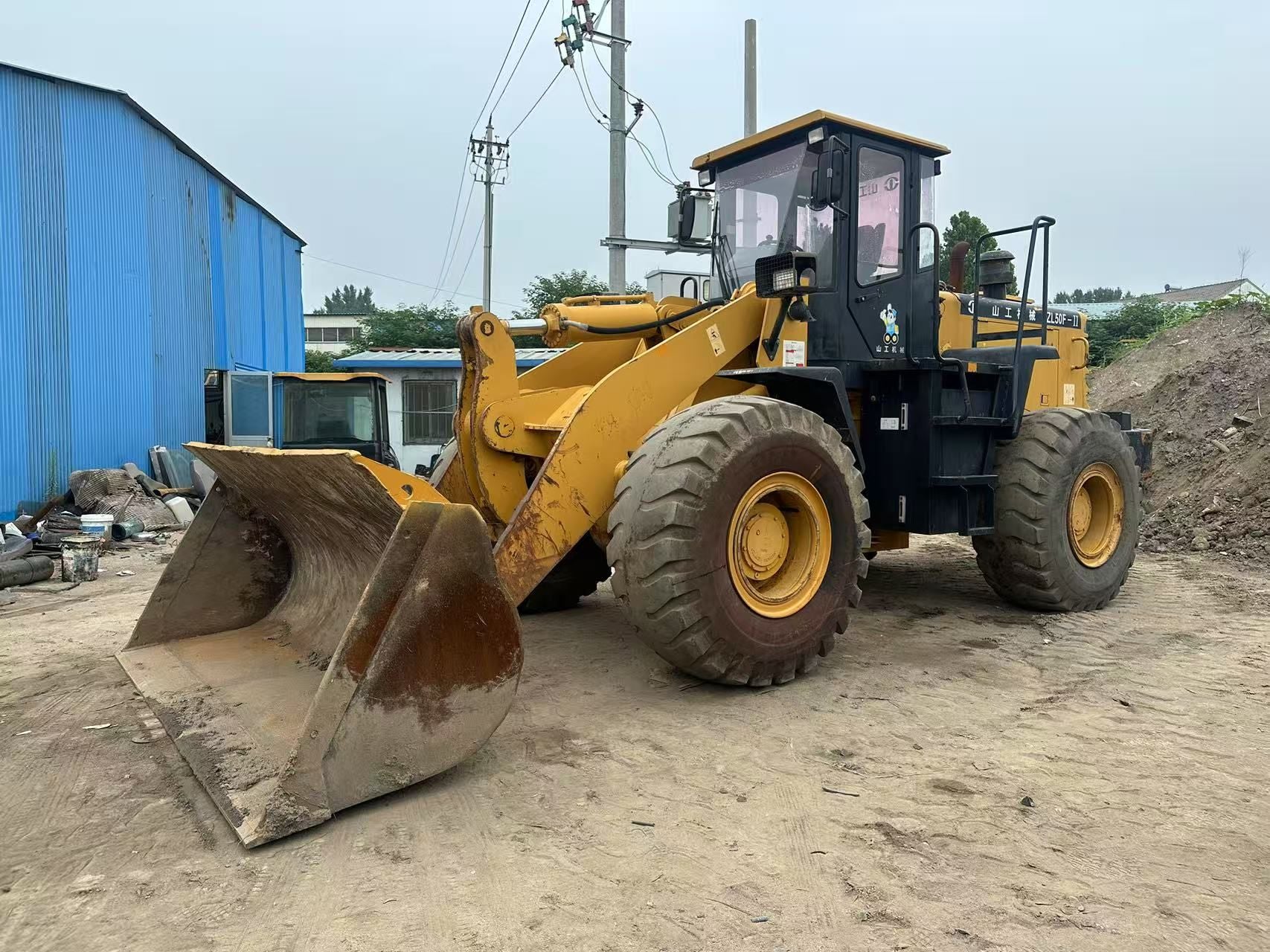

USED SEM ZL50F

USED SEM ZL50F

$19,000.00 USD
$19,000.00 USD
Oferta Agotado
ITEM SPECIFICATION
Model ZL50F
Type Wheel Loader
Operating Weight 16,500 kg
Rated Load Capacity 5,000 kg
Standard Bucket Capacity 3.0 m³
Overall Dimensions (L×W×H) 7,900 × 2,950 × 3,450 mm
Engine Model Weichai WD10G210E22 / STEYR WD10G220E22
Rated Power 162 kW / 217 HP @ 2,200 rpm
Max Torque 779–830 N·m @ 1,400 rpm
Emission Standard Tier 2 / Euro 2 / China Stage II
Bucket Width 2,950 mm
Max Dump Height 3,200 mm
Max Dump Reach 1,180 mm
Breakout Force 155–173 kN
Tipping Load (Full Turn) ≥12,000 kg
Forward Speed 0–38 km/h
Reverse Speed 0–17 km/h
Wheel Base 3,200 mm
Fuel Tank Capacity 280 L
Hydraulic Tank Capacity 210 L
Tire Size 23.5‑25
Gradeability 28°–30°
Min Turning Radius 6,770 mm
Lift Time (Boom) ≤5.7 s
Total Cycle Time (3 functions) ≤10.6 s
