| Model |

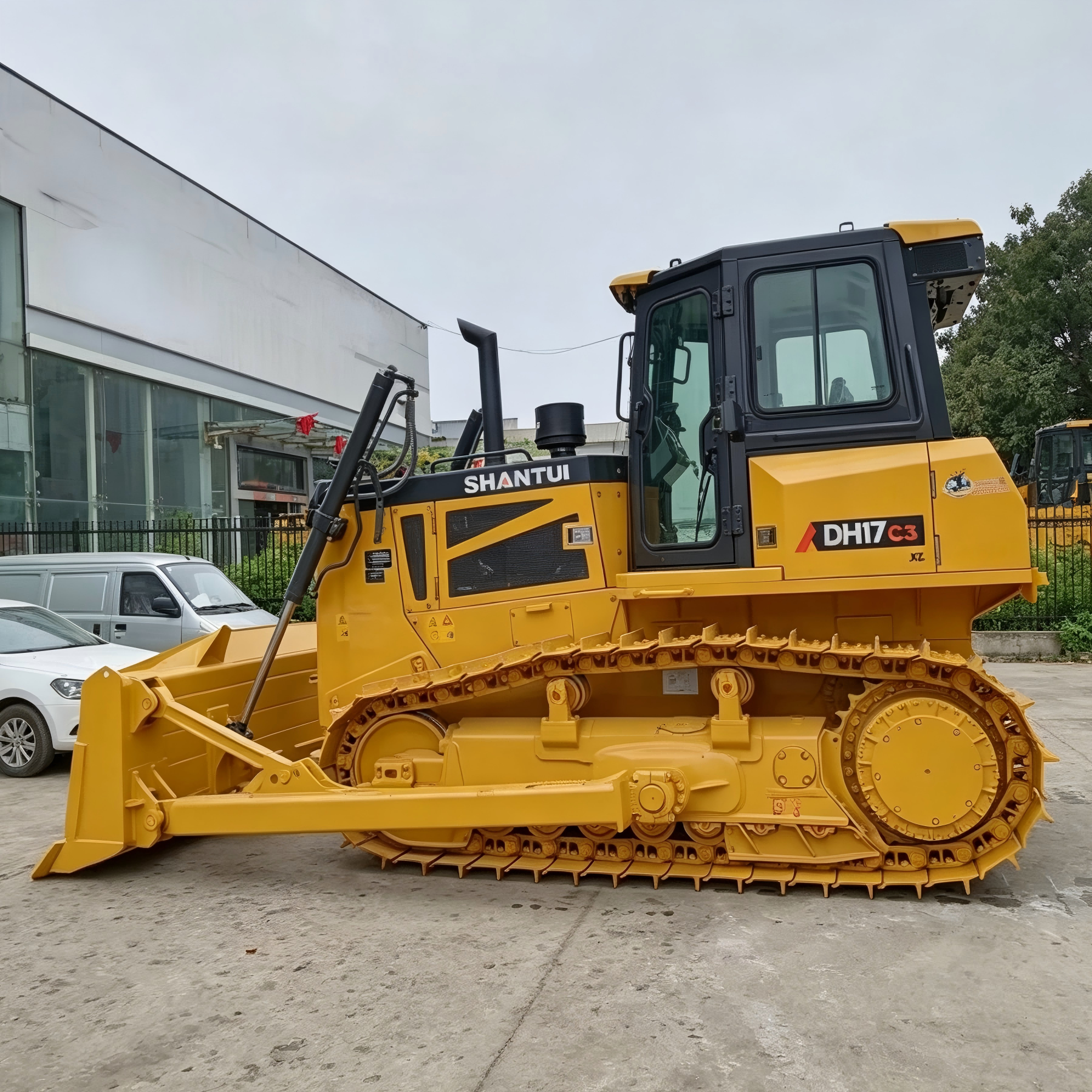

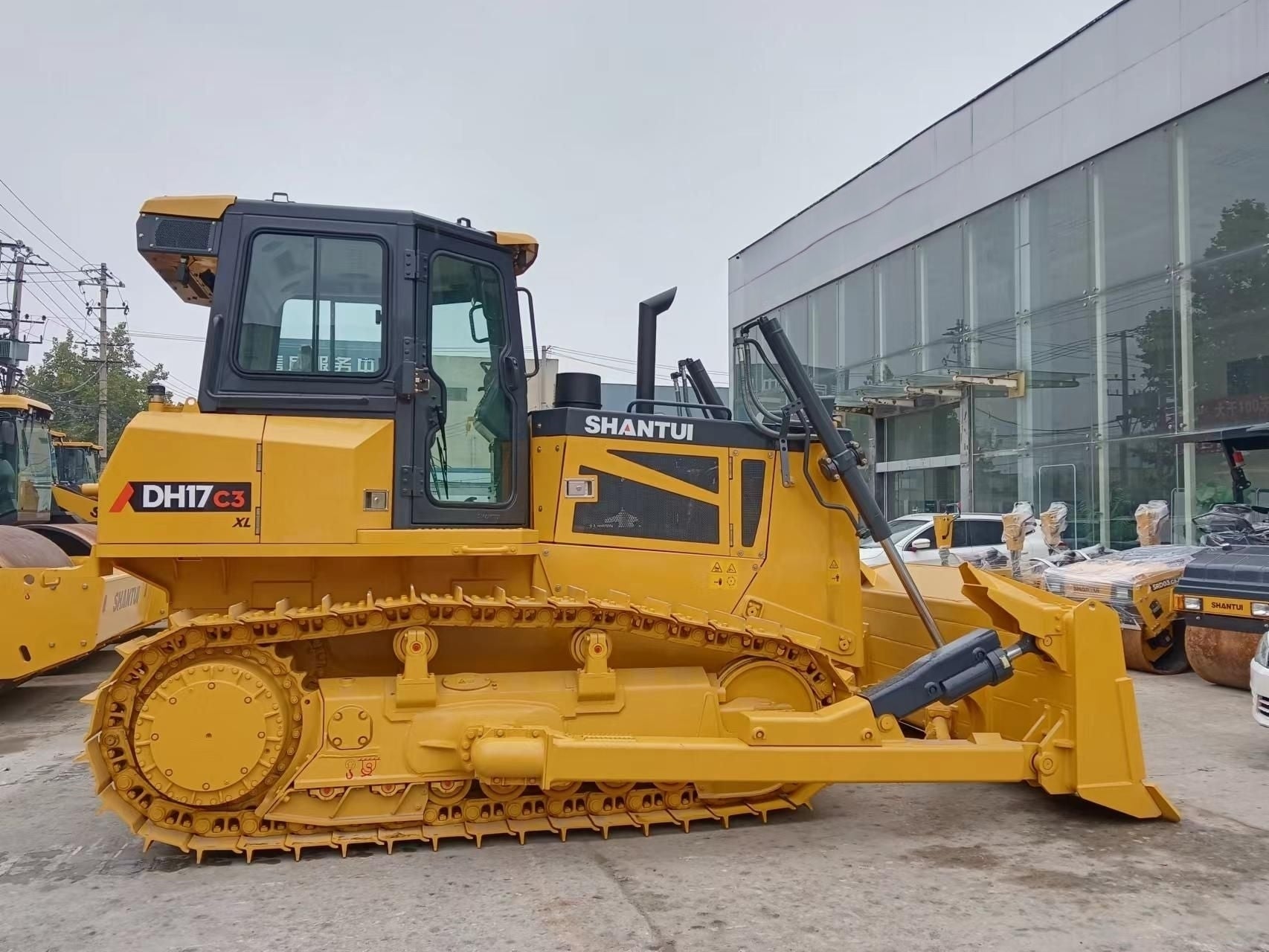

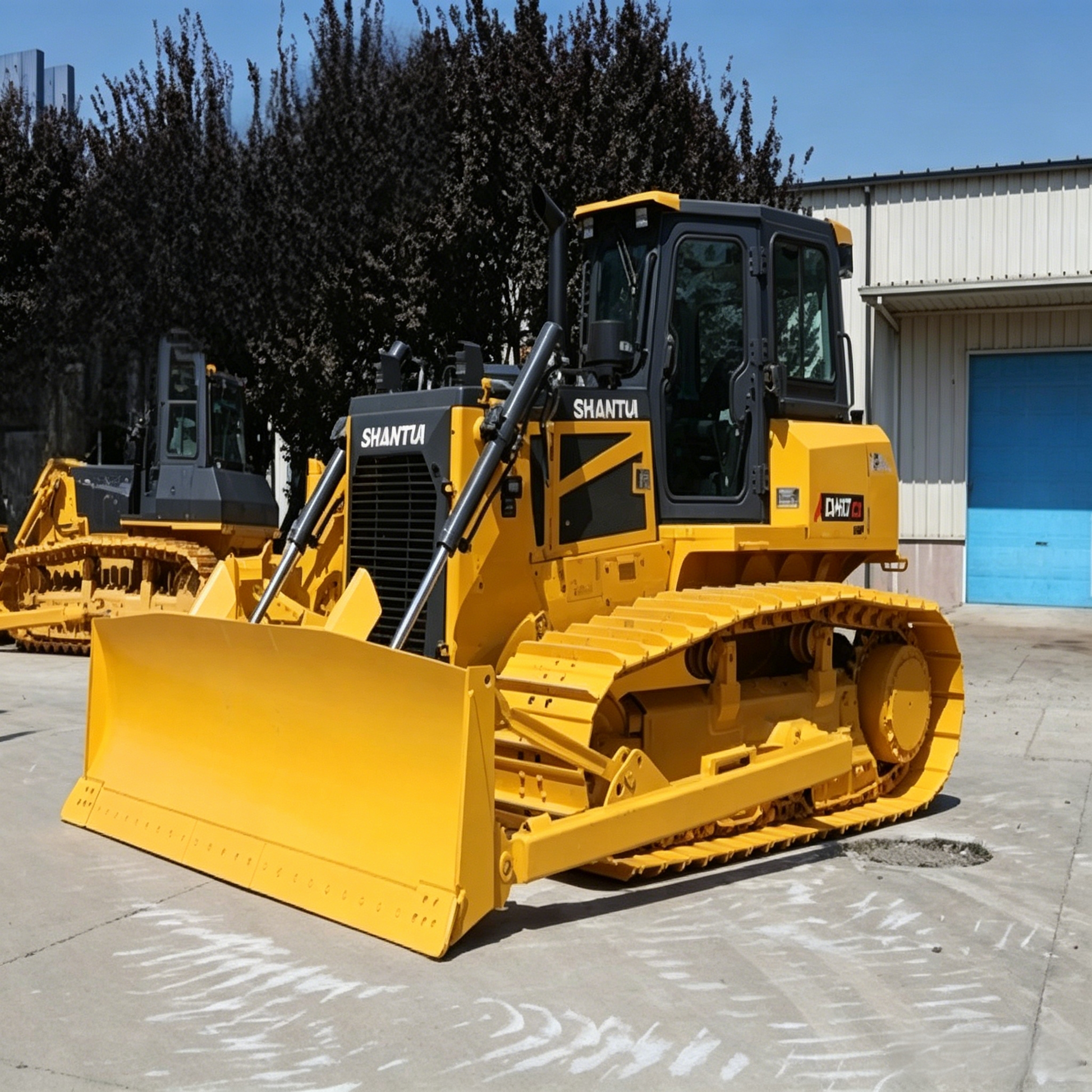

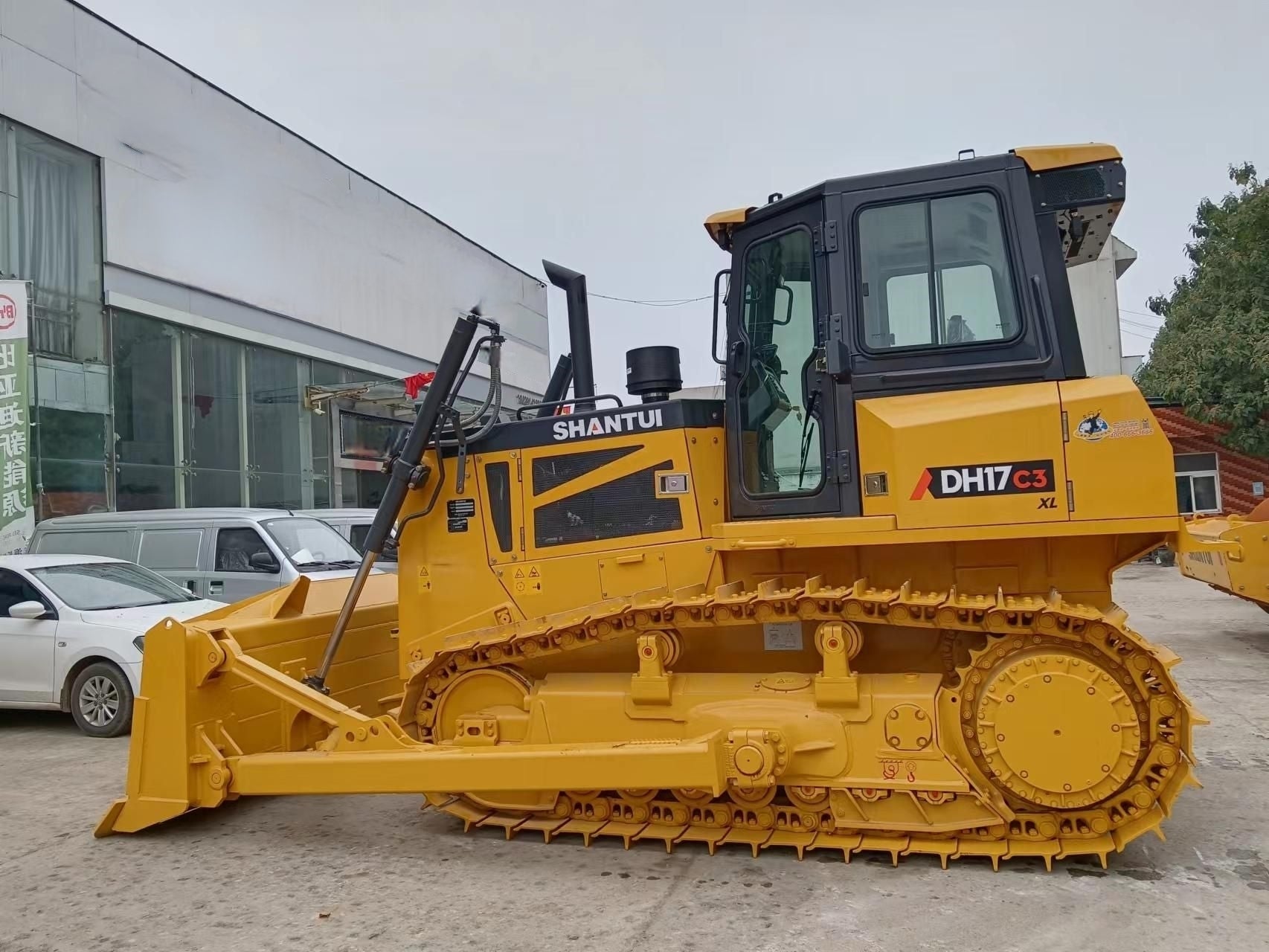

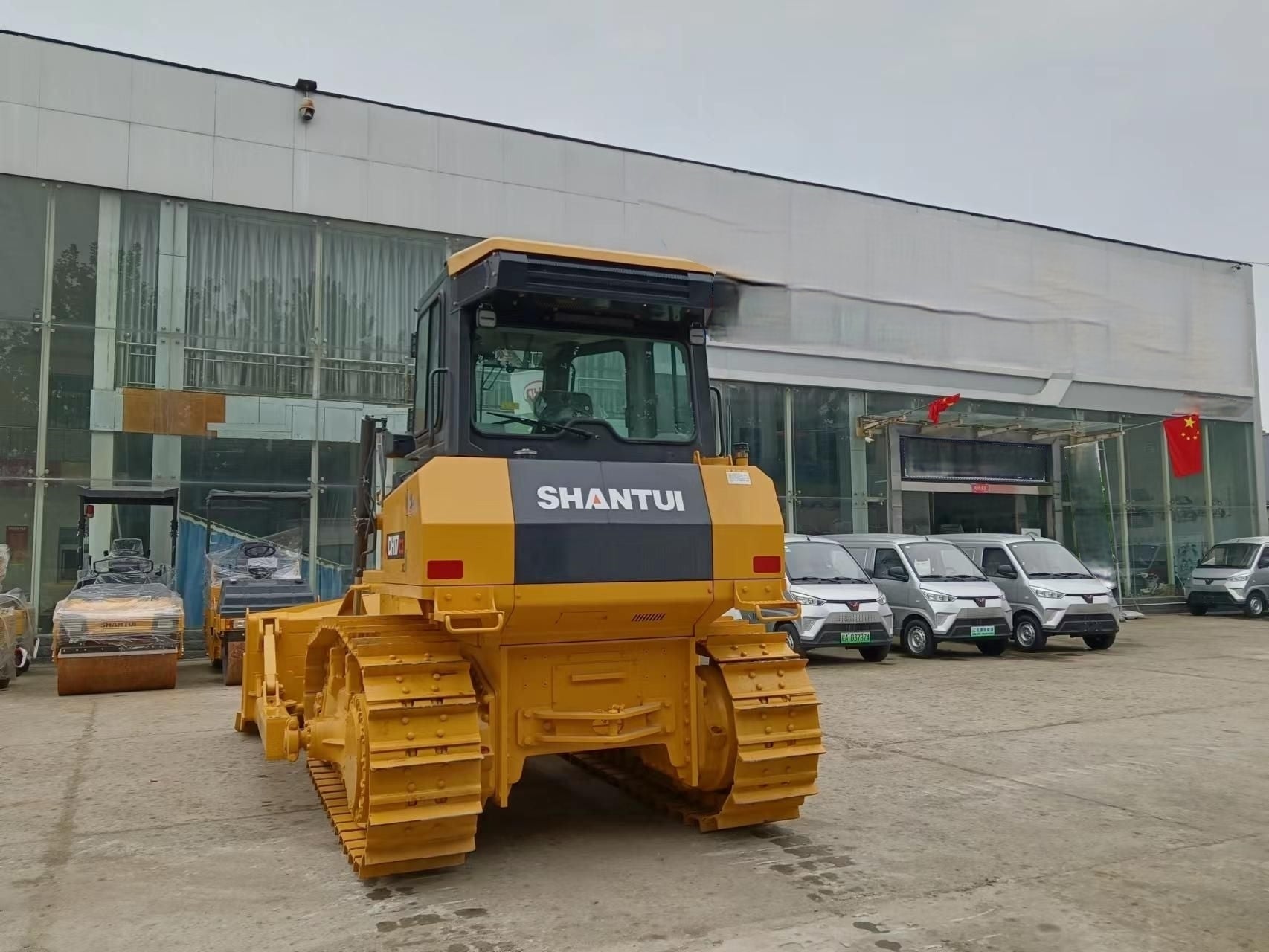

SHANTUI DH17C3 (Medium Hydrostatic Bulldozer, 17-ton class) |
| Operating Weight (XL) |
17,730 kg |
| Operating Weight (LGP) |
19,690 kg |
| Engine Model |
Weichai WP7 (6-cylinder, turbocharged, electronic control) |
| Rated Power |
152 kW (204 hp) @ 1,800 rpm |
| Emission Standard |
China Stage III / Tier 3 |
| Fuel Tank Capacity |
352 L |
| Hydraulic Tank Capacity |
85 L |
| Blade Type |
Straight Tilt / Semi-U Blade |
| Max Cutting Depth |
520 mm (XL) / 485 mm (LGP) |
| Ripper (Optional) |
3-teeth, max loosening depth 475 mm |
| Travel Speed (Fwd/Rev) |
0–10 km/h (both) |
| Ground Pressure (XL) |
63.7 kPa |
| Ground Pressure (LGP) |
30.5 kPa |
| Track Gauge |
1,880 mm (XL) / 2,350 mm (LGP) |
| Overall Dimensions (L×W×H, XL) |
5,068 × 3,388 × 3,154 mm |
| Overall Dimensions (L×W×H, LGP) |
5,225 × 4,150 × 3,181 mm |
| Drive System |
Dual-circuit electronic control hydrostatic drive |
| Steering |
Loaded steering, in-situ steering, stepless speed regulation |
| Operating Modes |
3 power modes + one-touch boost mode |

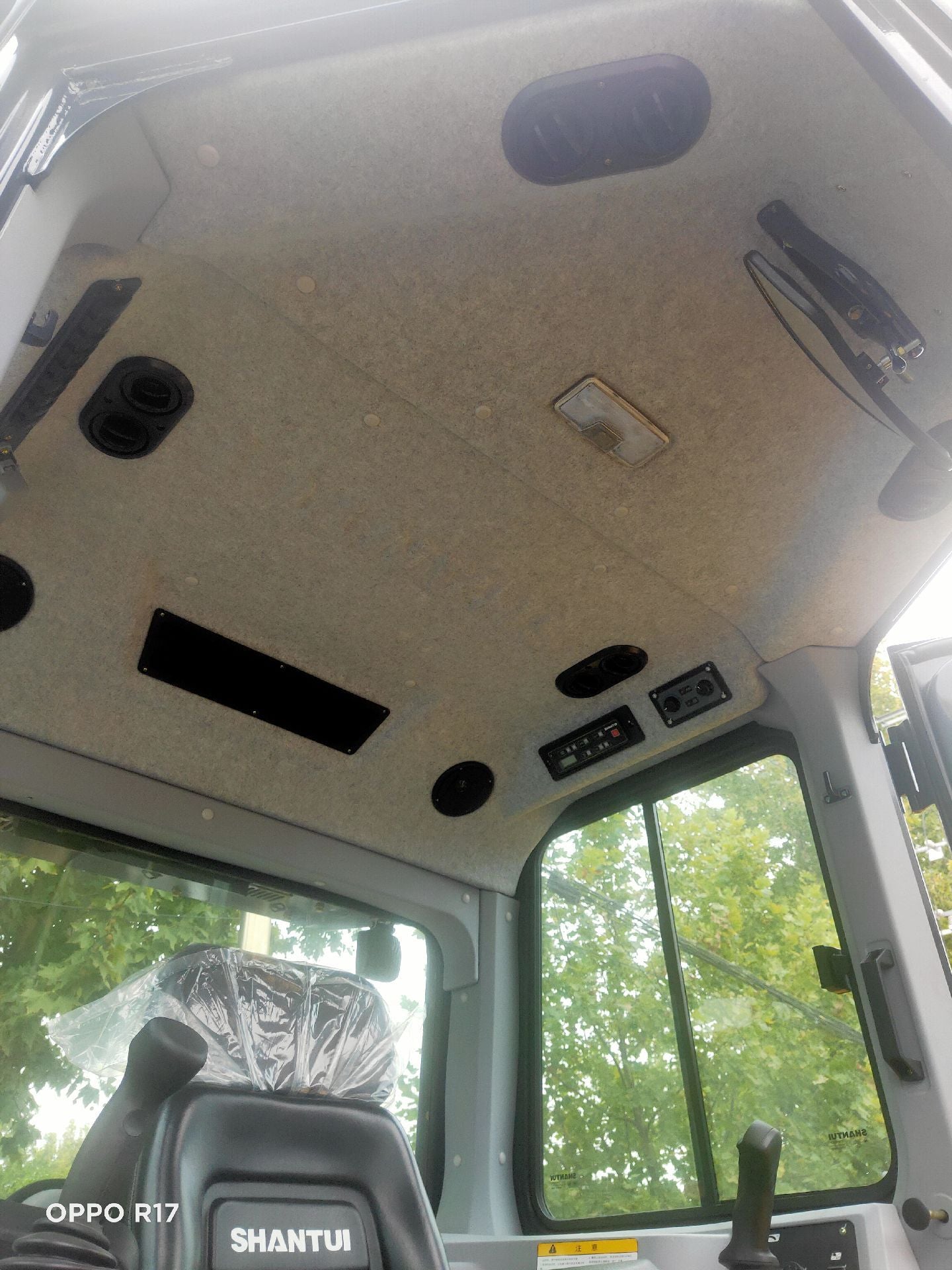

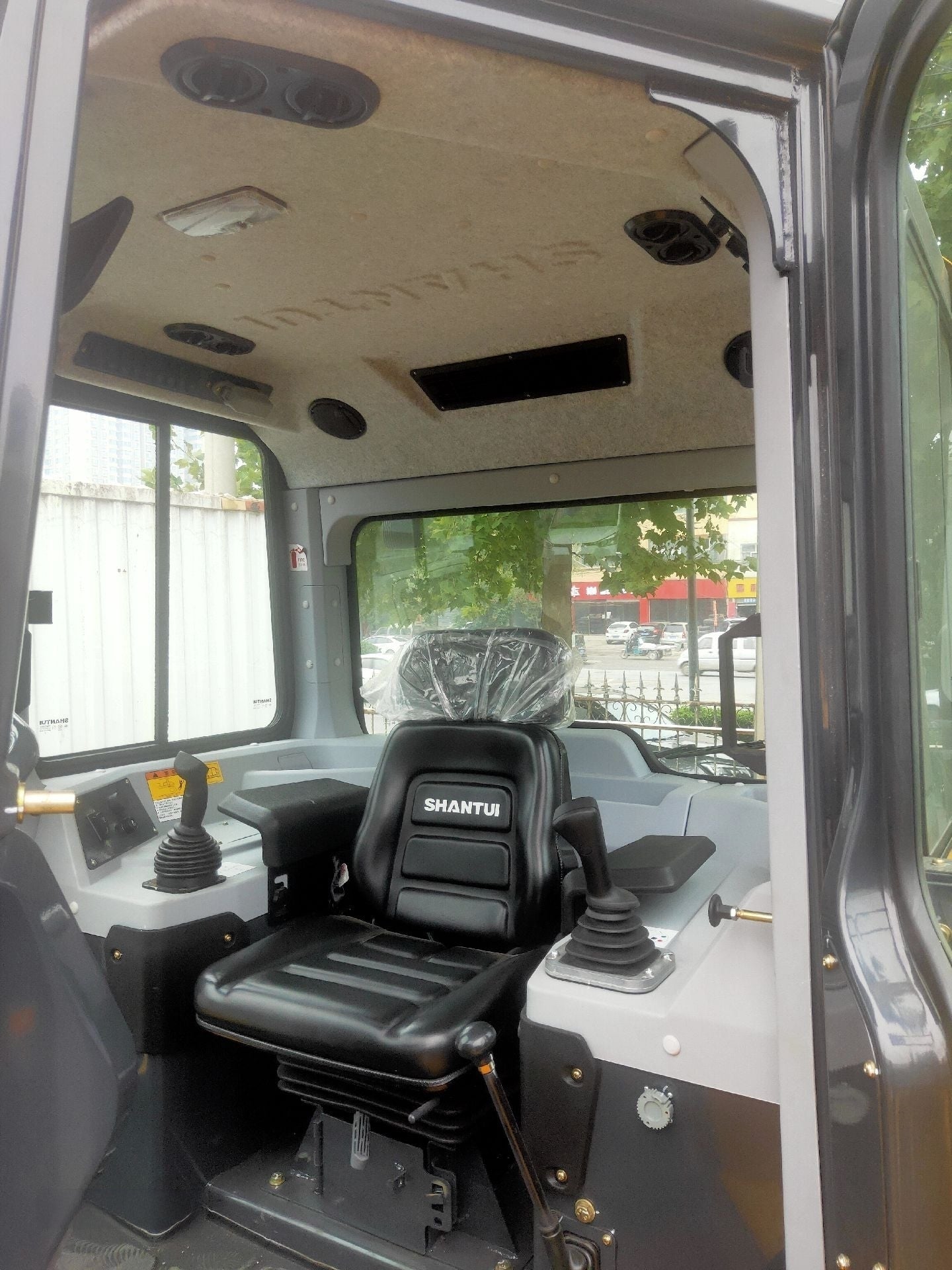

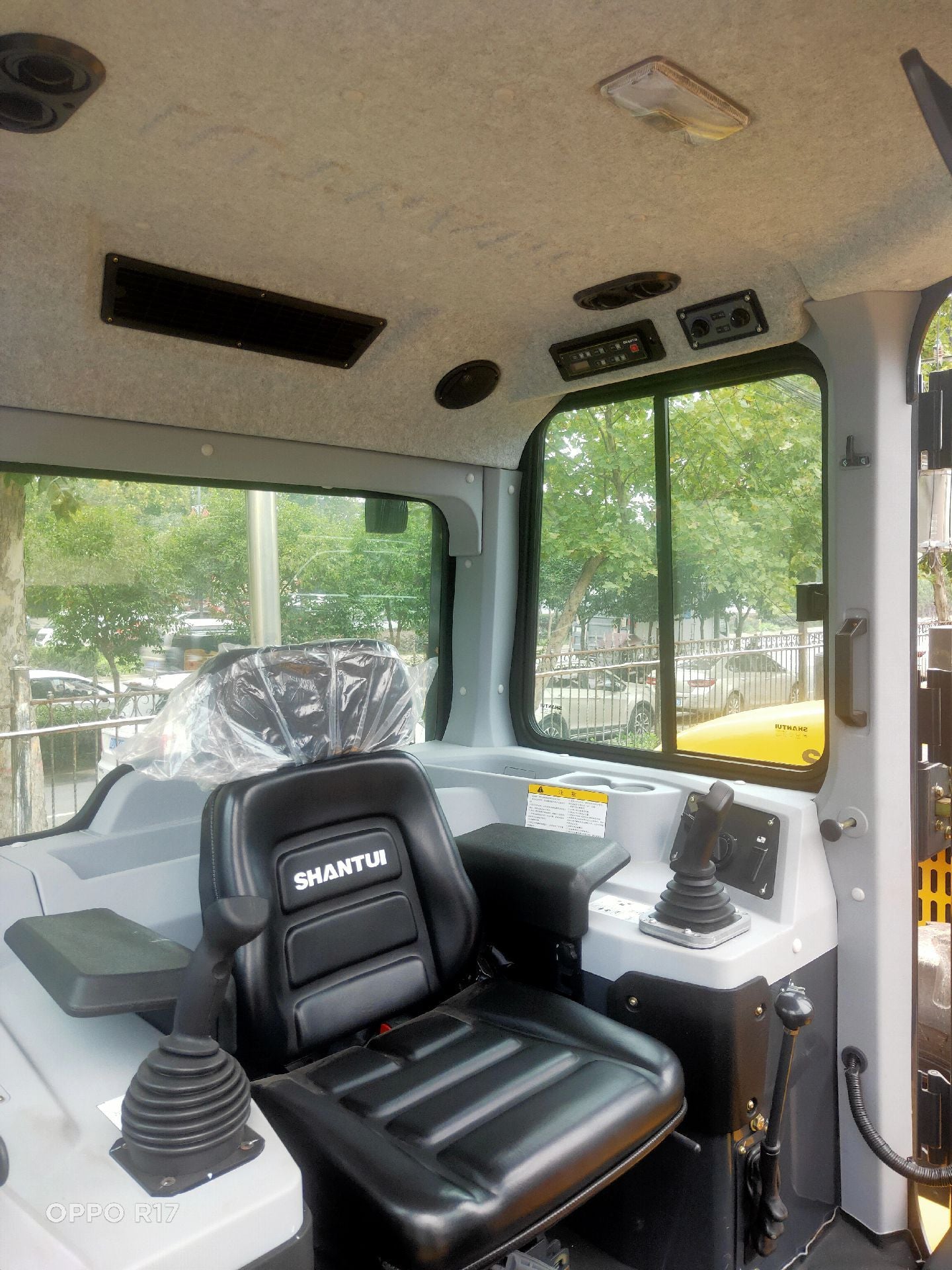

| Cab |
ROPS/FOPS, 4-point MDS suspension, noise <78 dB |
| Control |
8-inch intelligent display, self-diagnosis |
