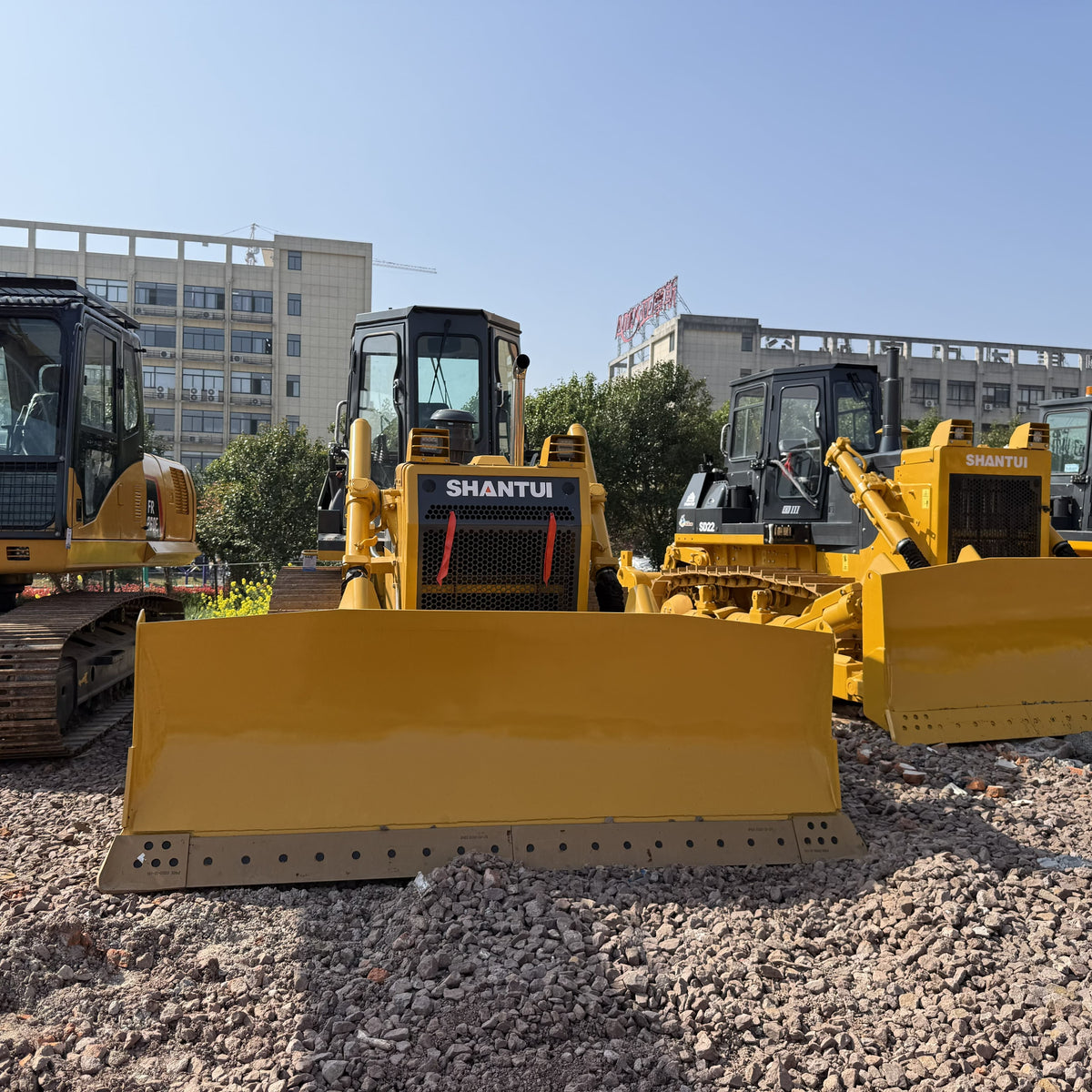

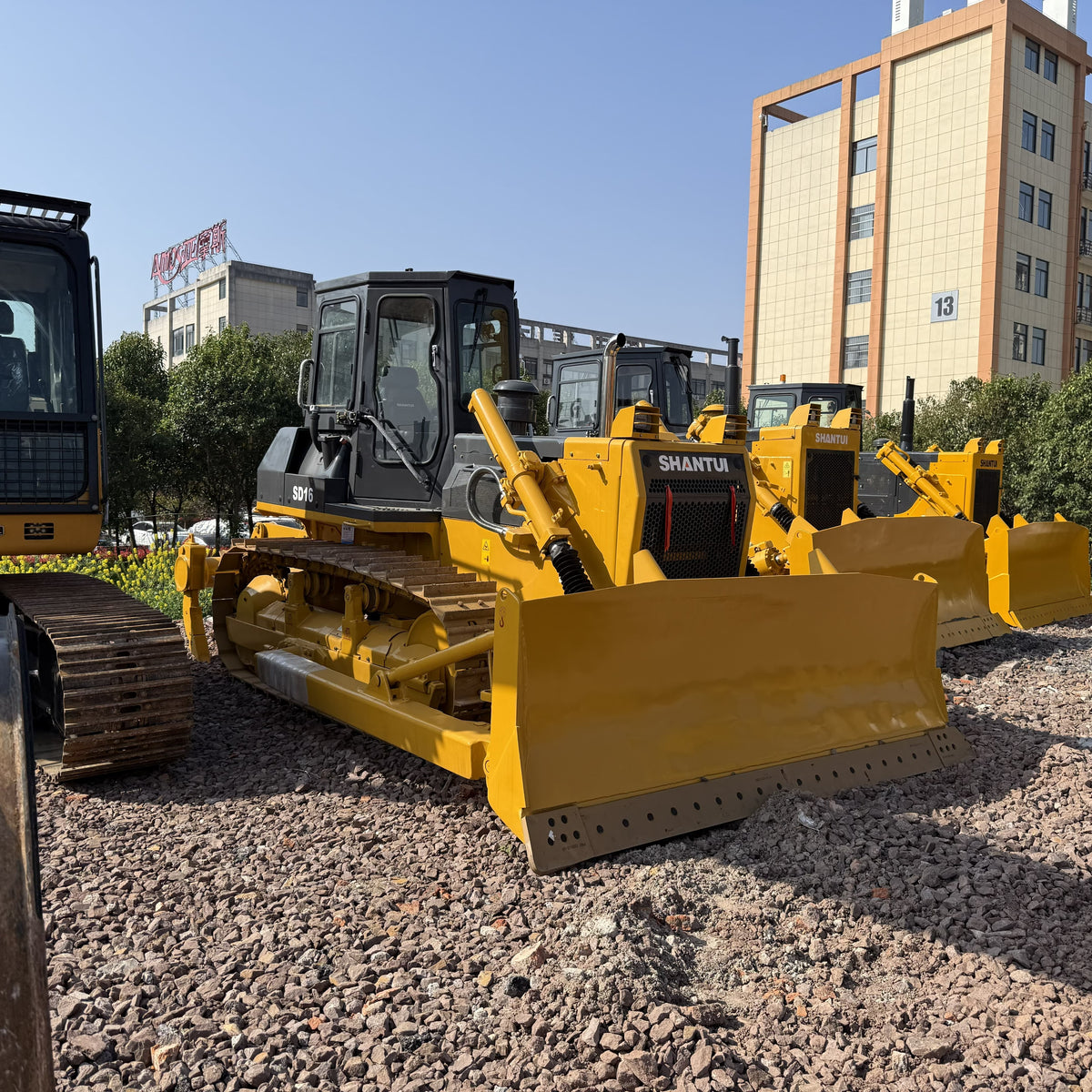

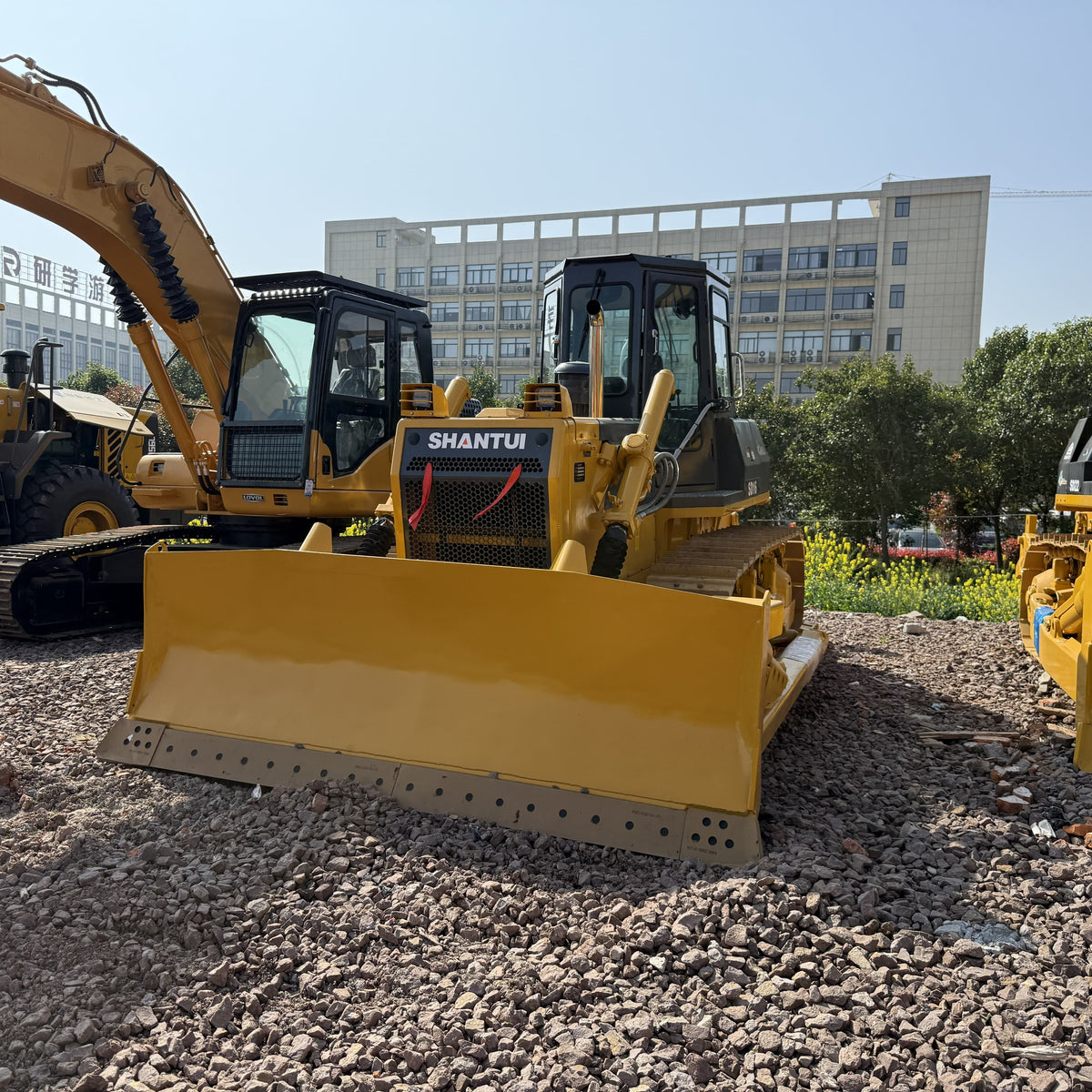

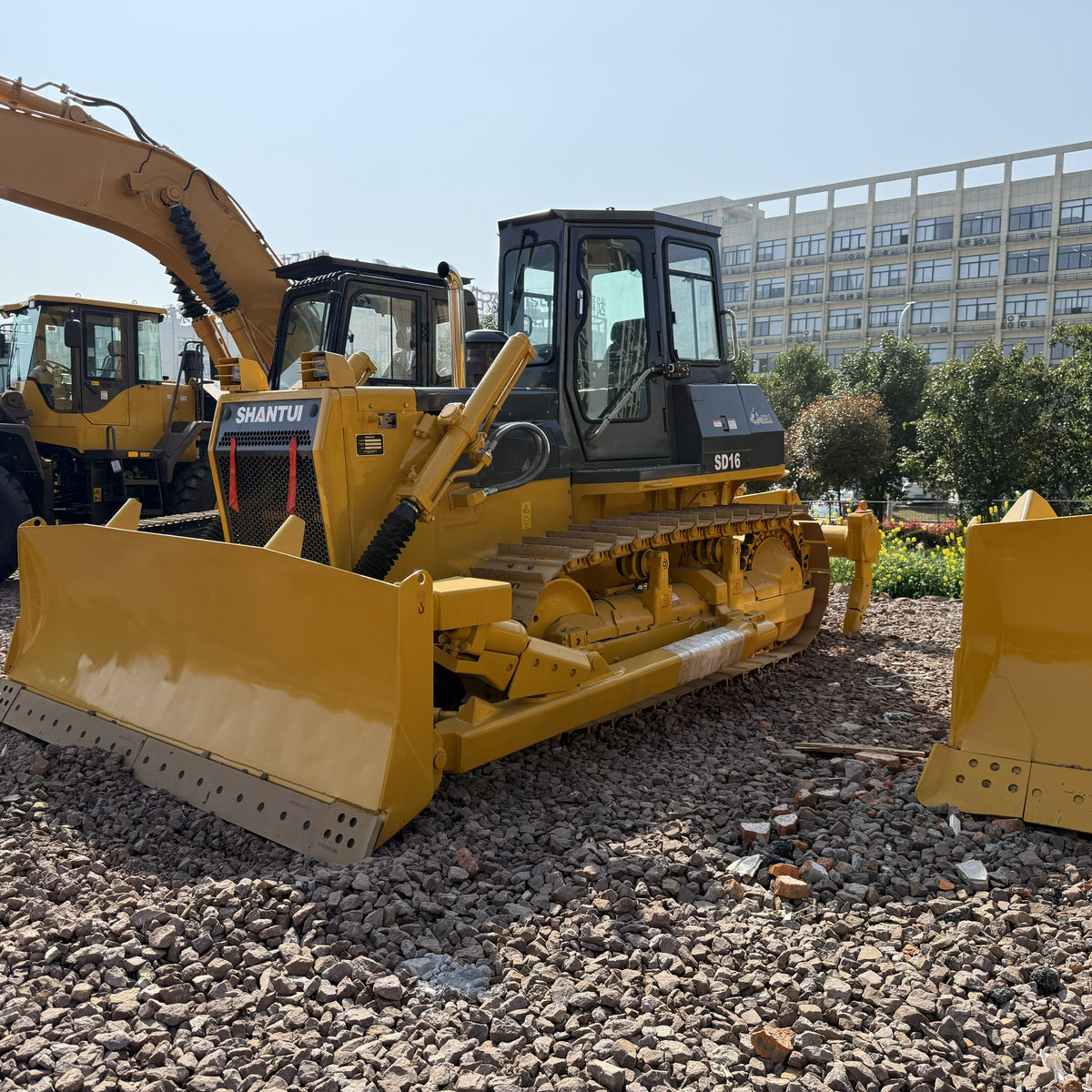

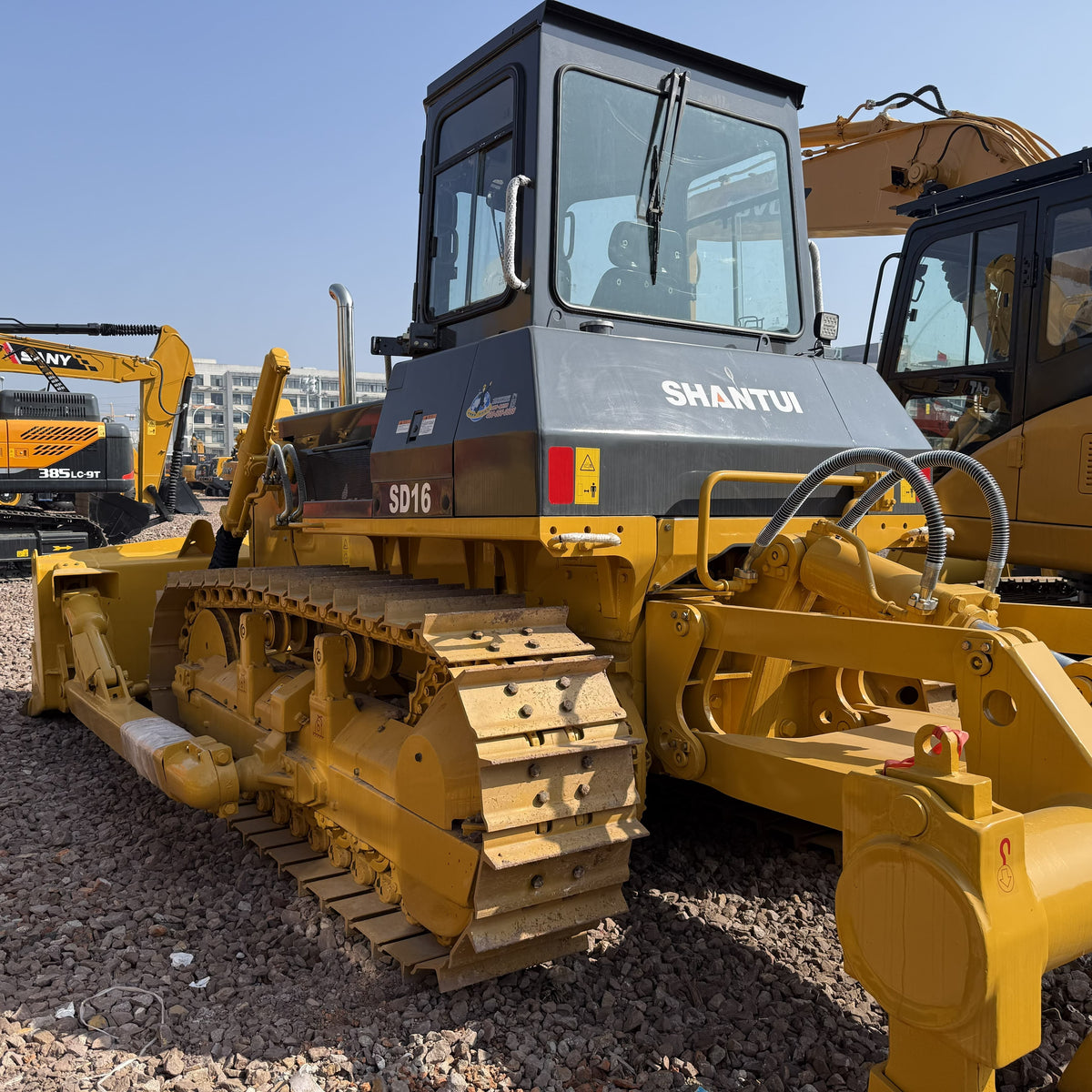

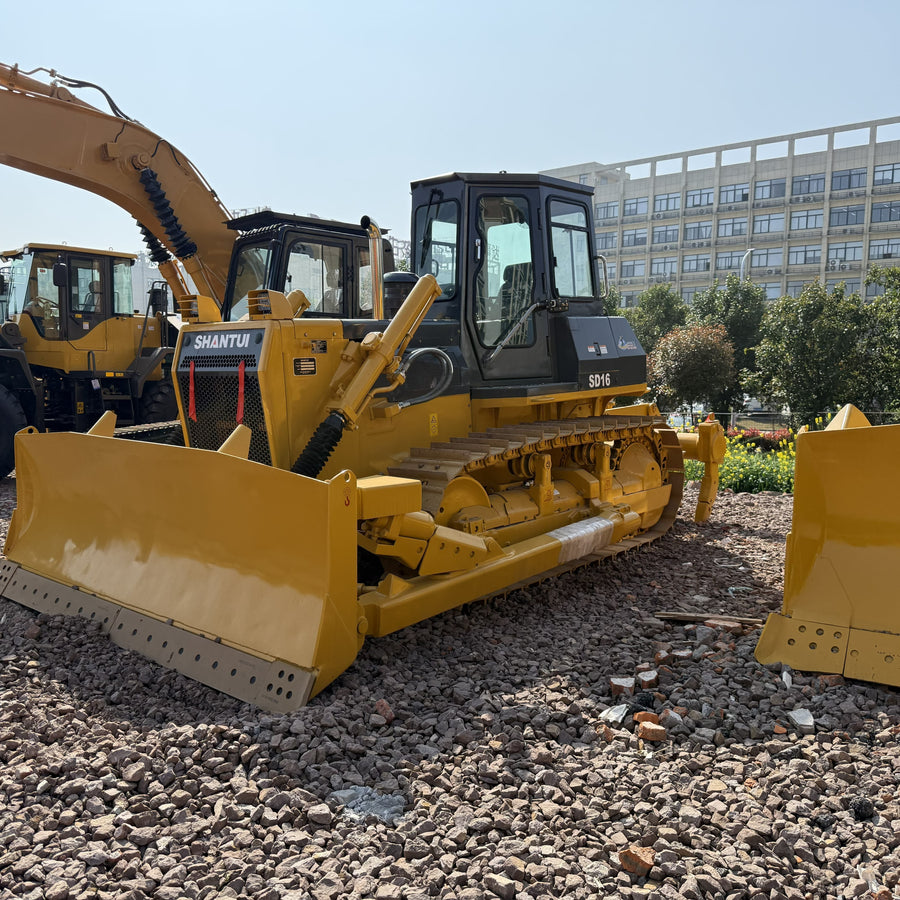

USED SHANTUI SD16

USED SHANTUI SD16

$25,000.00 USD
$25,000.00 USD
Oferta Agotado


Parameter Details
Model SHANTUI SD16 (standard configuration, power - shift crawler bulldozer, without ripper)Shantui
Engine Model: Weichai WD10G178E25 (6-cylinder, turbocharged diesel)

Rated Power: 131 kW (176 hp) @ 1850 rpm

Net Power: 120 kW (161 hp) @ 1850 rpm

Displacement: 9.726 L

Max Torque: 830 N·m @ 1200 rpm

Emission Standard: EU Stage ⅡShantui
Transmission Type: Hydrodynamic torque converter, planetary power - shift

Gears: 3 forward, 3 reverse

Max Travel Speed: 9.63 kph (5.98 mph) (forward 3rd); 12.53 kph (7.79 mph) (reverse 3rd)

Torque Converter: YJ380, 3 - element, single - stage, single - phase
Operating Weight 17,000 kg (37,479 lbs) (without ripper); 18,667 kg (41,154 lbs) (with 3 - shank ripper)
Blade Straight - tilt Blade: Capacity 4.5 m³ (5.89 yd³), Width×Height 3,388 mm×1,149 mm (11.12 ft×3.77 ft)

U - shaped Blade: Capacity 5 m³ (6.54 yd³), Width×Height 3,556 mm×1,120 mm (11.67 ft×3.67 ft)

Angle Blade: Capacity 4.3 m³ (5.62 yd³), Width×Height 3,970 mm×1,040 mm (13.02 ft×3.41 ft)

Max Digging Depth: 540 mm (1.77 ft); Max Lift Height: 1,095 mm (3.59 ft)

Angle Range: ±30°
Dimensions Length (without ripper): 5,140 mm (16.86 ft)

Width (over tracks, straight - tilt blade): 3,388 mm (11.12 ft)

Height (top of cab): 3,032 mm (9.95 ft)

Track Gauge: 1,880 mm (6.17 ft)

Ground Clearance: 400 mm (1.31 ft)Shantui
Undercarriage Track Shoe Width: 510 mm (20.08 in) (optional 560/610 mm)

Ground Contact Length: 2,430 mm (7.97 ft)

Ground Pressure: 67 kPa (9.72 psi)Shantui
Capacities Fuel Tank: 315 L (83.21 gal)

Hydraulic System: 90 L (23.78 gal)

Engine Oil: 28 L (7.40 gal)

Coolant: 79 L (20.87 gal)Shantui

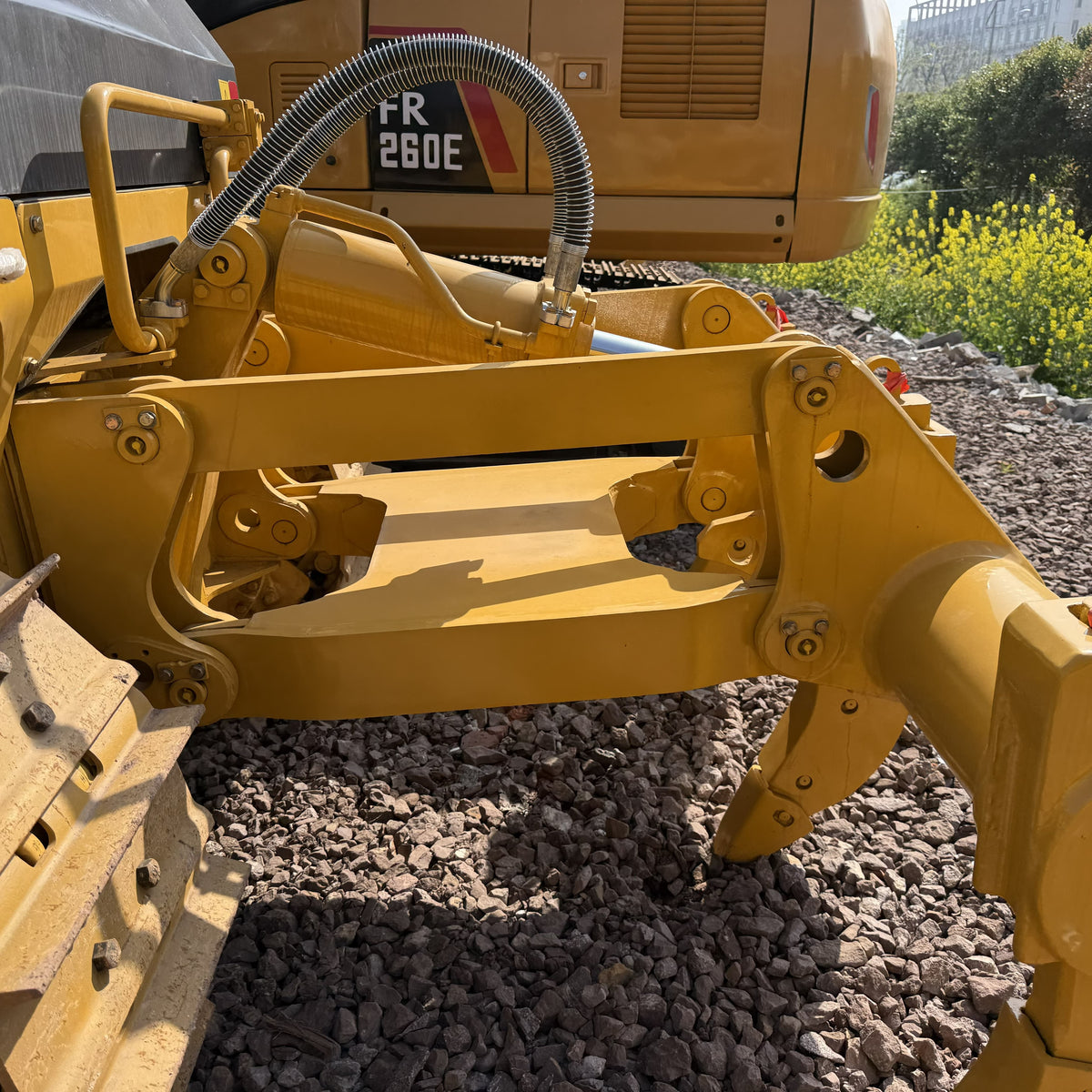

Ripper (Optional 3 - shank) Type: Parallelogram adjustable 3 - shank ripper

Max Digging Depth: 572 mm (1.88 ft)

Max Lift Height: 592 mm (1.94 ft)

Ripper Weight: 1,667 kg (3,675 lbs)
