1 6

SHANTUI

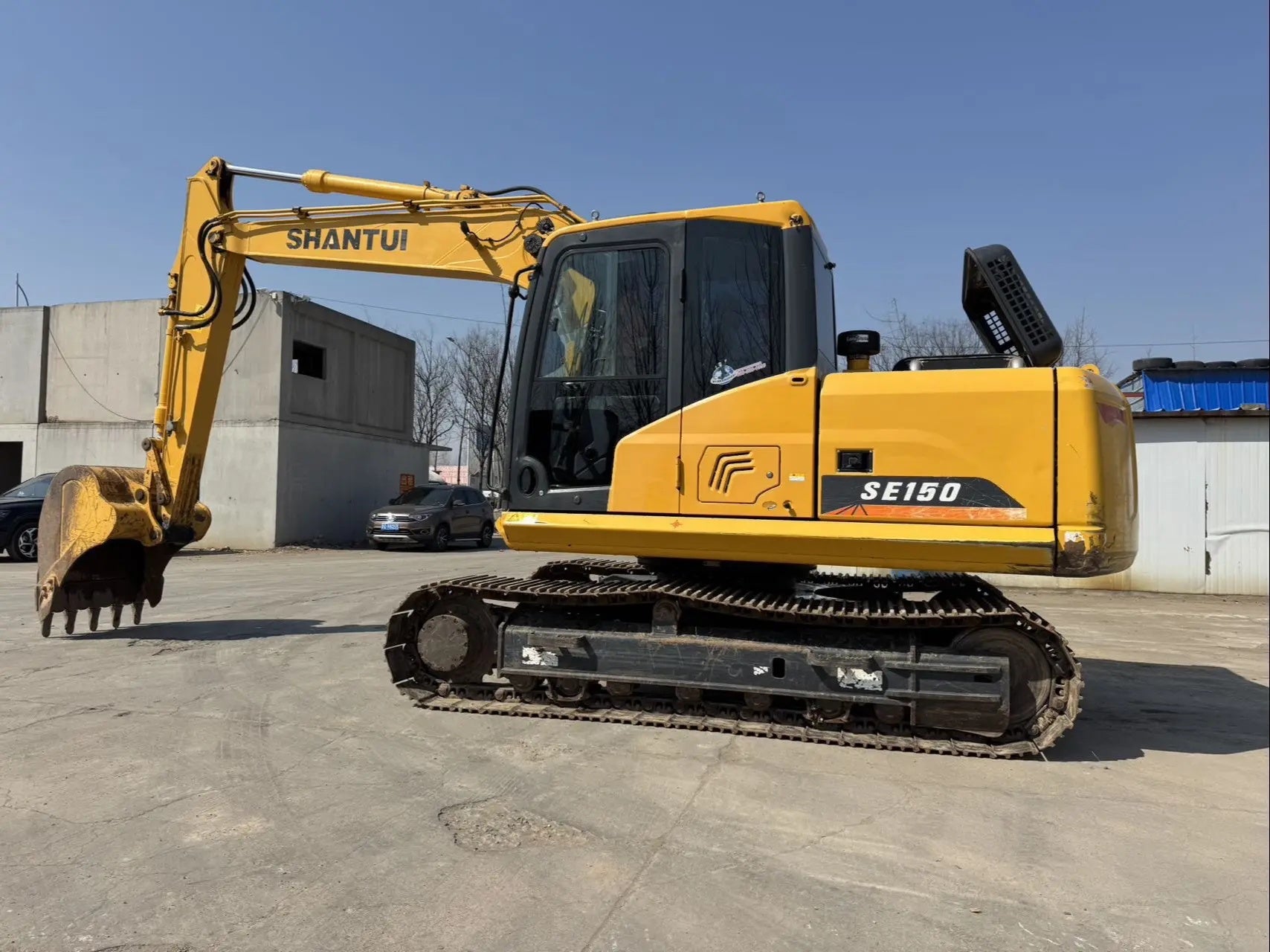

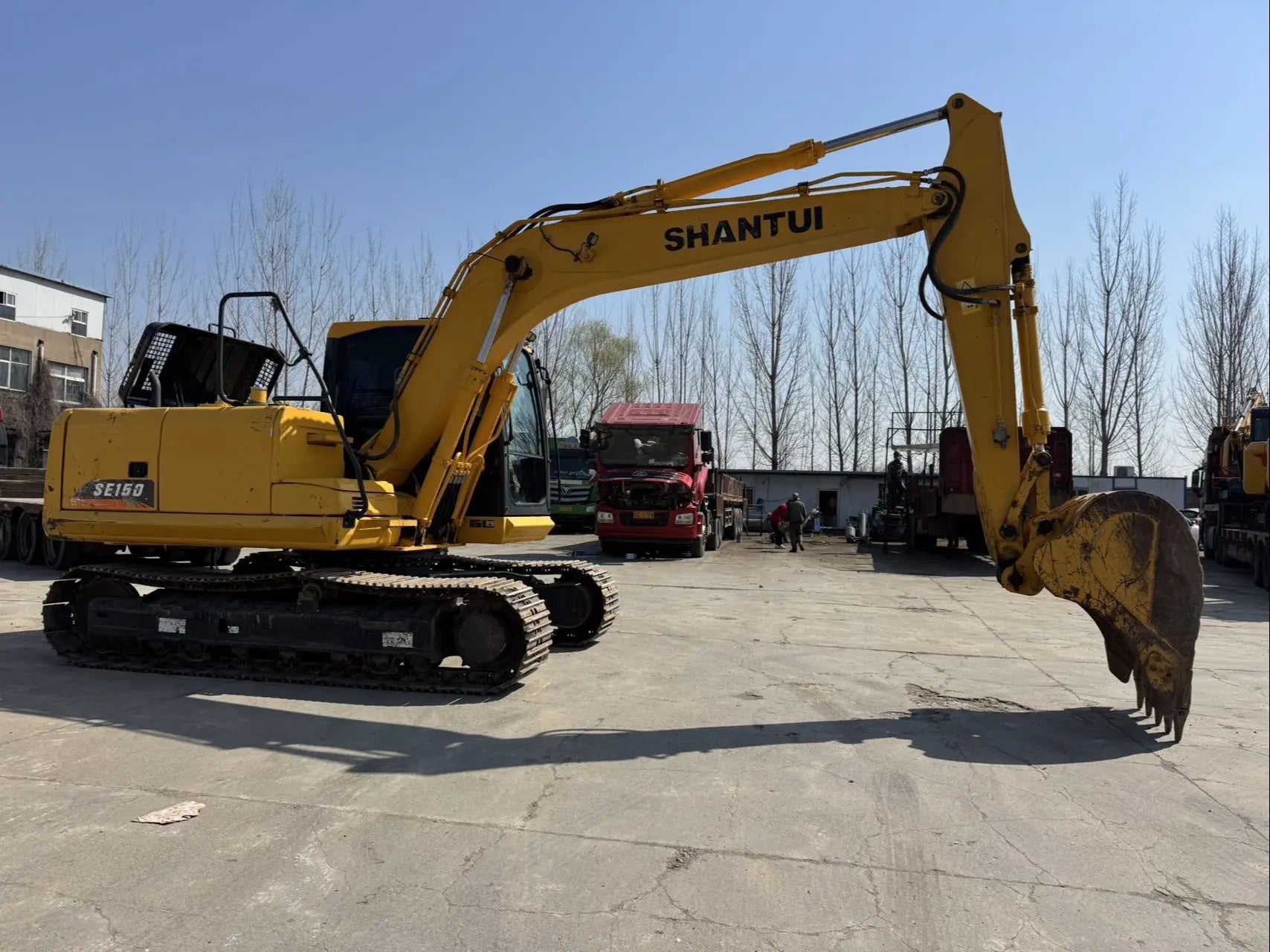

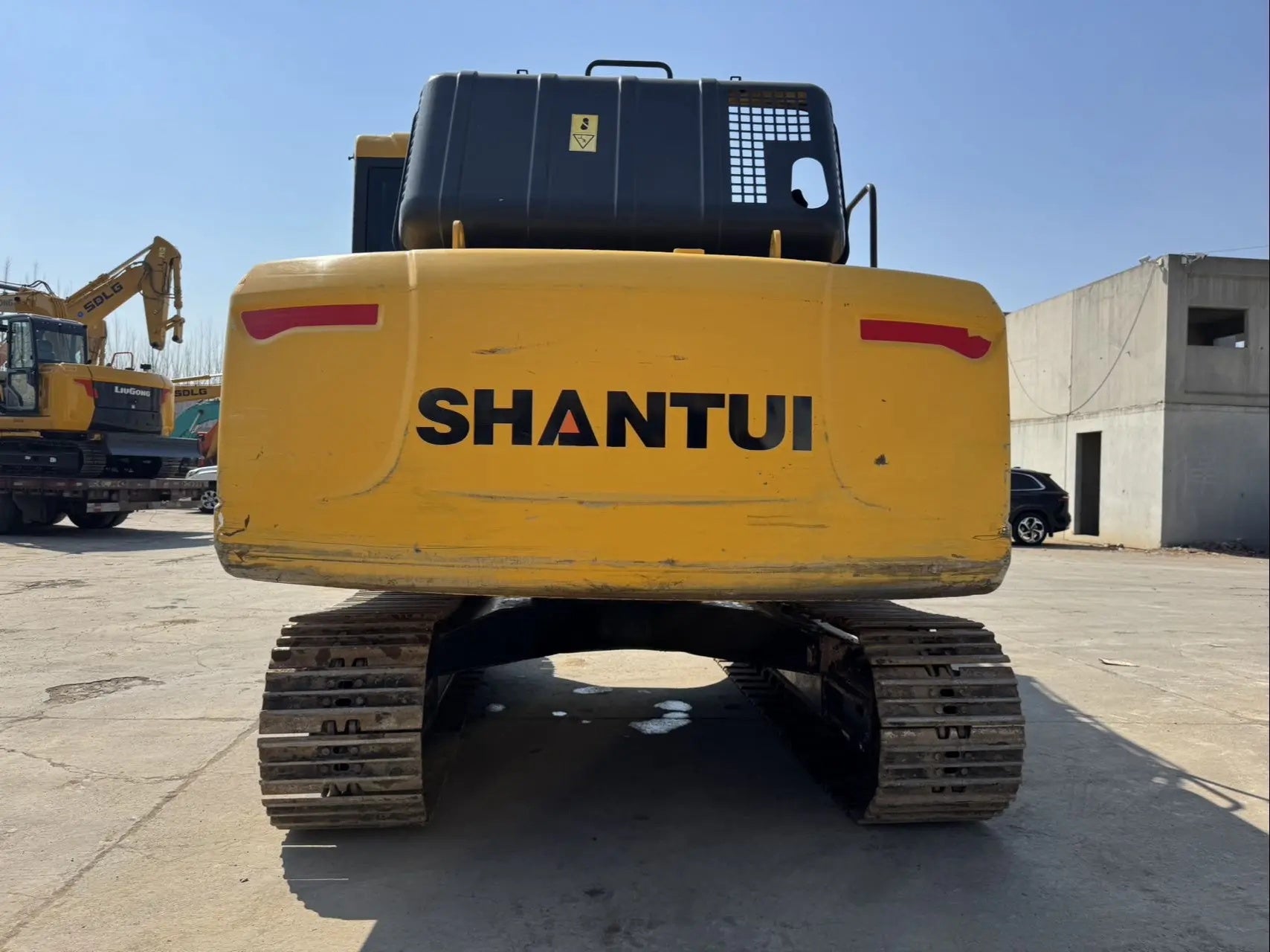

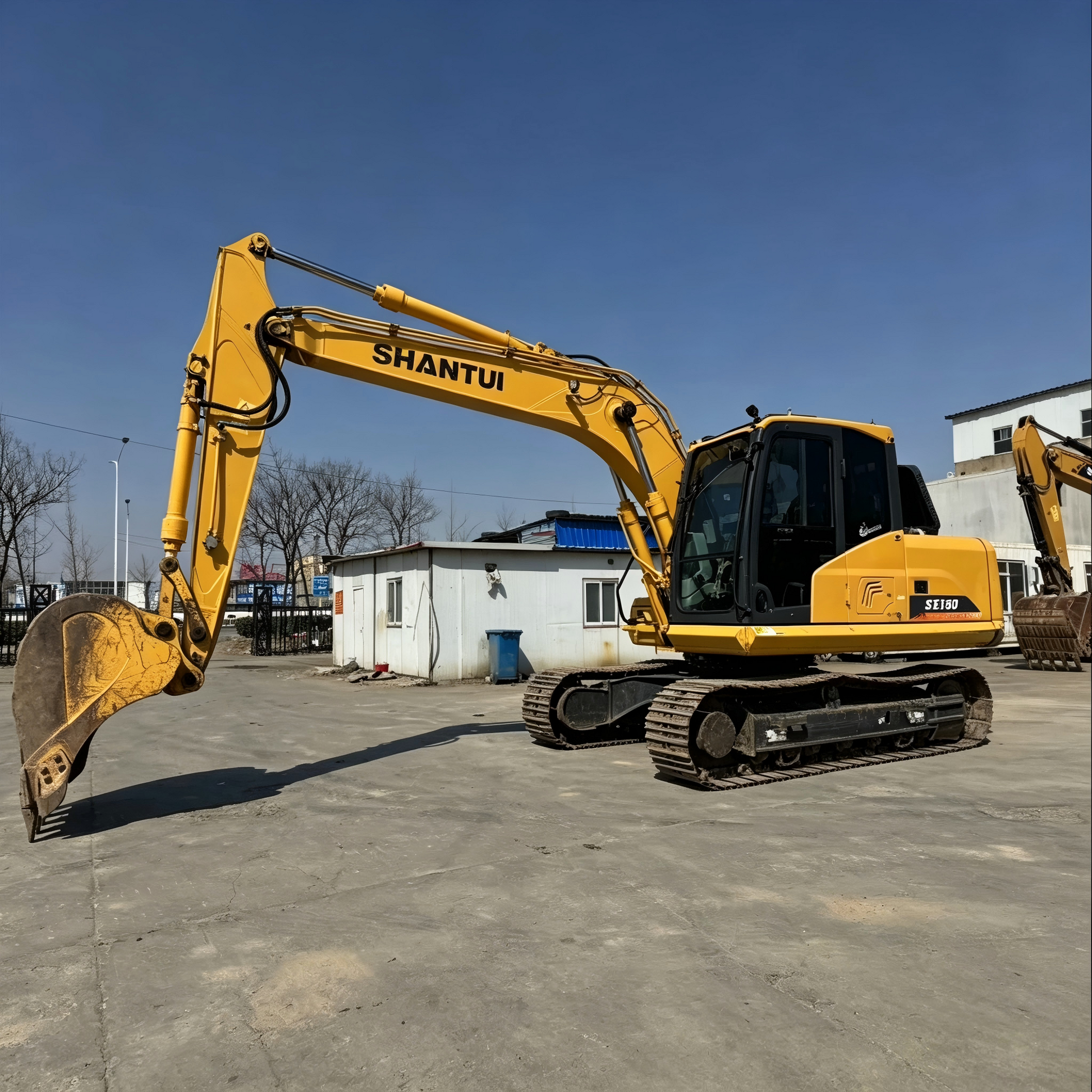

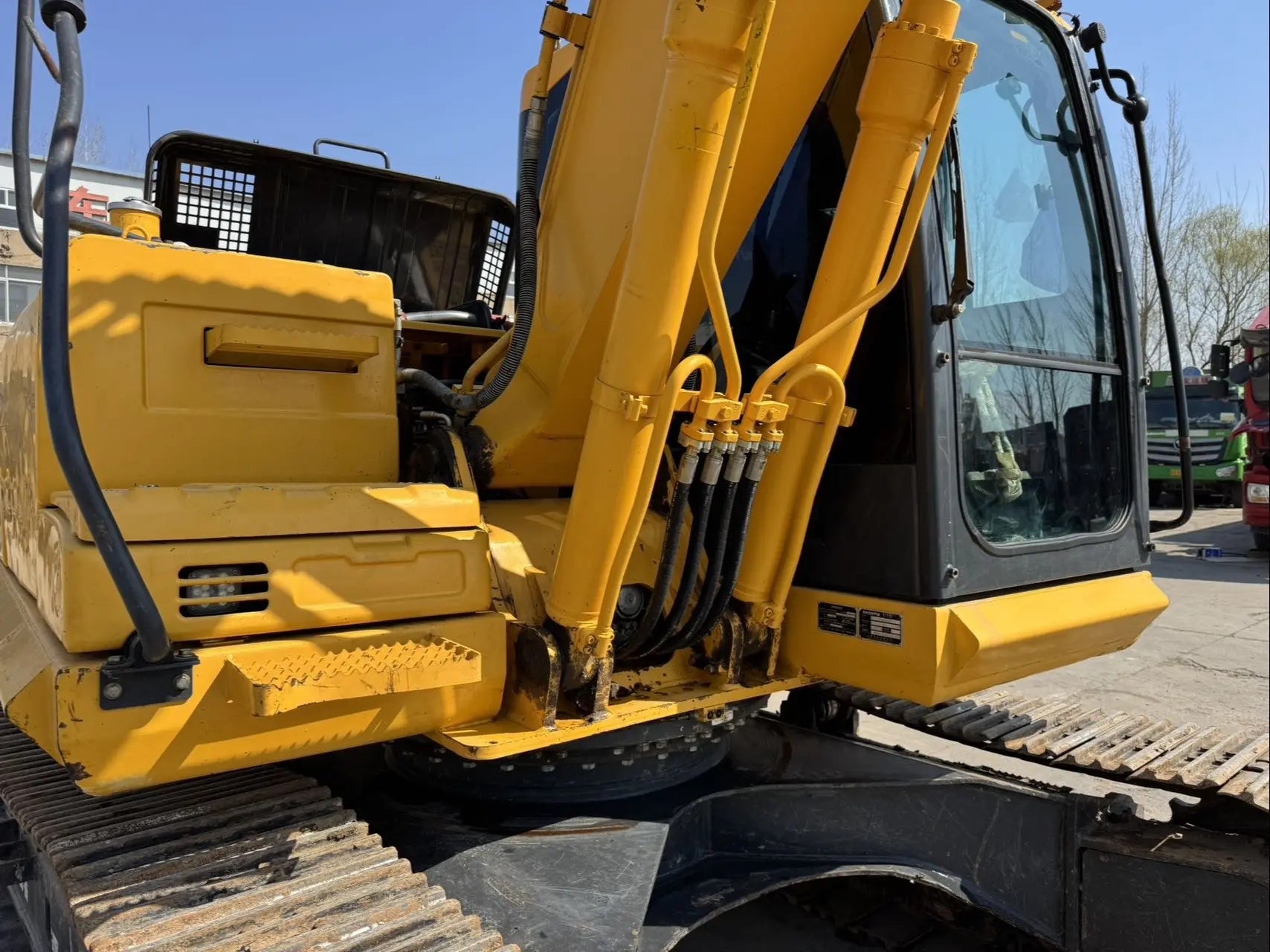

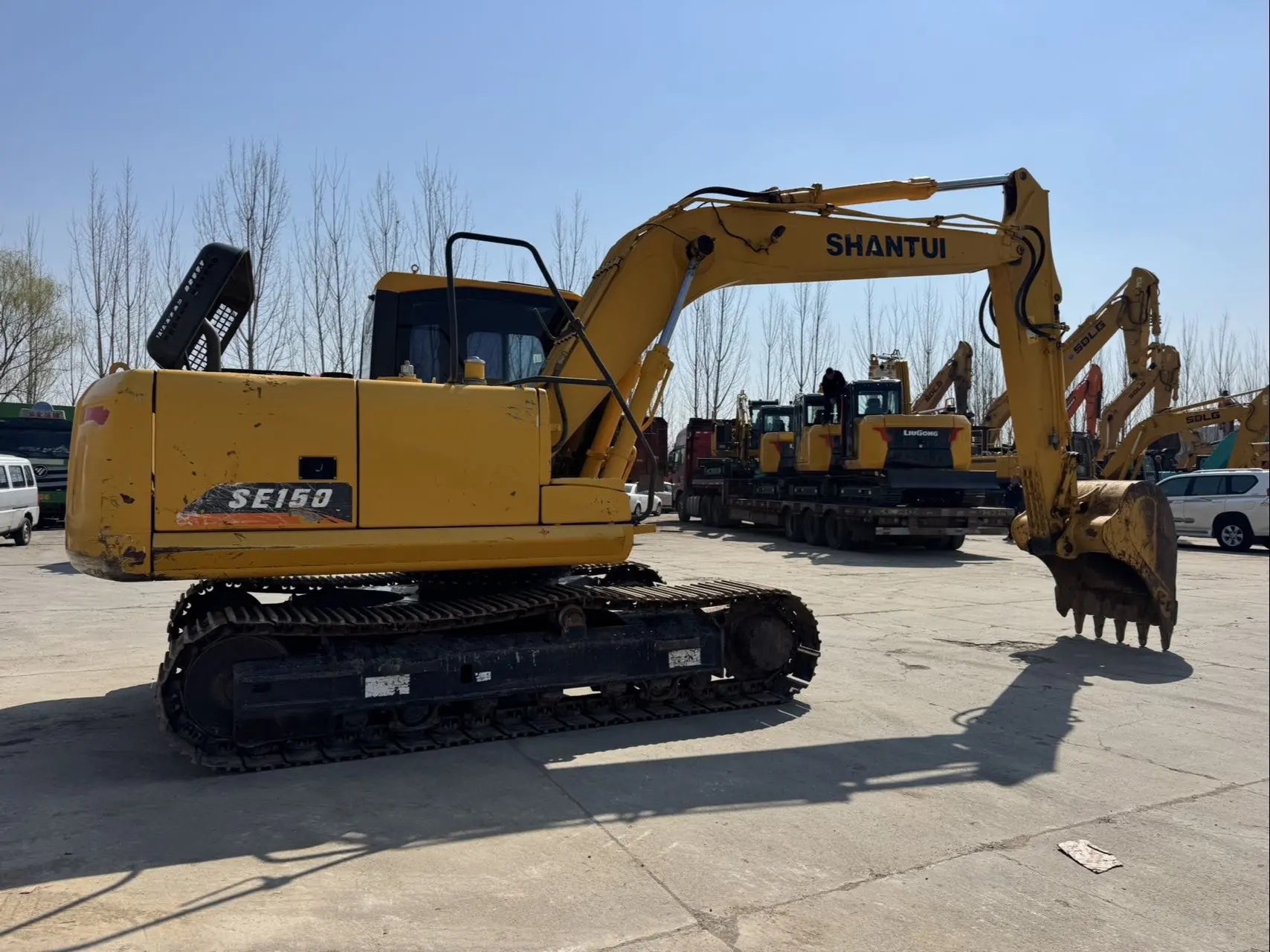

USED SHANTUI SE150

USED SHANTUI SE150

$13,000.00 USD
$13,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 15000
Standard Bucket Capacity m³ 0.65
Engine Model - Cummins QSB4.5
Rated Power kW/rpm 86/2200
Emission Standard - China Stage III
Displacement L 4.5
Swing Speed r/min 11.5
Travel Speed km/h 3.1/5.3
Gradeability % 70
Bucket Digging Force kN 105
Arm Digging Force kN 72
Ground Pressure kPa 37
Overall Length mm 7890
Overall Width mm 2540
Overall Height (Cab Top) mm 2850
Track Width mm 500
Track Gauge mm 2040
Minimum Ground Clearance mm 450
Max Digging Radius mm 8650
Max Digging Depth mm 5720
Max Digging Height mm 8830
Max Dumping Height mm 6350
Fuel Tank Capacity L 240
Hydraulic Tank Capacity L 135
Ver todos los detalles
