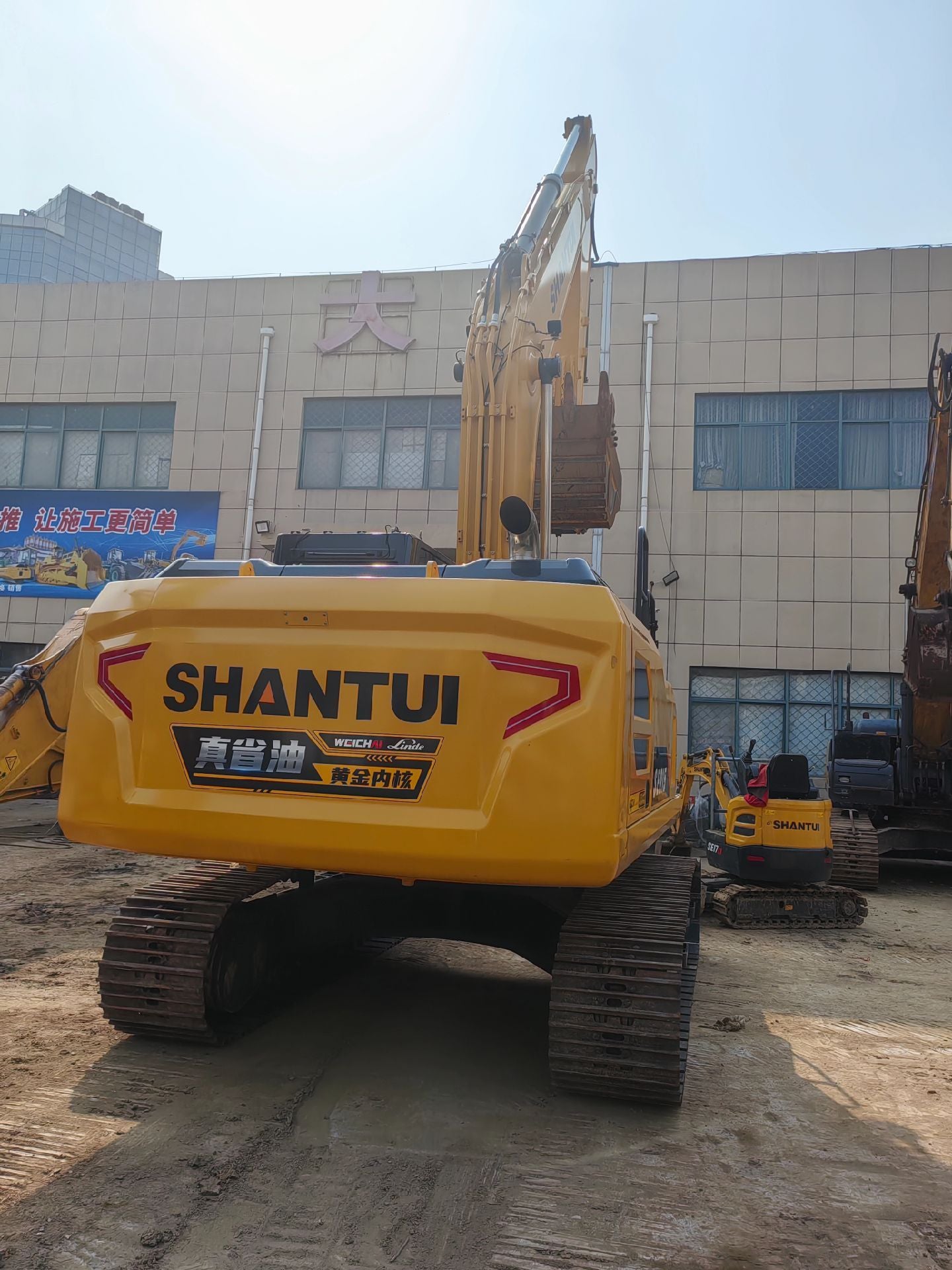

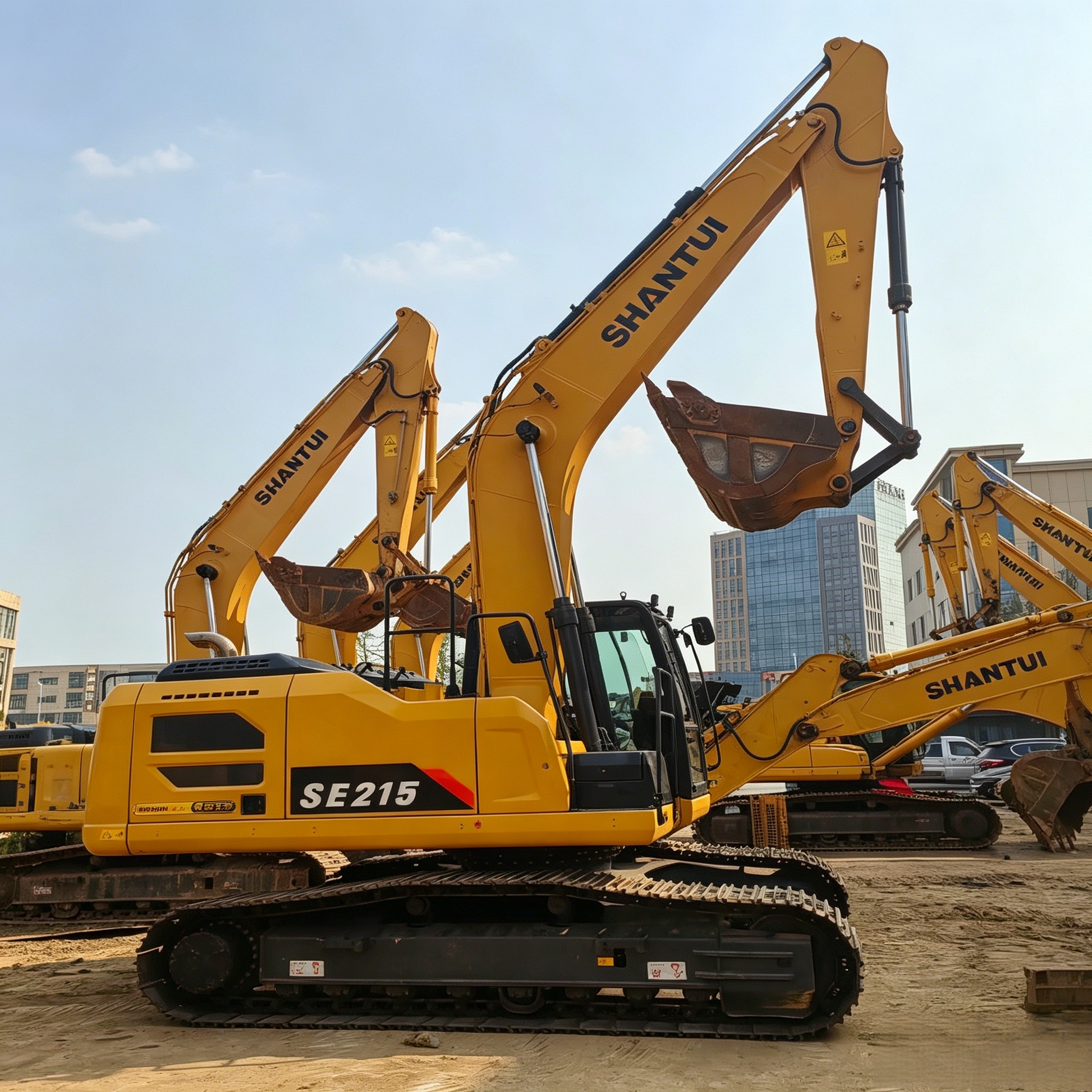

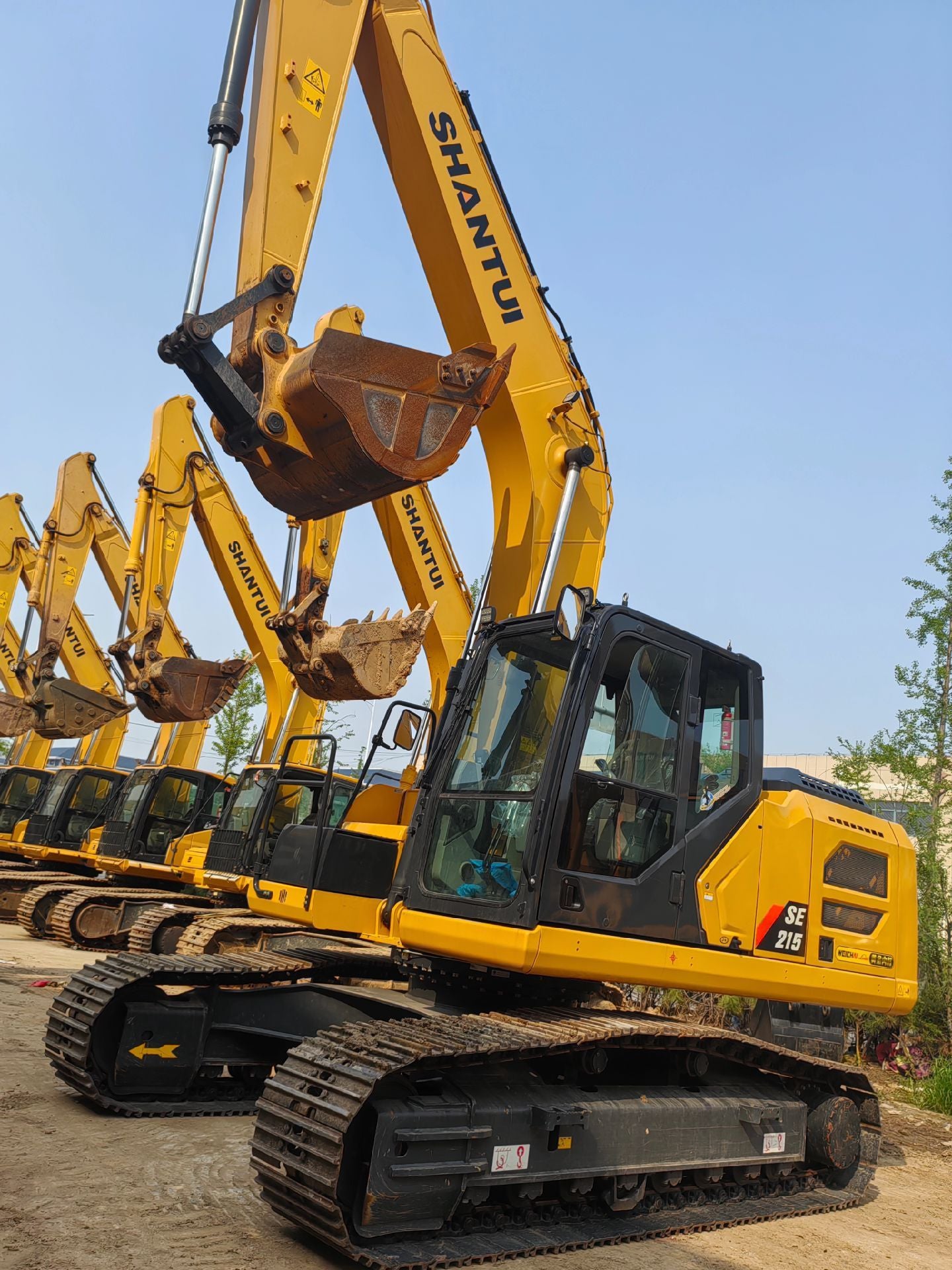

USED SHANTUI SE215

USED SHANTUI SE215

$20,000.00 USD
$20,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 21500
Standard Bucket Capacity m³ 0.95
Engine Model - Cummins QSB6.7
Rated Power kW/rpm 129/2000
Emission Standard - China Stage III
Displacement L 6.7
Swing Speed r/min 10.8
Travel Speed km/h 3.3/5.6
Gradeability % 70
Bucket Digging Force kN 155
Arm Digging Force kN 115
Ground Pressure kPa 43.5
Overall Length mm 9450
Overall Width mm 2800
Overall Height (Cab Top) mm 3060
Track Width mm 600
Track Gauge mm 2200
Minimum Ground Clearance mm 485
Maximum Digging Radius mm 9980
Maximum Digging Depth mm 6700
Maximum Digging Height mm 9700
Maximum Dumping Height mm 6780
Fuel Tank Capacity L 340
Hydraulic Tank Capacity L 175
