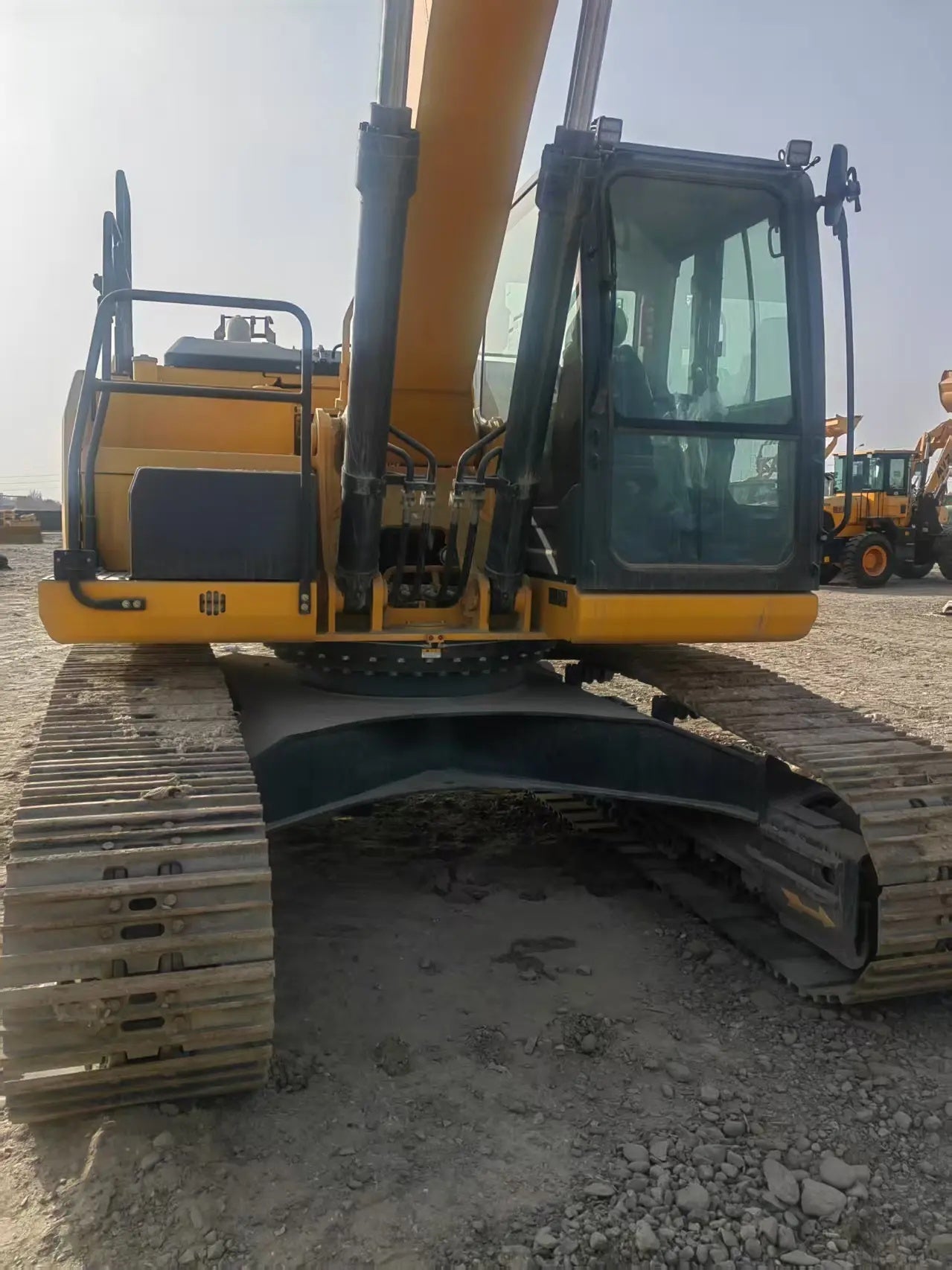

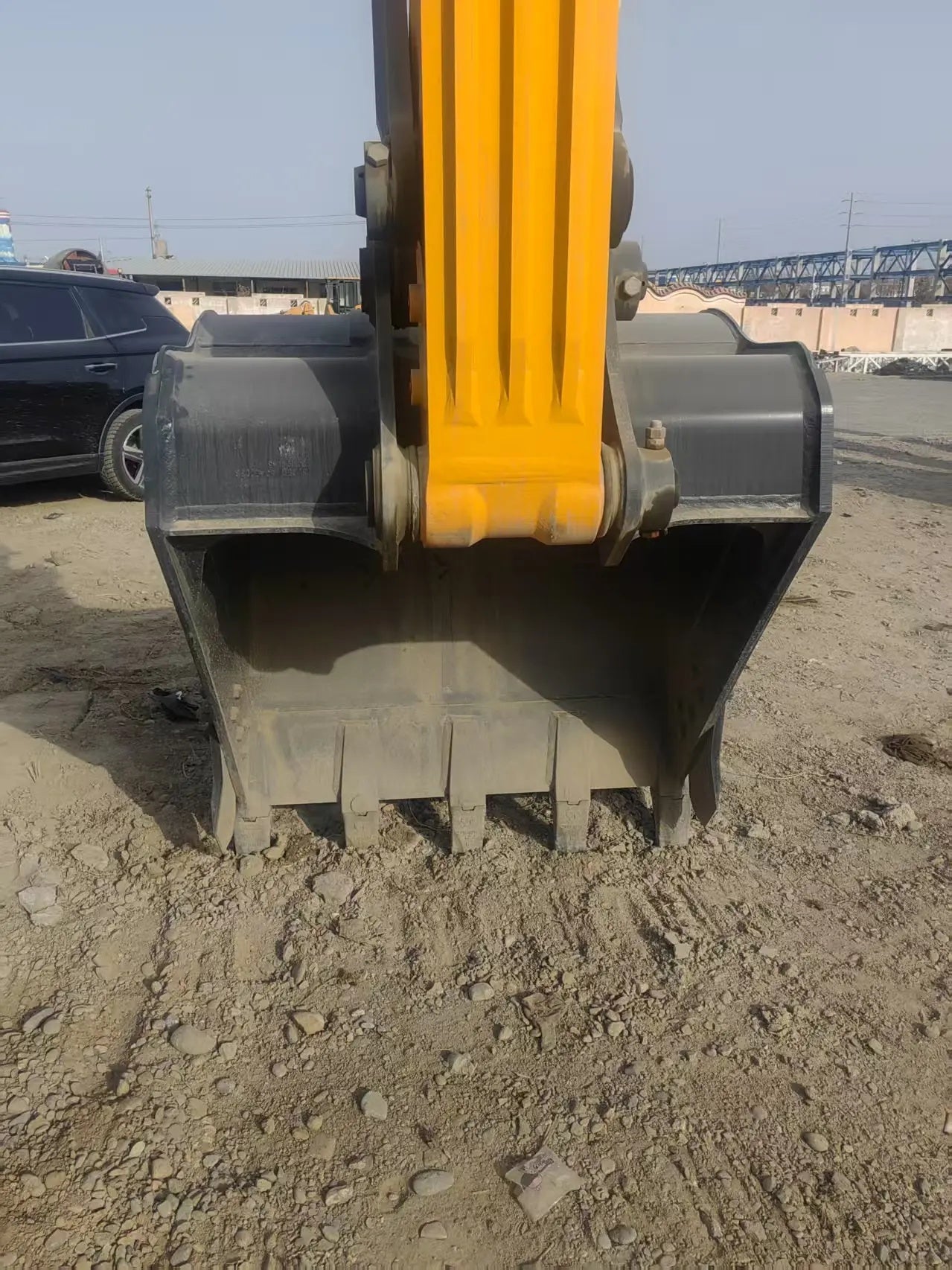

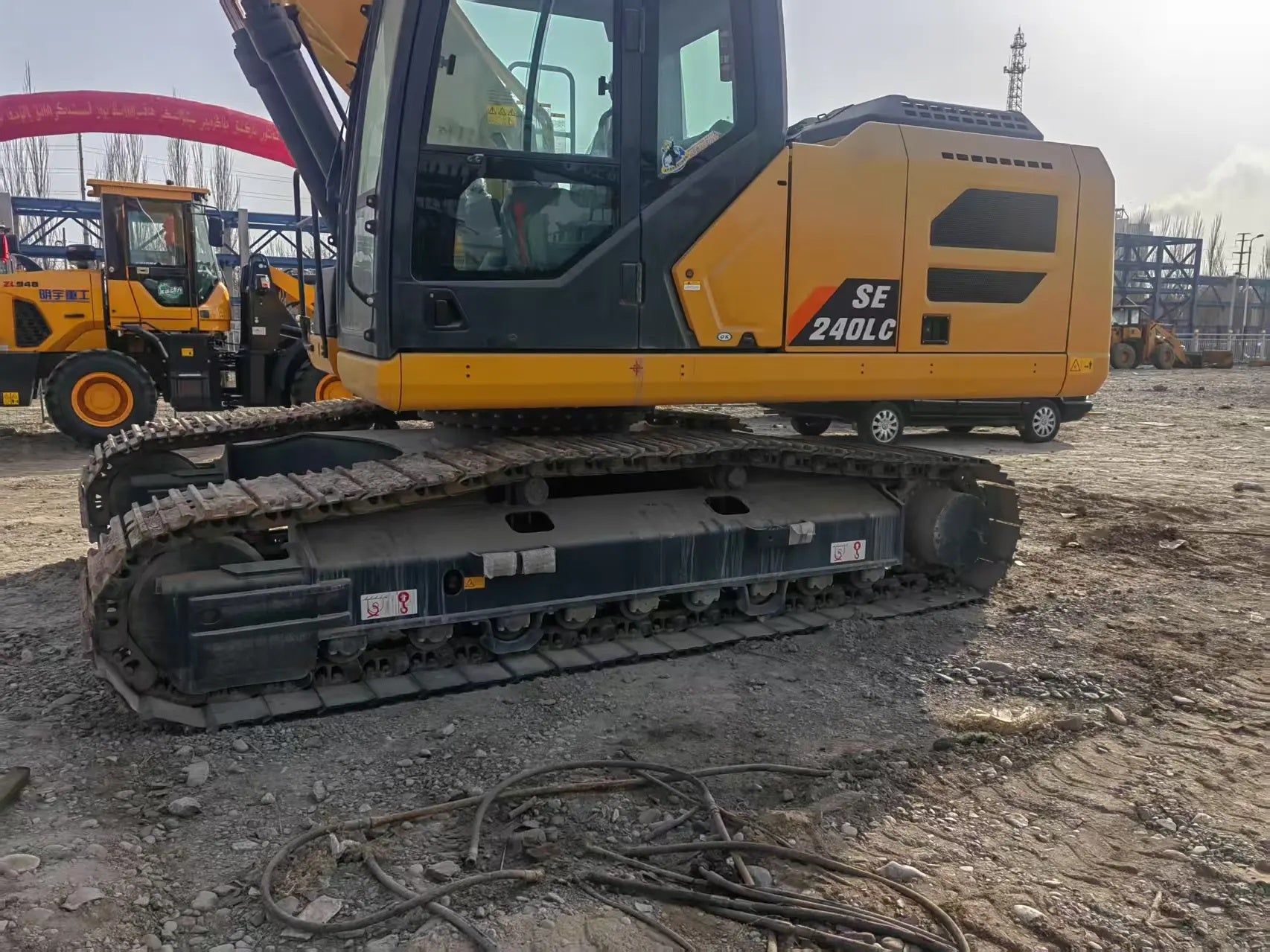

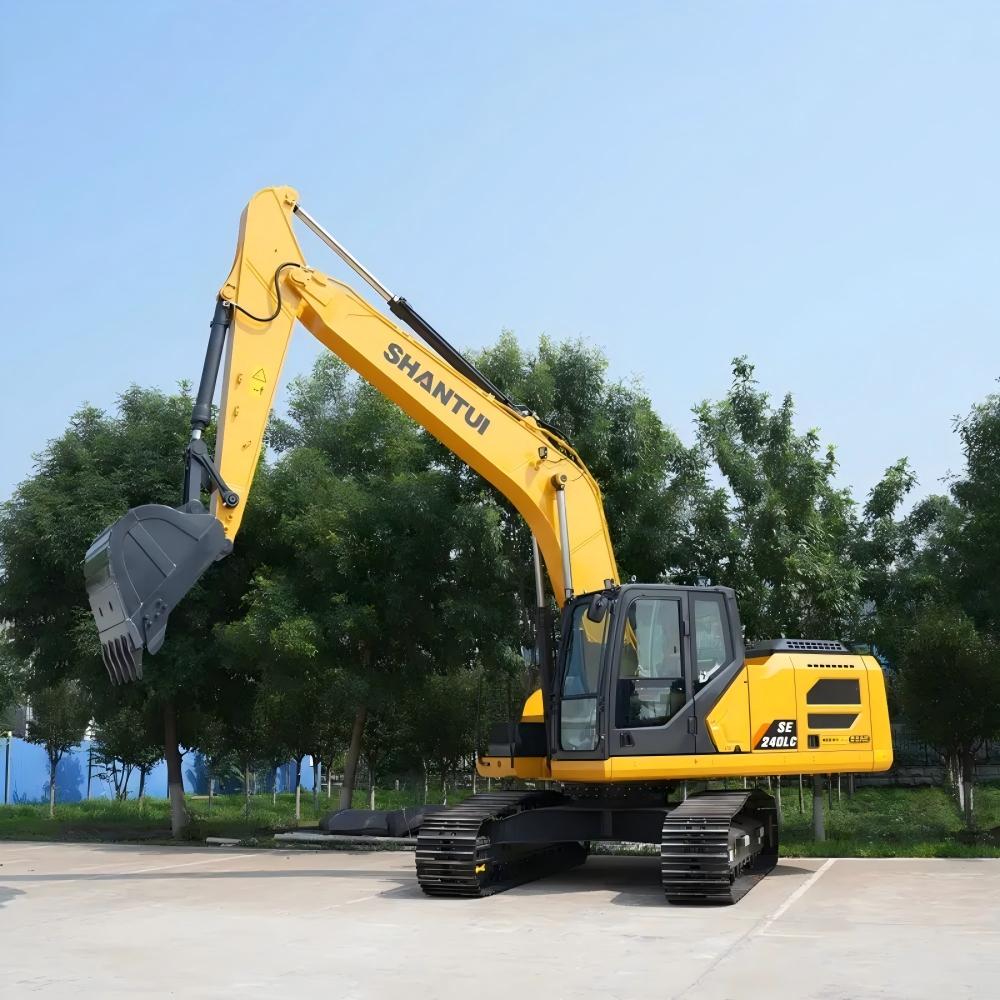

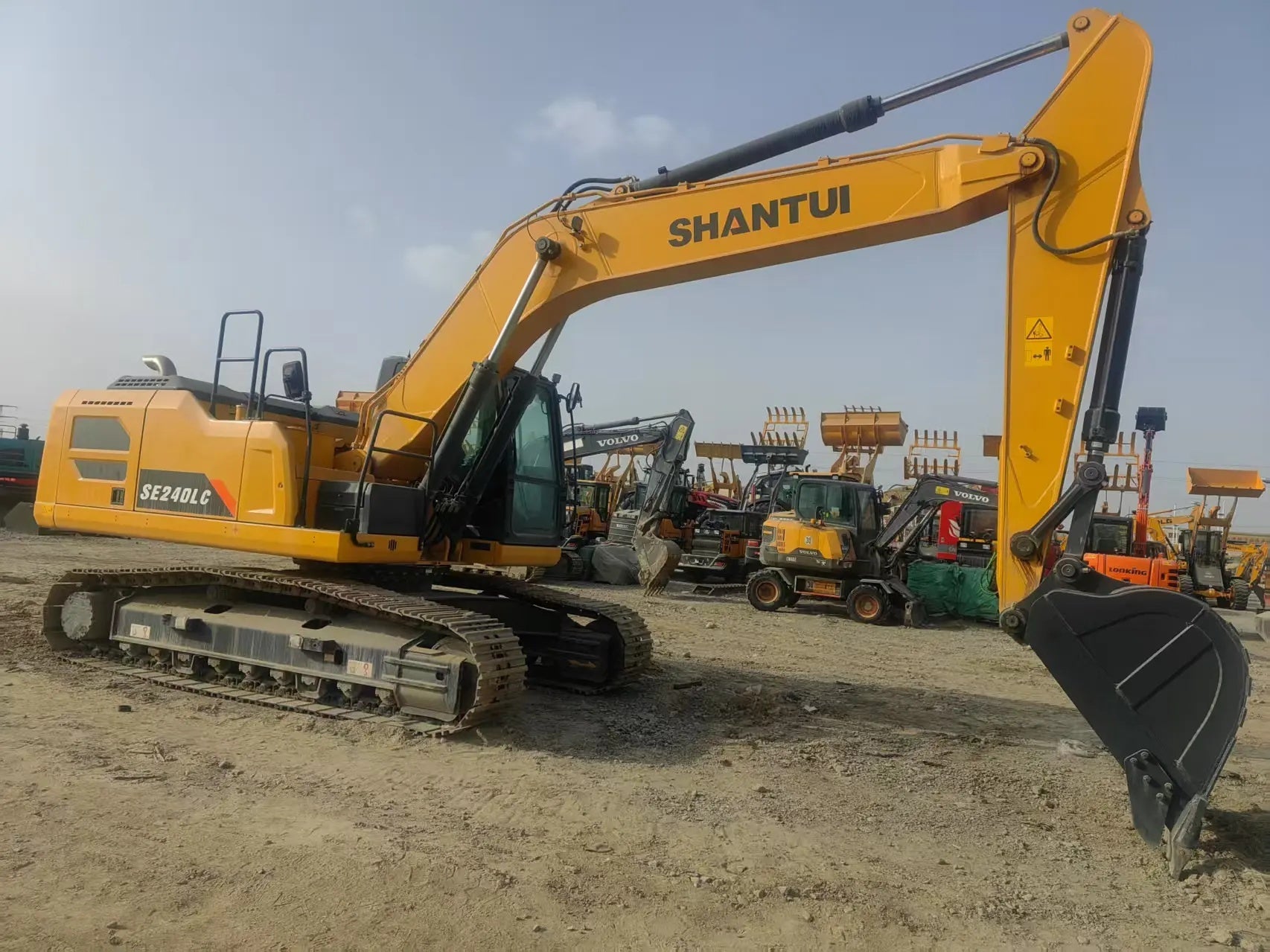

USED SHANTUI SE240LC

USED SHANTUI SE240LC

$23,000.00 USD
$23,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 24000
Standard Bucket Capacity m³ 1.2
Engine Model - Cummins QSB6.7
Rated Power kW/rpm 142/2000
Emission Standard - China Stage III
Displacement L 6.7
Swing Speed r/min 10.5
Travel Speed km/h 3.2/5.4
Gradeability % 70
Bucket Digging Force kN 170
Arm Digging Force kN 128
Ground Pressure kPa 46
Overall Length mm 9730
Overall Width mm 2990
Overall Height (Cab Top) mm 3180
Track Width mm 600
Track Gauge mm 2380
Minimum Ground Clearance mm 500
Maximum Digging Radius mm 10360
Maximum Digging Depth mm 7020
Maximum Digging Height mm 10080
Maximum Dumping Height mm 6950
Fuel Tank Capacity L 380
Hydraulic Tank Capacity L 185
