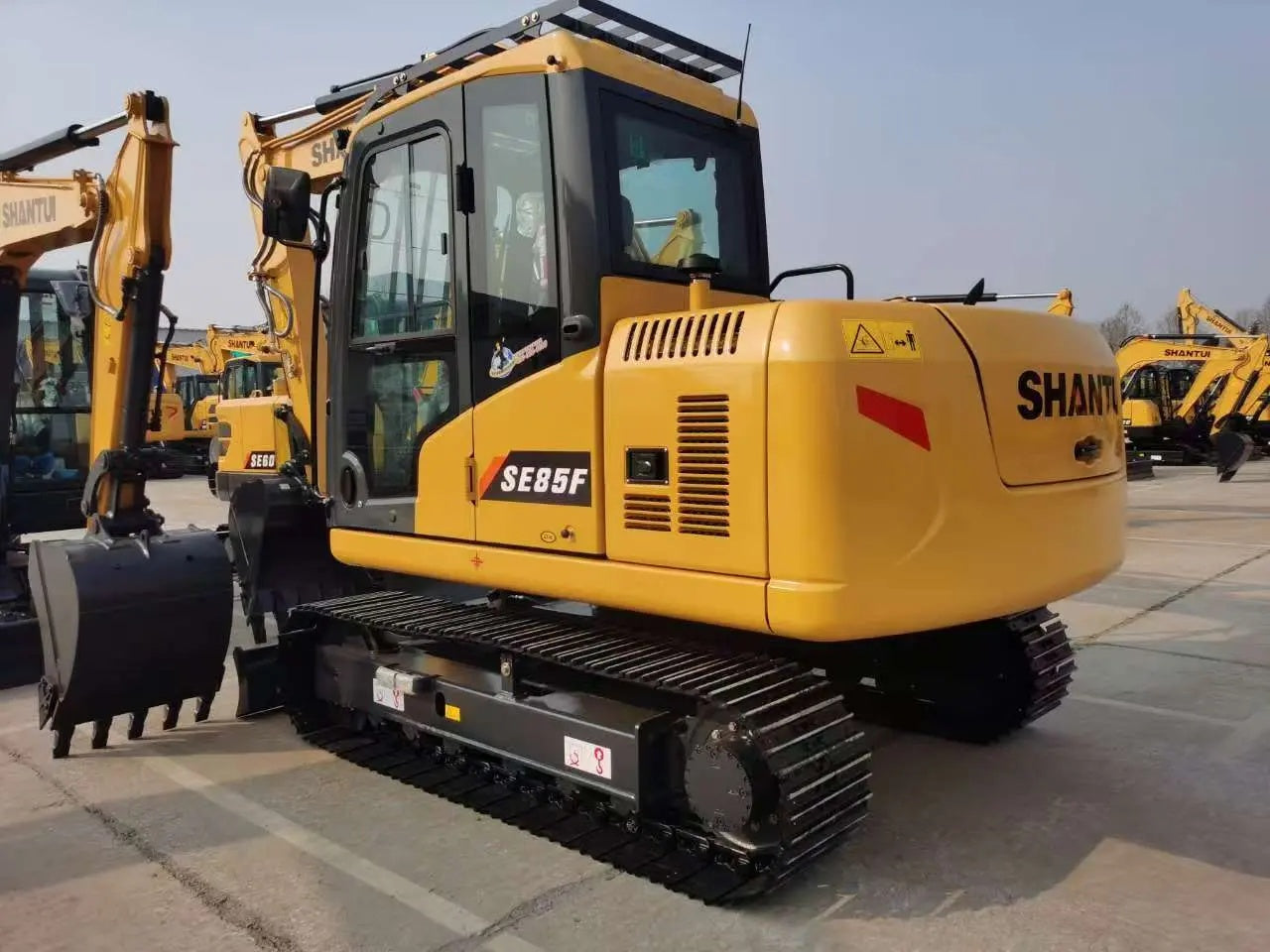

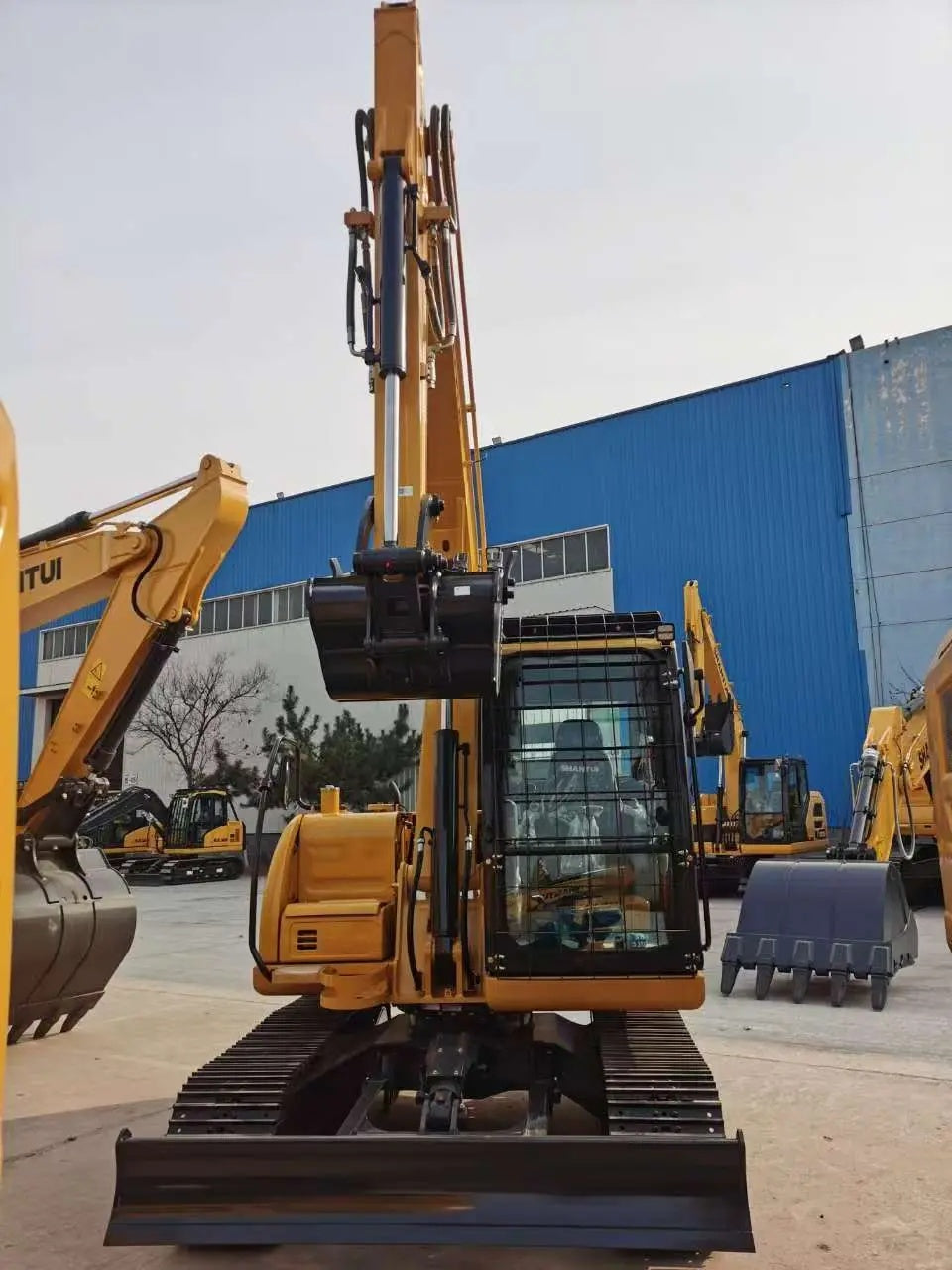

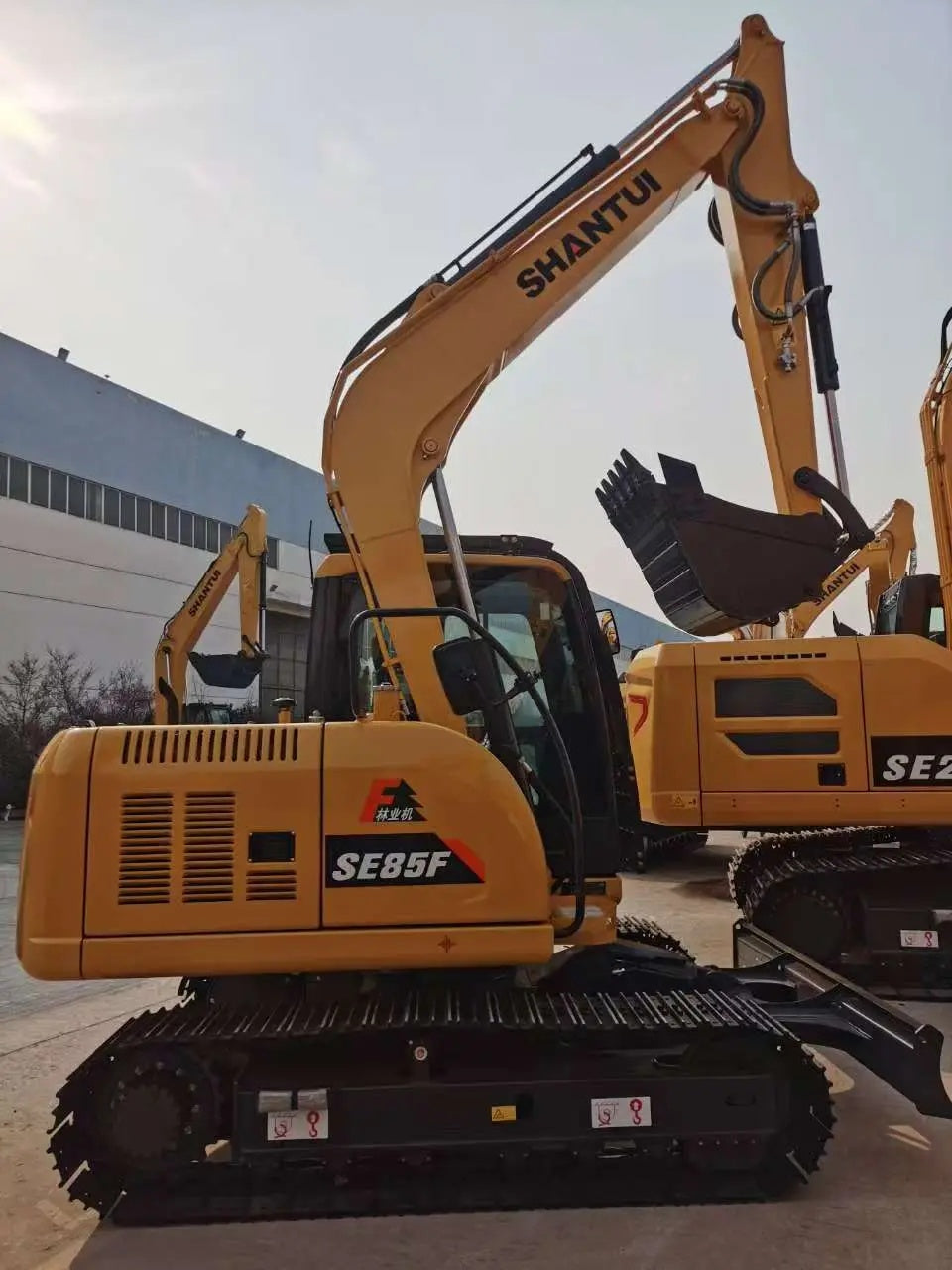

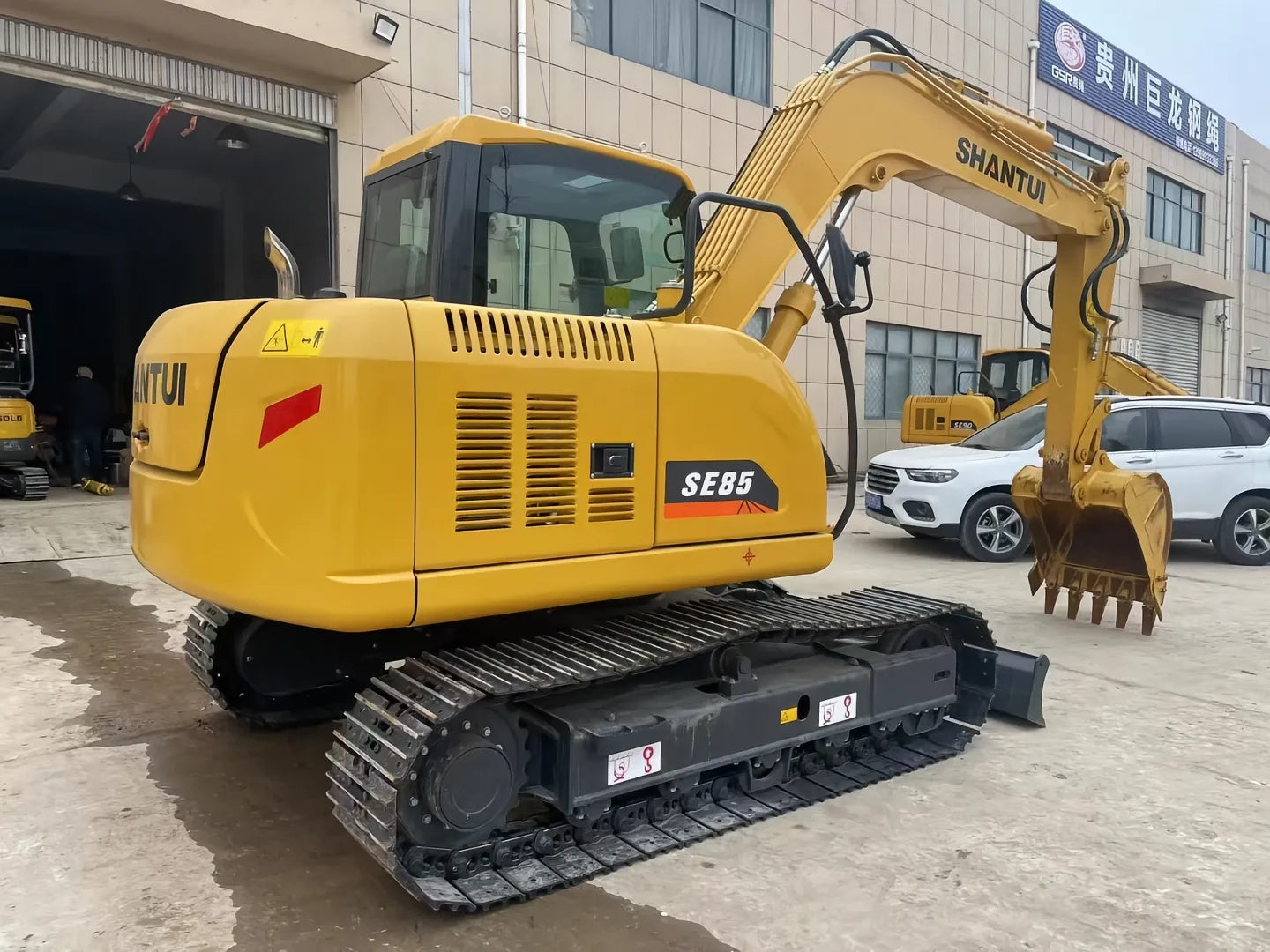

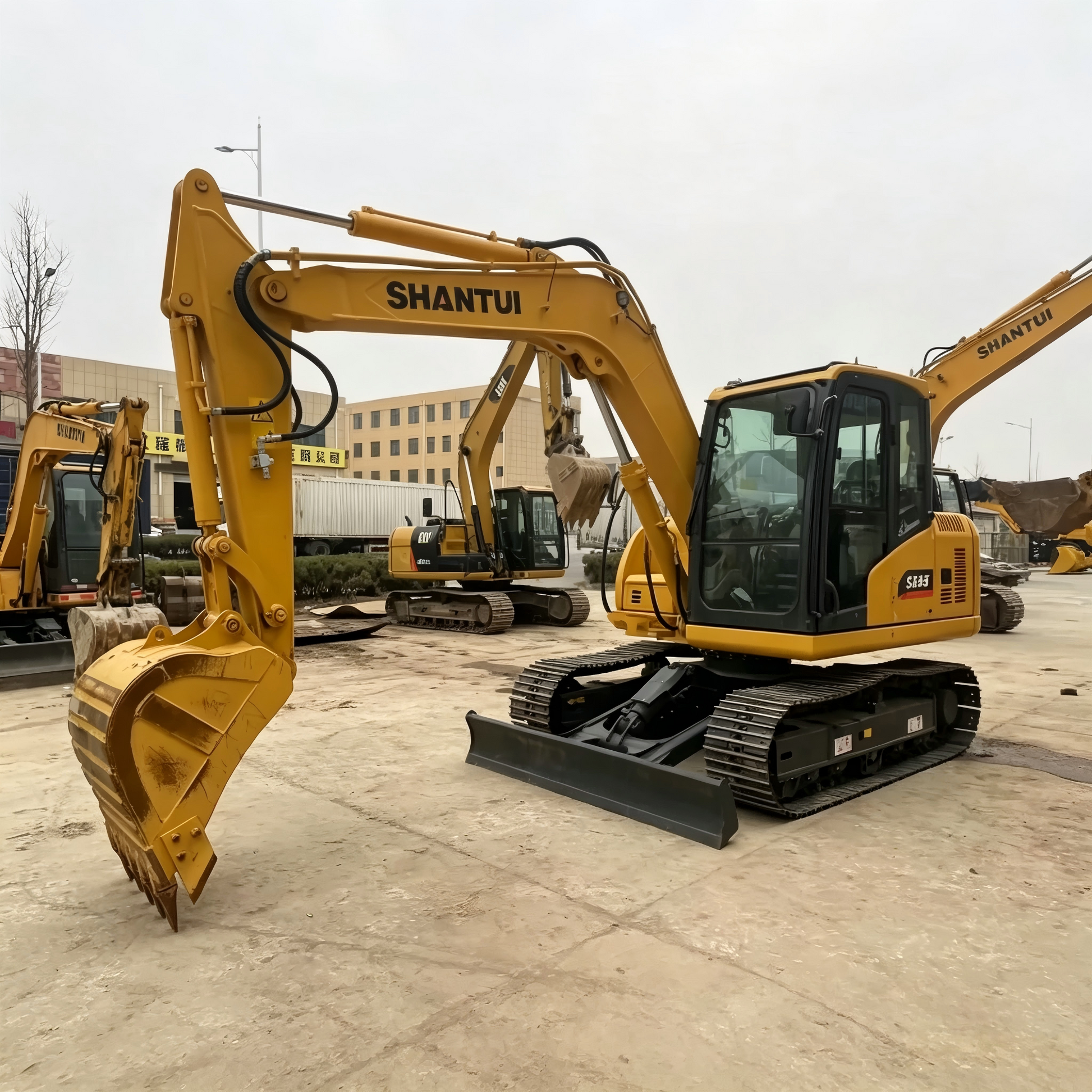

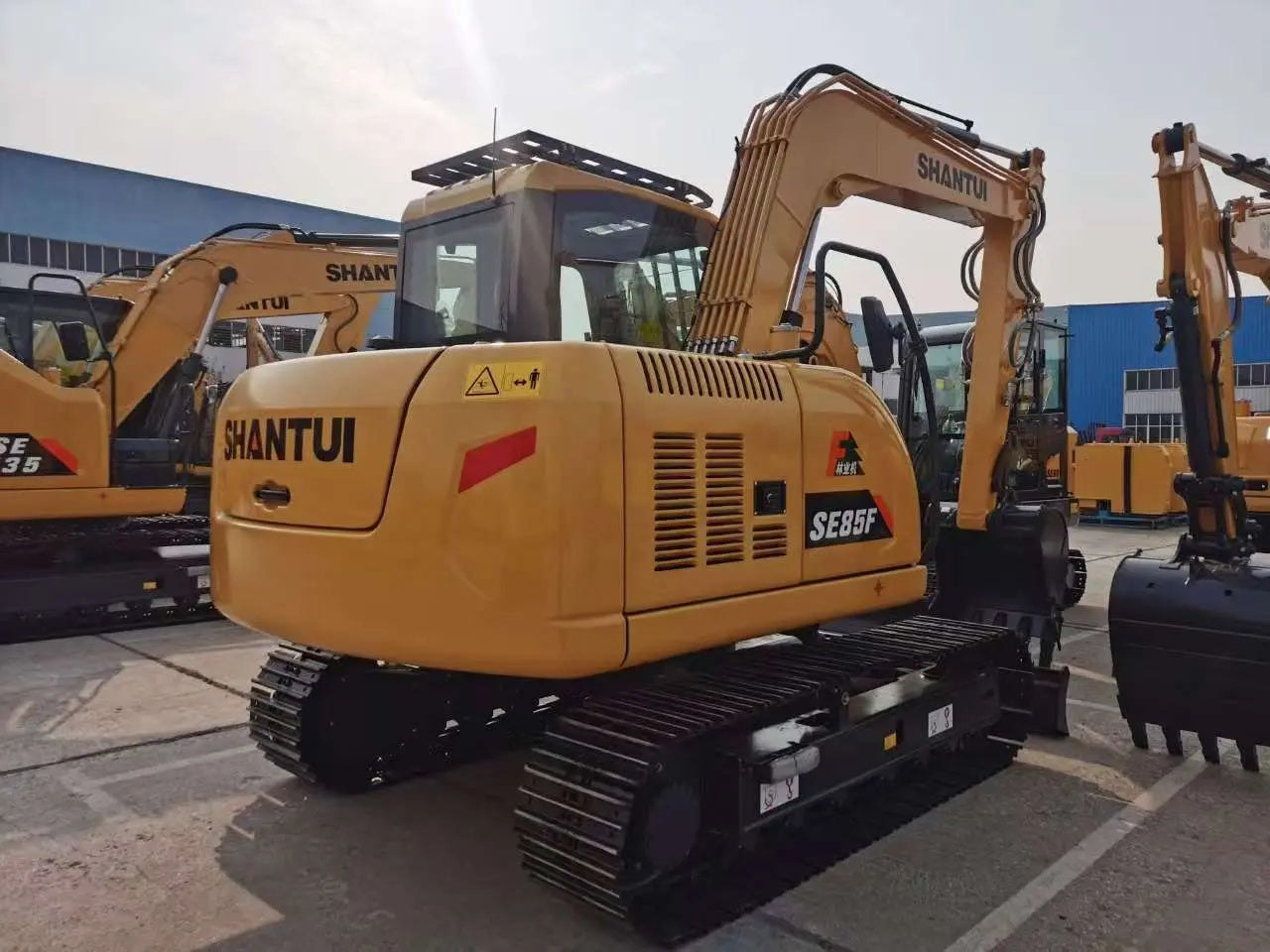

USED SHANTUI SE85-9

USED SHANTUI SE85-9

$11,000.00 USD
$11,000.00 USD
Oferta Agotado
Parameter Unit Value
Operating Weight kg 8350
Standard Bucket Capacity m³ 0.35
Bucket Capacity Range m³ 0.13~0.40
Engine Model - Kubota V3307T
Rated Power kW/rpm 48.9/2000
Emission Standard - China Stage III / EU Stage IIIA
Displacement L 3.331
Cooling Method - Water-cooled, turbocharged
Rated Hydraulic Flow L/min 160
Swing Speed r/min 11
Bucket Digging Force kN 68
Arm Digging Force kN 46
Ground Pressure kPa 36
Max. Traction Force kN 92
Travel Speed km/h 2.9/4.4
Gradeability - 70% (35°)
Overall Length (Transport) mm 6455
Overall Width mm 2306
Overall Height (to Cab Top) mm 2710
Min. Ground Clearance mm 407.5
Track Gauge mm 1850
Track Width mm 450
Tail Swing Radius mm 1880
Max. Digging Radius mm 6600
Max. Digging Depth mm 4295
Max. Vertical Digging Depth mm 3360
Max. Digging Height mm 7175
Max. Dumping Height mm 5025
Fuel Tank Capacity L 150
Hydraulic Tank Capacity L 76
Hydraulic System Capacity L 145
Coolant Capacity L 11
Engine Oil Capacity L 11
