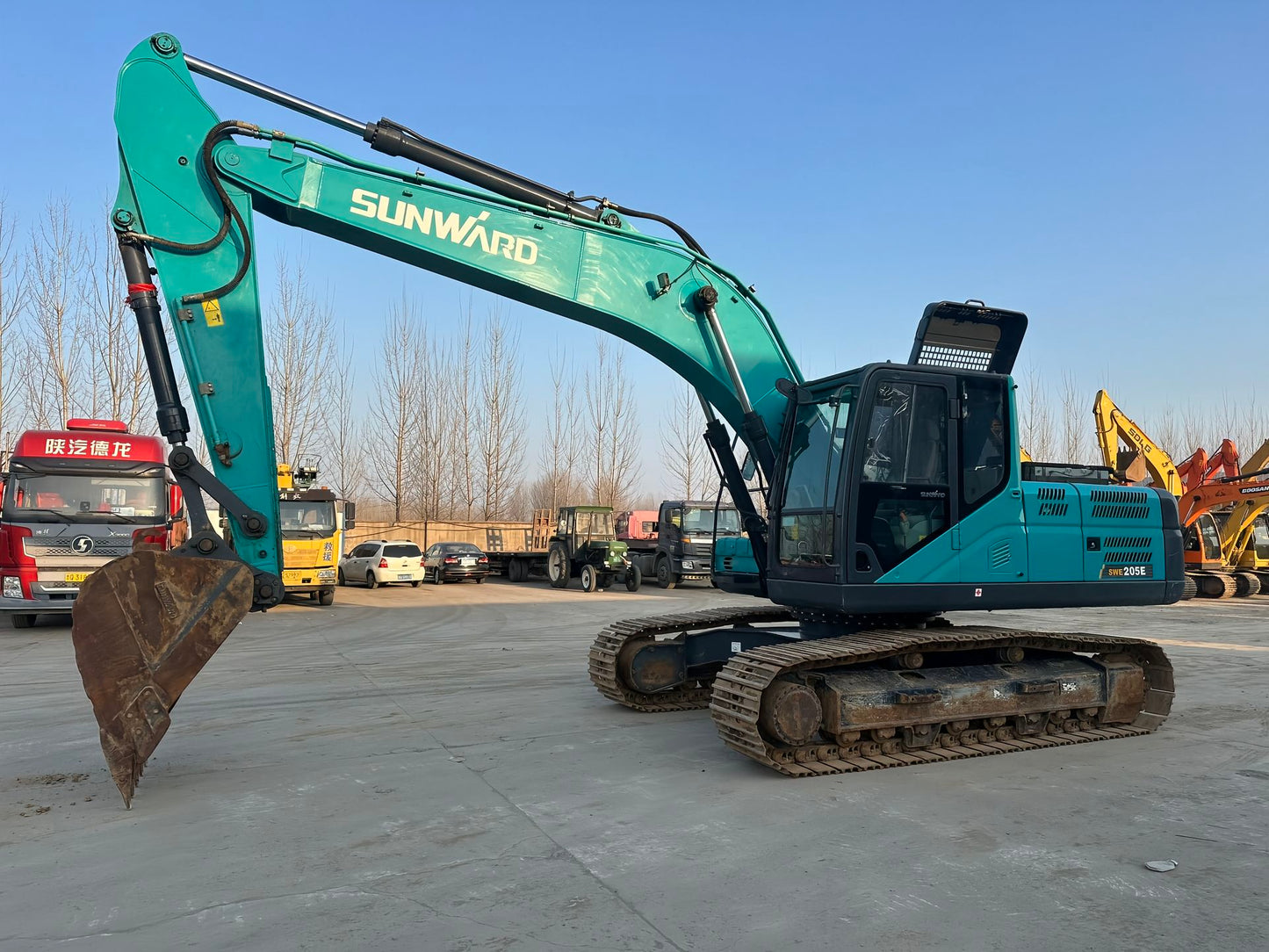

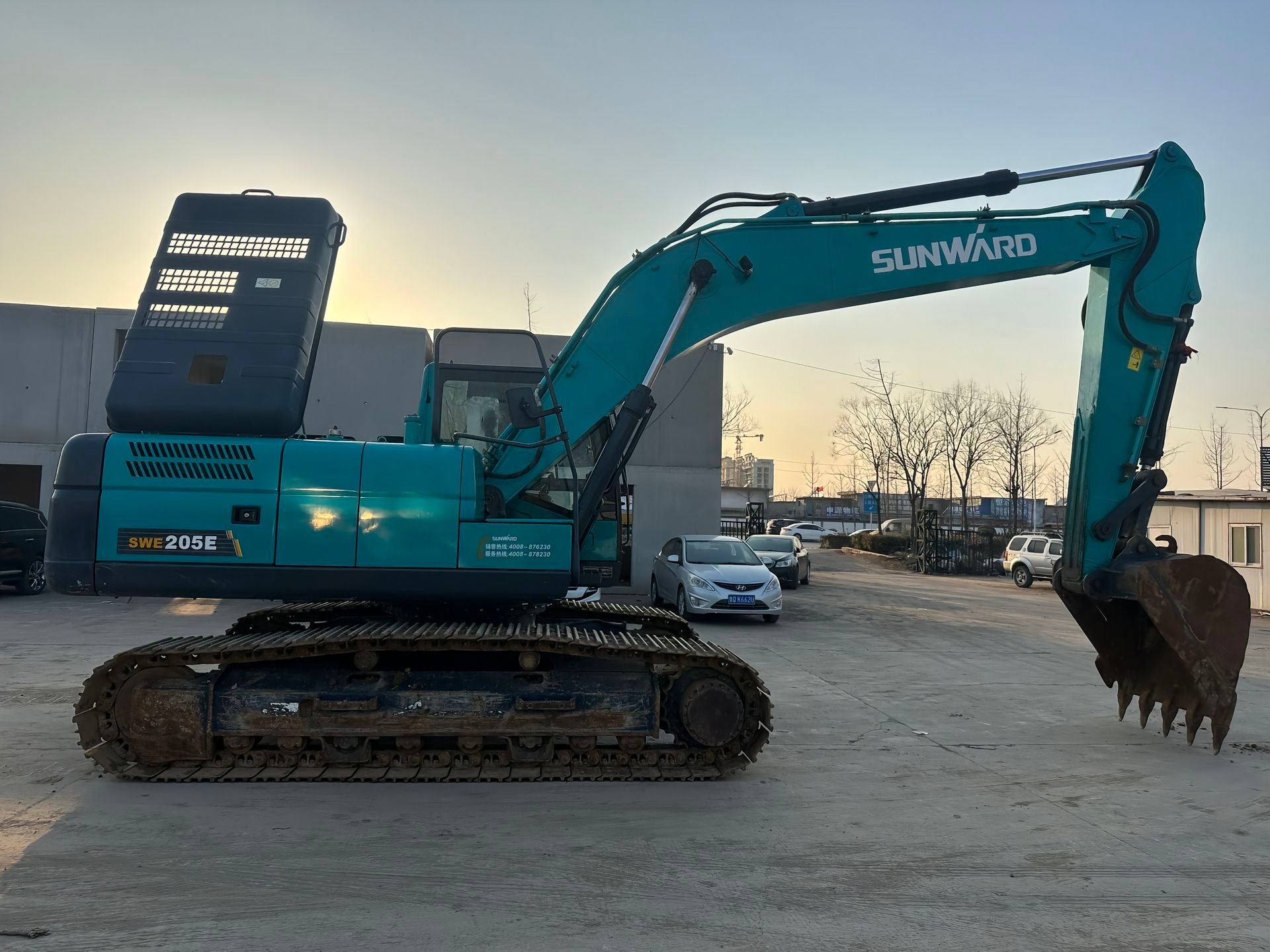

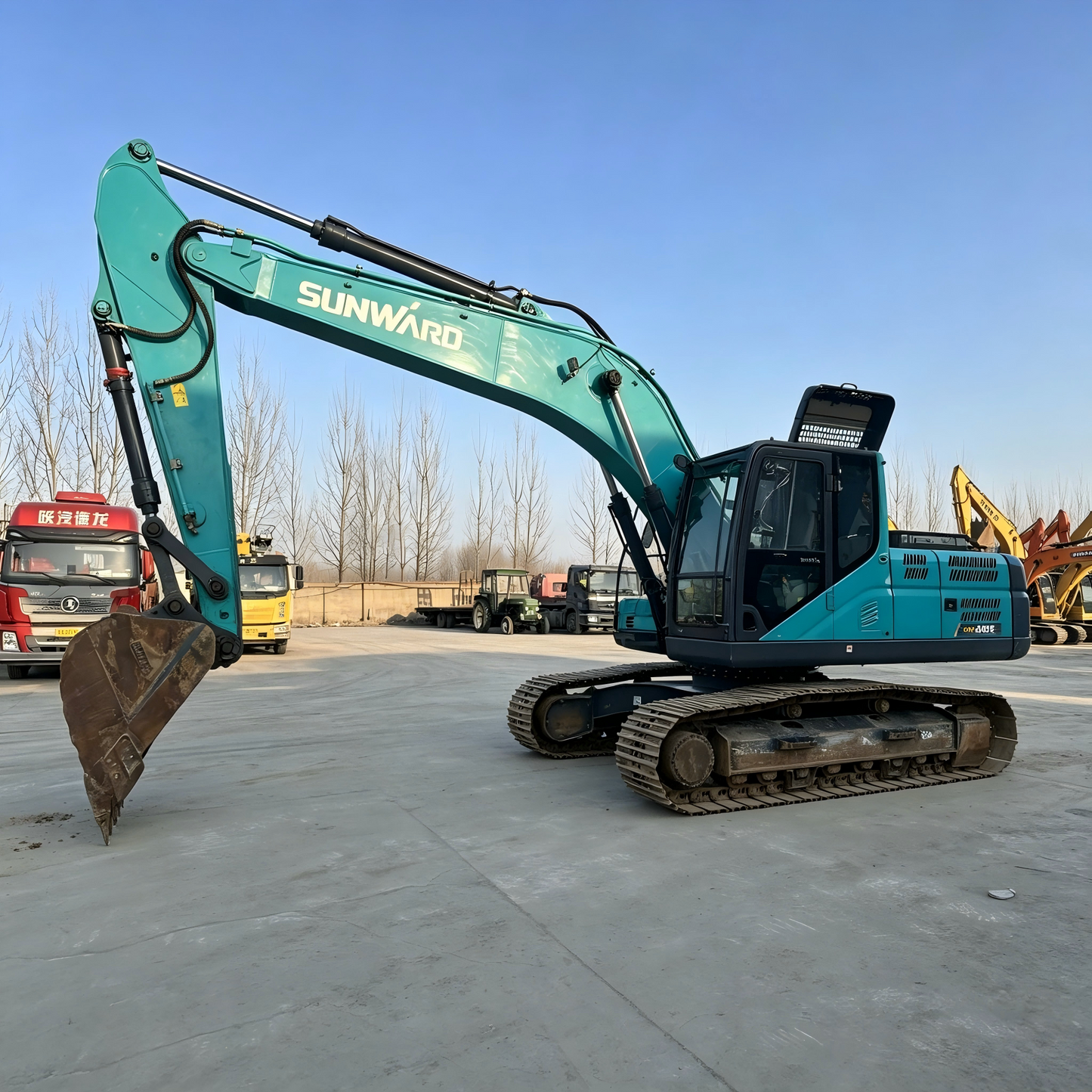

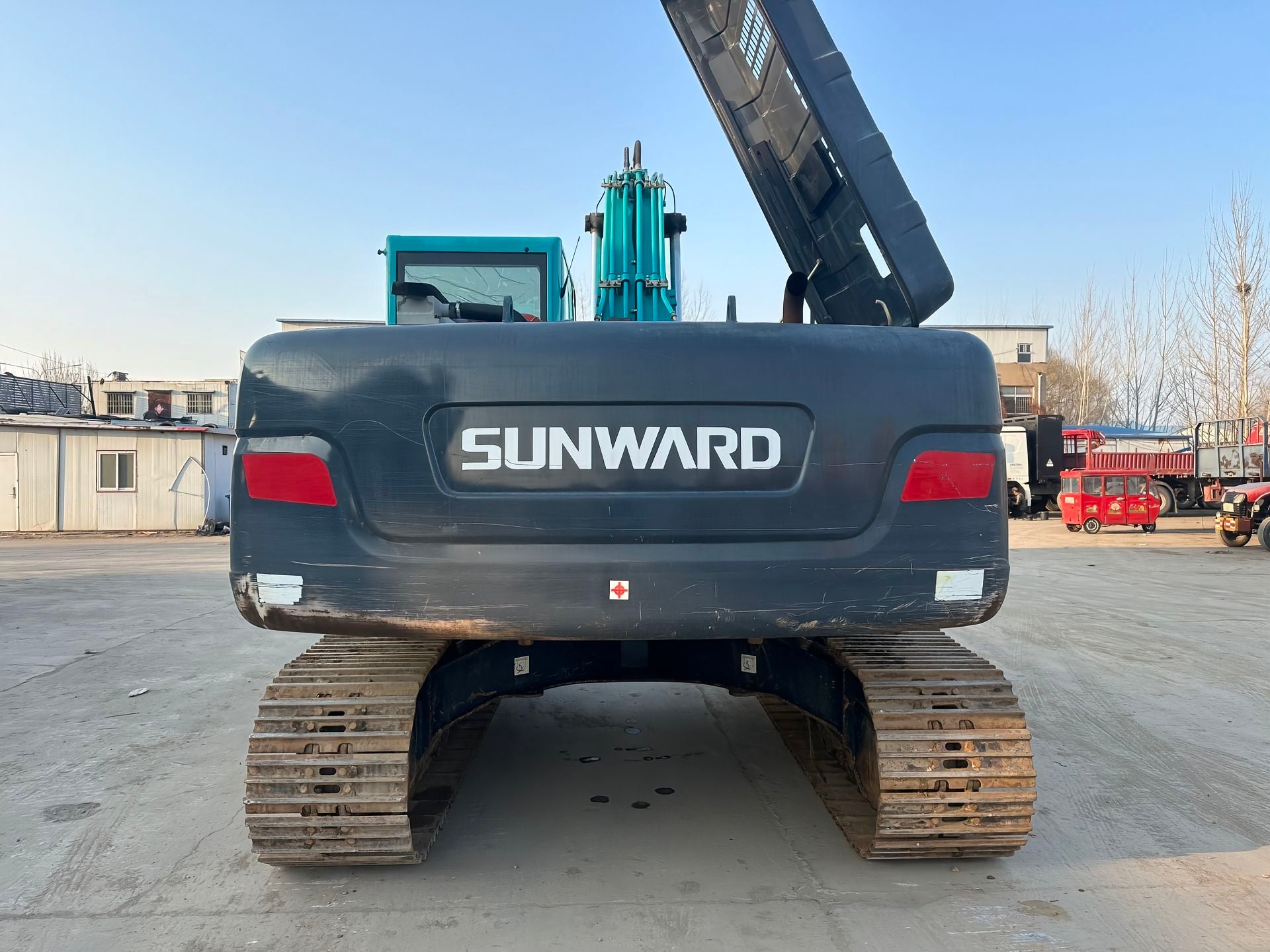

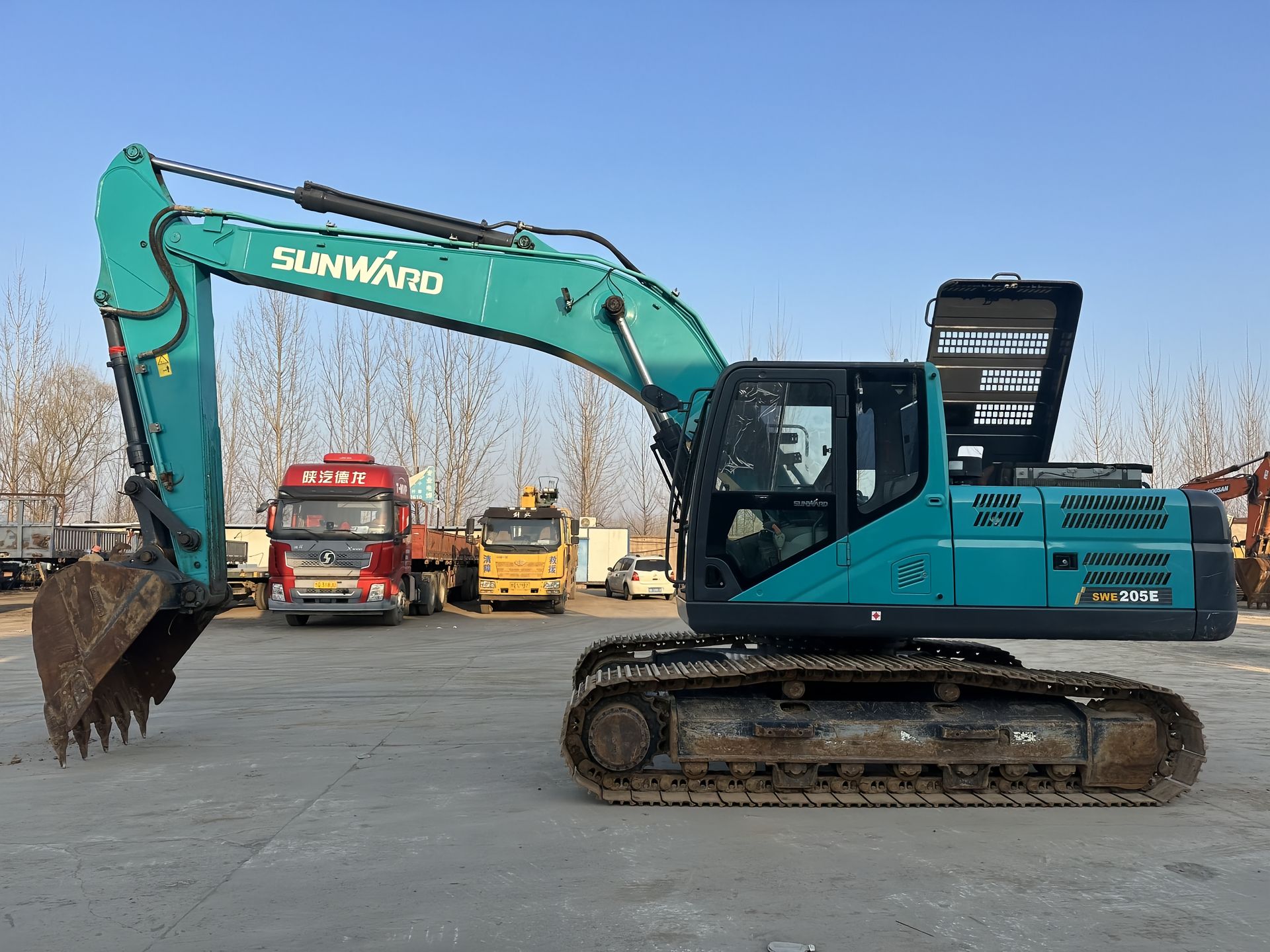

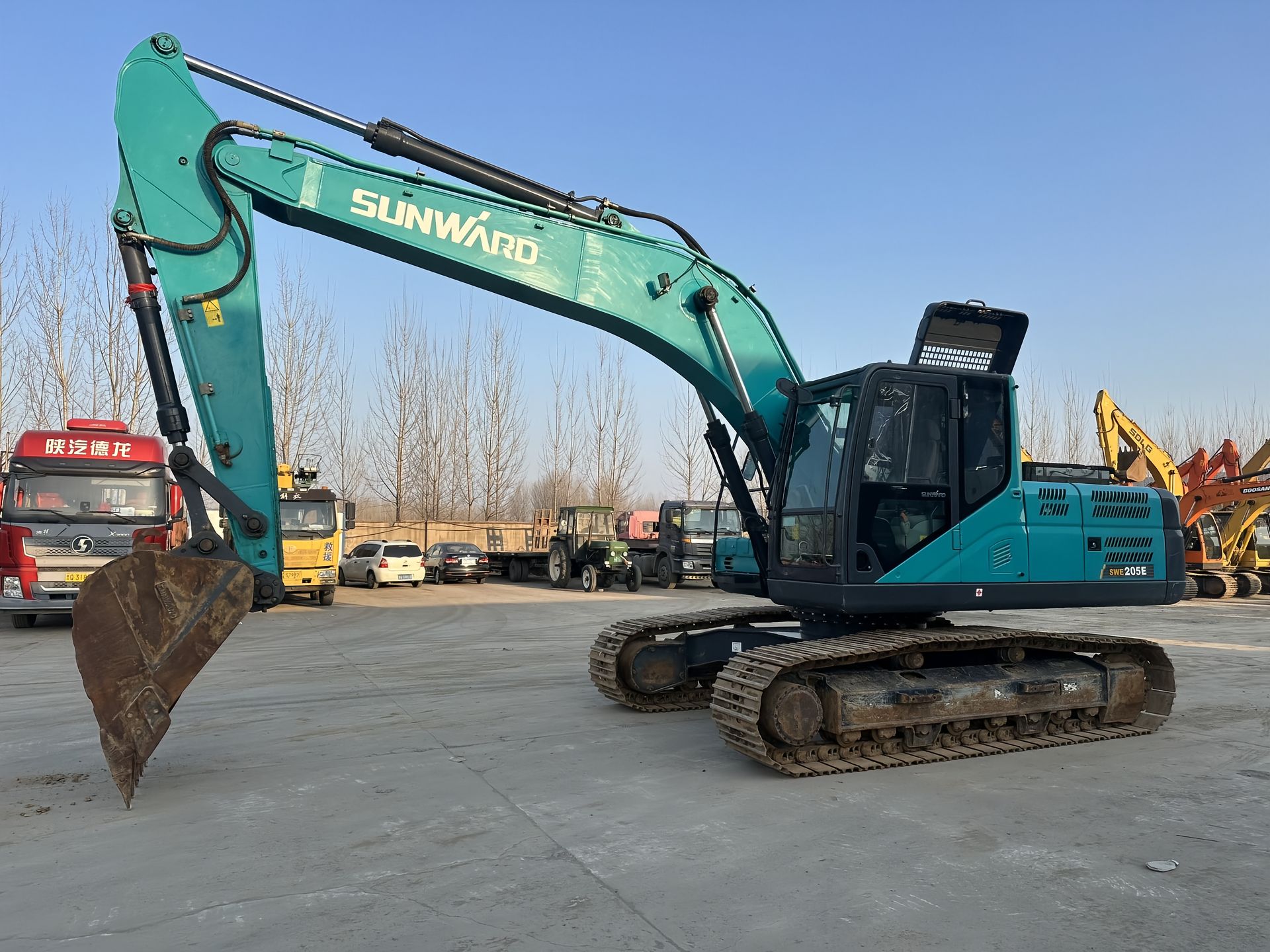

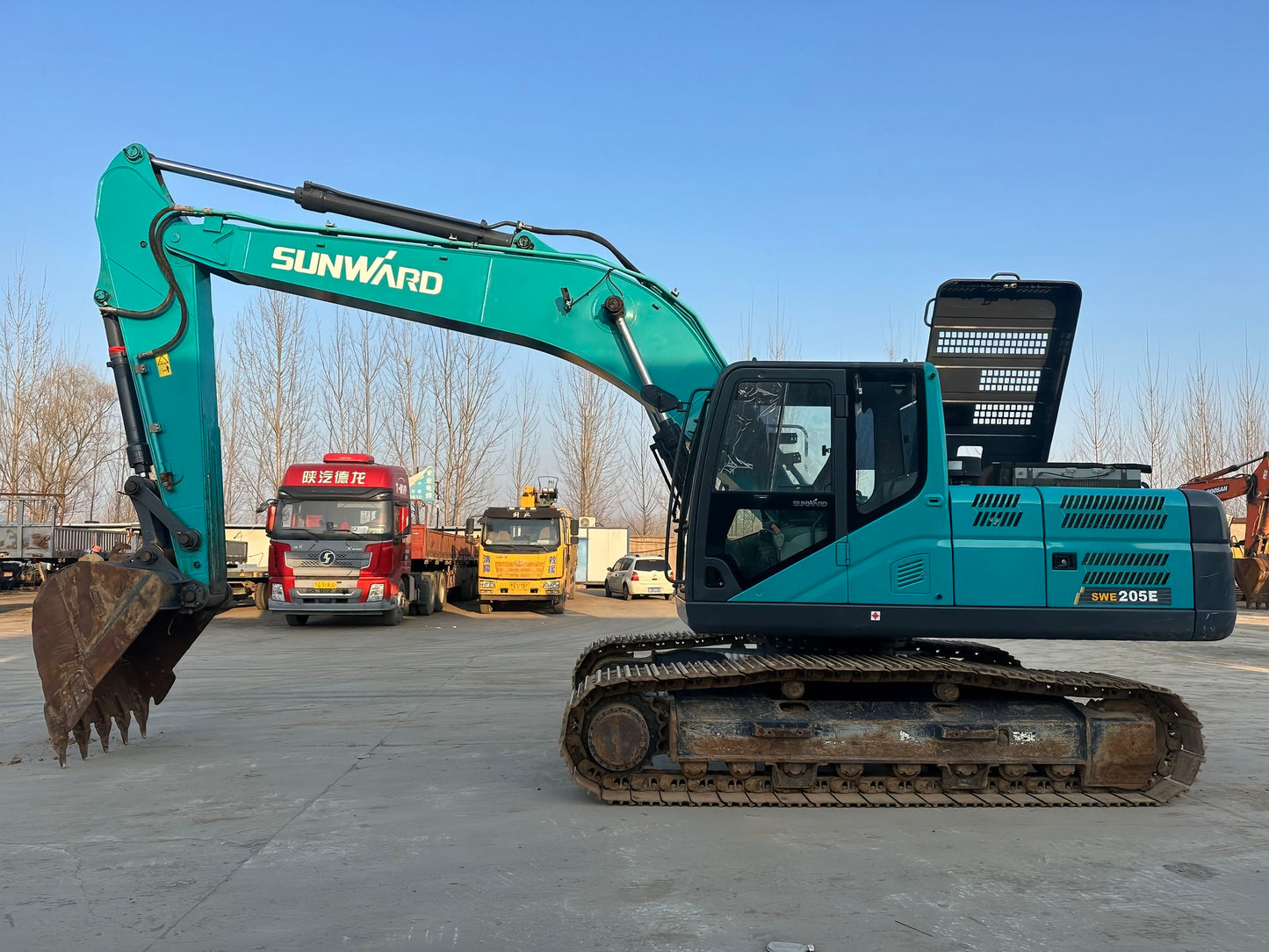

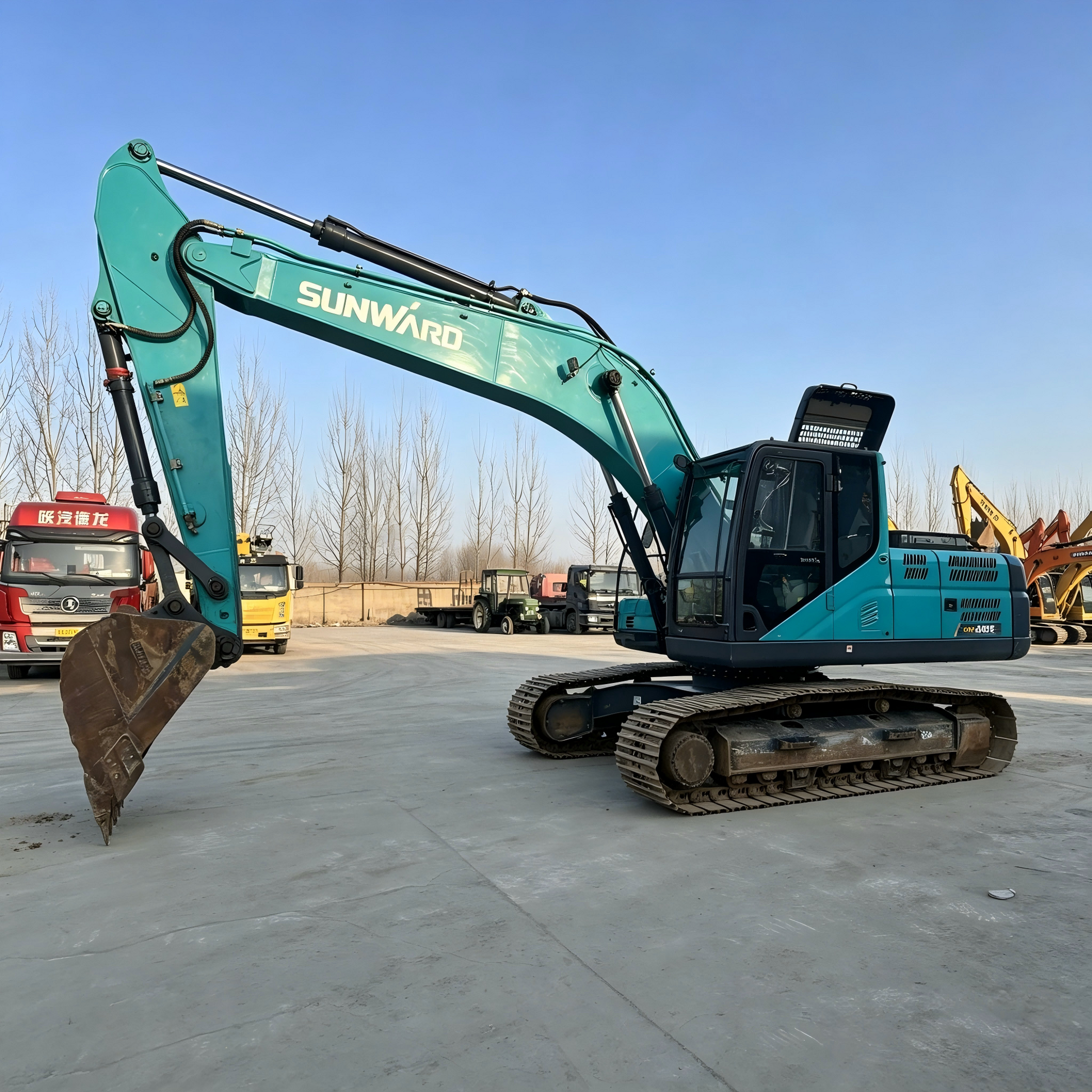

| Model |

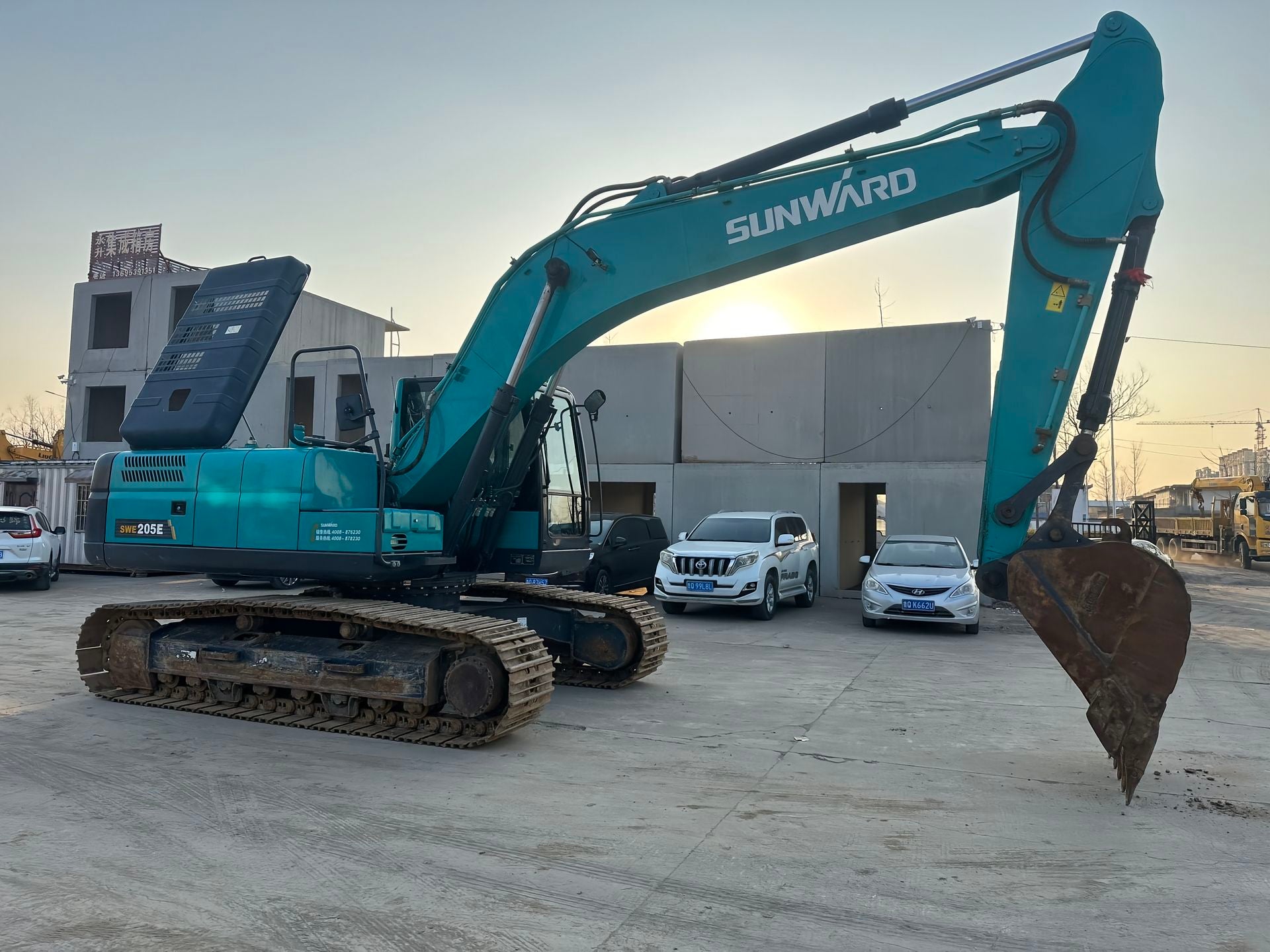

SWE205E |
| Type |
Medium Crawler Excavator (20–22 ton class) |
| Operating Weight |
22,100 kg (48,722 lb) |
| Standard Bucket Capacity |
1.0 m³ (0.9–1.1 m³ optional) |
| Engine Model |
BF6M / CA6DH1 (6-cyl, diesel, water-cooled) |
| Rated Power |
124–125 kW / 166–168 HP @ 1,800–2,200 rpm |
| Emission Standard |
Tier 3 / Stage IIIA / China National IV |
| Digging Performance |
|
| Max Digging Depth |
6,750 mm (266 in) |
| Max Digging Radius |
9,940 mm (391 in) |
| Max Digging Height |
9,750 mm (384 in) |
| Max Unloading Height |
6,980 mm (275 in) |
| Bucket Digging Force |
155 kN |
| Arm Digging Force |
110 kN |
| Travel & Swing |
|
| Travel Speed (High/Low) |
5.0 / 3.2 km/h (3.11 / 1.99 mph) |
| Swing Speed |
11.5 rpm |
| Gradeability |
35° |
| Ground Pressure |
54 kPa |
| Dimensions |
|
| Transport Length |
9,570 mm (377 in) |
| Transport Width |
2,990 mm (118 in) |
| Transport Height |
2,970 mm (117 in) |
| Track Width |
600 mm (24 in) |
| Tail Swing Radius |
2,750 mm (108 in) |
| Capacities |
|
| Fuel Tank |
385 L (101.7 gal) |
| Hydraulic Tank |
290 L (76.6 gal) |
| Features |
30‑ton class upper structure, reinforced boom/arm, heavy‑duty undercarriage, 10.1‑inch touch display, centralized maintenance points |
