TCM

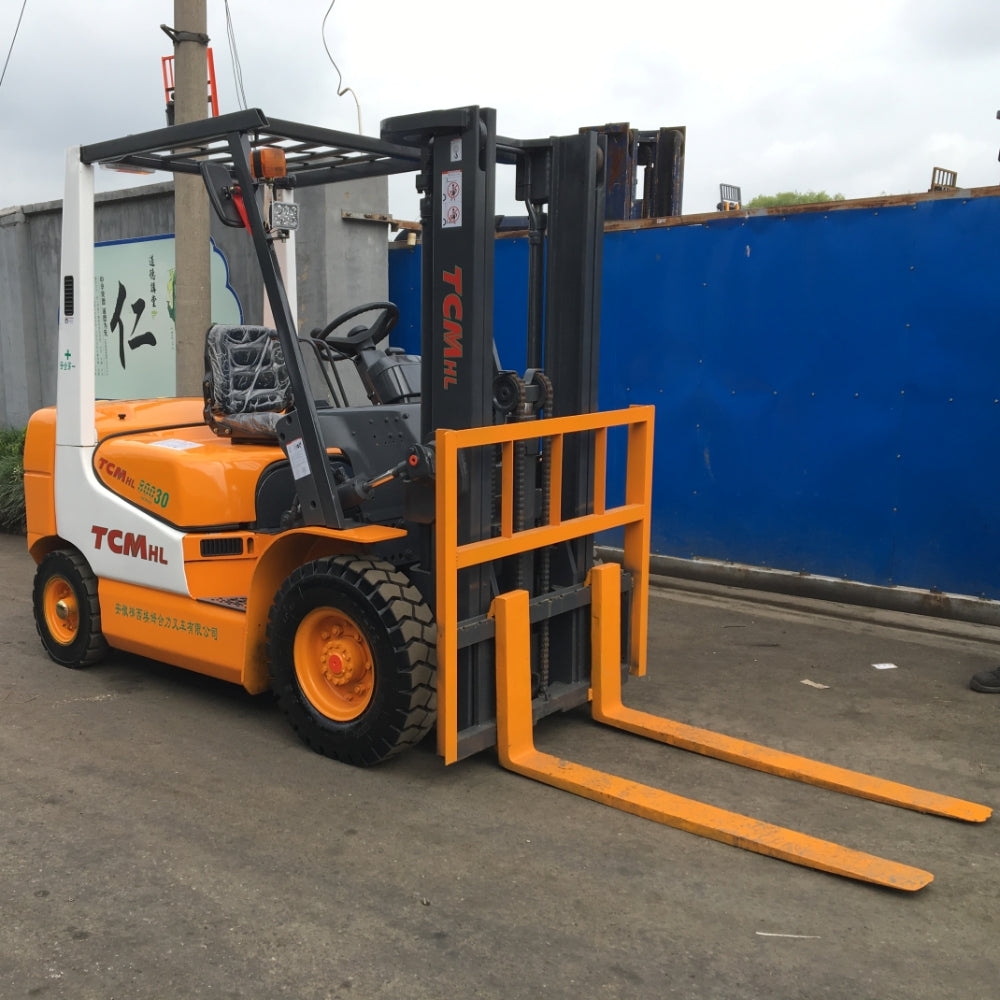

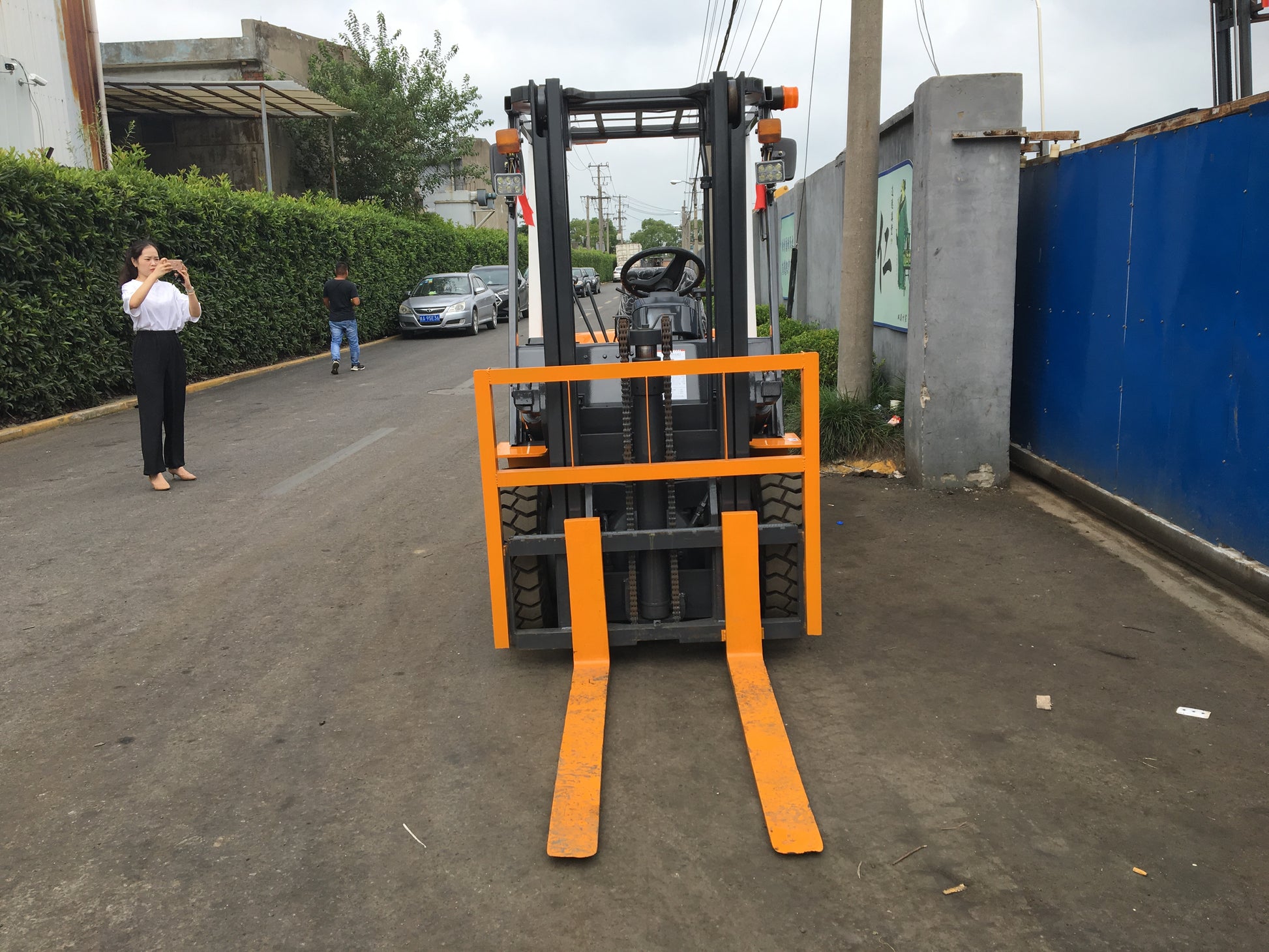

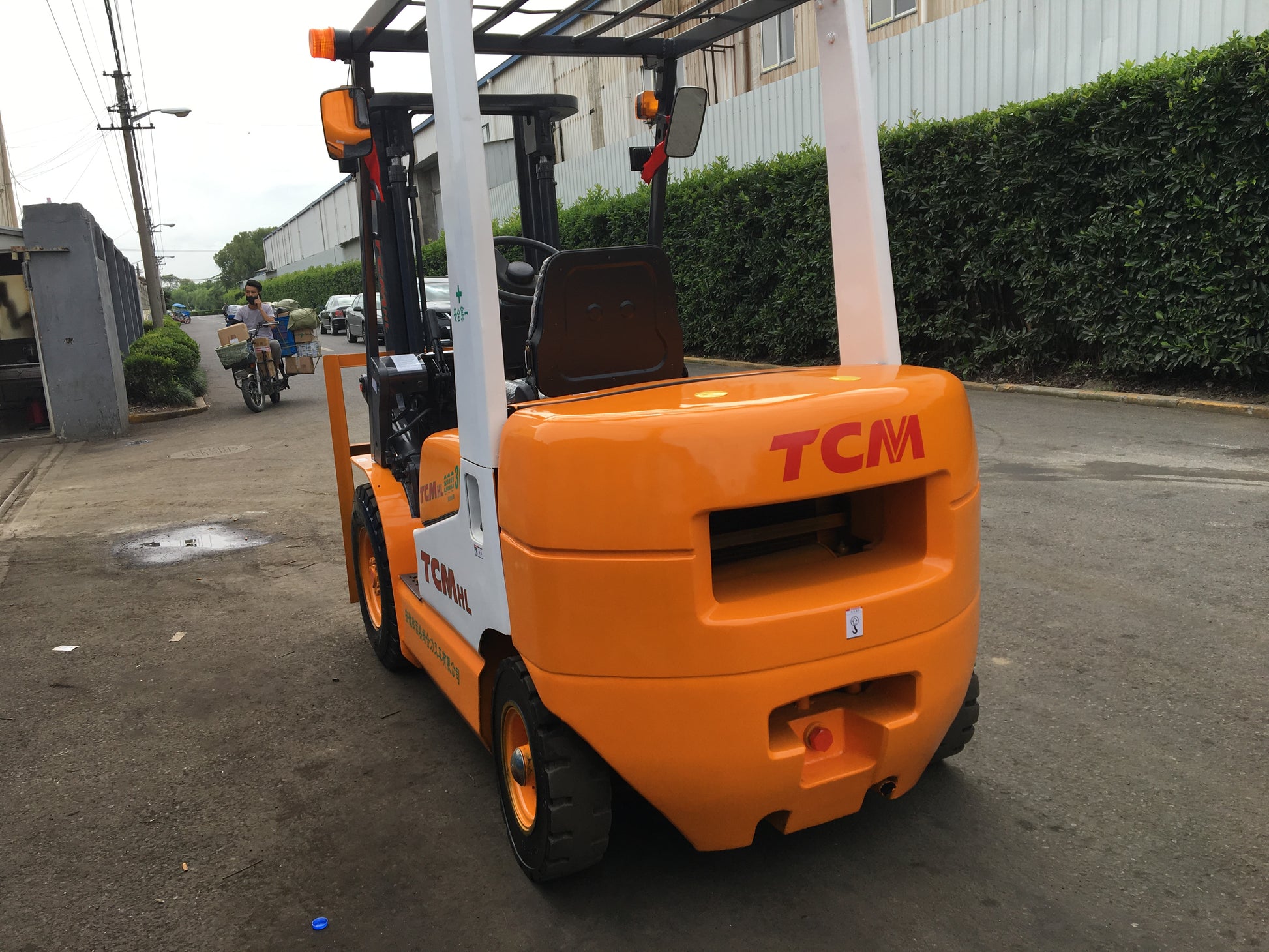

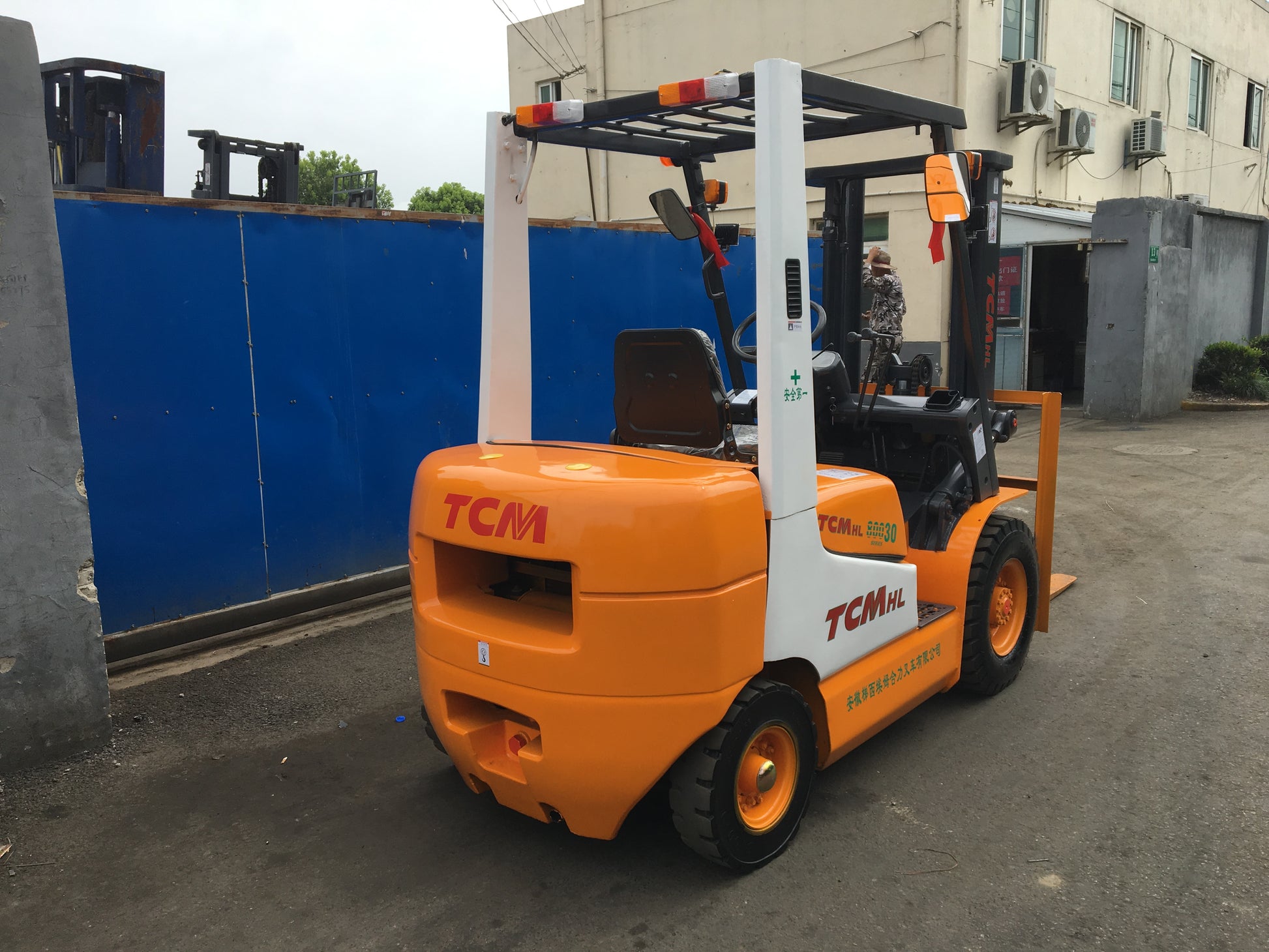

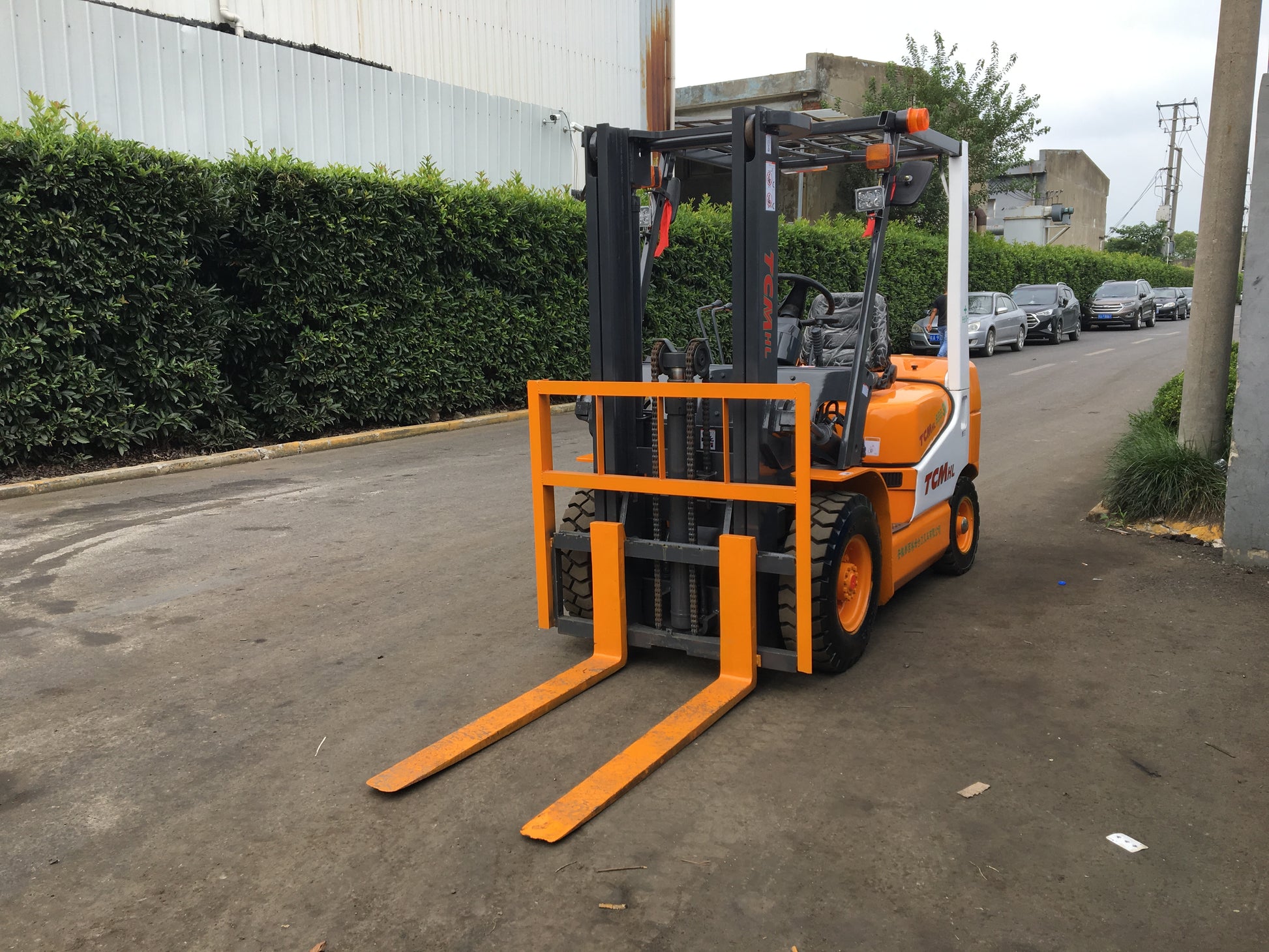

USED TCM 7TON
USED TCM 7TON
Precio habitual
$6,500.00 USD
Precio habitual
Precio de oferta
$6,500.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
Here are the core parameters of the TCM 7-TON forklift in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | TCM 7-TON Forklift (or similar models) |
| Type | Diesel-powered forklift |
| Load Capacity | 7000 kg (7 tons) |
| Load Center | 500 mm or 600 mm (depending on the variant) |
| Power Type | Diesel Engine |
| Engine Model | Typically a diesel engine with a rated power of not less than 85 kW/2200 rpm (specific model may vary) |
| Lifting Height | 3000 mm (standard), with free lift height of around 200 mm |
| Mast Tilt Angle | 6° forward and 12° backward |
| Fork Size | Length: 1500 - 1600 mm (extendable to 2200 - 2500 mm with fork sleeves), Width: 120 - 150 mm, Thickness: 40 - 75 mm |
| Travel Speed (Full Load) | Up to 26 km/h |
| Turning Radius | 3360 mm |
| Max. Tractive Force | 62 kN |
| Lifting Speed (Full Load) | 500 mm/s |
| Axle Base | 2250 - 2300 mm |
| Front/Rear Wheel Tread | Front: 1470 mm, Rear: 1700 mm |
| Min. Ground Clearance | Not specified (but typically designed for good stability and maneuverability) |
| Tire Type | Pneumatic tires |
| Transmission | TCM technology (China-made, with international manufacturing and assembly equipment for the gearbox) |
| Key Features | - Double built-in hose pulley block design for various types of masts, avoiding the use of imported hose reels and reducing costs - Anti-explosion safety valves in all lifting mast pipelines for safety - Exhaust system with bellows for flexible connection to the frame, reducing vibration and noise - Shock absorption at the connection between the steering axle and the frame, reducing overall vibration by 30% - Intake silencer to reduce intake noise - Cone-sealed fittings and transition joints in pipelines for good sealing performance |
