TCM

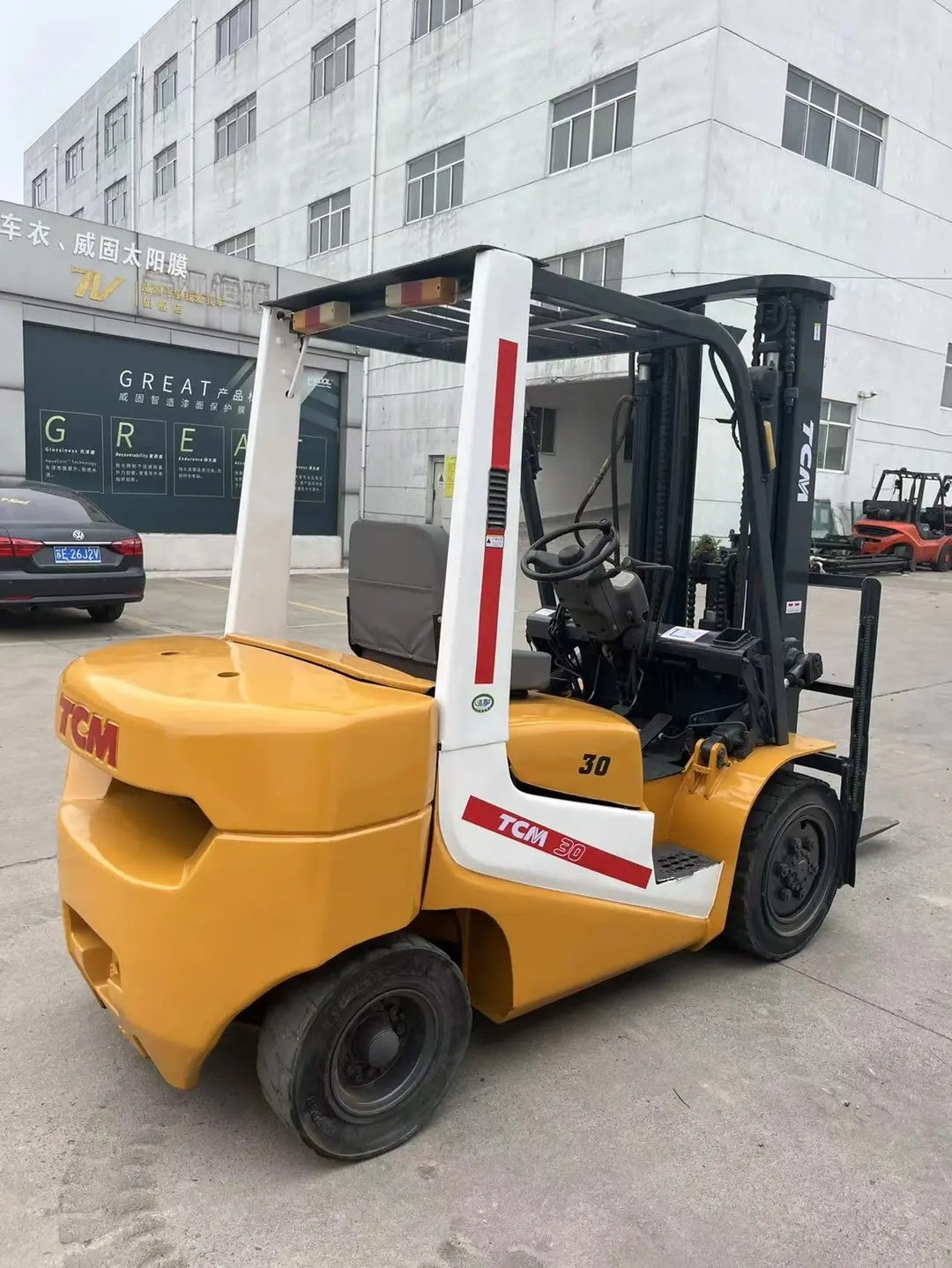

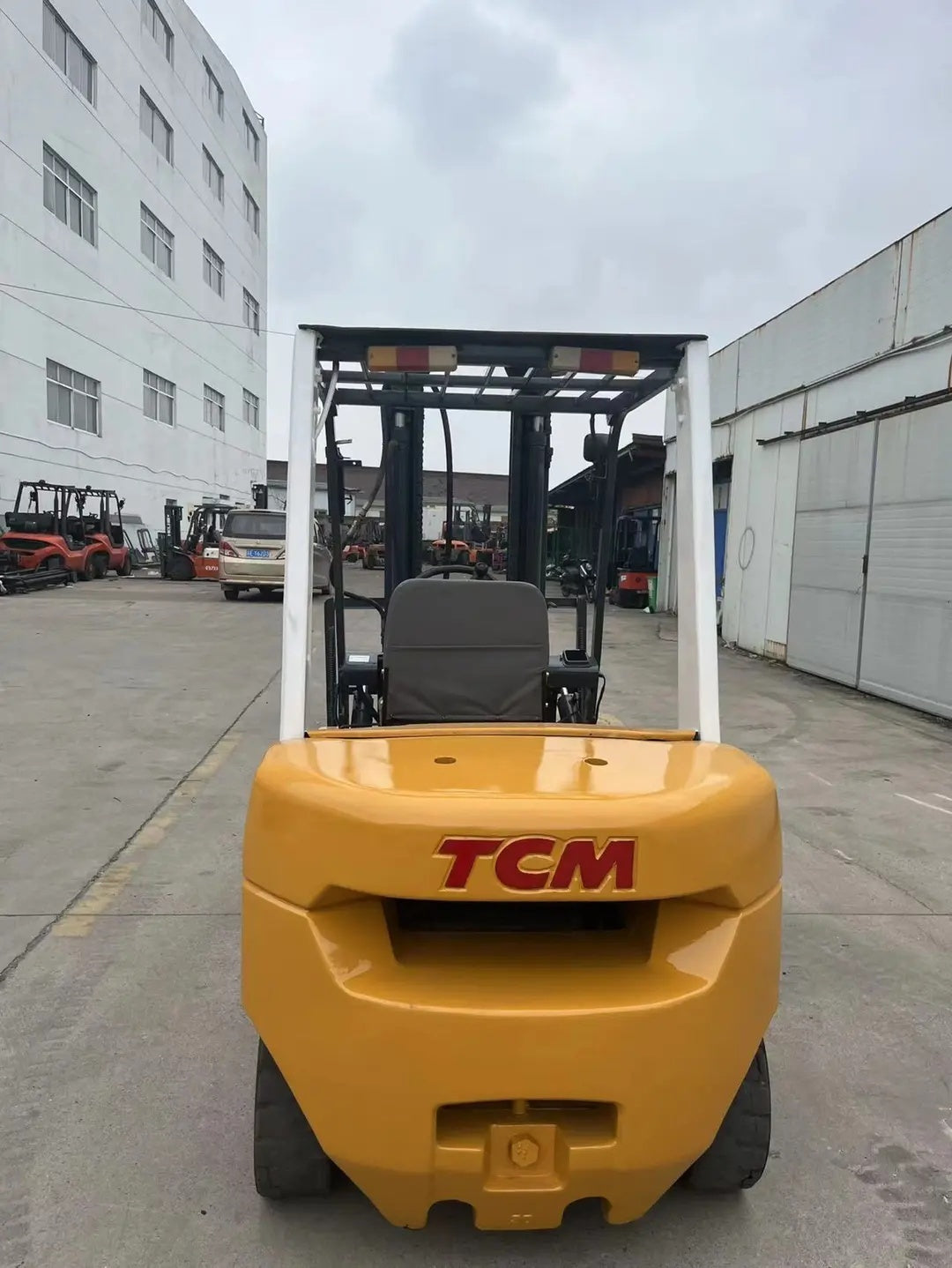

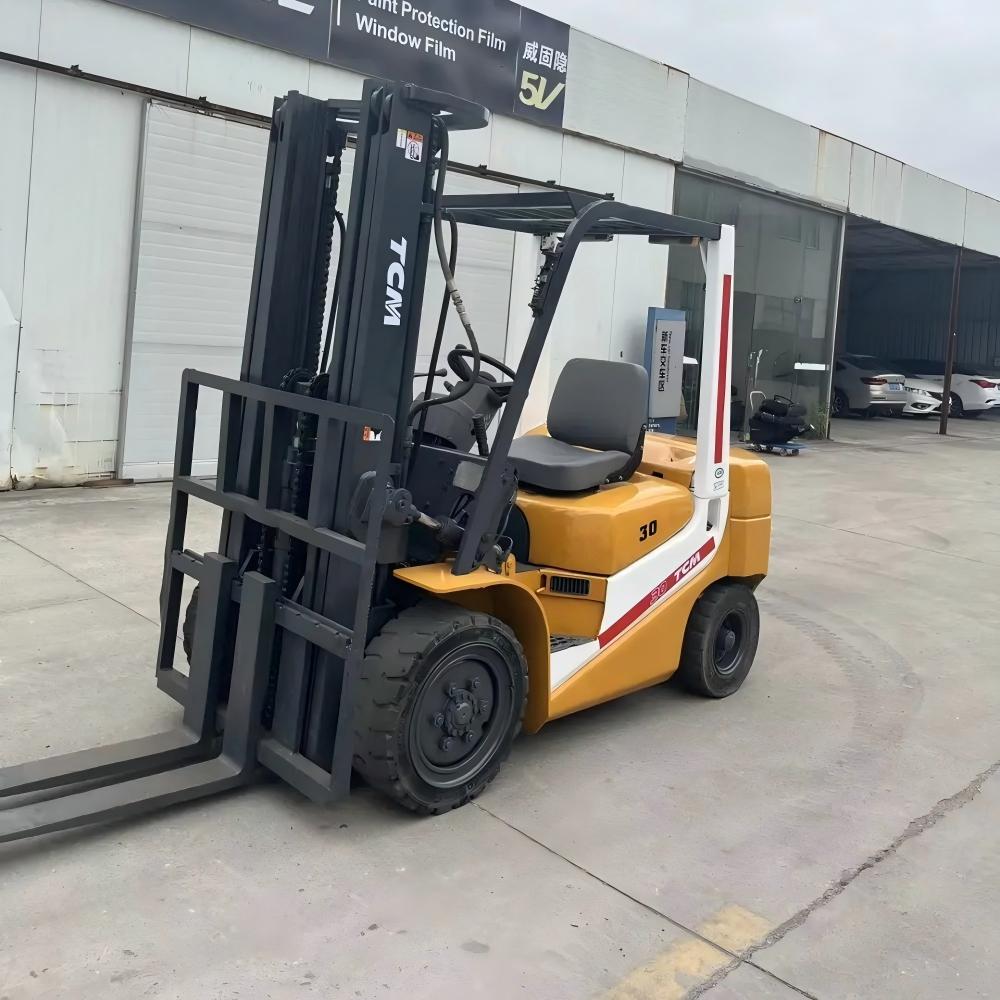

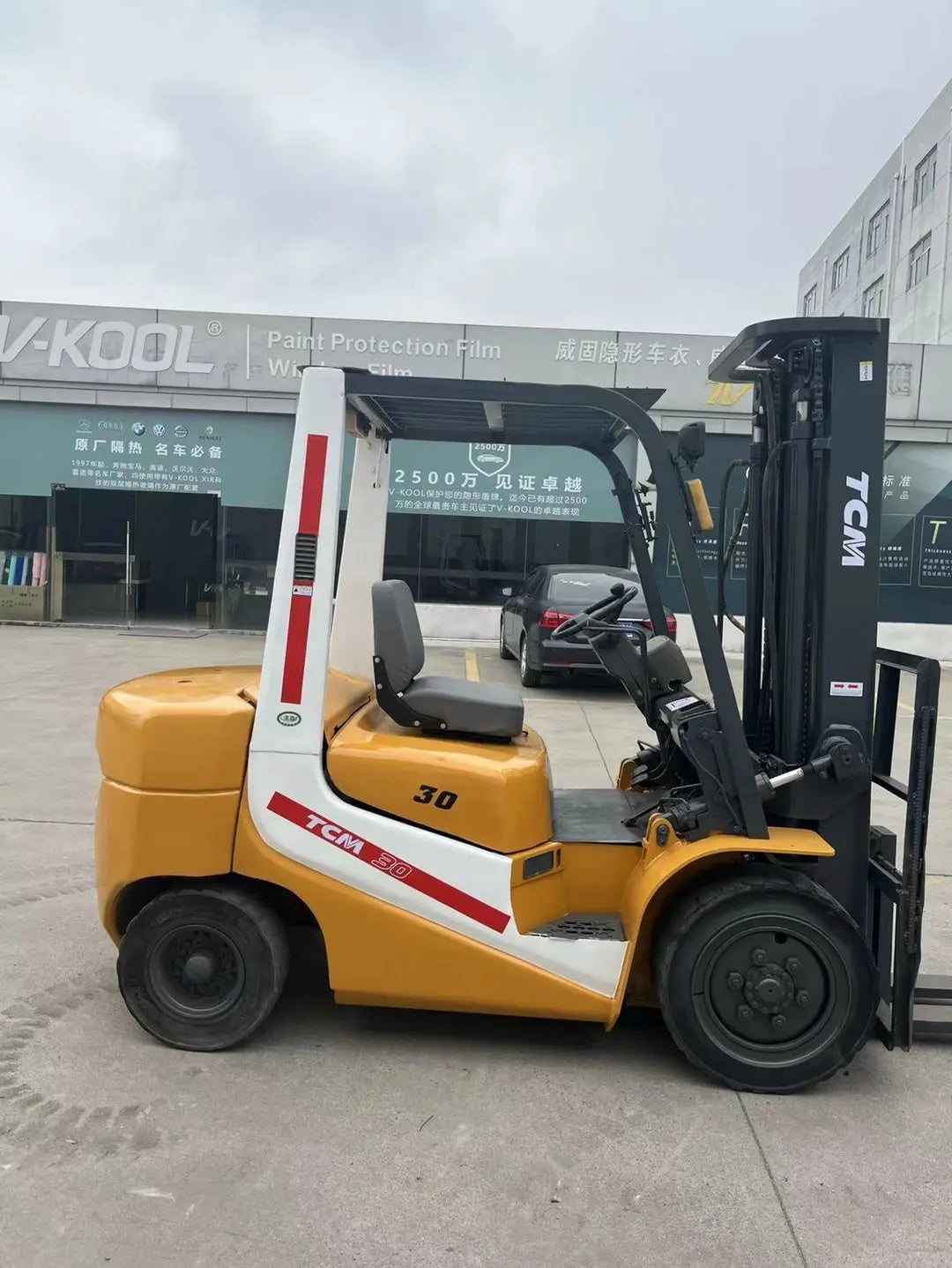

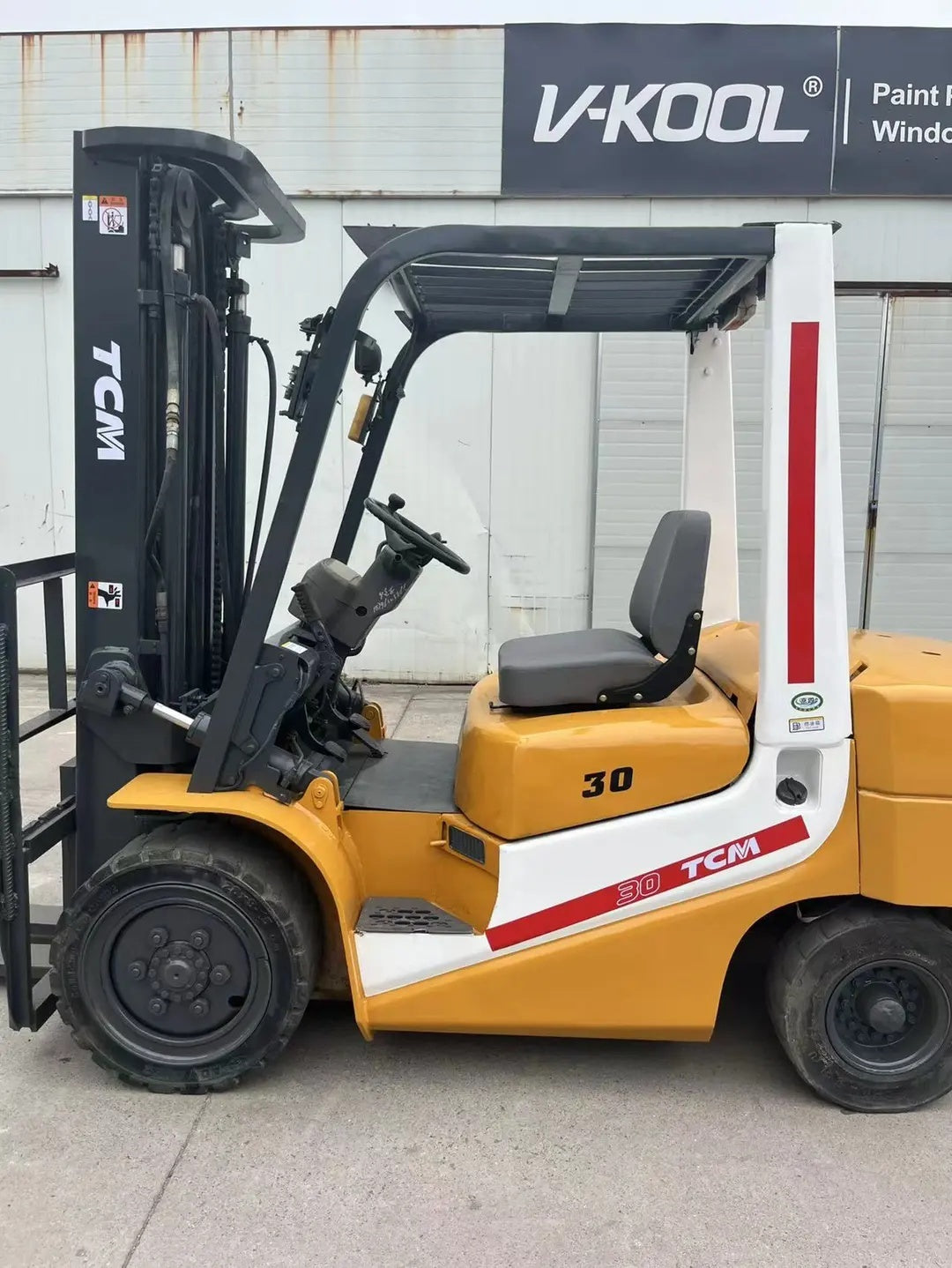

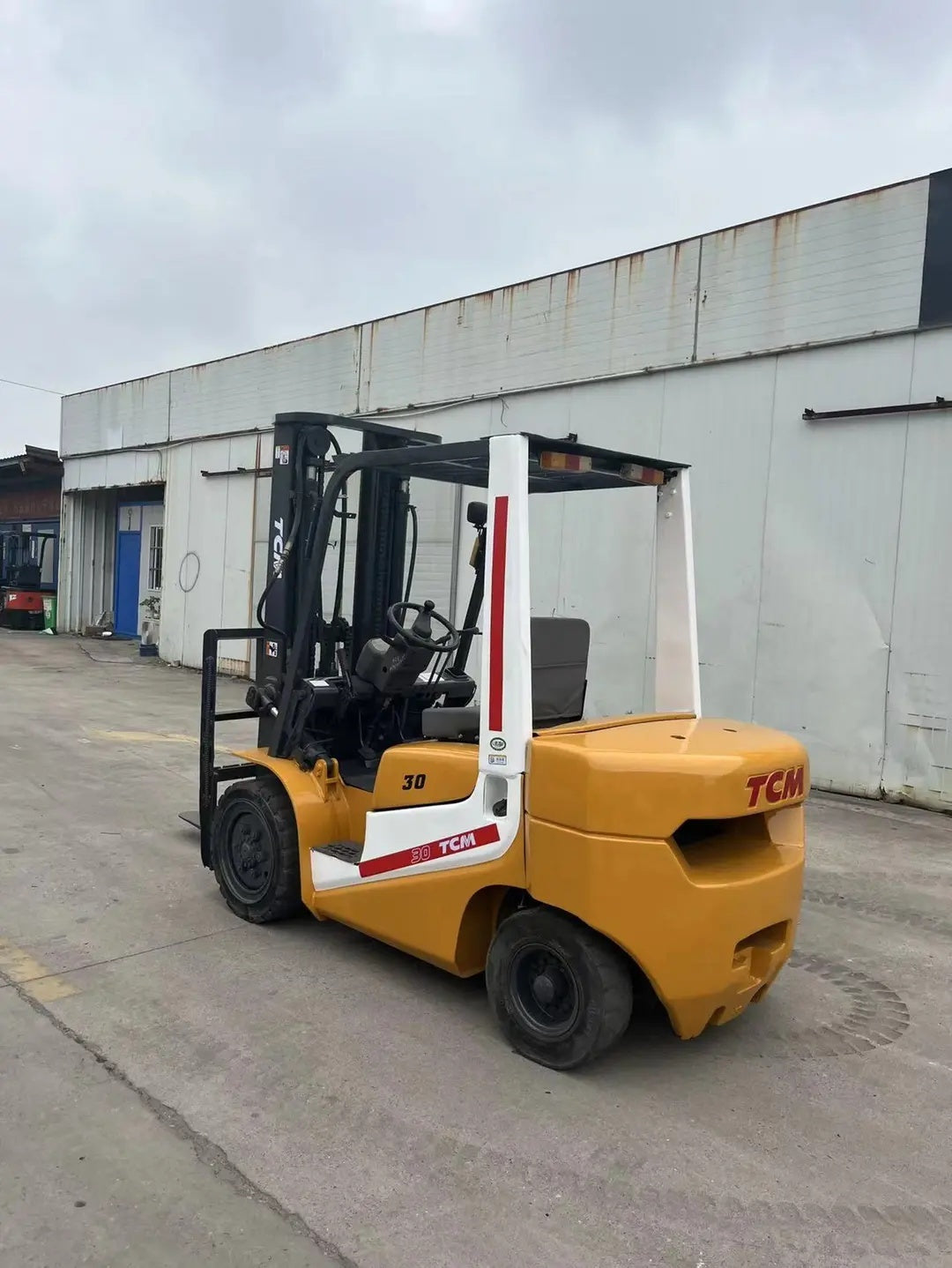

USED TCM FORKLIFT FD30

$6,000.00 USD

Oferta Agotado

Item	Specification
Model	TCM FD30
Rated Load Capacity	3000 kg
Load Center Distance	500 mm
Overall Length (Without Fork)	2650 mm
Overall Width	1180 mm
Overall Height (Mast Lowered)	2150 mm
Max Lifting Height	3000 mm
Free Lift Height	150 mm
Fork Dimension	1070×120×40 mm
Front Wheel Tread	940 mm
Rear Wheel Tread	950 mm
Wheelbase	1480 mm
Minimum Turning Radius	2280 mm
Minimum Ground Clearance	130 mm
Max Driving Speed (Full Load)	17.5 km/h
Max Gradeability (Full Load)	19%
Mast Tilt Angle (Forward/Backward)	6° / 12°
Front Tire Size	6.00-9
Rear Tire Size	5.00-8
Engine Model	ISUZU C240
Engine Type	4-cylinder Water-cooled Diesel Engine
Rated Output Power	35 kW / 47 HP
Rated Rotational Speed	2600 rpm
Fuel Tank Volume	55 L
Hydraulic Oil Tank Volume	42 L
Transmission Mode	Mechanical / Hydraulic Automatic
Total Service Weight	4500 kg
Brake System	Hydraulic Foot Brake + Manual Parking Brake
Operation Type	Seated Operation
