TCM

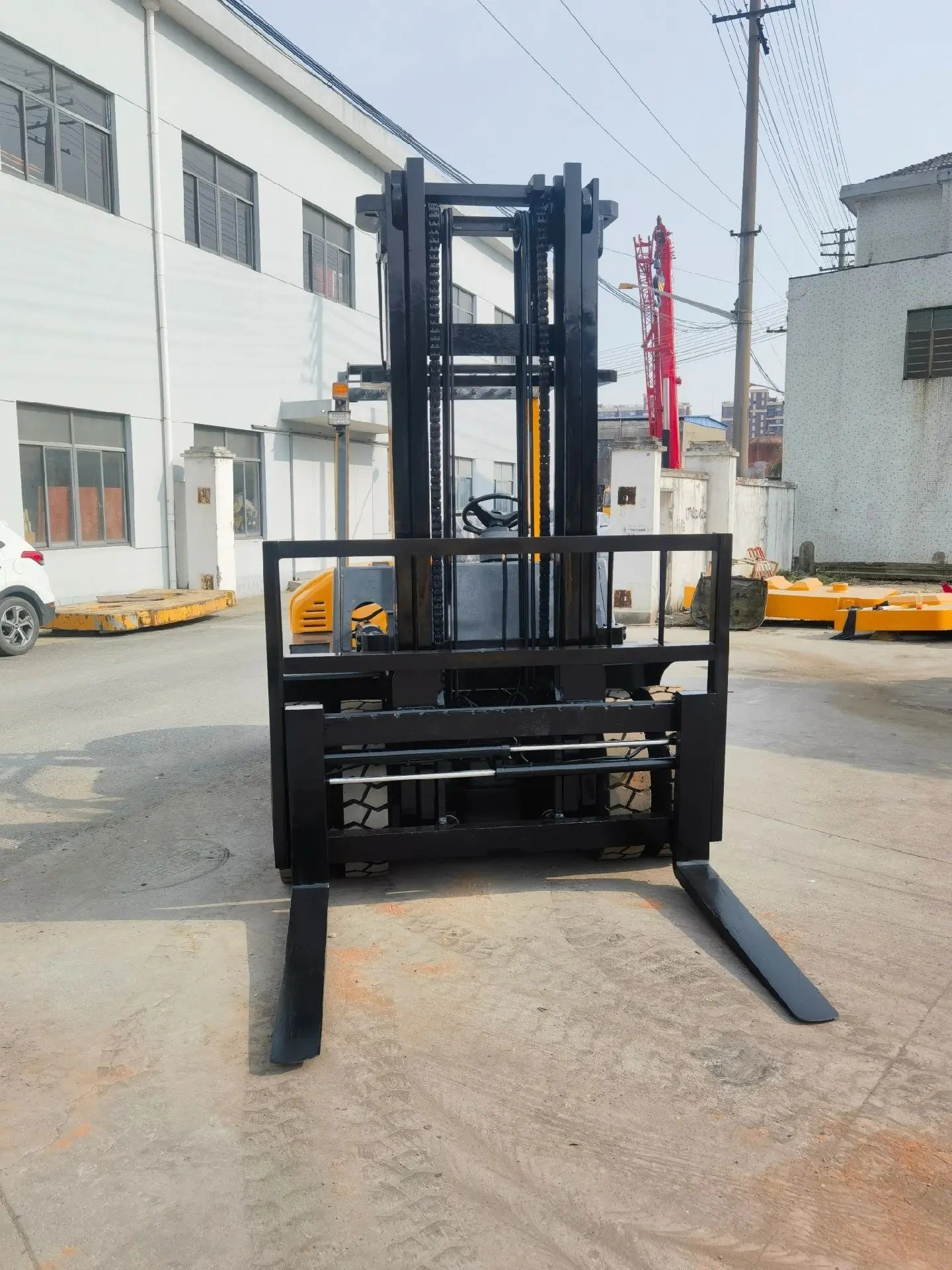

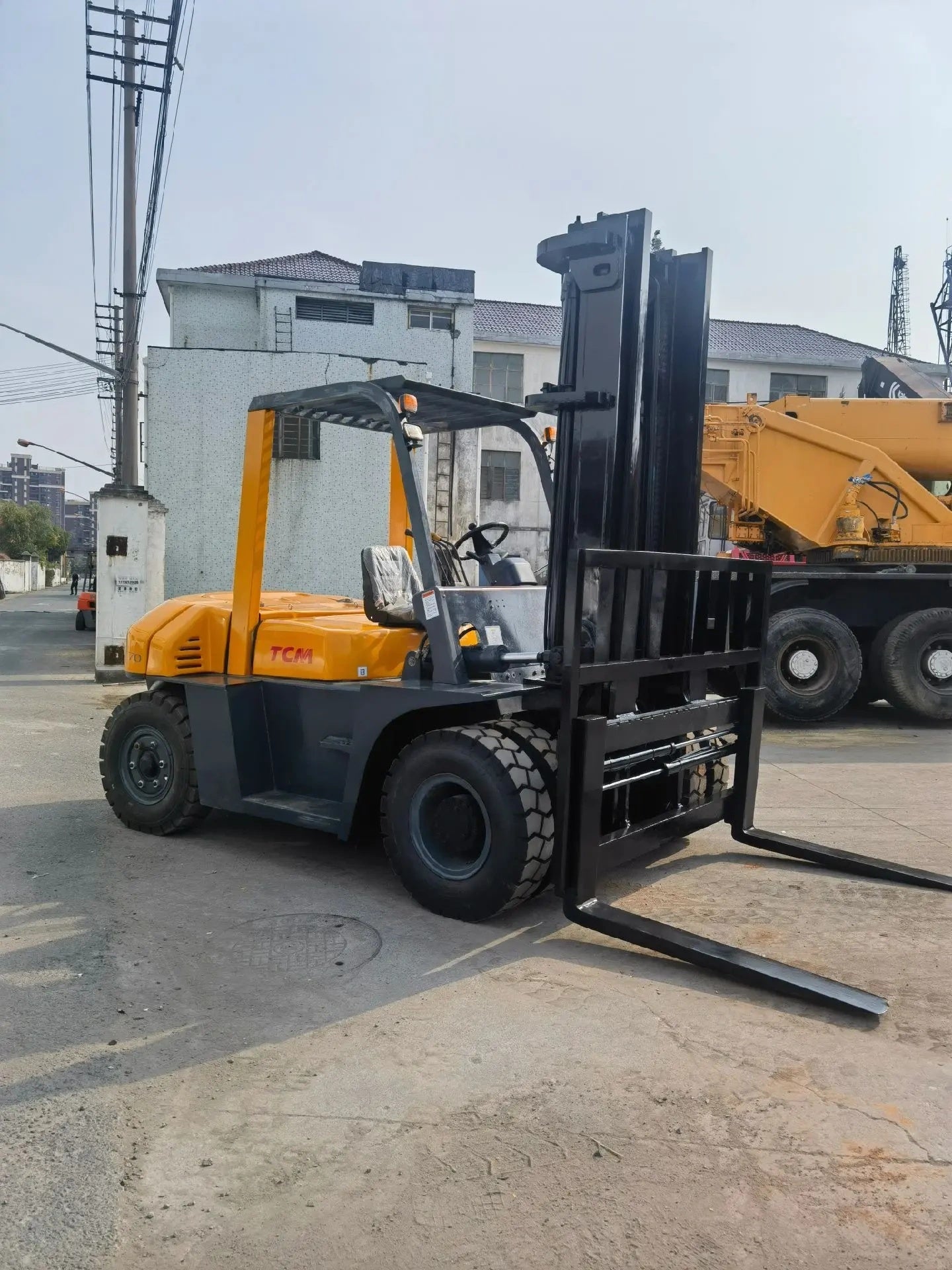

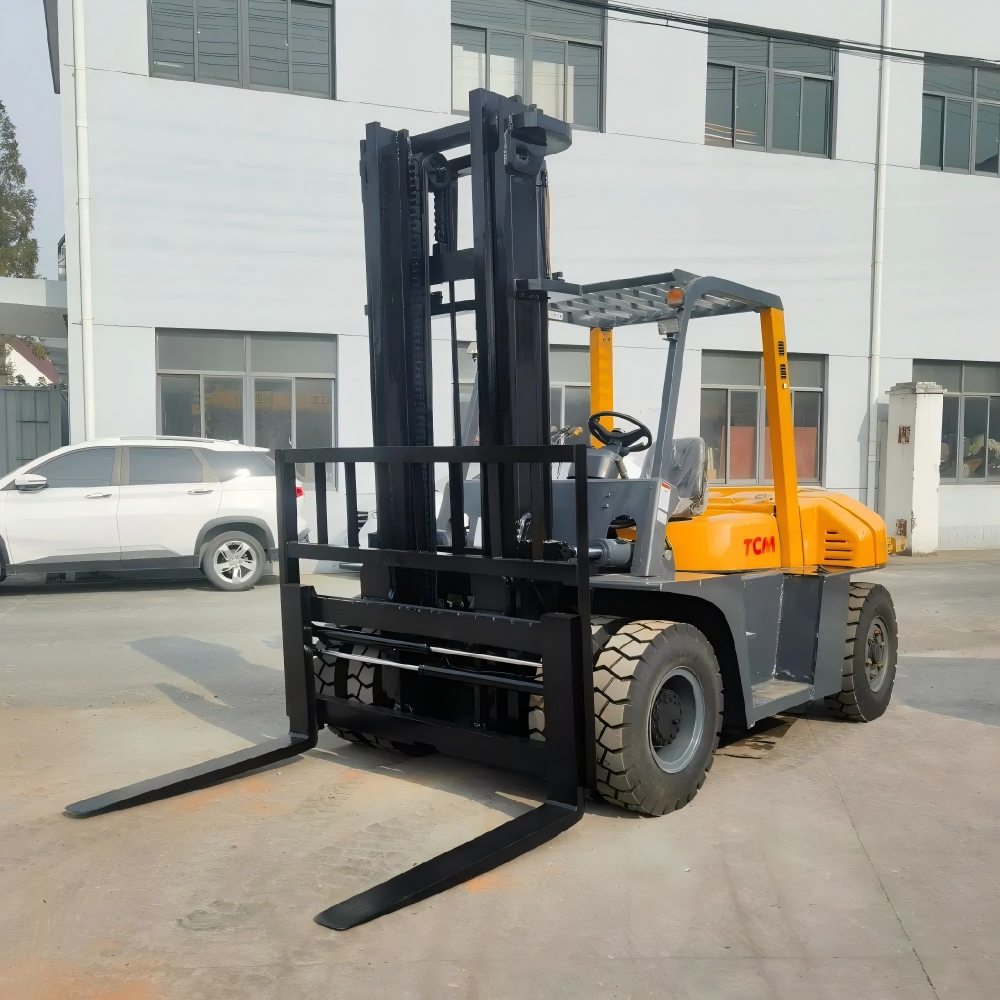

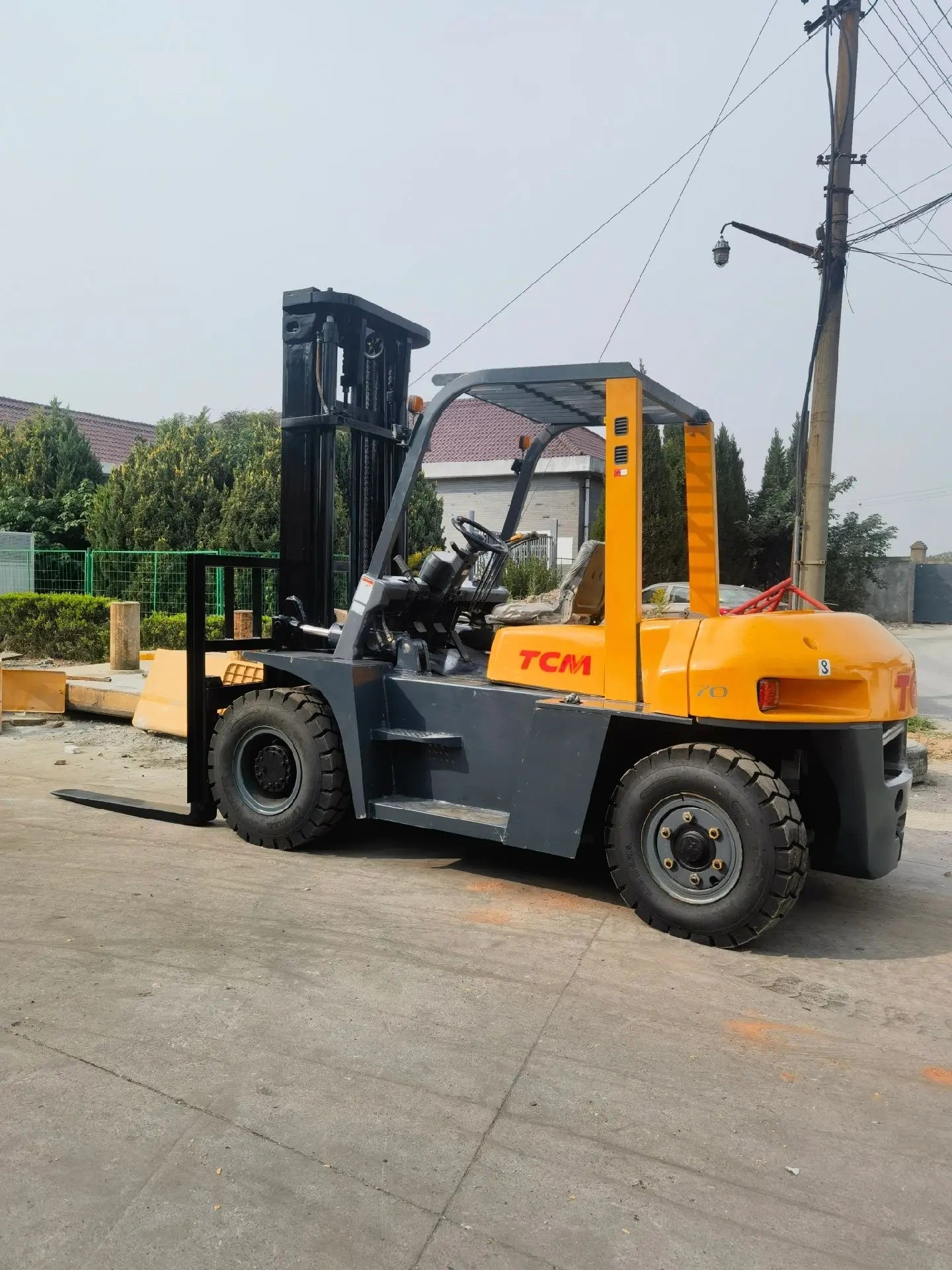

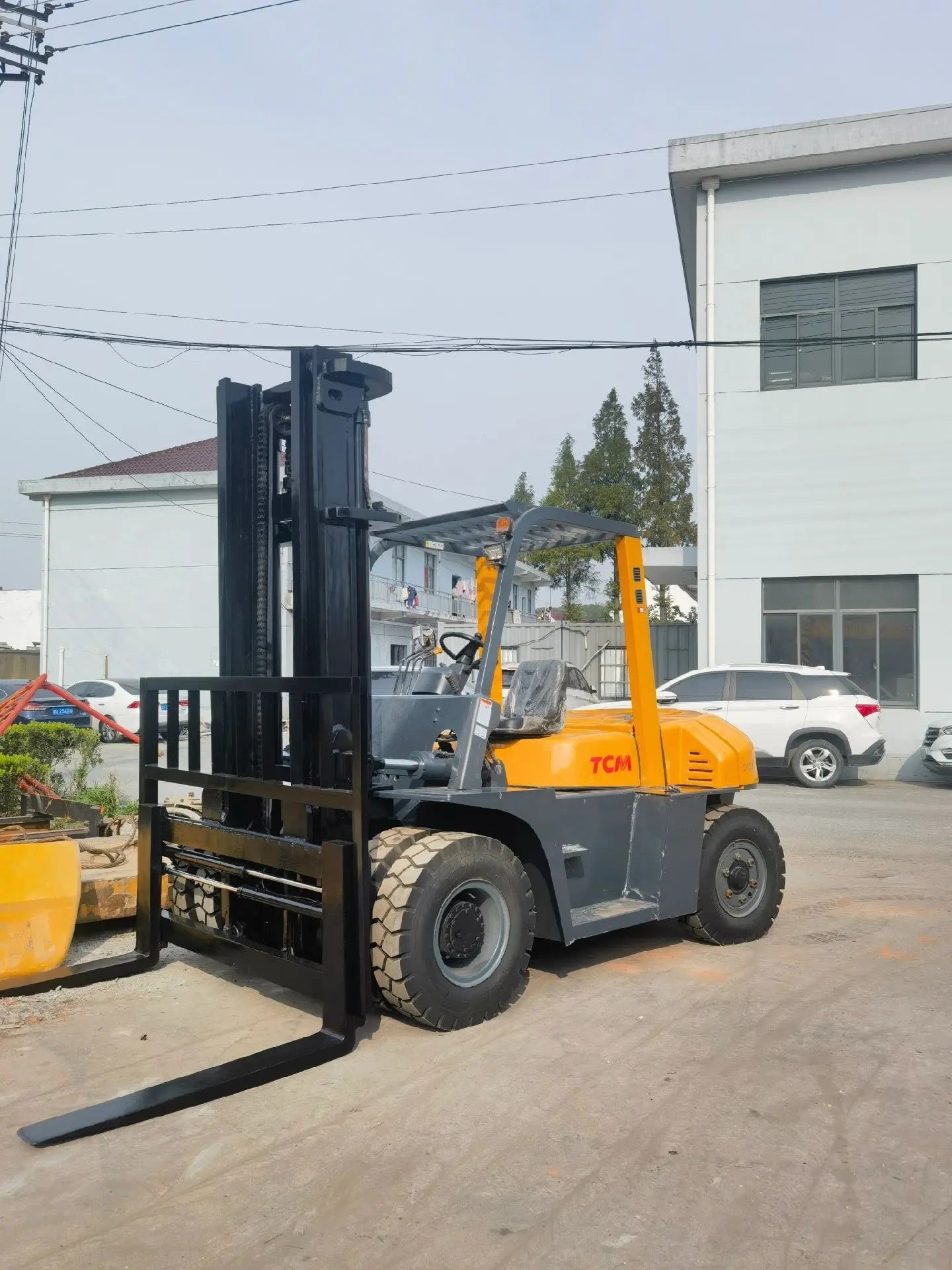

USED TCM FORKLIFT FD70

$9,000.00 USD

Oferta Agotado

Item	Specification
Model	TCM FD70	Rated Load Capacity	7000 kg
Load Center Distance	600 mm
Overall Length (Without Fork)	3520 mm
Overall Width	1650 mm
Overall Height (Mast Lowered)	2380 mm
Max Lifting Height	3000 mm
Free Lift Height	180 mm
Fork Size	1370×150×60 mm
Front Wheel Tread	1280 mm
Rear Wheel Tread	1290 mm
Wheelbase	1920 mm
Minimum Turning Radius	3150 mm
Minimum Ground Clearance	165 mm
Max Travel Speed (Full Load)	20 km/h
Max Gradeability (Full Load)	25%
Mast Tilt Angle (Forward/Backward)	6° / 12°
Front Tire Size	8.25-15
Rear Tire Size	7.00-12
Engine Model	ISUZU 6BG1-T
Engine Type	6-cylinder Water-cooled Turbocharged Diesel Engine
Rated Power	78 kW / 105 HP
Rated Speed	2200 rpm
Fuel Tank Capacity	90 L
Hydraulic Oil Tank Capacity	72 L
Transmission Type	Hydraulic Automatic Transmission
Service Weight	9600 kg
Brake System	Hydraulic Foot Brake + Hand Parking Brake
Operation Style	Seated Driving Type
