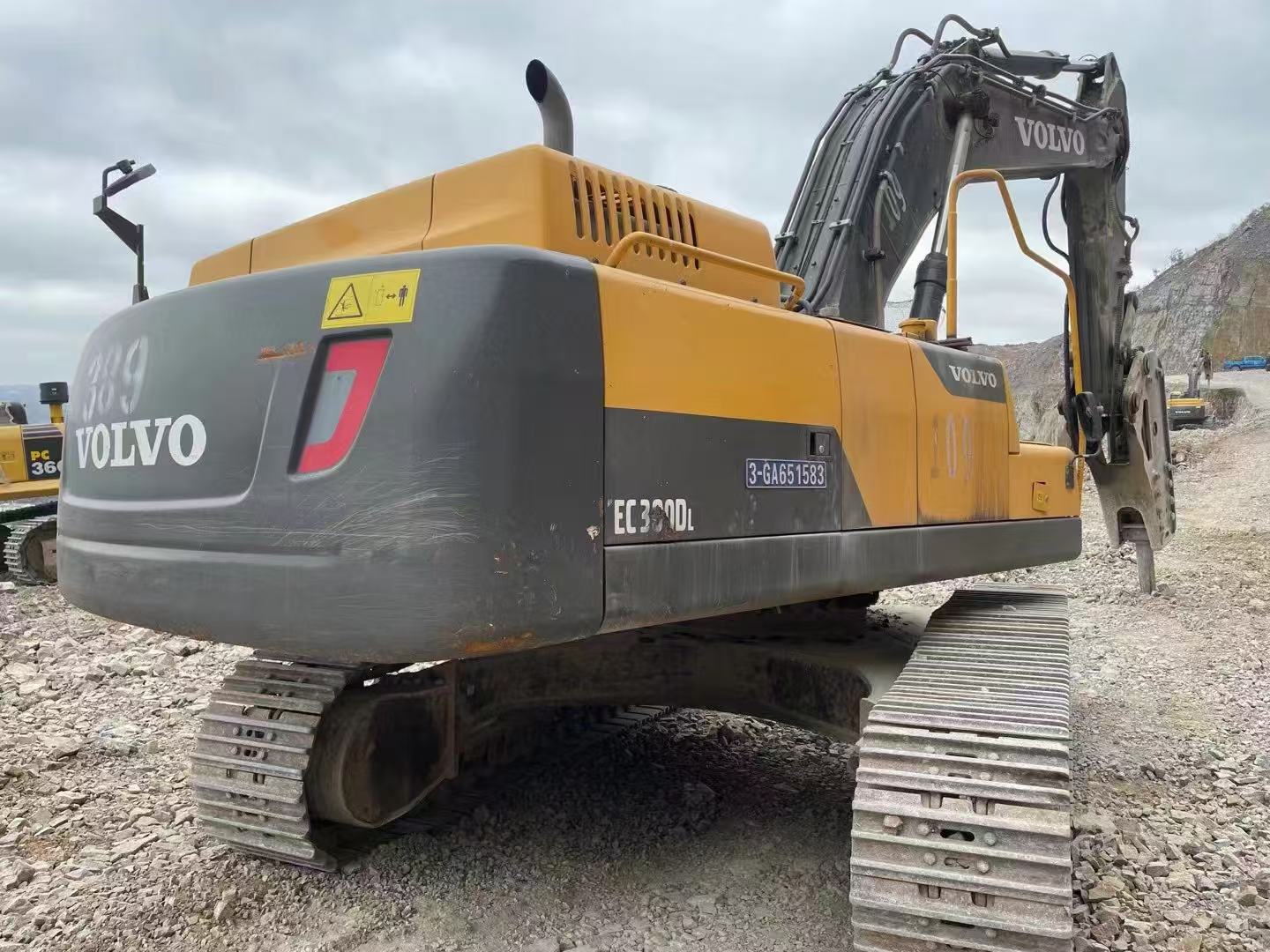

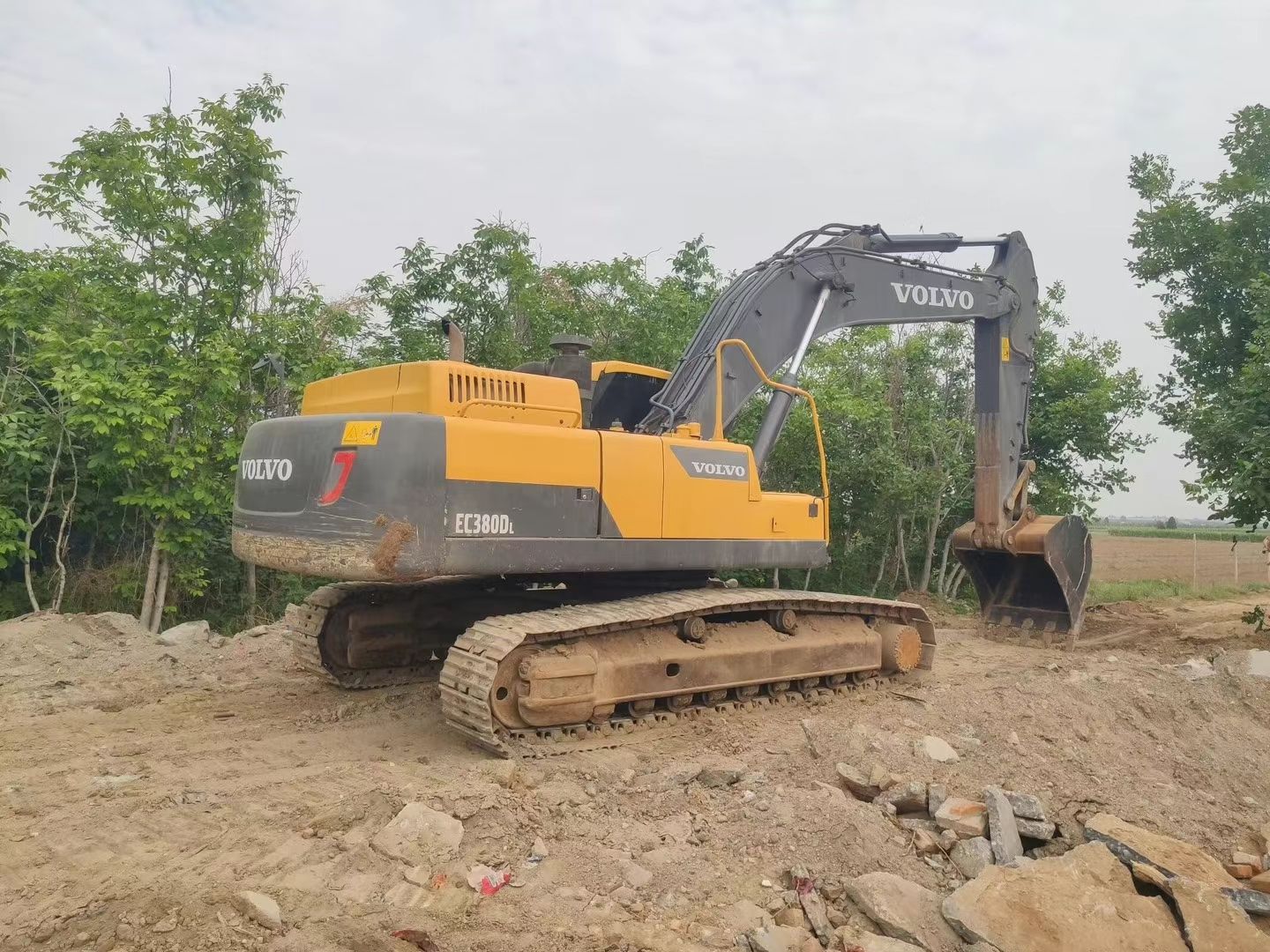

USED VOLVO EC380DL
USED VOLVO EC380DL
Precio habitual
$36,000.00 USD
Precio habitual
Precio de oferta
$36,000.00 USD
Cantidad
No se pudo cargar la disponibilidad de retiro
Here are the core parameters of the VOLVO EC380DL excavator in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | VOLVO EC380DL |
| Type | Large-sized hydraulic excavator |
| Tonnage | Approximately 38 tons |
| Engine Model | VOLVO D13H-D or D13F |
| Rated Power | 215 kW or 219 kW at 1700 rpm |
| Displacement | 12.8 liters |
| Number of Cylinders | 6 |
| Cylinder Bore × Stroke | 131 mm × 158 mm |
| Cooling Method | Water-cooled |
| Emission Standard | China Stage IIIA / Tier 3 |
| Fuel Type | Diesel |
| Bucket Capacity | 1.35 - 3.0 cubic meters |
| Operating Weight | 37,800 - 41,100 kg |
| Swing Speed | 10.3 rpm |
| Travel Speed (High/Low) | 5.3 km/h / 3.4 km/h |
| Gradeability | 35° |
| Ground Pressure | Approximately 68.1 - 68.6 kPa (with 600 mm track shoes) |
| Bucket Digging Force | 221.7 kN (standard) / 242.7 kN (power boost) |
| Arm Digging Force | 144.4 kN (standard) / 157.4 kN (power boost) |
| Maximum Traction Force | 276 kN |
| Fuel Tank Capacity | 620 liters |
| Hydraulic Oil Tank Capacity | 227 liters |
| Hydraulic System Fluid Capacity | 485 liters |
| Engine Oil Replacement Volume | 42 liters |
| Coolant Capacity | 60 liters |
| Overall Dimensions (Length×Width×Height) | 11,330 mm × 3,340 mm × 3,590 mm (transport state) |
| Maximum Digging Radius | 11,720 mm |
| Maximum Digging Depth | 8,150 mm |
| Maximum Digging Height | 10,340 mm |
| Maximum Unloading Height | 7,290 mm |
| Maximum Vertical Digging Depth | 5,350 mm |
