XCMG

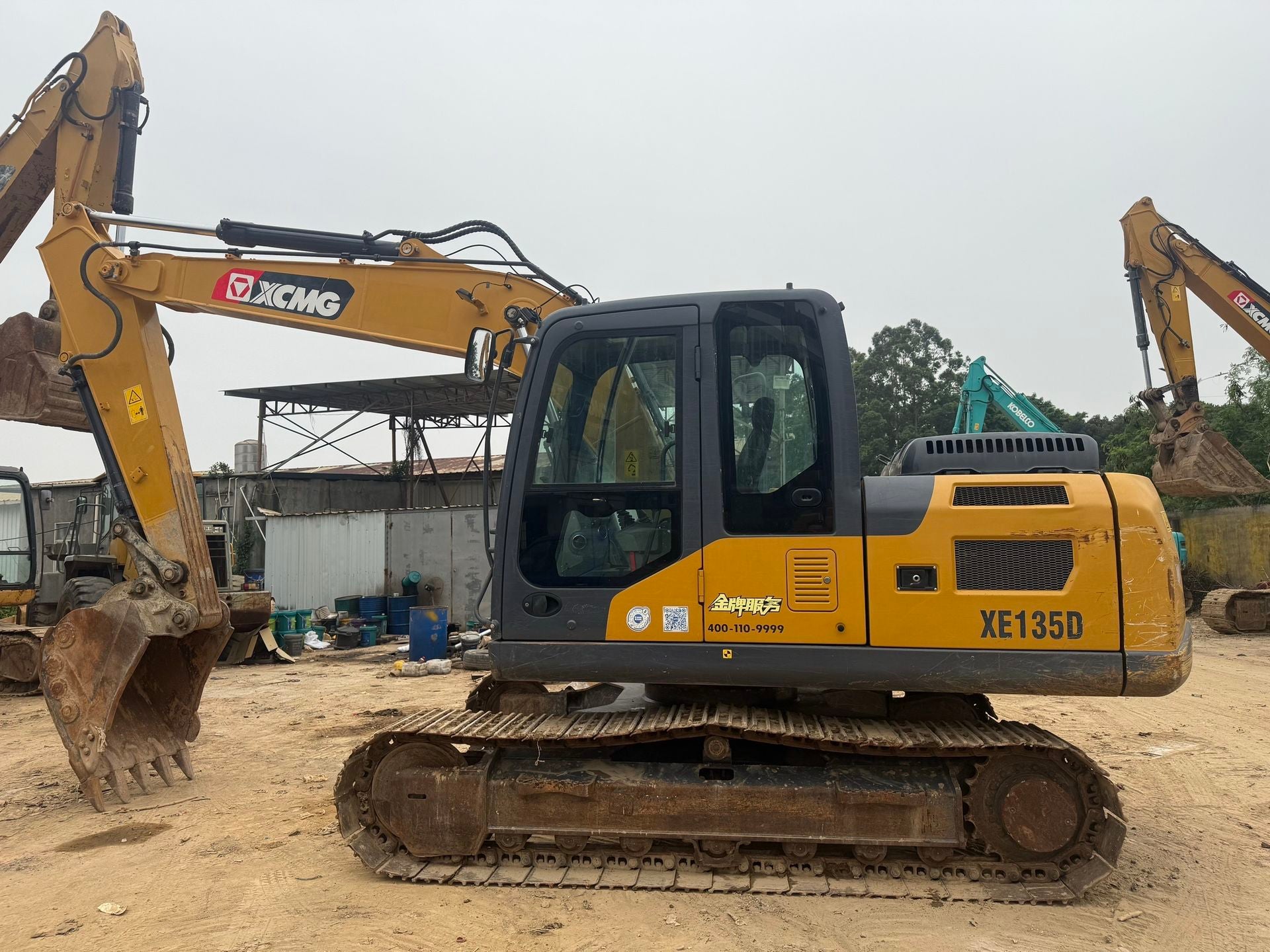

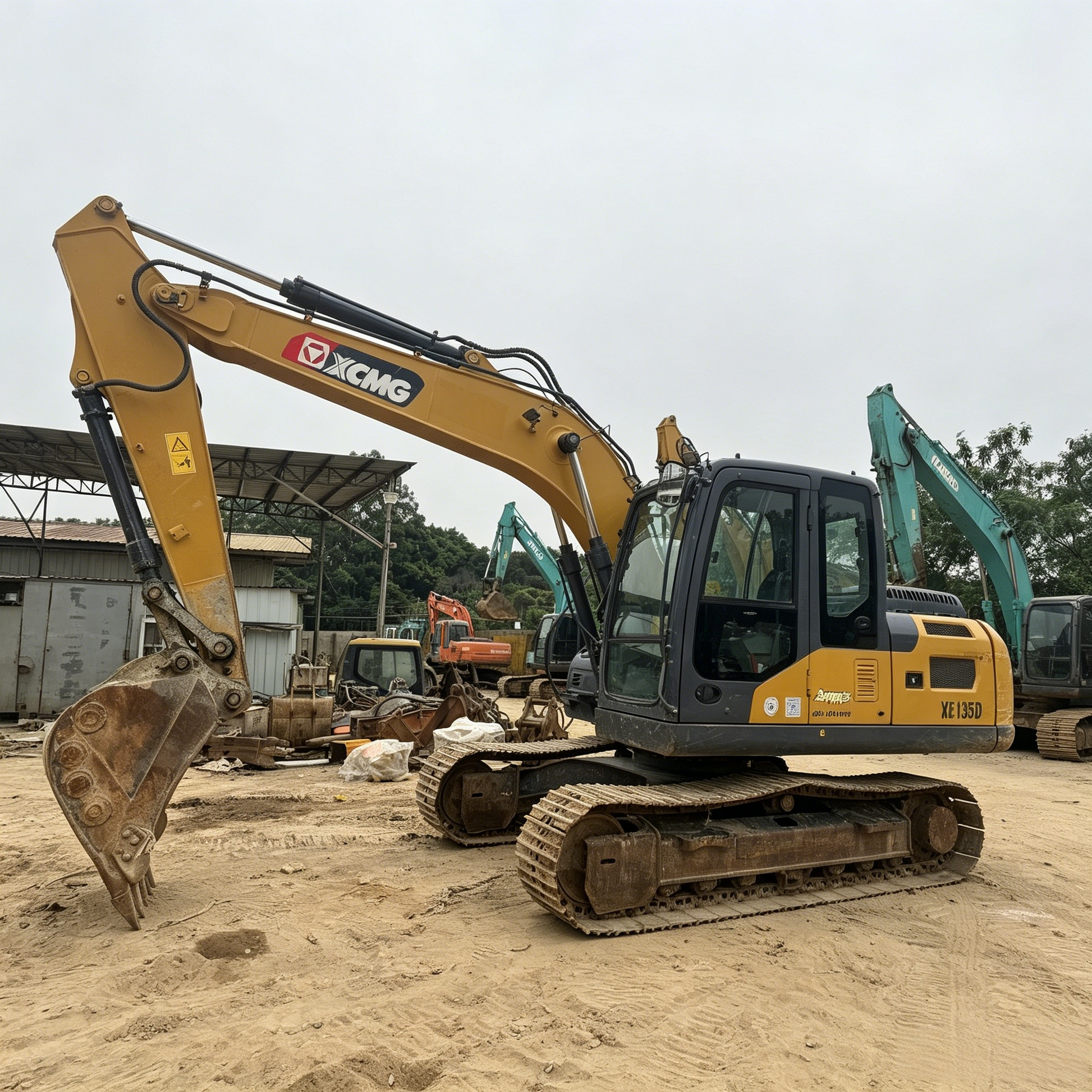

USED XCMG XE135D

$17,000.00 USD

Oferta Agotado

Item	Specification
Model	XCMG XE135D
Operating Weight	13,200 kg
Standard Bucket Capacity	0.52 m³ (Range: 0.32–0.61 m³)
Overall Dimensions (L×W×H)	7,795 × 2,525 × 2,880 mm
Track Shoe Width	500 mm
Track Gauge	1,990 mm
Min. Ground Clearance	466 mm
Tail Swing Radius	2,325 mm
Engine Model	Cummins QSF3.8 (4‑cylinder, turbocharged, water‑cooled)
Rated Power	86 kW @ 2,200 rpm
Max Torque	470 N·m @ 1,300 rpm
Displacement	3.8 L
Emission Standard	China Stage III
Fuel Tank Capacity	260 L
Hydraulic Tank Capacity	105 L
Max Digging Depth	5,546 mm
Max Digging Radius (Ground Level)	8,304 mm
Max Digging Height	8,638 mm
Max Dumping Height	6,174 mm
Max Vertical Digging Depth	4,698 mm
Bucket Digging Force	99.1 kN
Arm Digging Force	68 kN
Max Traction Force	134 kN
Travel Speed (Low/High)	2.9 / 5.2 km/h
Swing Speed	11 rpm
Gradeability	35° (70%)
Ground Pressure	40.4 kPa
