XCMG

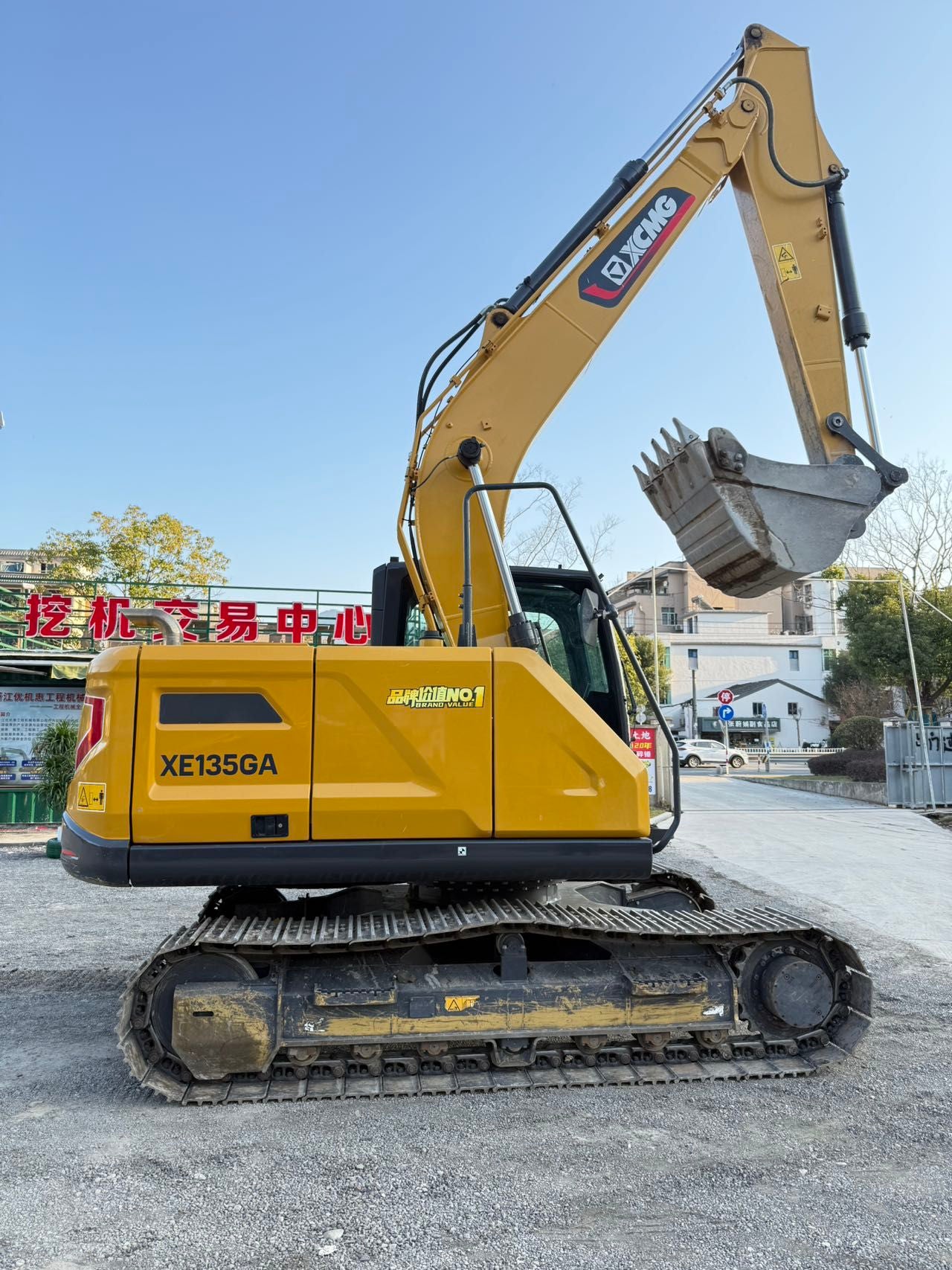

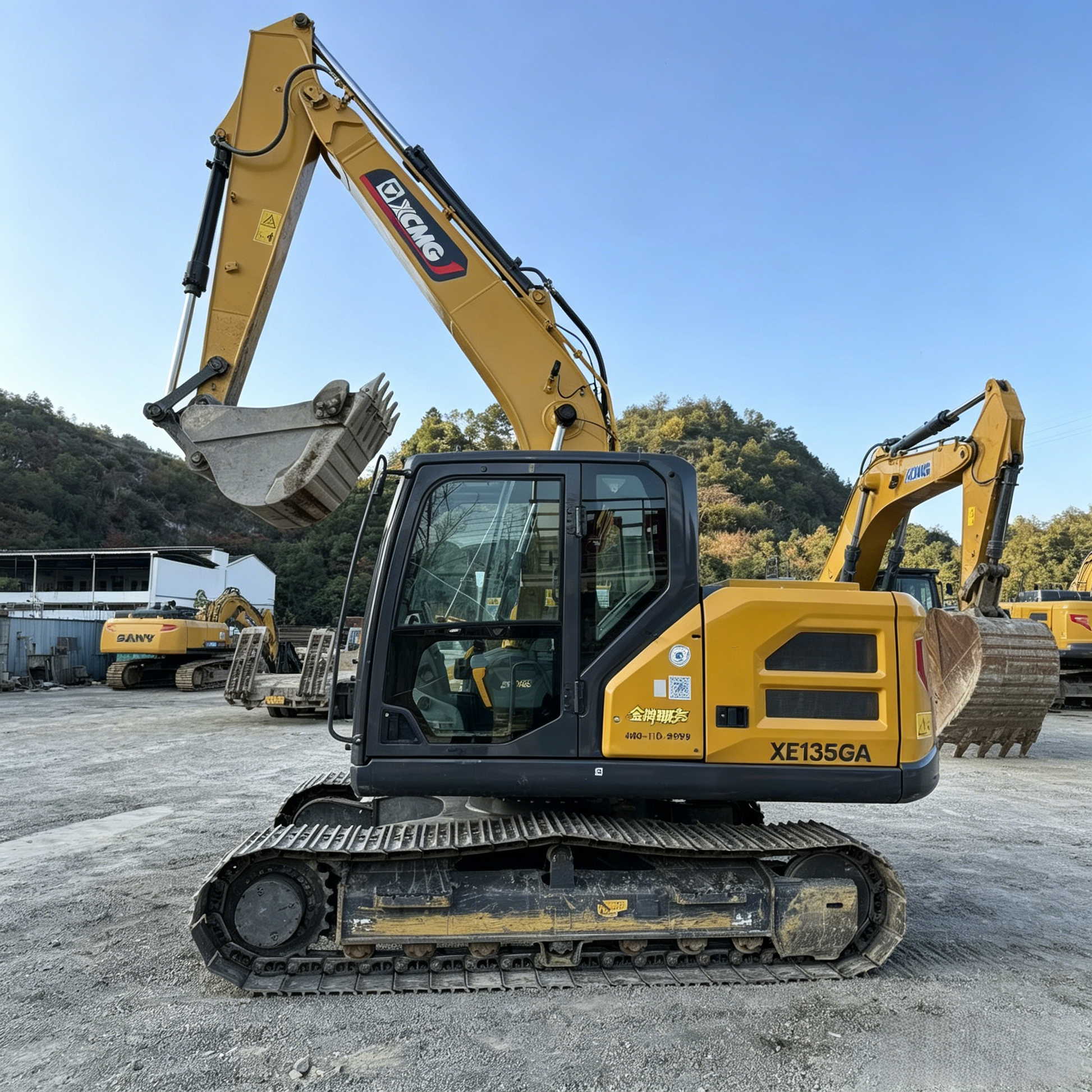

USED XCMG XE135GA

$17,000.00 USD

Oferta Agotado

Item	Specification
Model	XCMG XE135GA
Operating Weight	13,500 kg
Standard Bucket Capacity	0.55 m³ (Range: 0.32–0.61 m³)
Overall Dimensions (L×W×H)	7,825 × 2,525 × 2,950 mm
Track Shoe Width	500 mm
Track Gauge	1,990 mm
Min. Ground Clearance	460 mm
Tail Swing Radius	2,325 mm

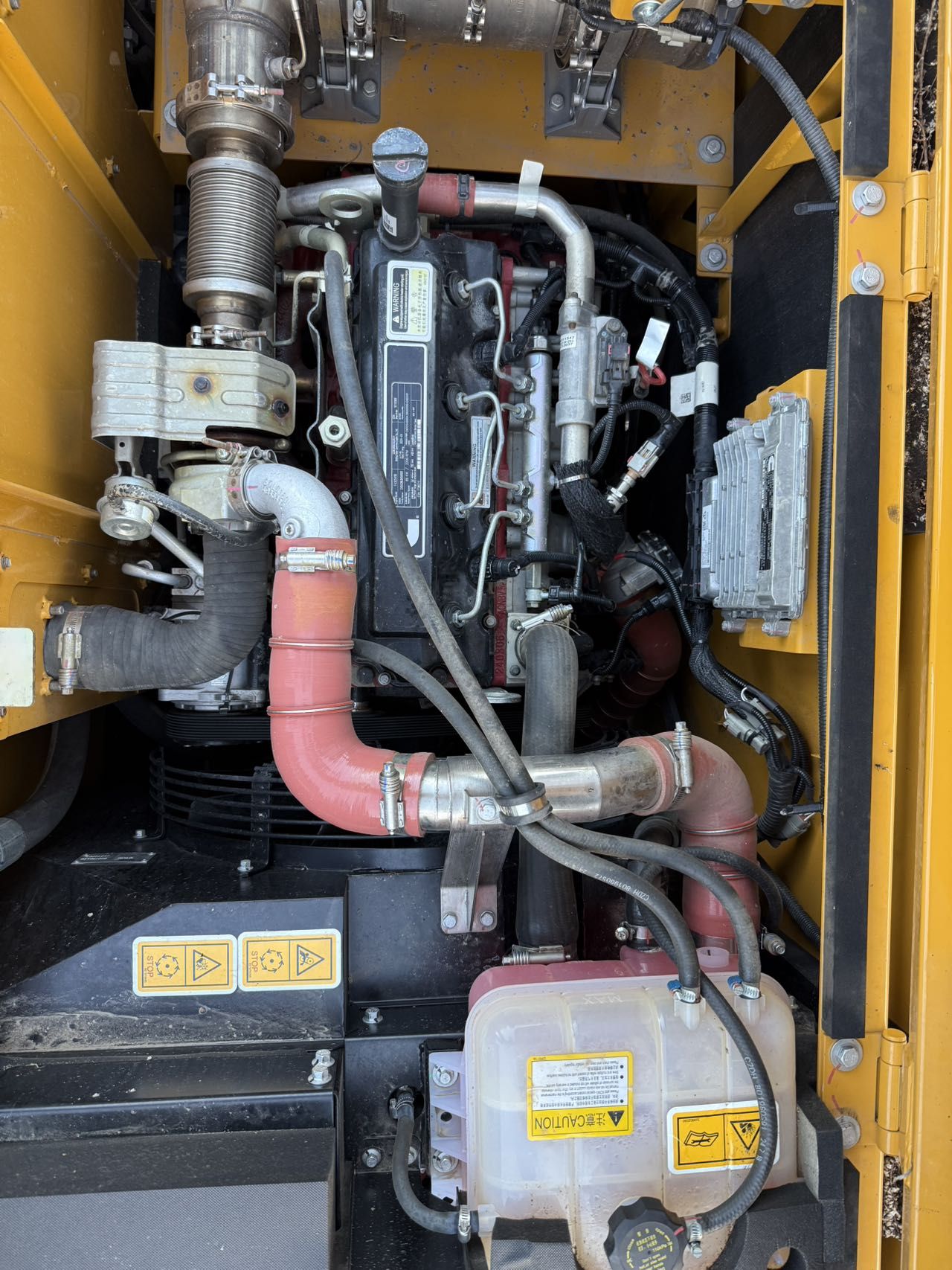

Engine Model	Cummins F4.5CS4119 (4‑cylinder, turbocharged, water‑cooled)
Rated Power	89 kW @ 2,200 rpm
Max Torque	500 N·m @ 1,300 rpm
Emission Standard	China Stage IV (EGR+DOC+DPF, No urea required)
Fuel Tank Capacity	260 L
Hydraulic Tank Capacity	110 L
Max Digging Depth	5,540 mm
Max Digging Radius (Ground Level)	8,295 mm
Max Digging Height	8,640 mm
Max Dumping Height	6,180 mm
Bucket Digging Force	99 kN
Arm Digging Force	68 kN
Max Traction Force	134 kN
Travel Speed (Low/High)	2.9 / 5.2 km/h
Swing Speed	11 rpm
Gradeability	35° (70%)
Ground Pressure	45 kPa
