| Model |

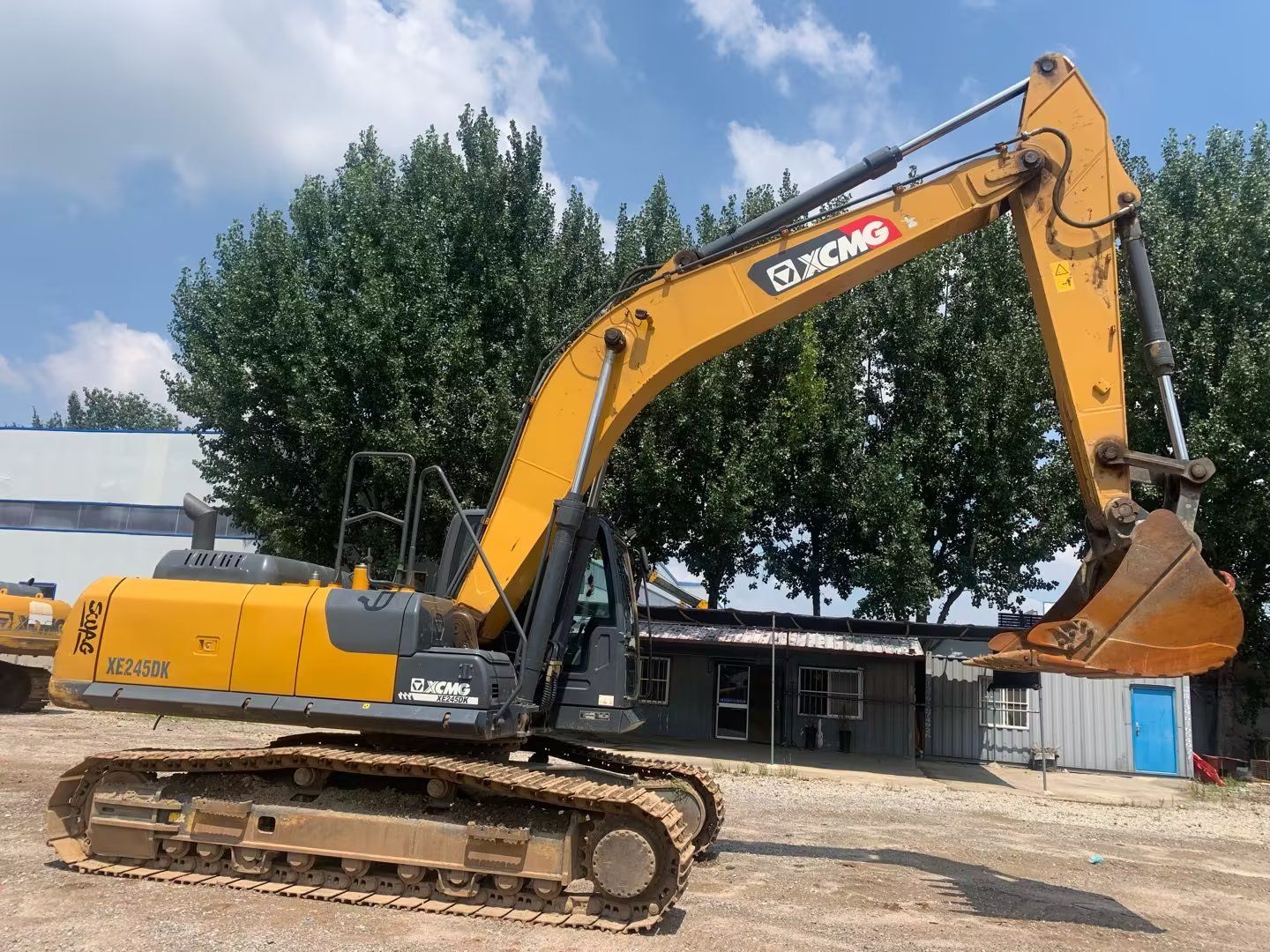

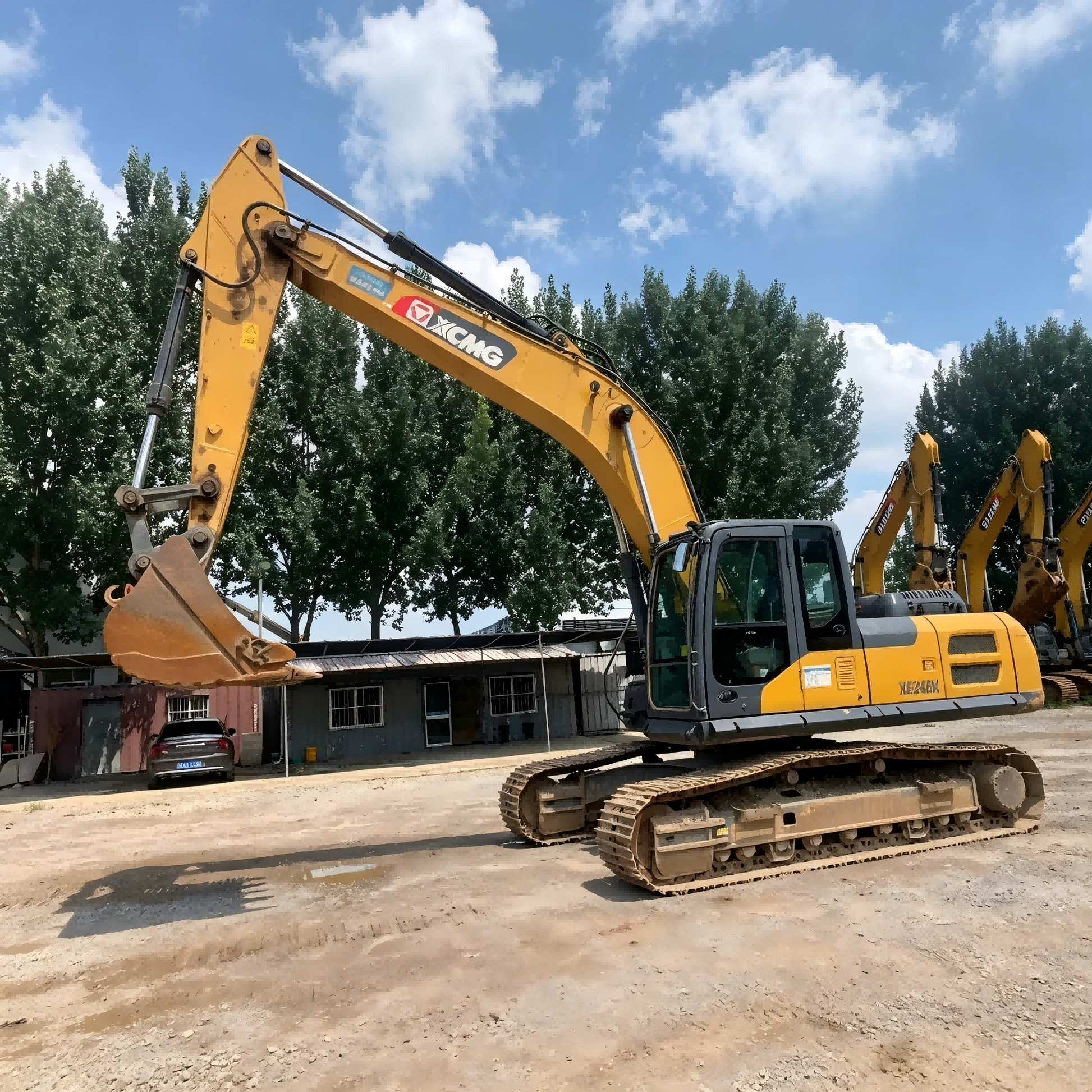

XCMG XE245DK (25.5t D‑Series, Stage III) |
| Operating Weight |
25,500 kg |
| Standard Bucket Capacity |
1.3 m³ (rock bucket) |
| Optional Bucket Range |
0.9–1.4 m³ |
| Undercarriage |
Heavy‑duty crawler, 600 mm track shoes, reinforced frame |

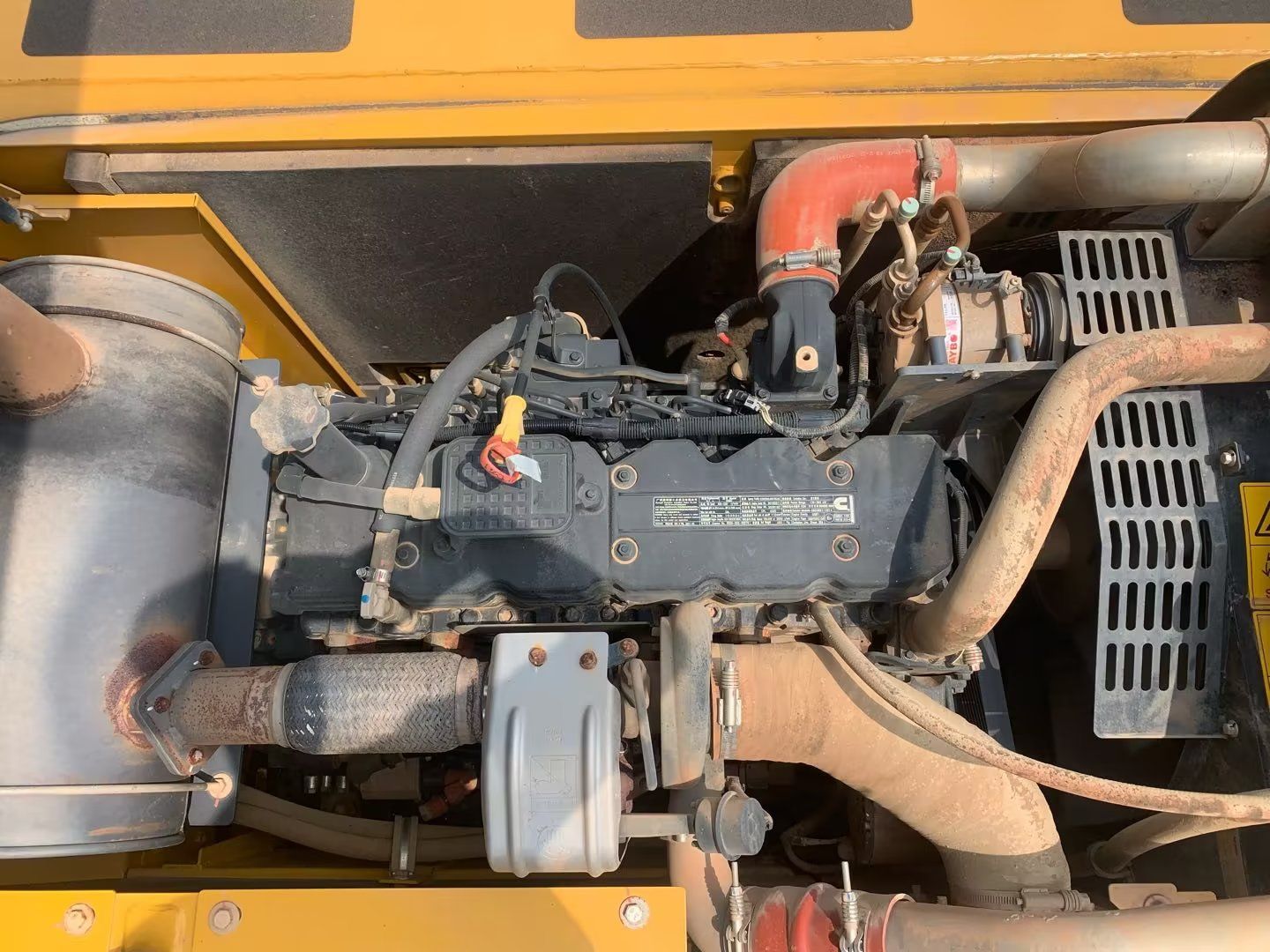

| Engine Model |
Cummins QSB6.7 (6‑cylinder inline diesel, Stage III) |
| Rated Power |
150 kW @ 2,050 rpm |
| Max Torque |
825 N·m @ 1,250 rpm |
| Displacement |
6.7 L |
| Fuel Tank Capacity |
400 L |
| Hydraulic Tank Capacity |
240 L |
| Bucket Digging Force |
185 kN |
| Arm Digging Force |
125 kN |
| Swing Torque |
120 kN·m |
| Swing Speed |
11.4 rpm |
| Travel Speed (Low/High) |
3.8 km/h / 6.1 km/h |
| Gradeability |
35° (70%) |
| Ground Pressure |
53.5 kPa |
| Max Digging Depth |
6,972 mm |
| Max Ground Reach |
10,240 mm |
| Max Digging Height |
10,048 mm |
| Max Dump Height |
7,123 mm |
| Min Swing Radius |
3,230 mm |

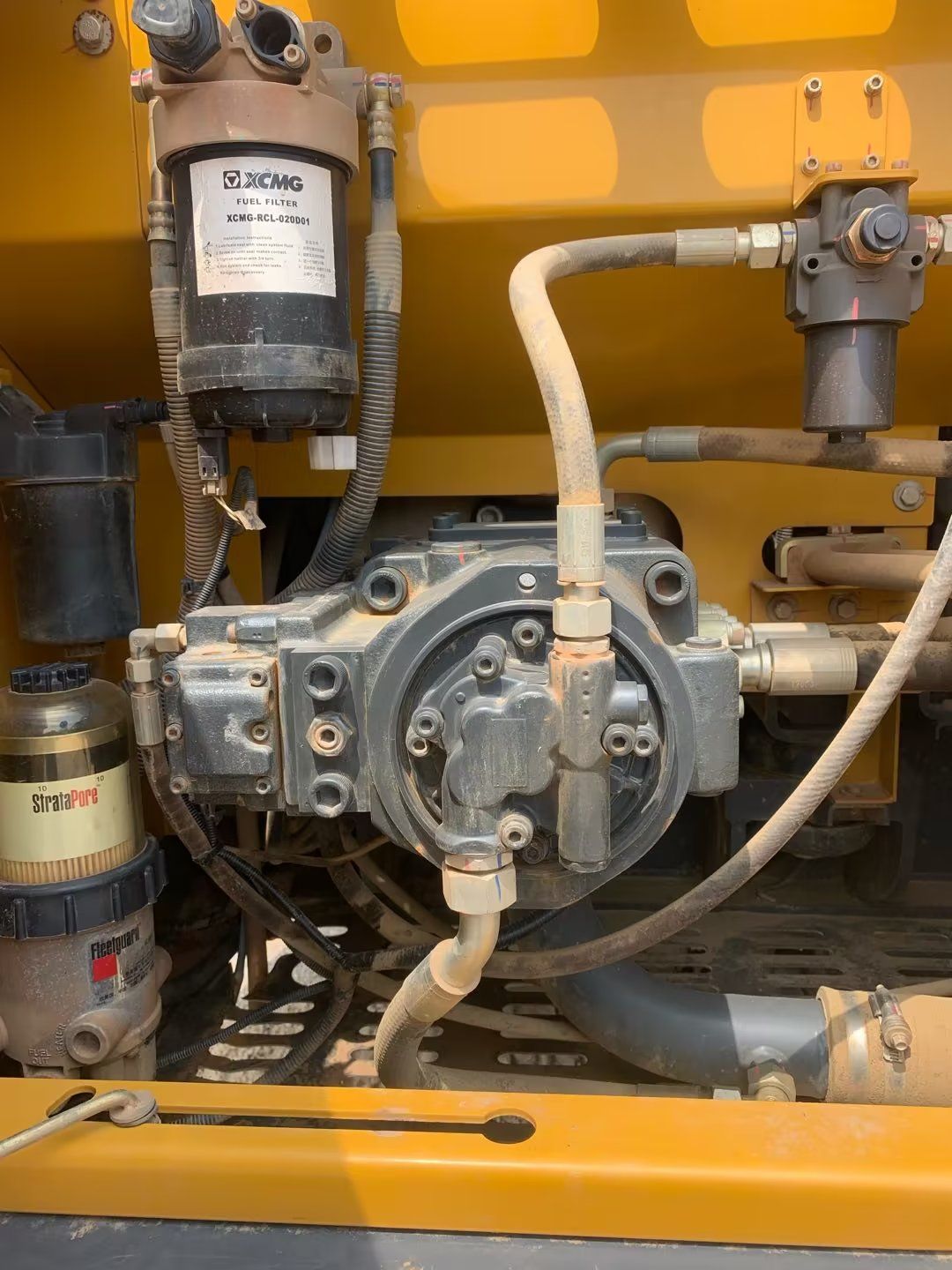

| Main Pump |
Kawasaki dual variable piston pumps, 2×250 L/min |
| Hydraulic System Pressure |
34.3 MPa |
| Transport Dimensions (L×W×H) |
10,170 × 3,190 × 3,130 mm |
