| Model |

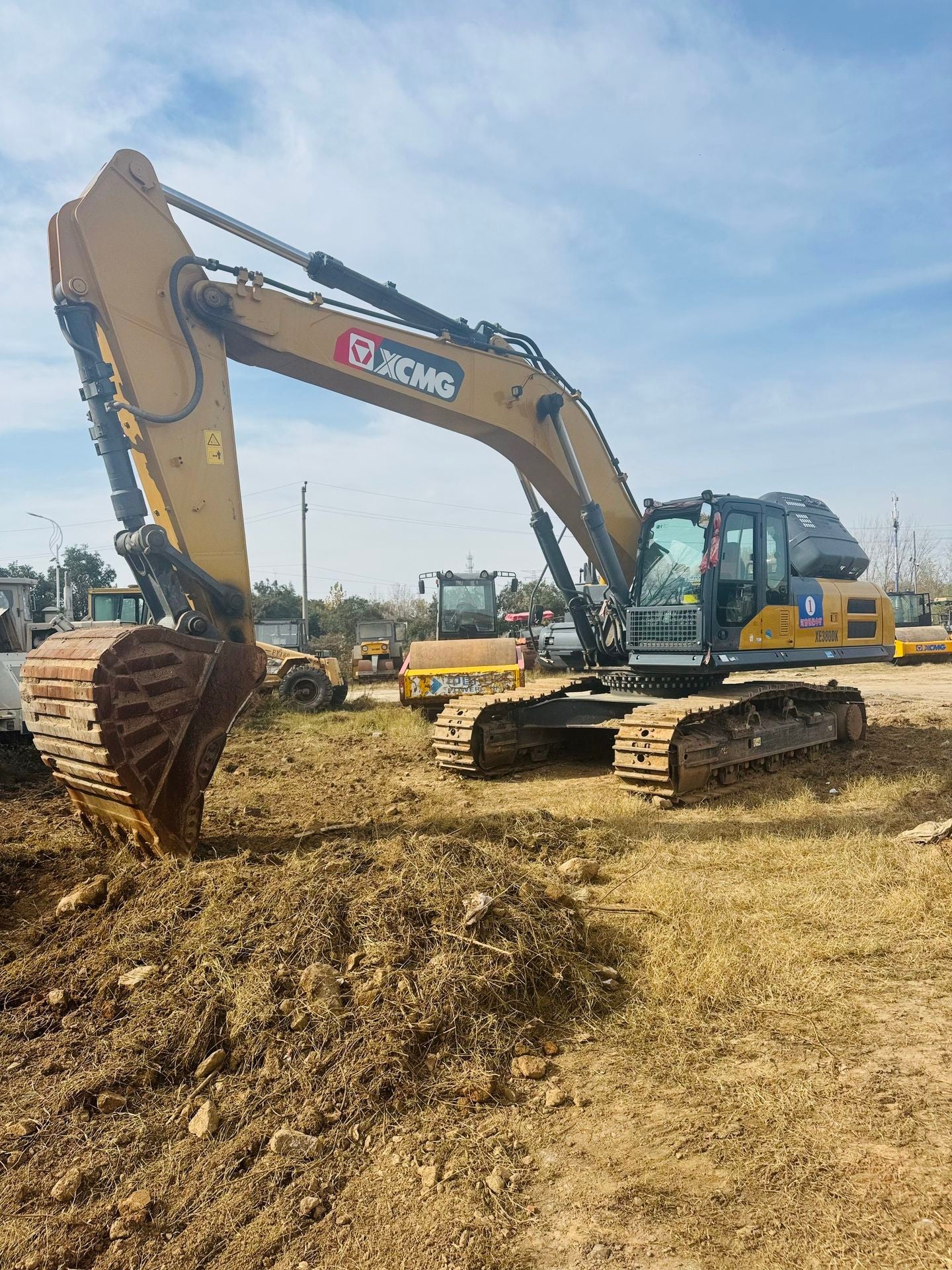

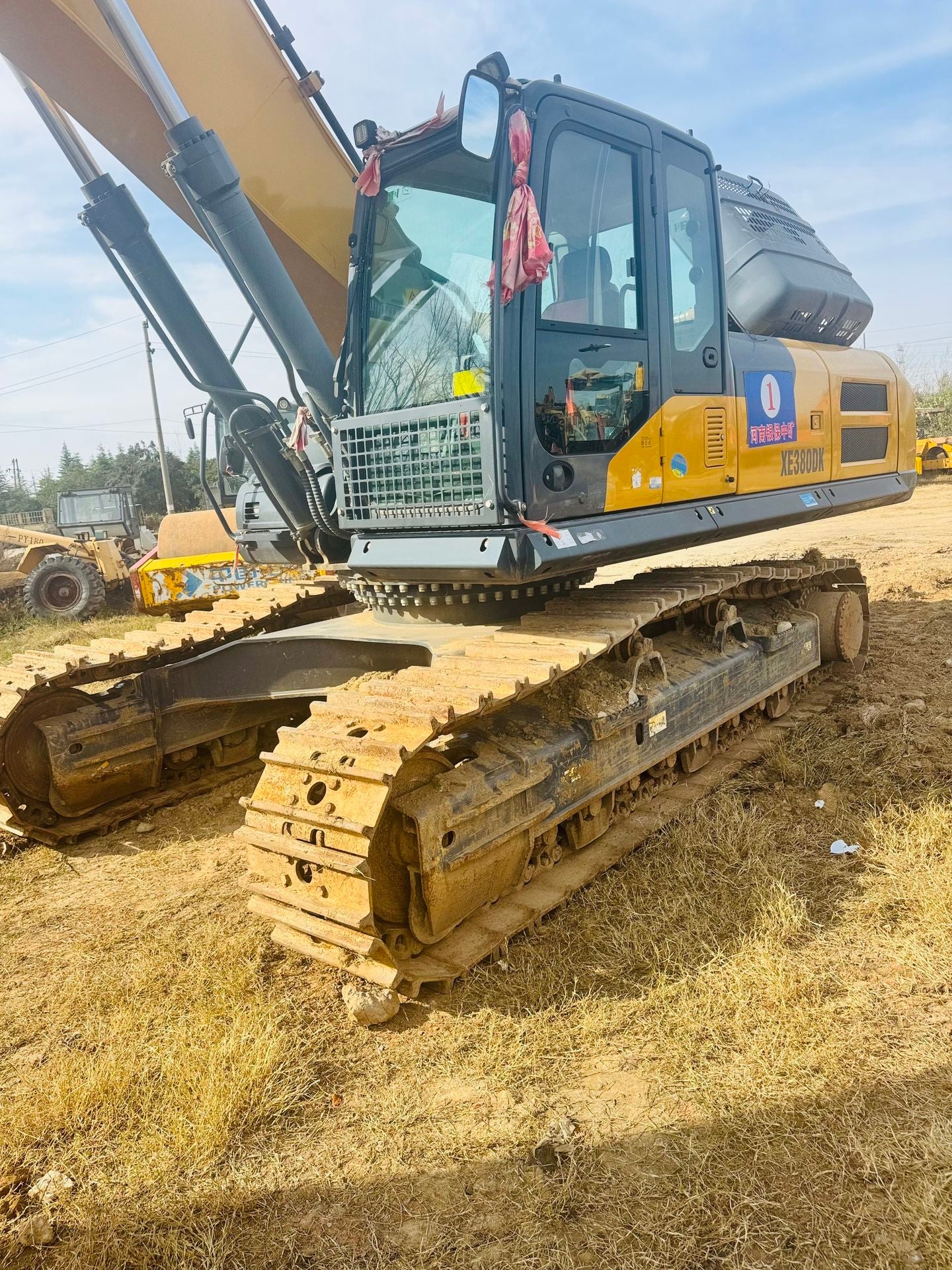

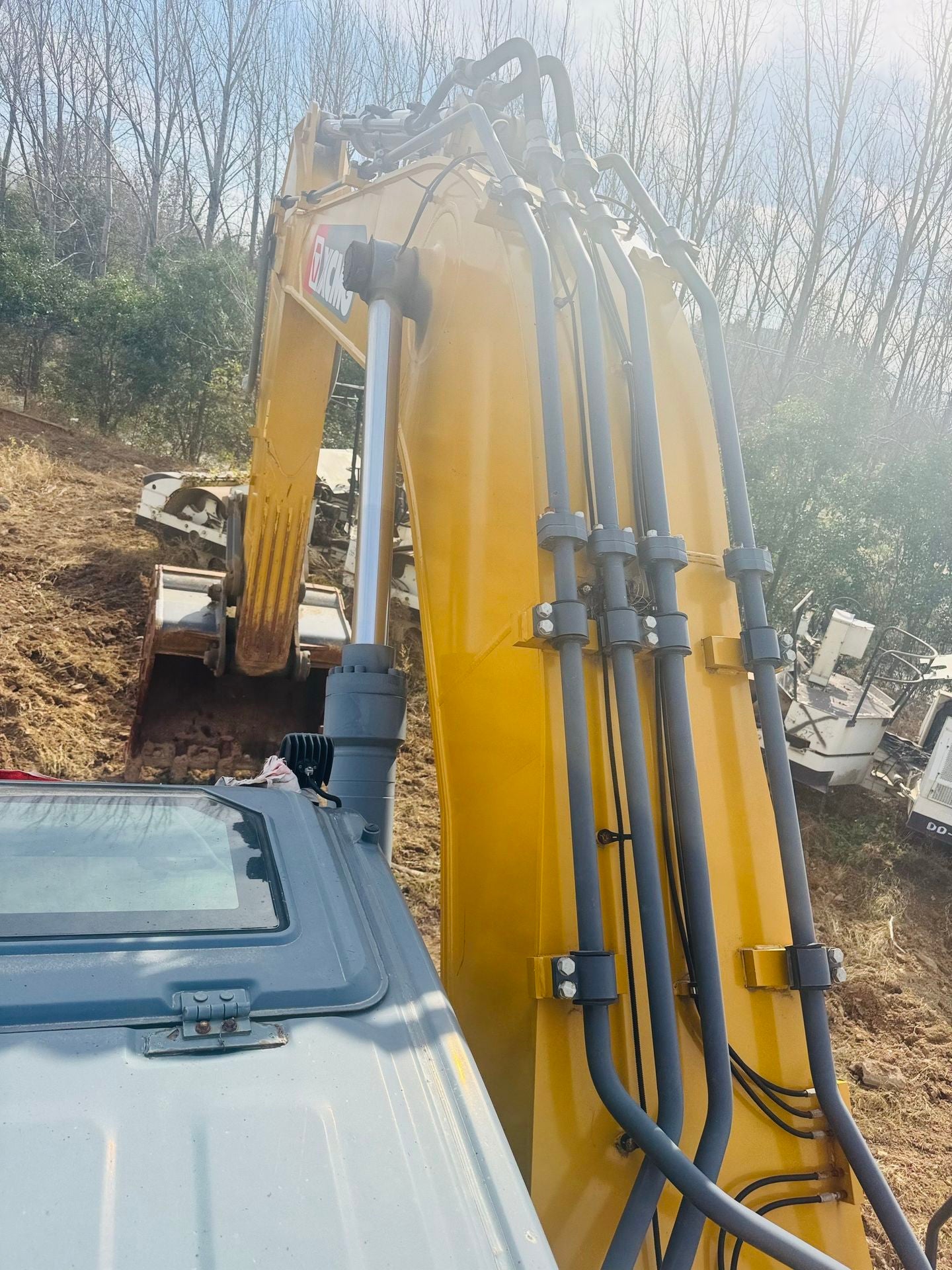

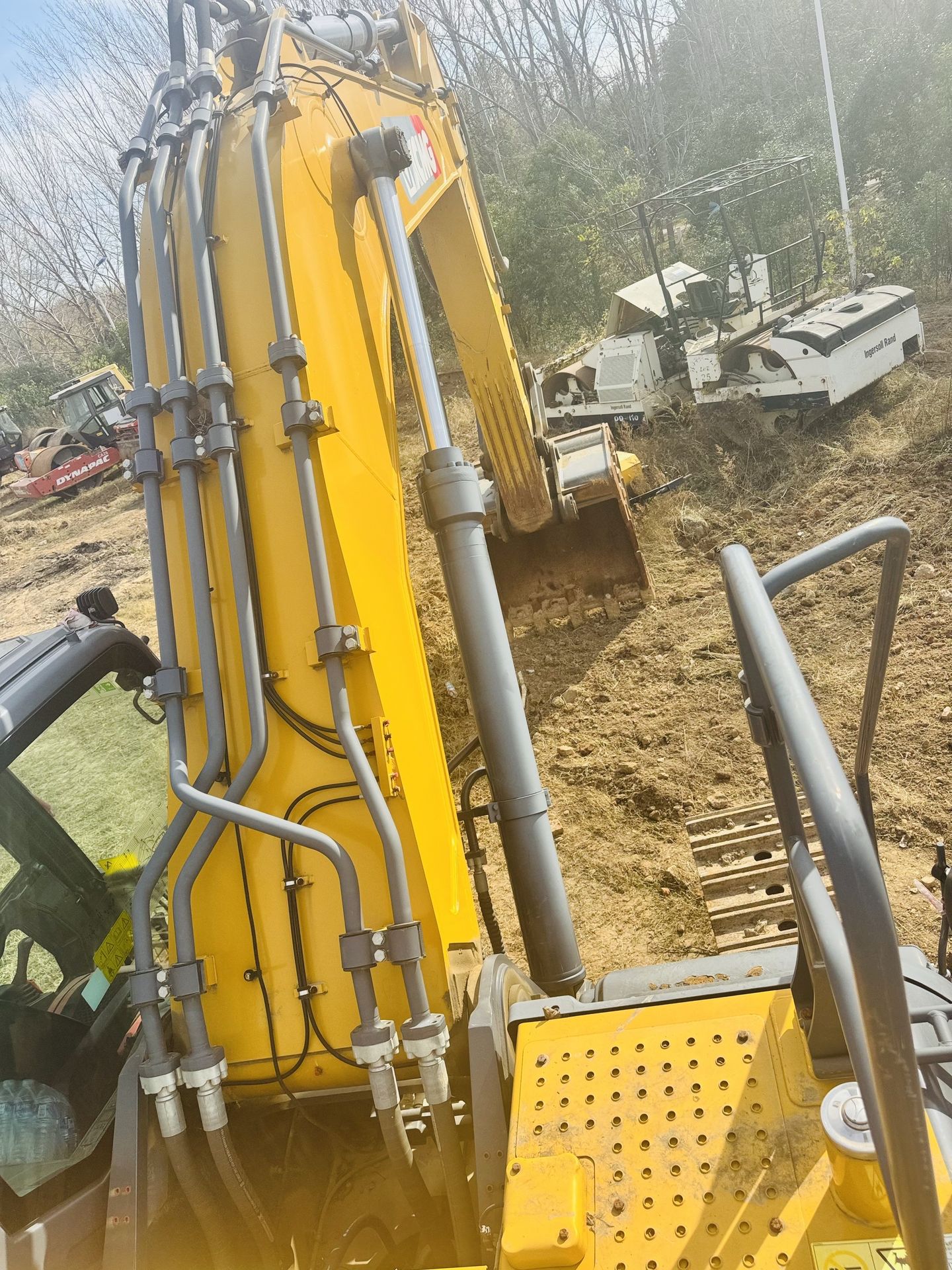

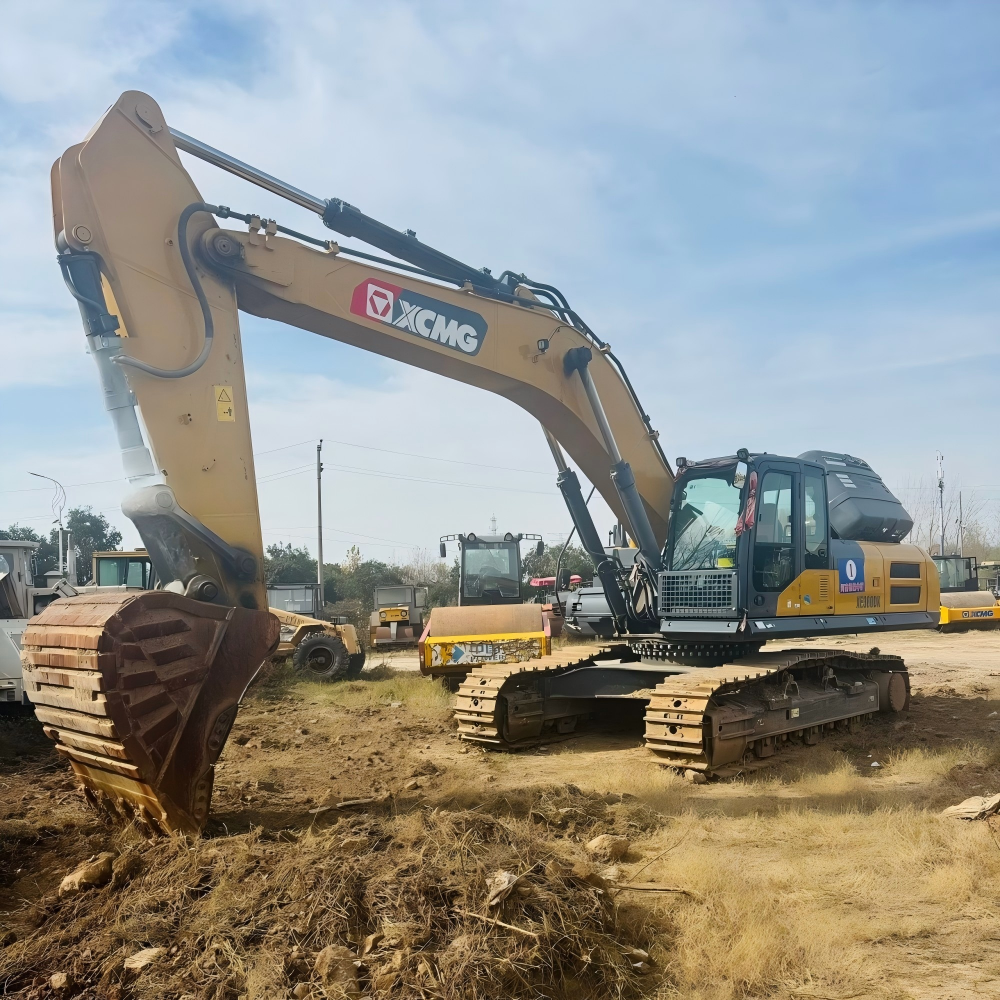

XCMG XE380DK (Heavy‑Duty Mining Excavator) |
| Operating Weight |
38,200 kg |
| Standard Bucket Capacity |
1.9 m³ (rock bucket) |
| Optional Bucket Range |
1.9–2.3 m³ |

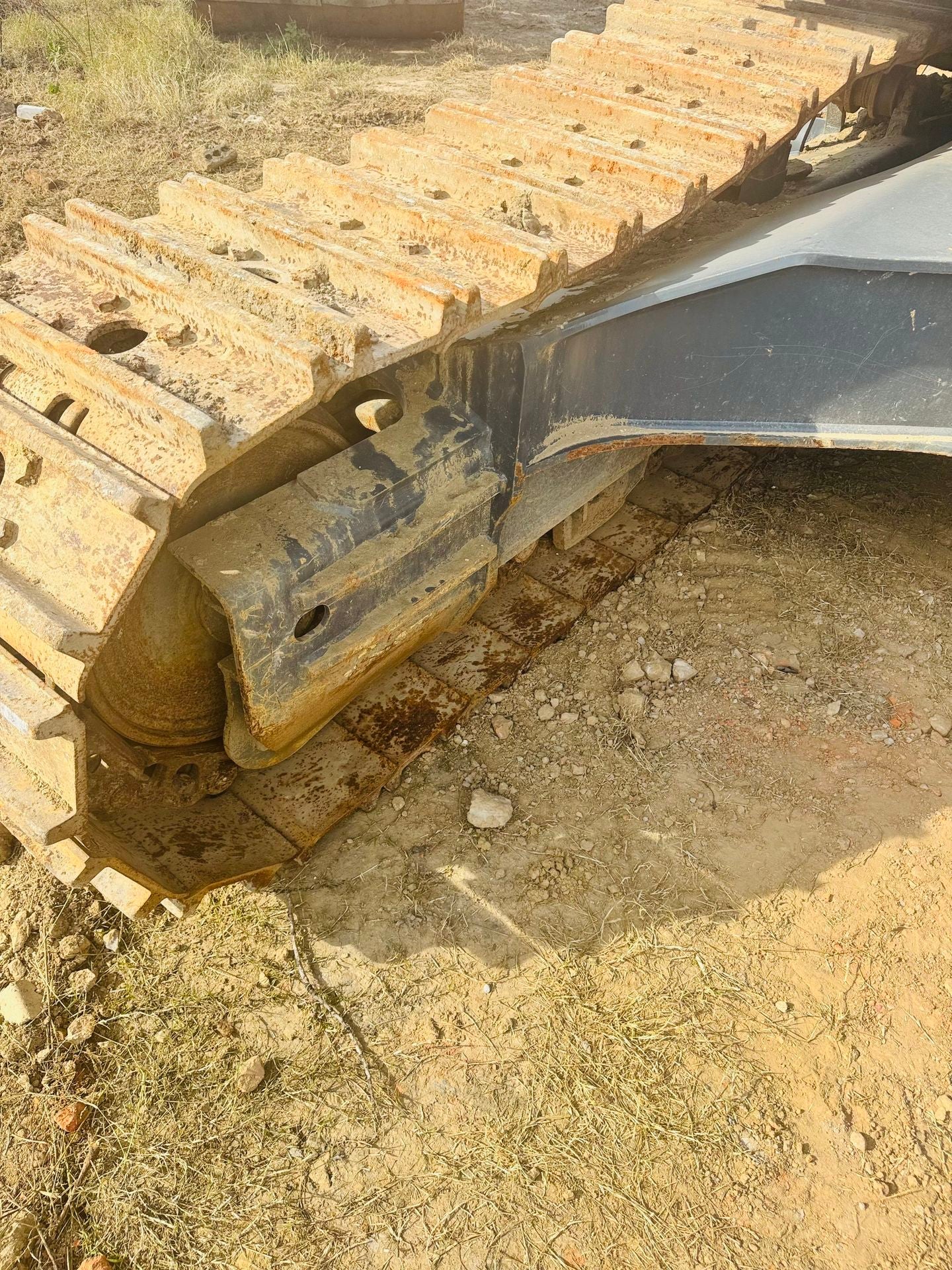

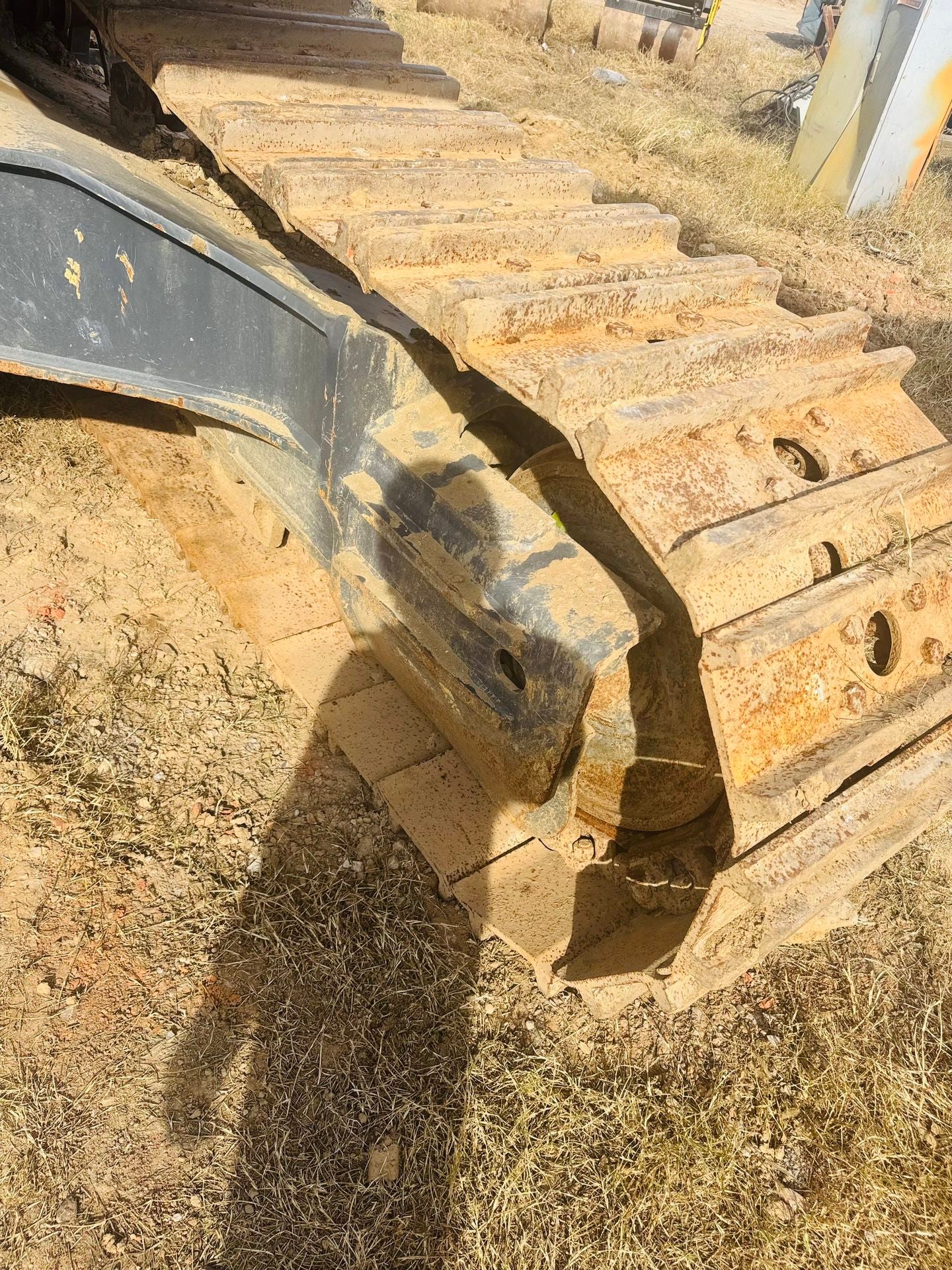

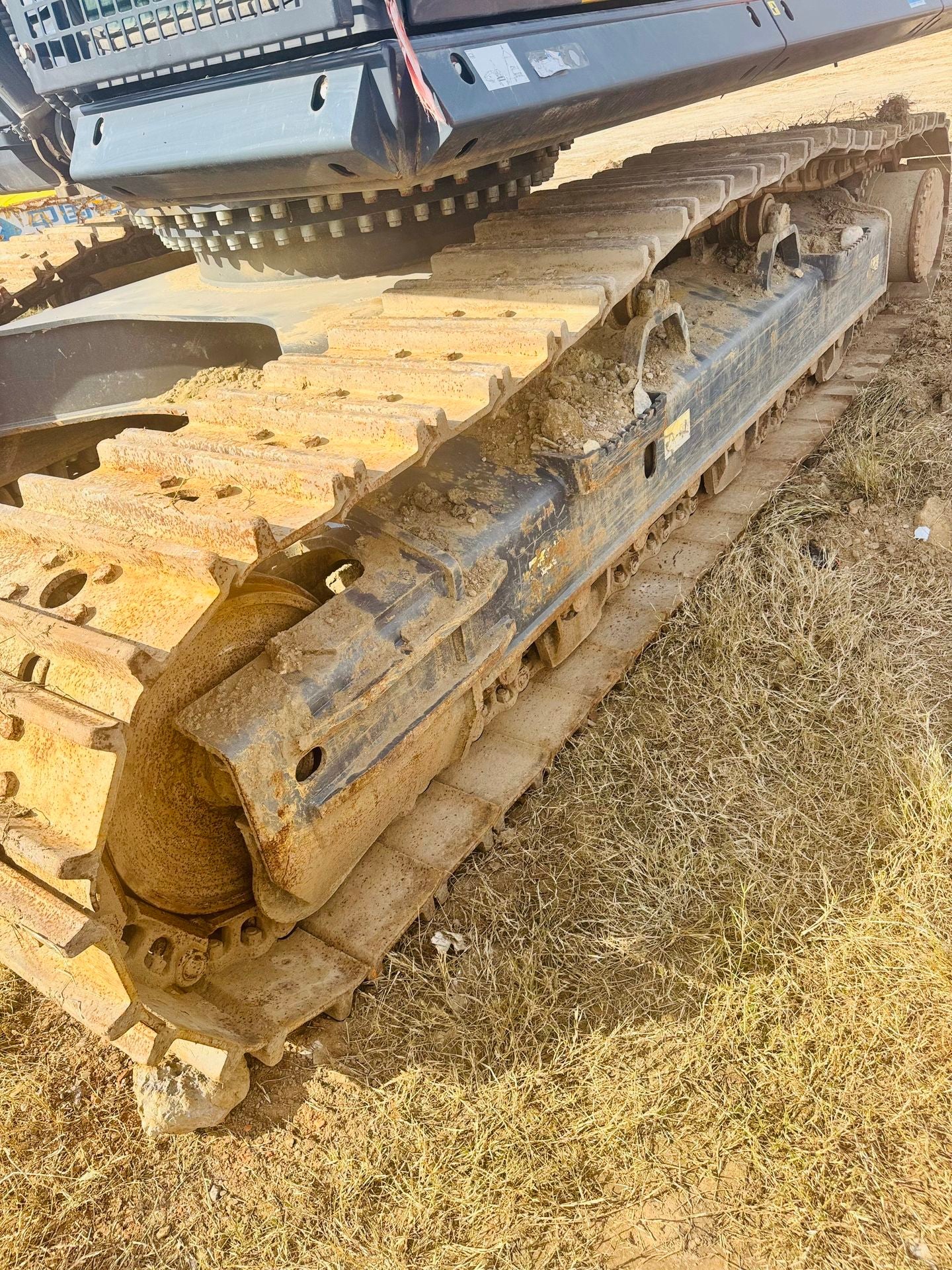

| Undercarriage |
Heavy‑duty mining crawler, 600 mm track shoes |
| Engine Model |
Cummins QSL9 (6‑cylinder inline diesel) |
| Rated Power |
214 kW @ 2,100 rpm |
| Displacement |
8.9 L |
| Max Torque |
1,344 N·m @ 1,300 rpm |
| Emission Standard |
China Nonroad Stage III / Tier 3 |
| Fuel Tank Capacity |
660 L |
| Hydraulic Tank Capacity |
350 L |
| Bucket Digging Force |
292 kN |
| Arm Digging Force |
209 kN |
| Max Traction Force |
285 kN |
| Swing Torque |
178 kN·m |
| Swing Speed |
9.6 rpm |
| Travel Speed (Low / High) |
3.3 km/h / 5.6 km/h |
| Gradeability |
35° (70%) |
| Ground Pressure |
69 kPa |
| Max Digging Depth |
7,147 mm |
| Max Ground Reach |
10,793 mm |
| Max Digging Height |
10,508 mm |
| Max Dump Height |
7,300 mm |
| Min Swing Radius |
4,380 mm |
| Main Pump |
Dual variable displacement piston pumps |
| Hydraulic System Pressure |
34.3 MPa |
| Transport Dimensions (L×W×H) |
11,420 × 3,380 × 3,820 mm |
