| Model |

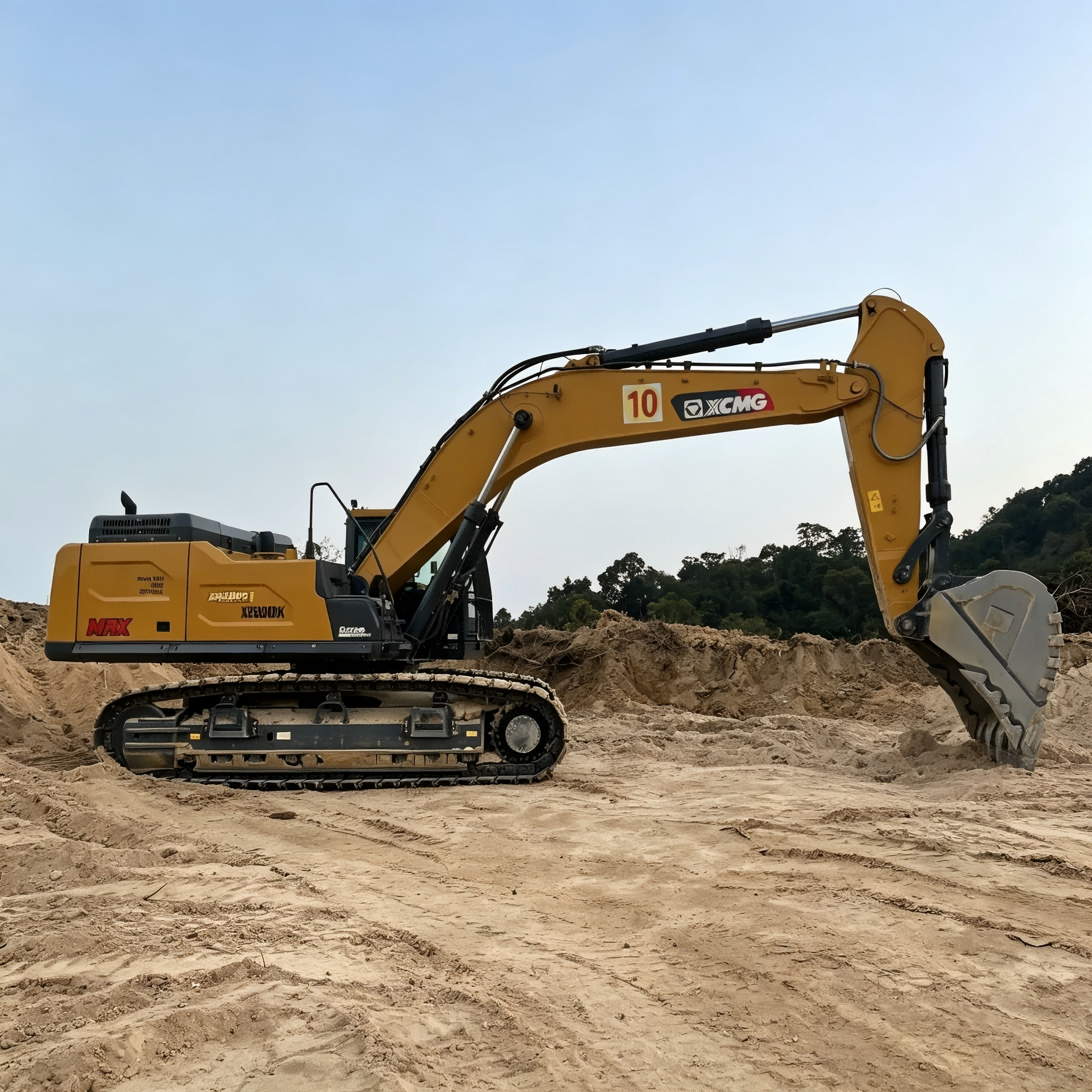

XCMG XE600DK (Heavy-Duty Mining-Reinforced Crawler Excavator) |
| Operating Weight |
59,800 kg |
| Standard Bucket Capacity |
3.5 m³ (rock bucket) |
| Optional Bucket Range |
3.2 – 4.0 m³ |
| Undercarriage |

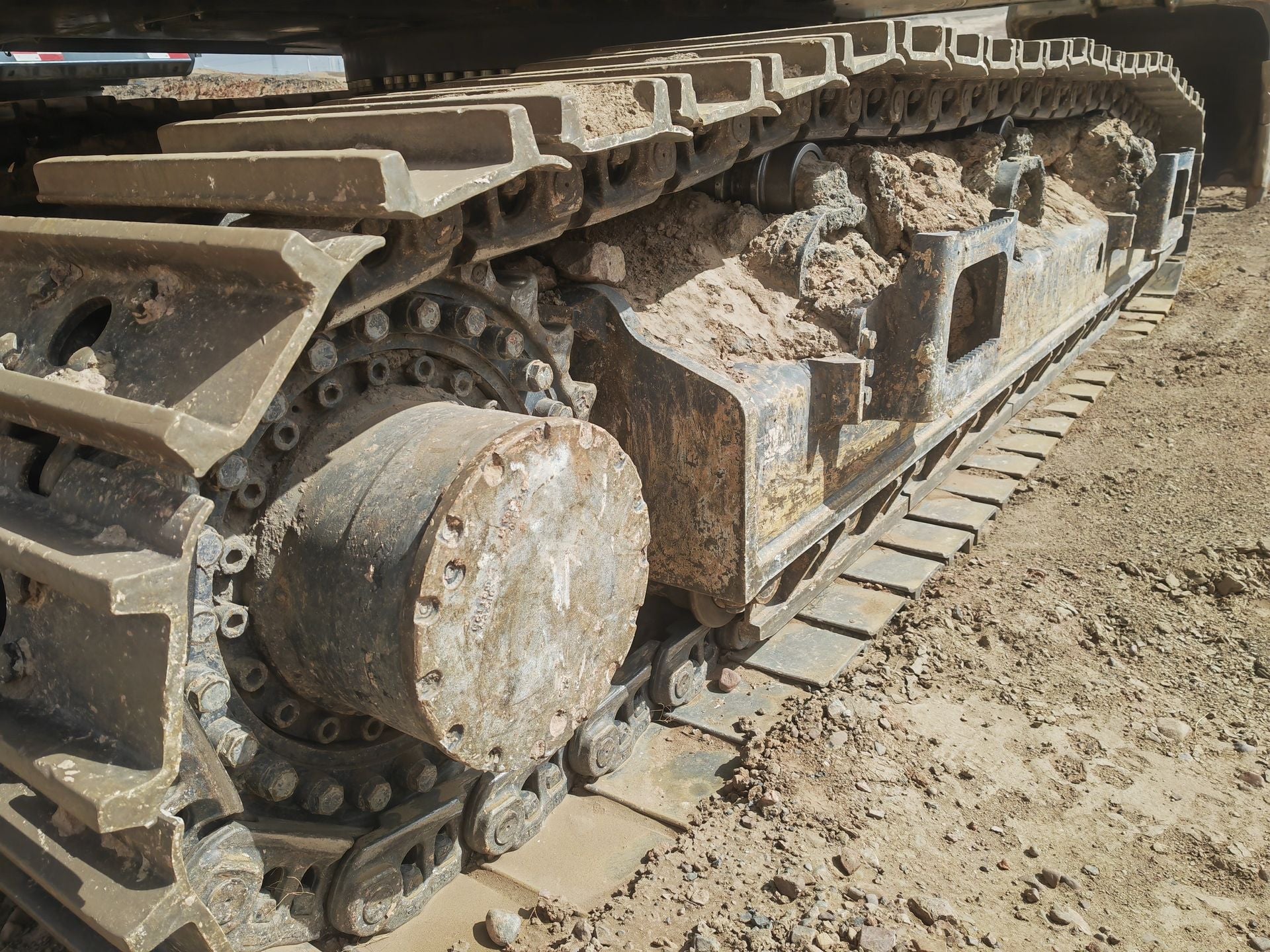

Heavy-duty mining crawler, 600 mm track shoes |
| Emission Standard |
China Nonroad Stage III / Tier 3 |
| Engine Model |
Weichai WP15, 6-cylinder inline water-cooled diesel engine |
| Rated Power |
485 kW @ 2,100 rpm |
| Displacement |
14.6 L |
| Max Torque |
2,400 N·m @ 1,500 rpm |
| Aspiration |
Turbocharged & Intercooled |
| Fuel Tank Capacity |
820 L |
| Hydraulic Tank Capacity |
420 L |
| Bucket Digging Force |
355 kN |
| Arm Digging Force |
295 kN |
| Swing Torque |
235 kN·m |
| Swing Speed |
7.3 rpm |
| Travel Speed (Low / High) |
2.9 km/h / 4.8 km/h |
| Gradeability |
35° (70%) |
| Ground Pressure |
102 kPa |
| Max Digging Depth |
6,350 mm |
| Max Ground Reach |
11,520 mm |
| Max Digging Height |
11,850 mm |
| Max Dump Height |
7,850 mm |
| Min Swing Radius |
4,350 mm |

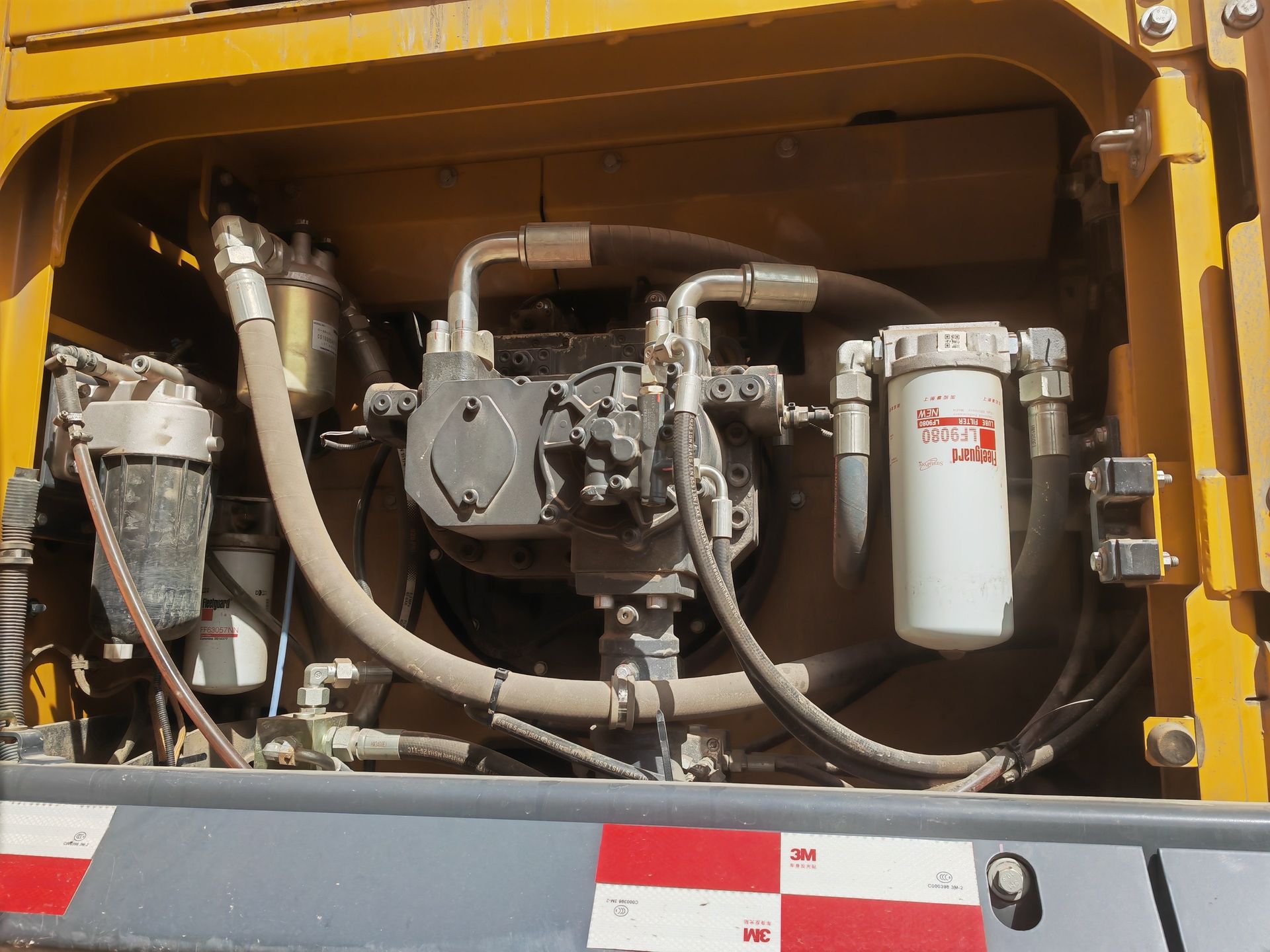

| Main Pump |
Dual variable displacement piston pumps |
| Hydraulic System Pressure |
34.3 MPa |
| Control System |
Intelligent hydraulic control system |
| Transport Dimensions (L×W×H) |
12,150 × 4,150 × 4,750 mm |
