XCMG

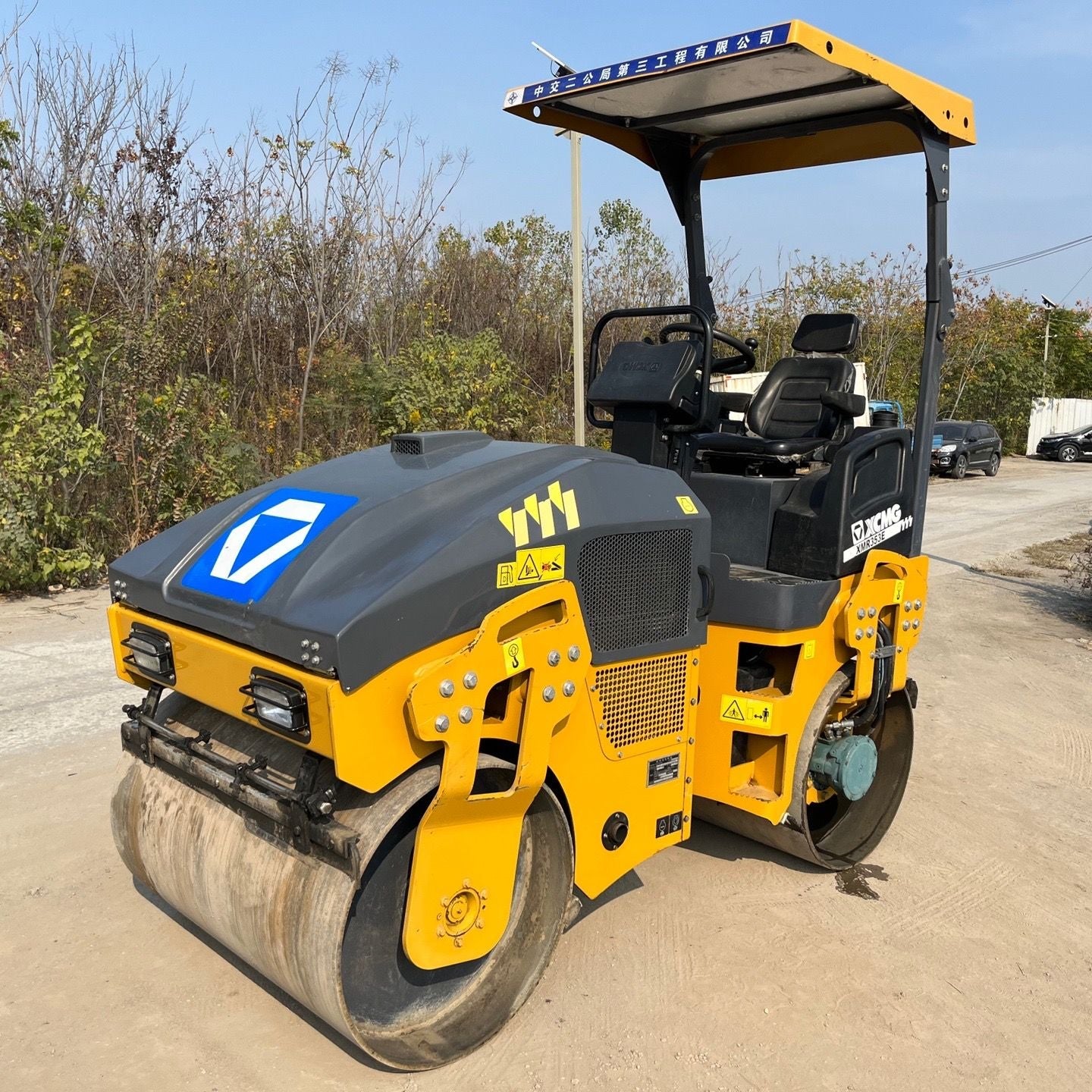

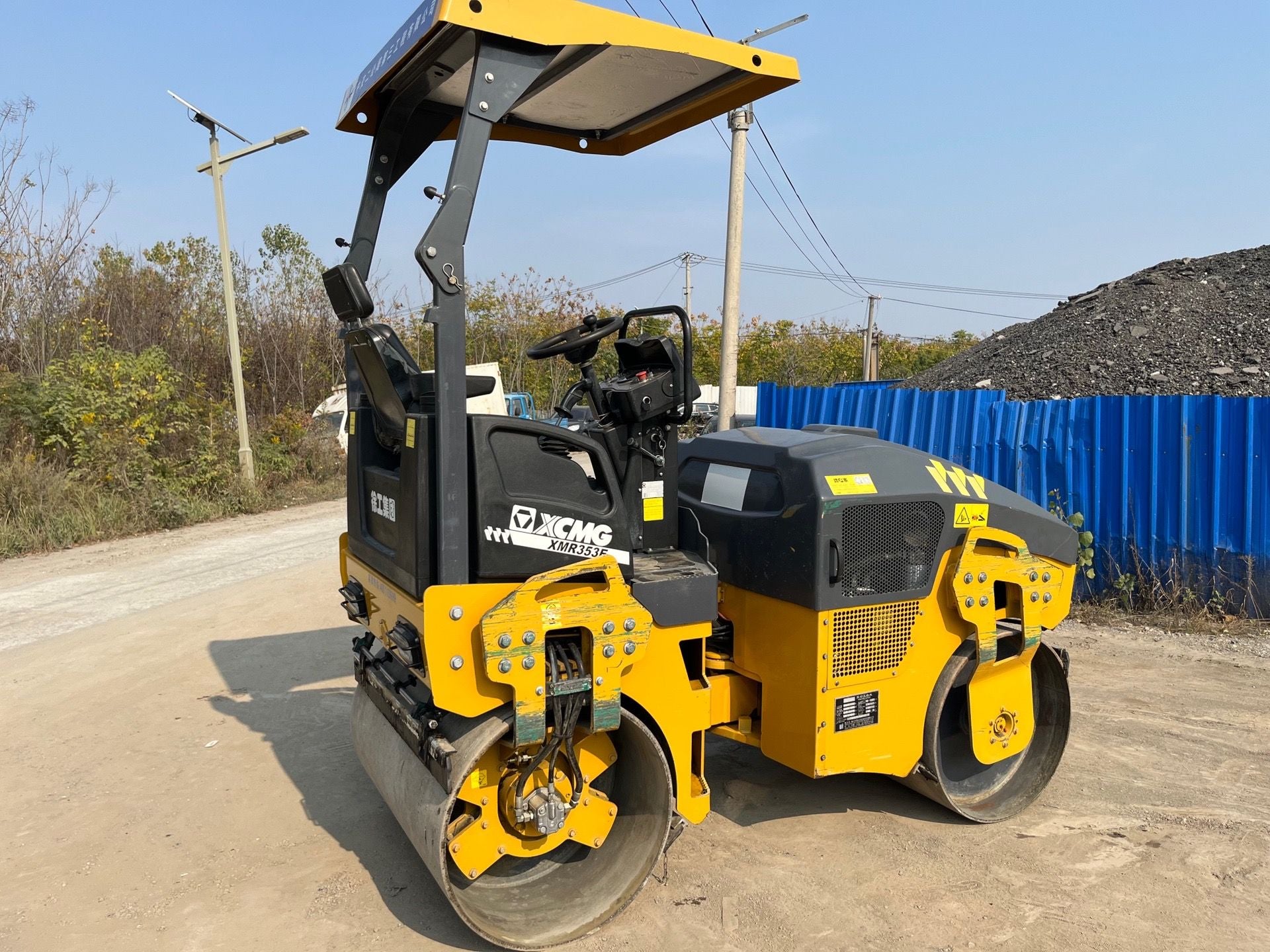

USED XCMG XMR353E

$9,000.00 USD

Oferta Agotado

Item	Specification
Model	XCMG XMR353E (Double Drum, Single Drive & Single Vibration)
Operating Weight	3,500 kg (7,716 lb)
Static Linear Load (Front/Rear)	111 / 173 N/cm
Compaction Width (Drum Width)	1,200 mm (47.2 in)

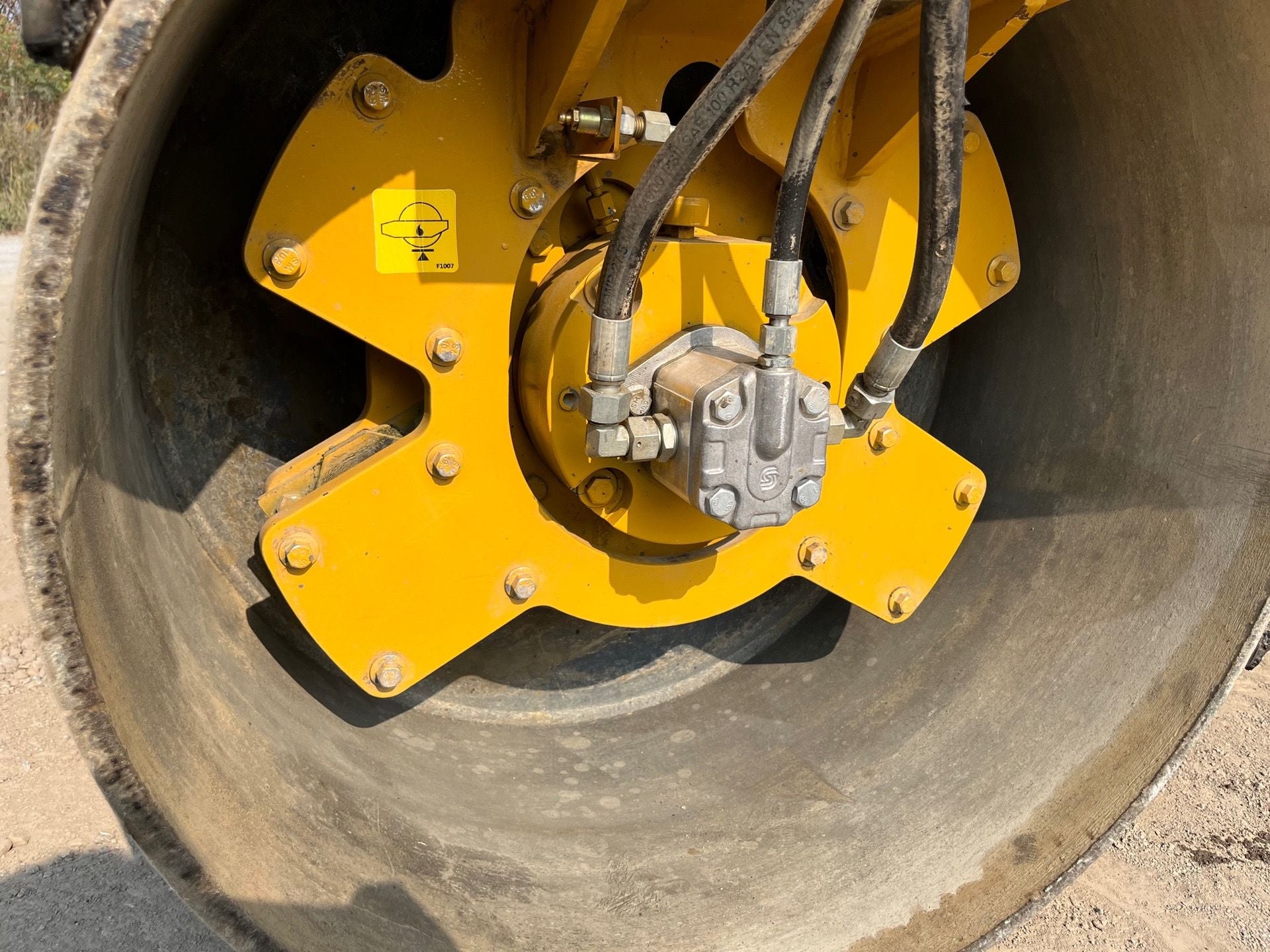

Drum Diameter	746 mm
Vibration Frequency	50 Hz
Exciting Force	32 kN
Nominal Amplitude	0.5 mm

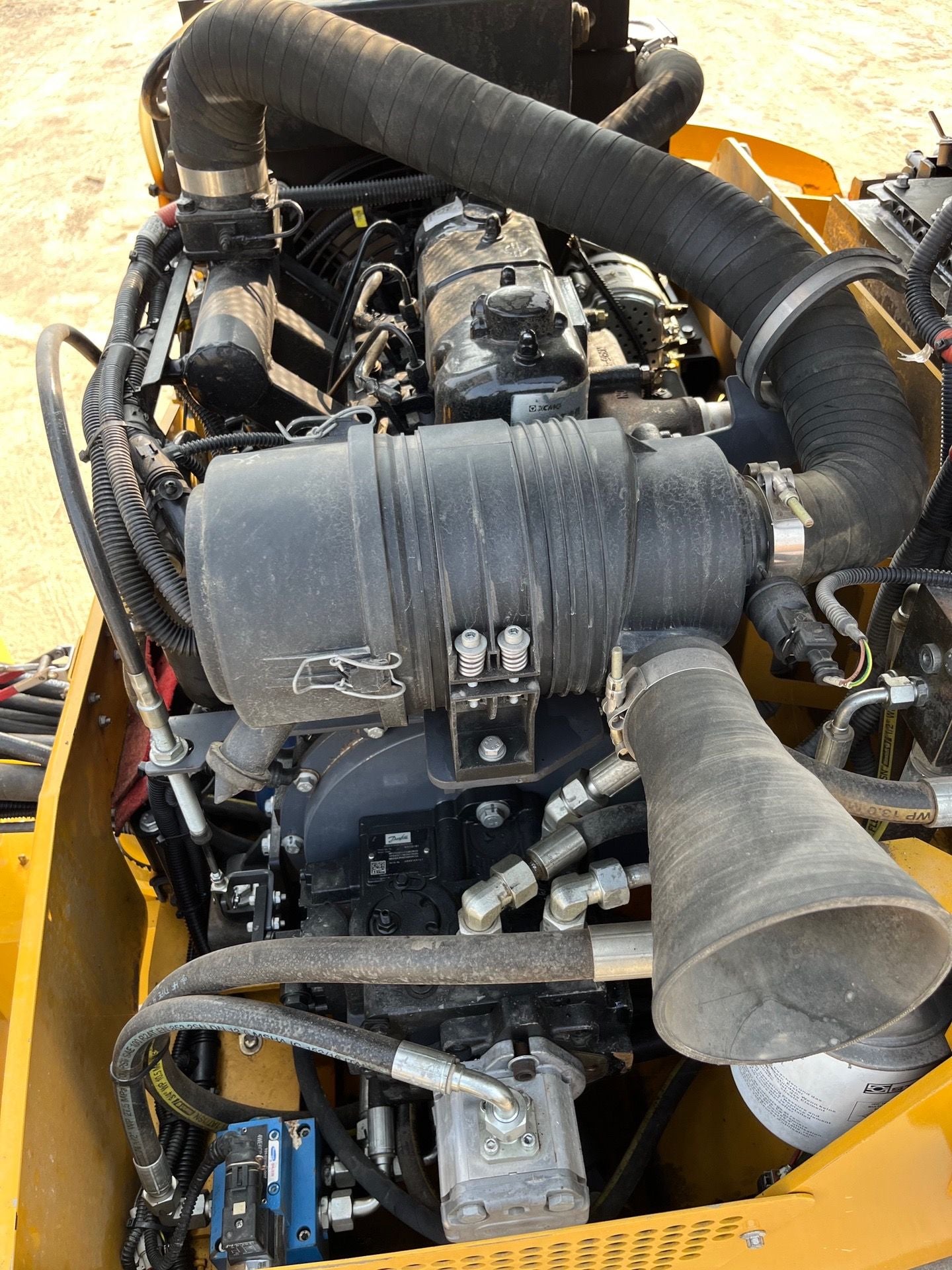

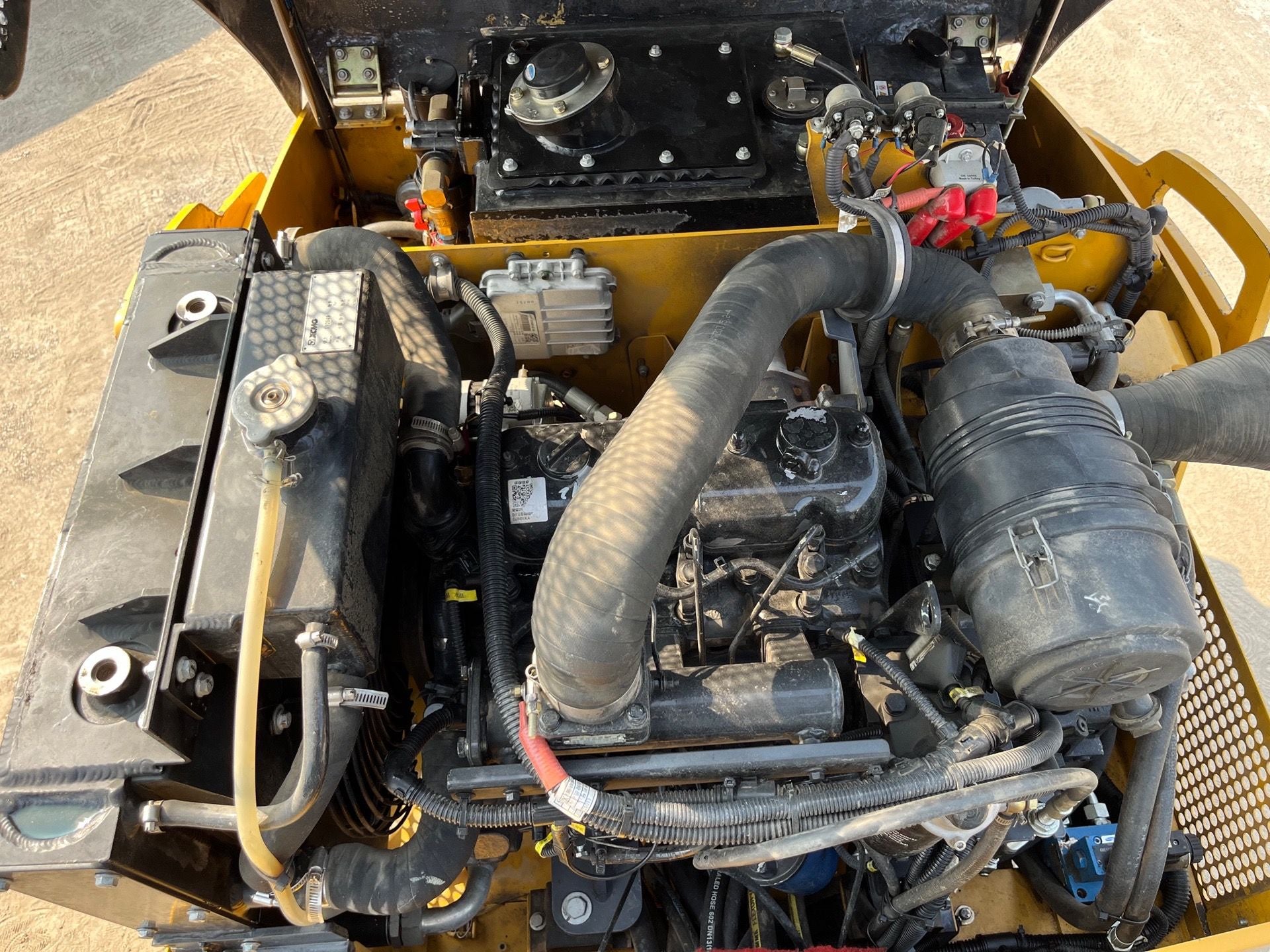

Engine Model	Changchai ZN390B
Rated Power	28.5 kW / 38 hp @ 2,600 rpm
Emission Standard	China National IV (Stage II)
Travel Speed	0–10.3 km/h (infinitely variable)
Max Gradeability	20% (with vibration)
Wheelbase	1,870 mm
Steering Angle	±30°
Oscillation Angle	±10°
Min. Turning Radius (Inner/Outer)	2,990 / 4,190 mm
Ground Clearance	290 mm
Overall Dimensions (L×W×H)	2,682 × 1,328 × 2,752 mm
Fuel Tank Capacity	26 L
