| Operating Weight |
18,000 kg (39,683 lb) |
| Front Axle Load |
11,500 kg |
| Rear Axle Load |
6,500 kg |
| Static Linear Load |
529 N/cm |
| Compaction Width |
2,130 mm (83.9 in) |
| Drum Diameter |
1,523 mm (60.0 in) |

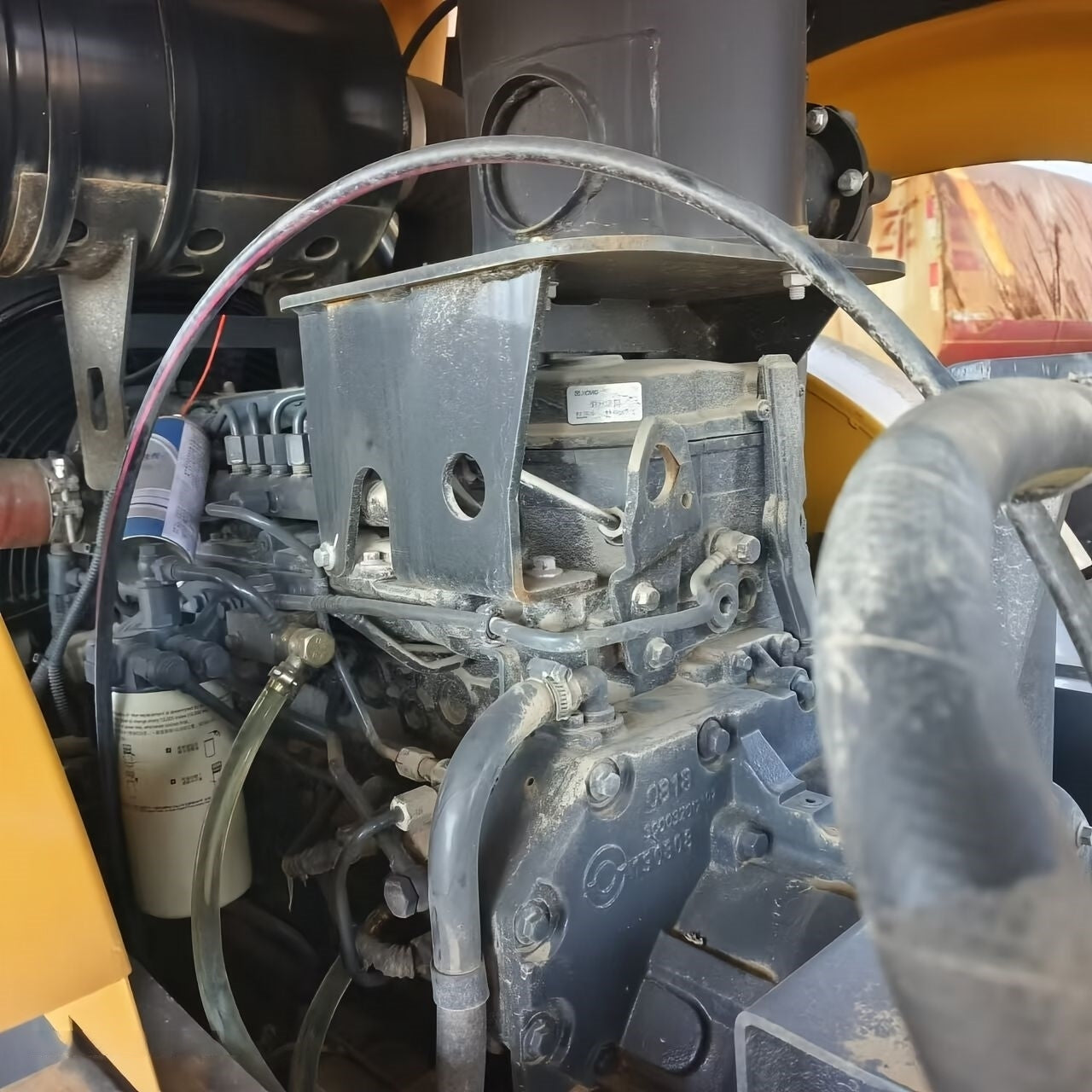

| Engine Model |
Shangchai SC7H190.4G3 (SDEC) |
| Rated Power |
140 kW / 188 hp @ 2,200 rpm |
| Emission Standard |
China National III / EU Stage III |
| Vibration Frequency |
28 / 33 Hz (dual frequency) |
| Nominal Amplitude |
1.86 / 0.93 mm (high/low) |
| Excitation Force |
340 / 240 kN (high/low) |
| Travel Speed |
0–4 / 0–5.6 / 0–6.4 / 0–11.4 km/h (4 gears) |
| Max Gradeability |
50% |
| Min. Turning Radius (Outer) |
6,500 mm |
| Overall Dimensions (L×W×H) |
6,760 × 2,330 × 3,310 mm |
| Fuel Tank Capacity |
310 L |
| Drive System |
Full hydraulic, 4-wheel drive |
| Application |
Highway, railway, airport, port, dam, gravel & soil compaction |
