| Model |

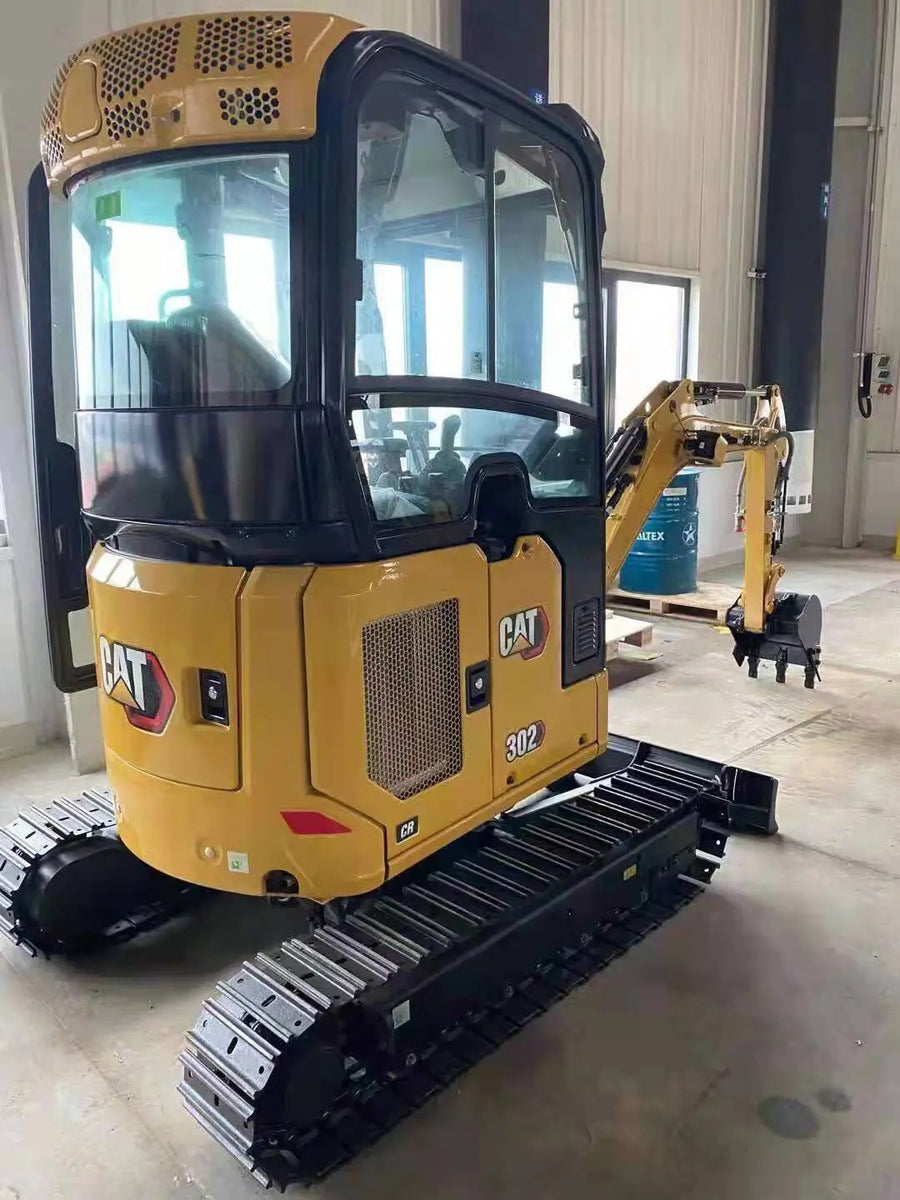

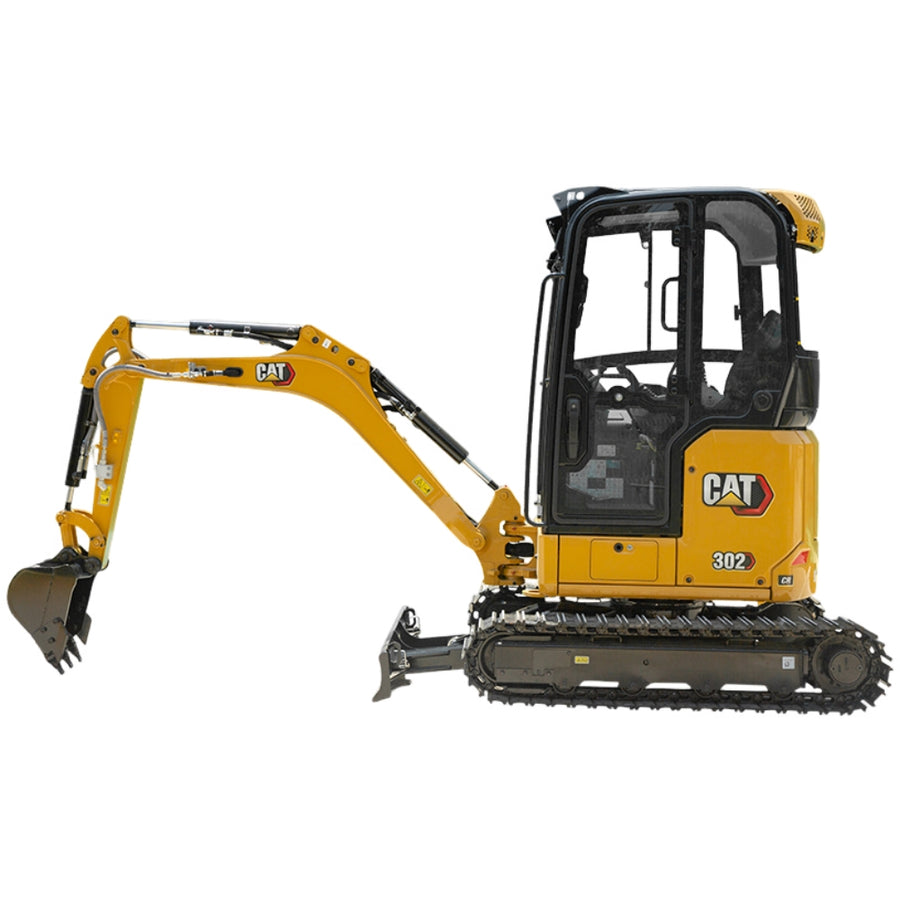

CAT 302CR Mini Crawler Excavator |
| Operating Weight |
2,205 kg (max with canopy, rubber tracks, operator, expandable undercarriage, full fuel tank) |
| Engine Model |
CAT C1.1 (3-cylinder, 4-stroke, turbocharged, water-cooled) |
| Displacement |
1.1 L |
| Rated Net Power |
14.3 kW (19.2 hp) @ 2,400 rpm (ISO 9249/EEC 80/1269) |
| Rated Gross Power |
16.1 kW (21.6 hp) @ 2,400 rpm (ISO 14396) |
| Bucket Capacity |
0.05 - 0.08 m³ (standard) |
| Travel Speed |
2.9/4.4 km/h (low/high) |
| Swing Speed |
9.8 rpm |
| Max Digging Depth |
2,570 mm (standard stick) |
| Max Digging Height |
3,700 mm |
| Max Digging Radius |
4,200 mm |
| Hydraulic System |
Load-Sensing, Variable Displacement Piston Pump |
| Pump Flow |
66 L/min @ 2,400 rpm |
| Max Operating Pressure (Equipment/Travel) |
3553 psi (245 bar) |
| Max Operating Pressure (Swing) |
2132 psi (147 bar) |
| Max Bucket Digging Force |
20 kN (4,406 lb) |
| Max Stick Digging Force |
11.3 kN (2,540 lb) |
| Emission Standard |
Tier 4 Final / EU Stage V |
| Fuel Tank Capacity |
22 L |
| Hydraulic Tank Capacity |
18.2 L |
| Track Shoe Width |
250 mm |
| Track Width (Retracted/Expanded) |
1,090/1,400 mm |
| Max Traction Force |
22 kN (low speed) |
