| Model |

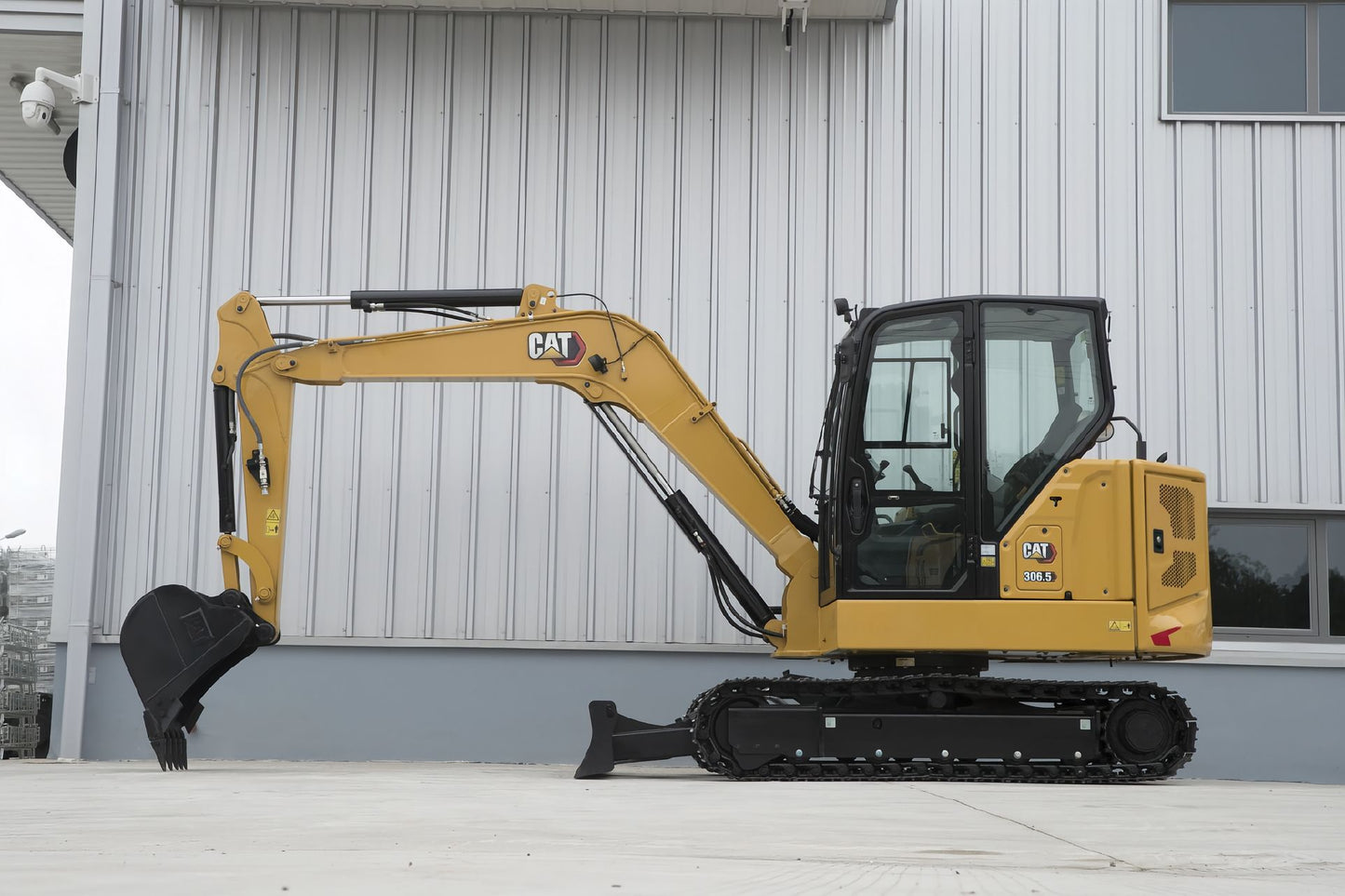

CAT 306.5 Mini Crawler Excavator |
| Operating Weight |
6,175 kg (with steel track, operator, full fuel tank, standard stick and bucket) |
| Engine Model |
CAT C2.4 Turbo (4-cylinder, 4-stroke, turbocharged, water-cooled diesel engine) |
| Displacement |
2.43 L |
| Rated Net Power |
34.9 kW (46.8 hp) @ 2,400 rpm (ISO 9249/EEC 80/1269) |
| Rated Gross Power |
36.5 kW (48.9 hp) @ 2,400 rpm (ISO 14396) |
| Bucket Capacity |
0.25 m³ (standard) |
| Travel Speed |
3.1/5.0 km/h (low/high) |
| Swing Speed |
9.5 rpm |
| Max Digging Depth |
3,902 mm (standard stick) |
| Max Digging Height |
5,490 mm |
| Max Digging Radius |
6,350 mm |
| Hydraulic System |
Load-Sensing, Variable Displacement Piston Pump |
| Pump Flow |
80 L/min @ 2,400 rpm |
| Max Operating Pressure (Equipment/Travel) |
245 bar (3,553 psi) |
| Max Operating Pressure (Swing) |
216 bar (3,132 psi) |
| Max Bucket Digging Force |
45.5 kN (10,229 lbf) |
| Max Stick Digging Force |
25.5 kN (5,733 lbf) |
| Max Traction Force |
51.0 kN (low speed); 31.0 kN (high speed) |
| Emission Standard |
Tier 4 Final / EU Stage V |
| Fuel Tank Capacity |
105 L |
| Hydraulic Tank Capacity |
53 L |
| Track Shoe Width |
450 mm |
| Track Width |
1,980 mm |
| Boom Swing Angle |
75° (left/right) |
