DEVELON

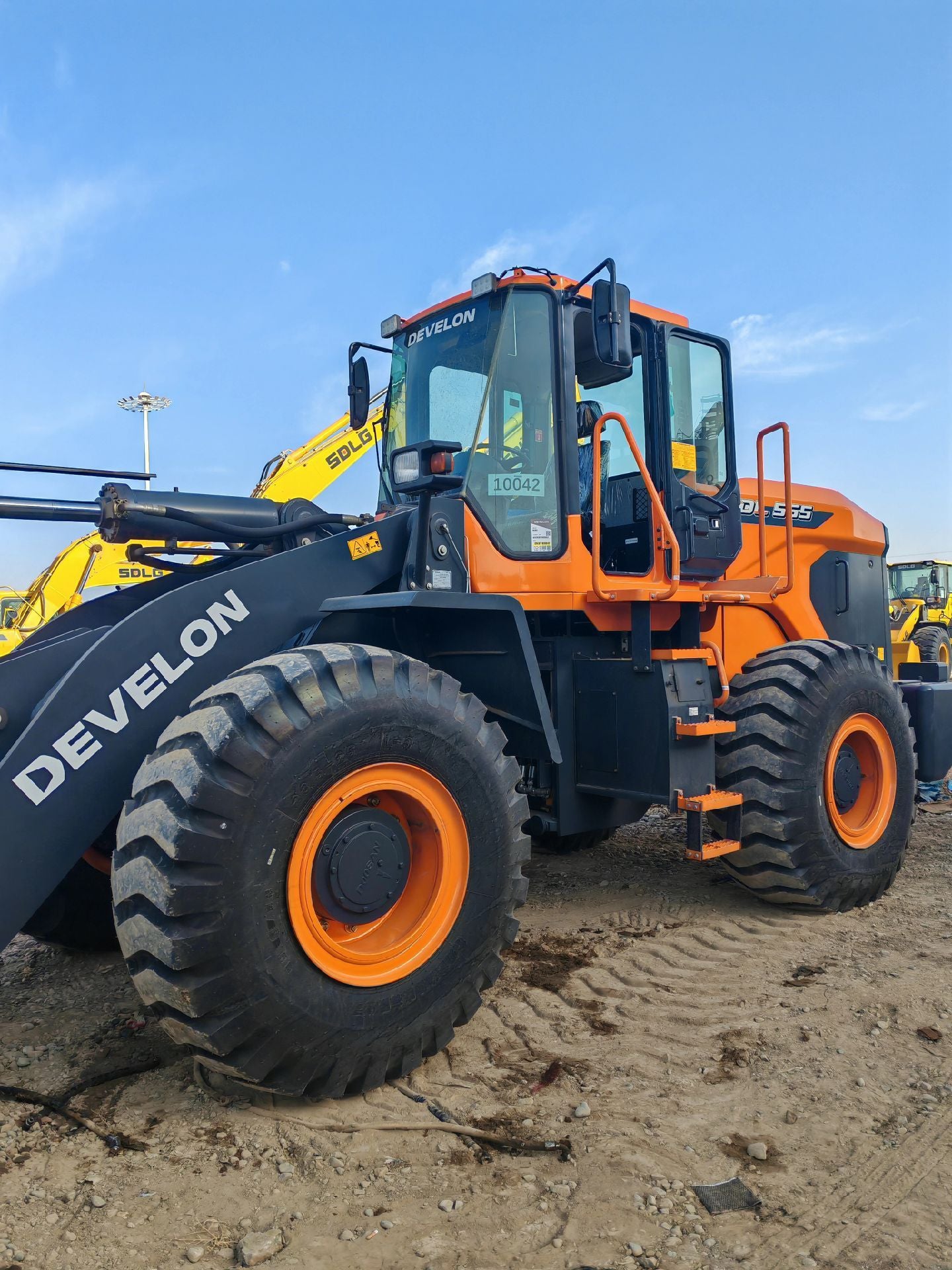

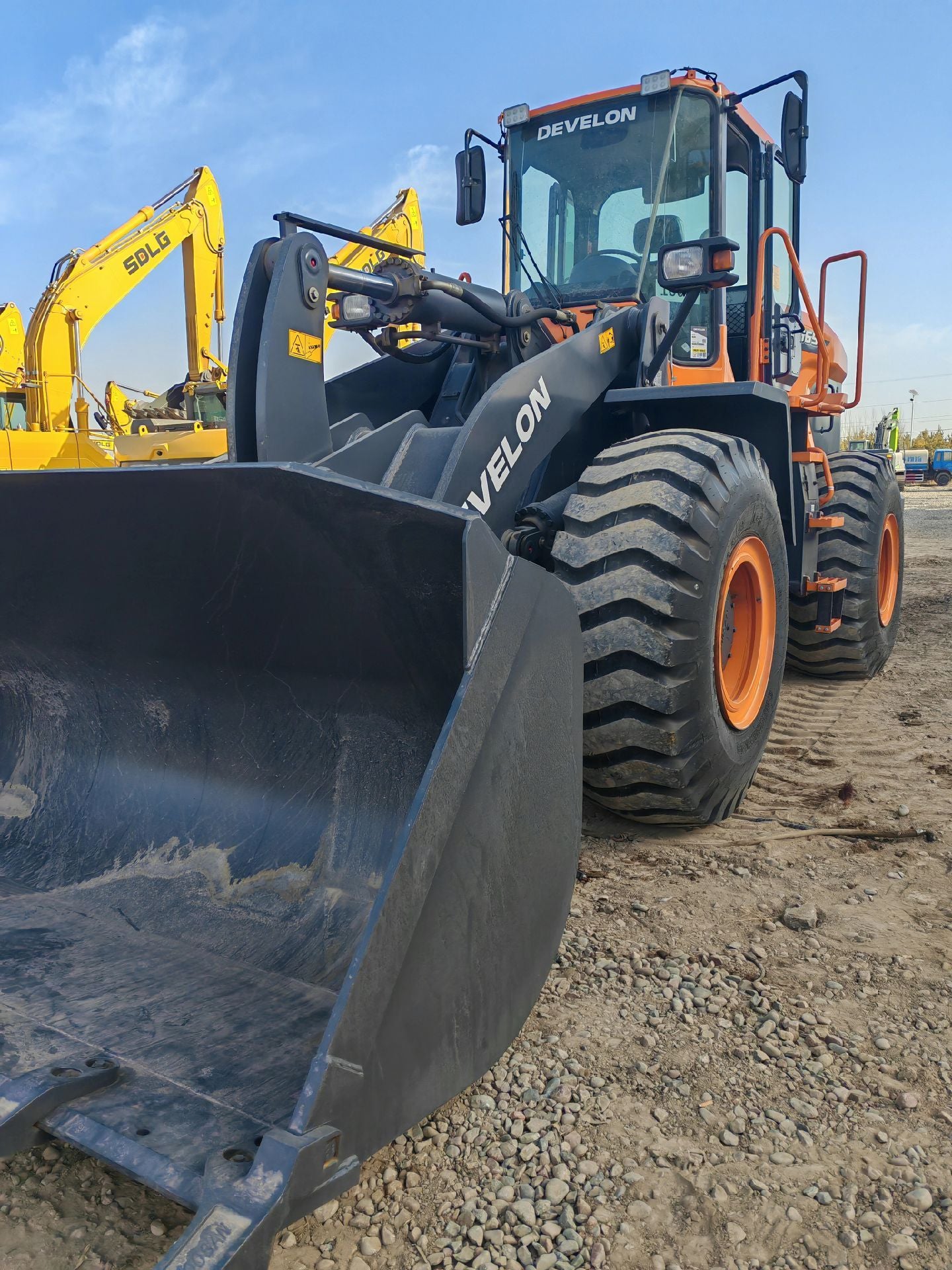

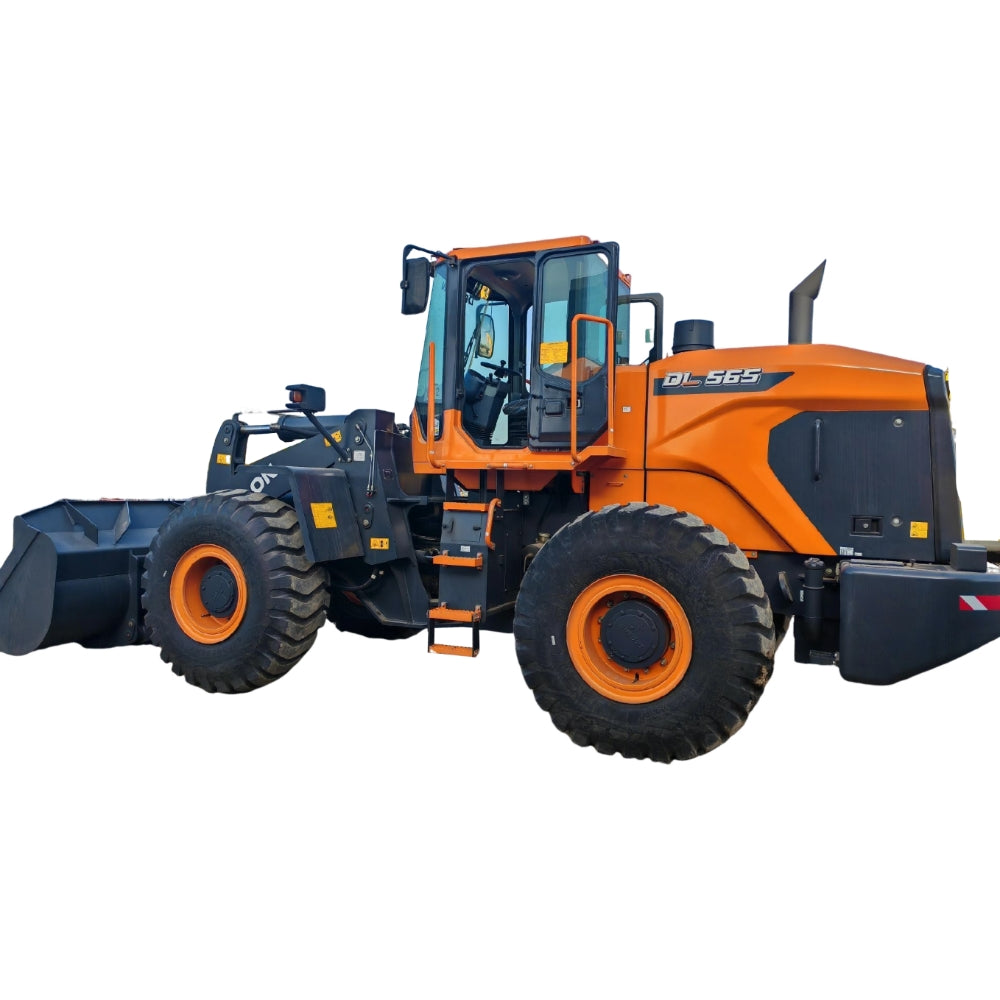

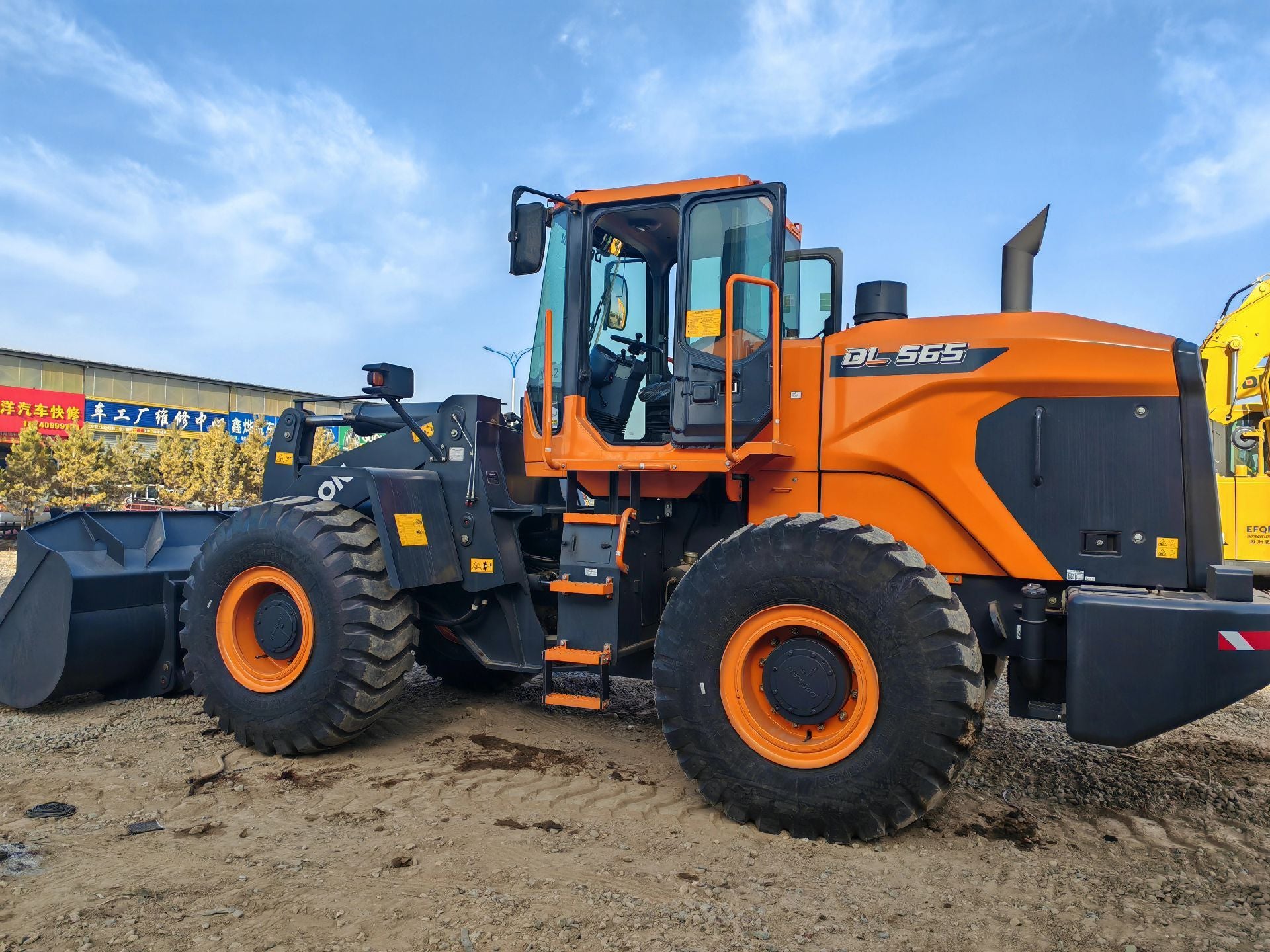

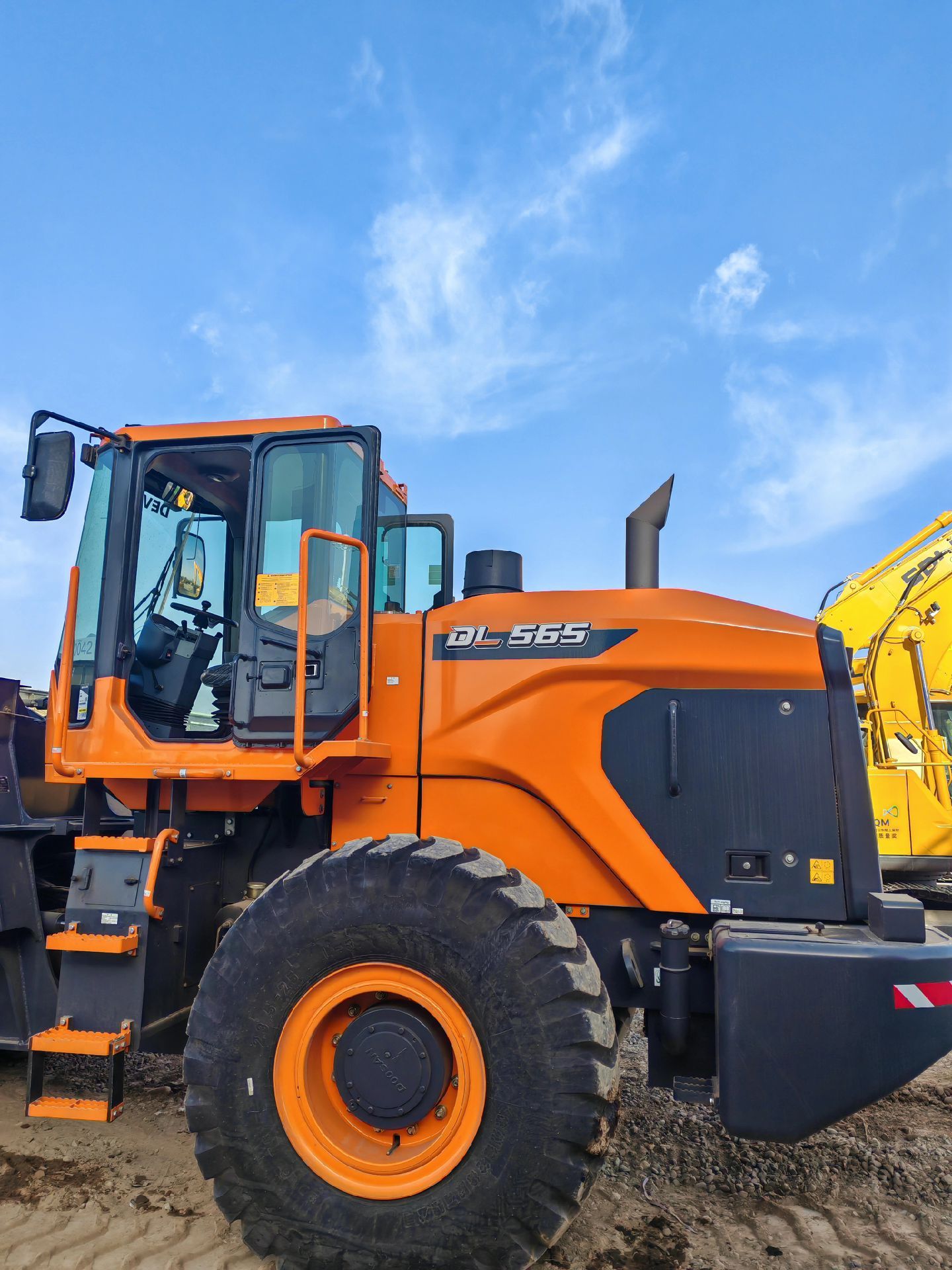

NEW DEVELON DL565

NEW DEVELON DL565

$39,000.00 USD
$39,000.00 USD
Sale Sold out
Item Specification
Model DEVELON DL565
Rated Load Capacity 5,800 kg
Standard Bucket Capacity 2.7 m³ (Optional: 3.2 m³)
Operating Weight 17,500 kg
Engine Model Weichai WP10H
Rated Power 162 kW @ 2,000 rpm
Emission Standard Tier 4
Wheelbase 3,300 mm
Track Width 2,174 mm
Max. Dumping Height 3,218 mm (Optional: 3,515 mm/3,700 mm)
Max. Dumping Angle 49°
Max. Rollback Angle 45°
Drawbar Pull 169 kN
Breakout Force 165 kN
Minimum Ground Clearance 420 mm
Overall Length 8,120 mm
Overall Width 2,992 mm
Overall Height 3,250 mm
View full details
