| 1 |
Model |

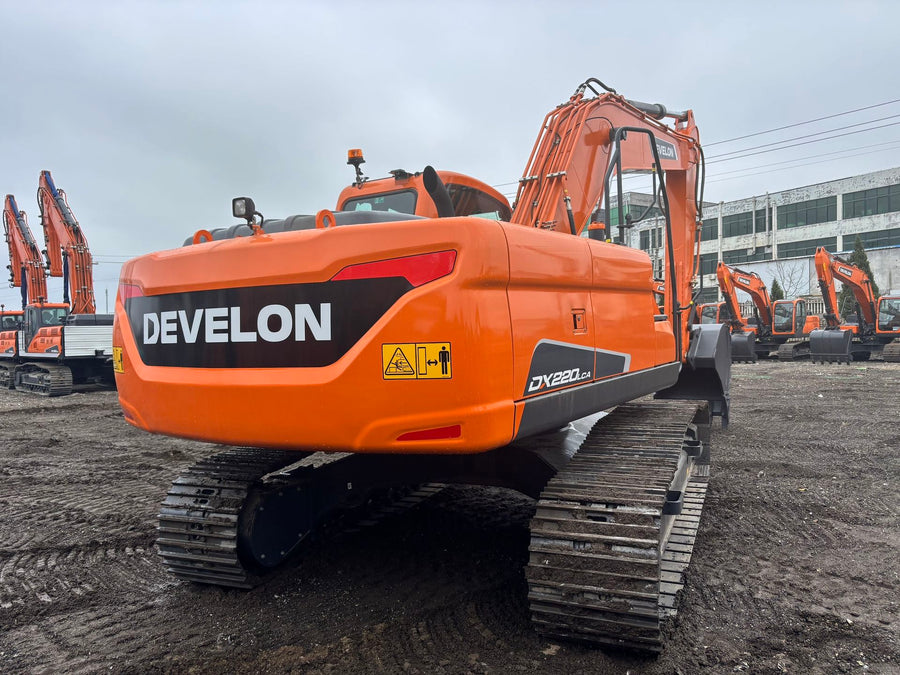

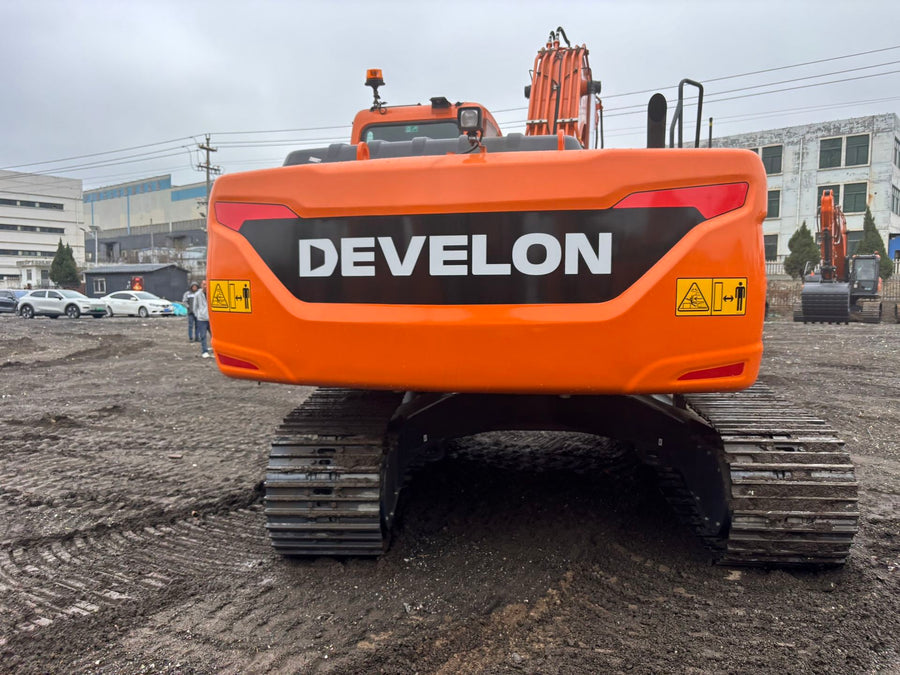

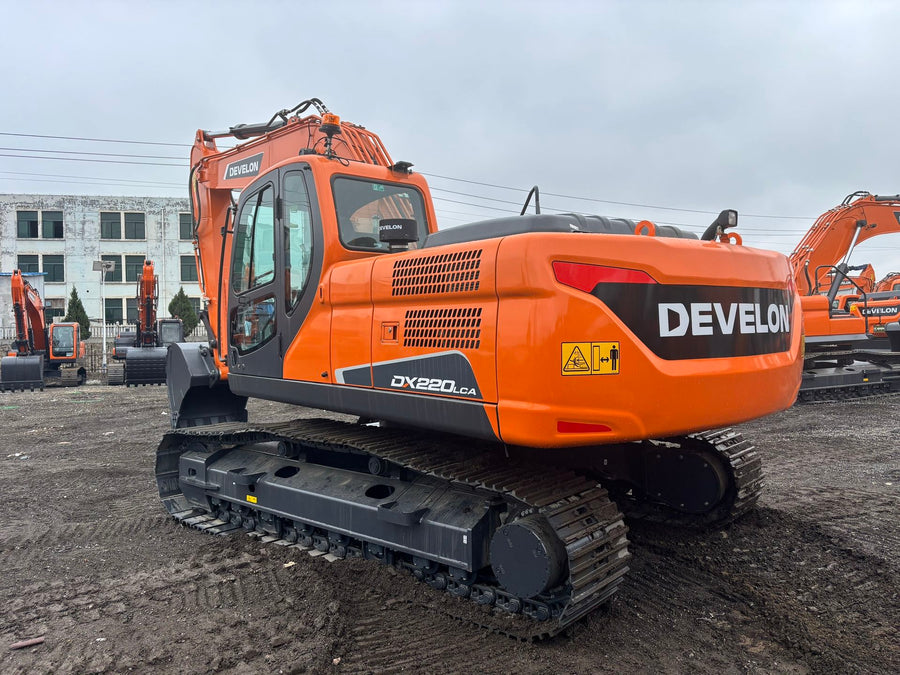

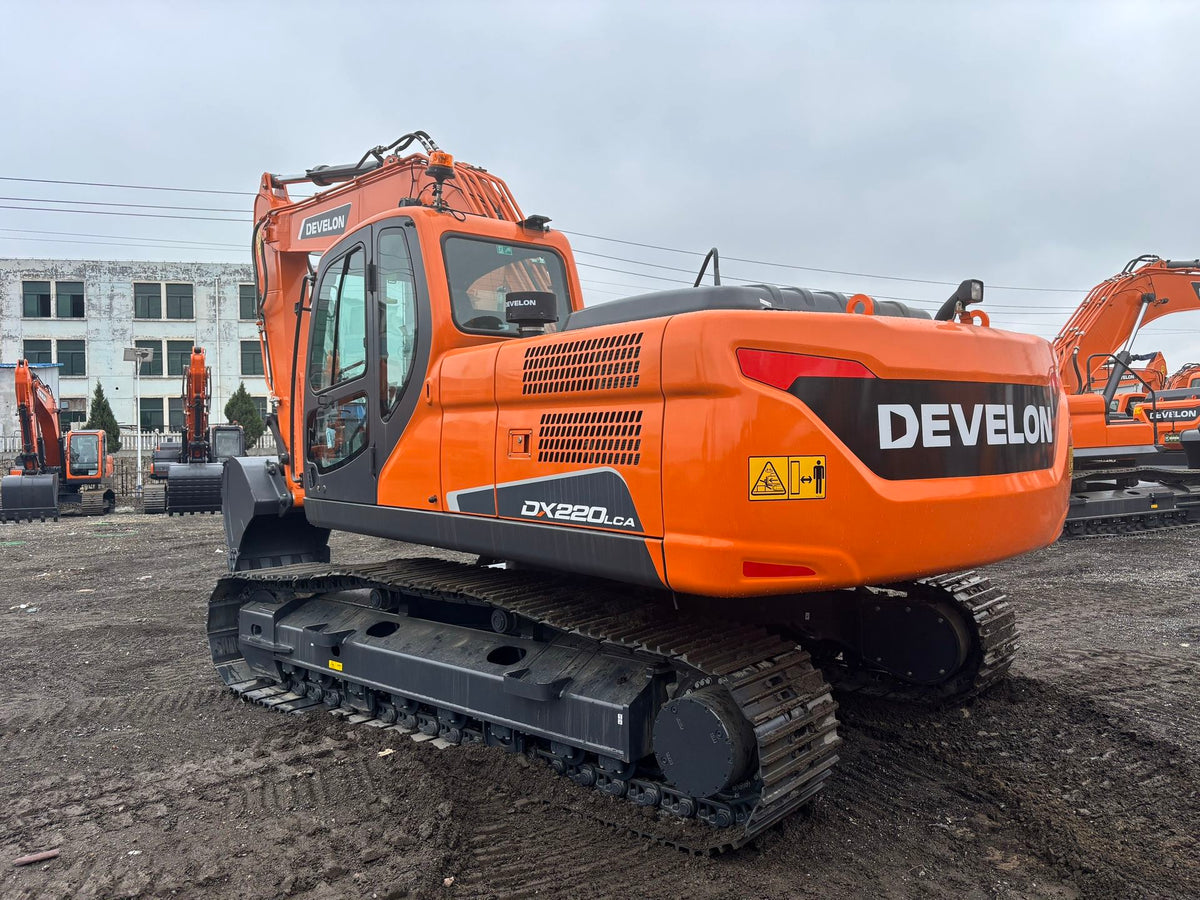

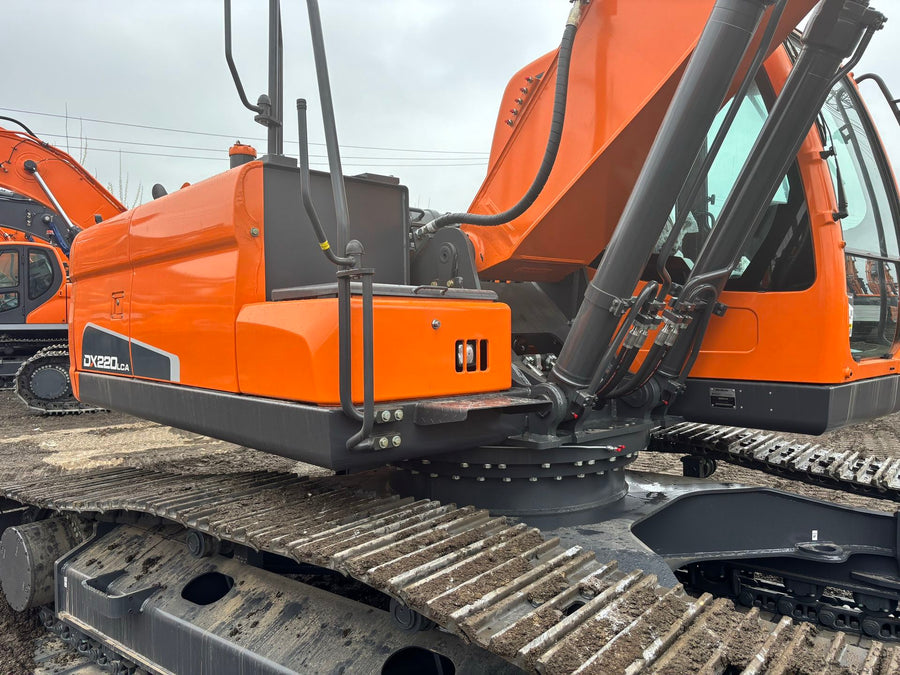

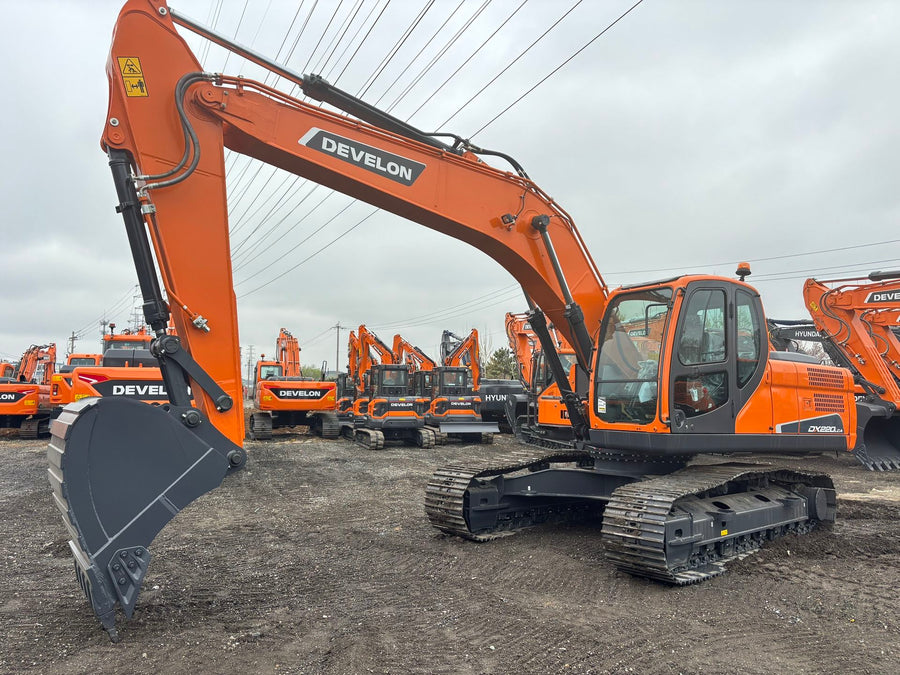

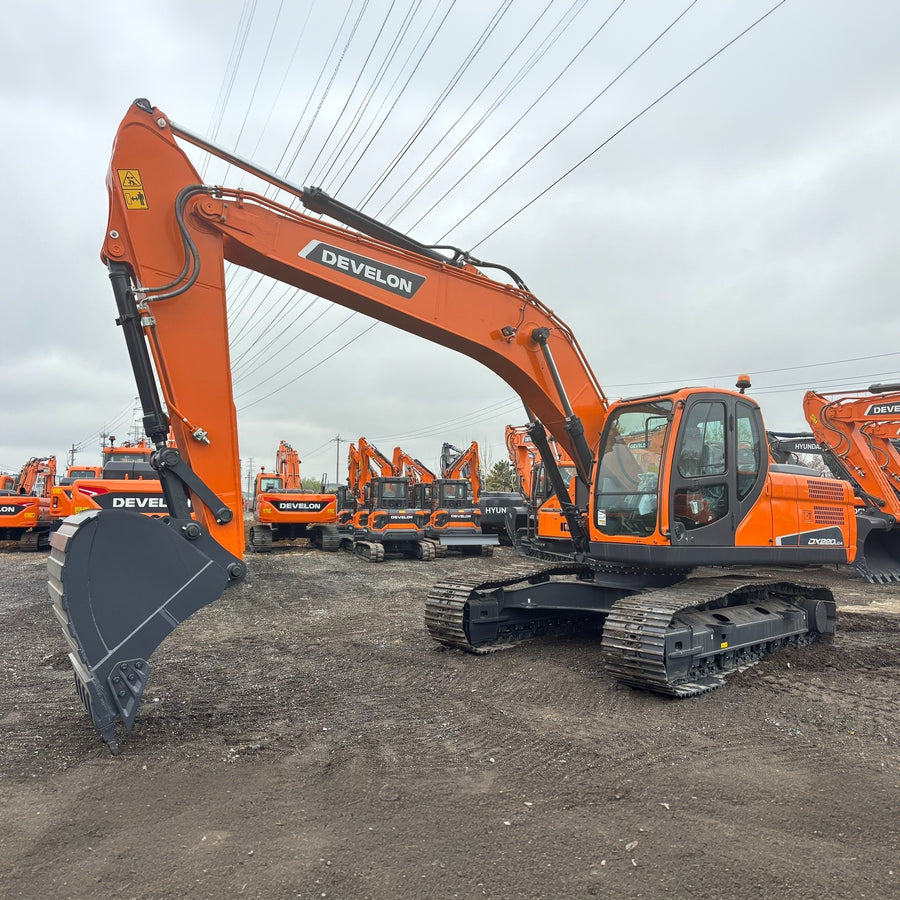

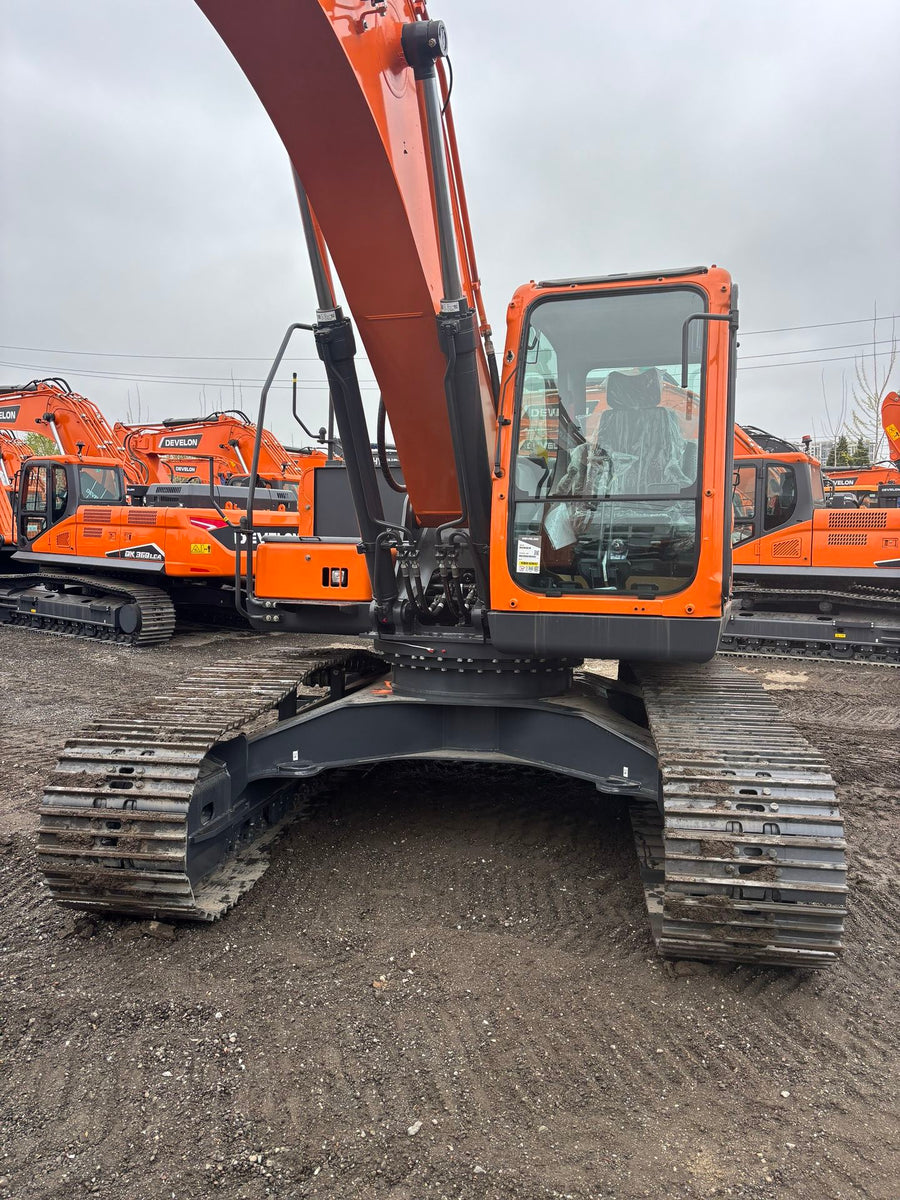

Develon DX220LCA (Long Arm Crawler Excavator) |
| 2 |
Operating Weight |
21,700 kg (47,840 lb) |
| 3 |

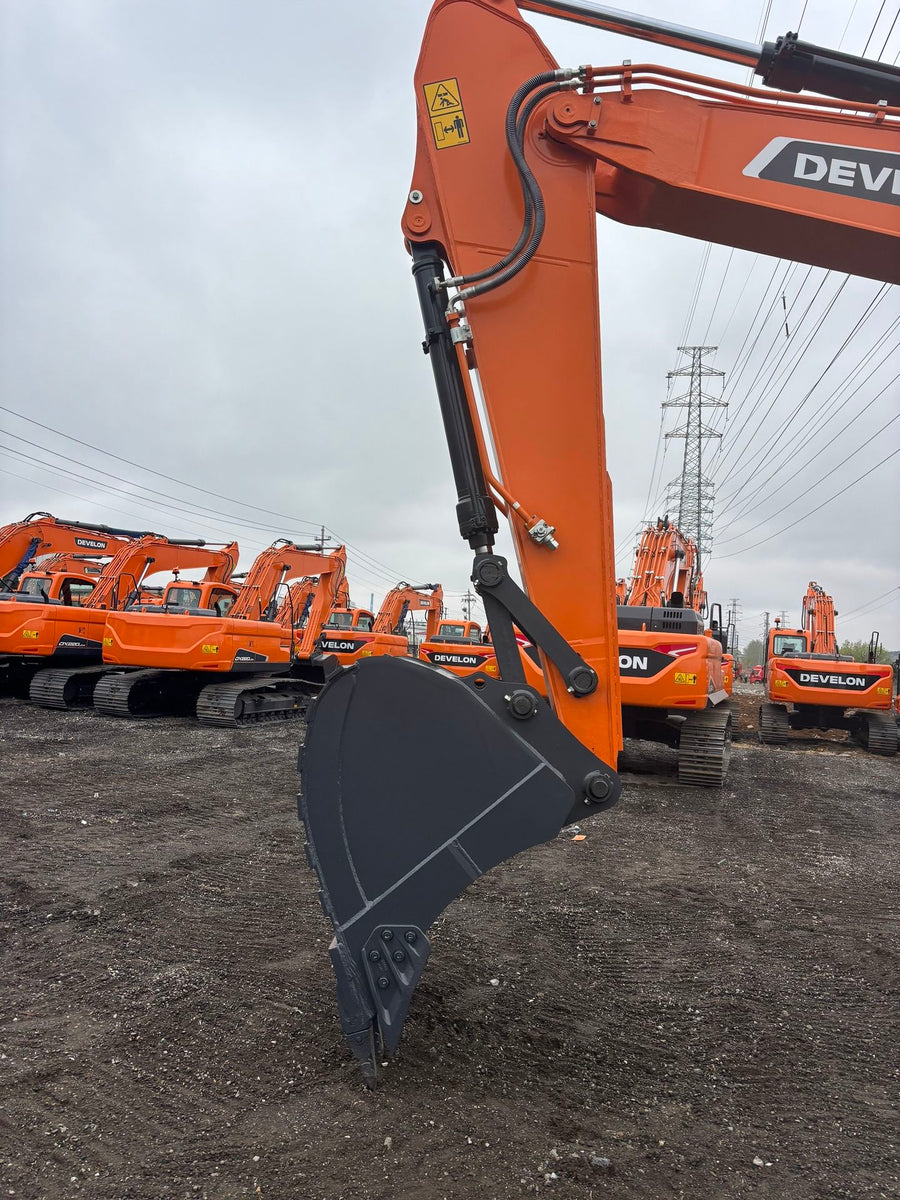

Standard Bucket Capacity (SAE Heaped) |
0.92 m³ (1.20 yd³) |
| 4 |
Engine Model |
Develon DB58TIS (6-cylinder, turbocharged diesel) |
| 5 |
Rated Net Power (SAE J1349) |
121 kW (162 HP) @ 2000 rpm |
| 6 |
Rated Gross Power (SAE J1995) |
116 kW (155 HP) @ 1900 rpm |
| 7 |
Maximum Torque |
67 kgf·m (485 lbf·ft) @ 1400 rpm |
| 8 |
Fuel Tank Capacity |
392 L (103.5 US gal) |
| 9 |
Max Travel Speed (Low/High) |
3.5 / 6.5 km/h (2.2 / 4.0 mph) |
| 10 |
Swing Speed |
10.6 rpm |
| 11 |
Gradeability |
35° (70%) |
| 12 |
Ground Pressure (600mm standard shoe) |
0.45 kgf/cm² (6.4 psi) |
| 13 |
Max Digging Reach (Standard Arm) |
9,865 mm (32' 4") |
| 14 |
Max Digging Depth (Standard Arm) |
6,590 mm (21' 7") |
| 15 |
Max Dumping Height (Standard Arm) |
6,720 mm (22' 0") |
| 16 |
Bucket Digging Force (ISO) |
143 kN (14,600 kgf) |
| 17 |
Arm Digging Force (ISO) |
108 kN (11,000 kgf) |
| 18 |
Overall Length |
9,570 mm (31' 5") |
| 19 |
Overall Width |
2,990 mm (9' 10") |
| 20 |
Overall Height |
2,890 mm (9' 6") |
