HYUNDAI

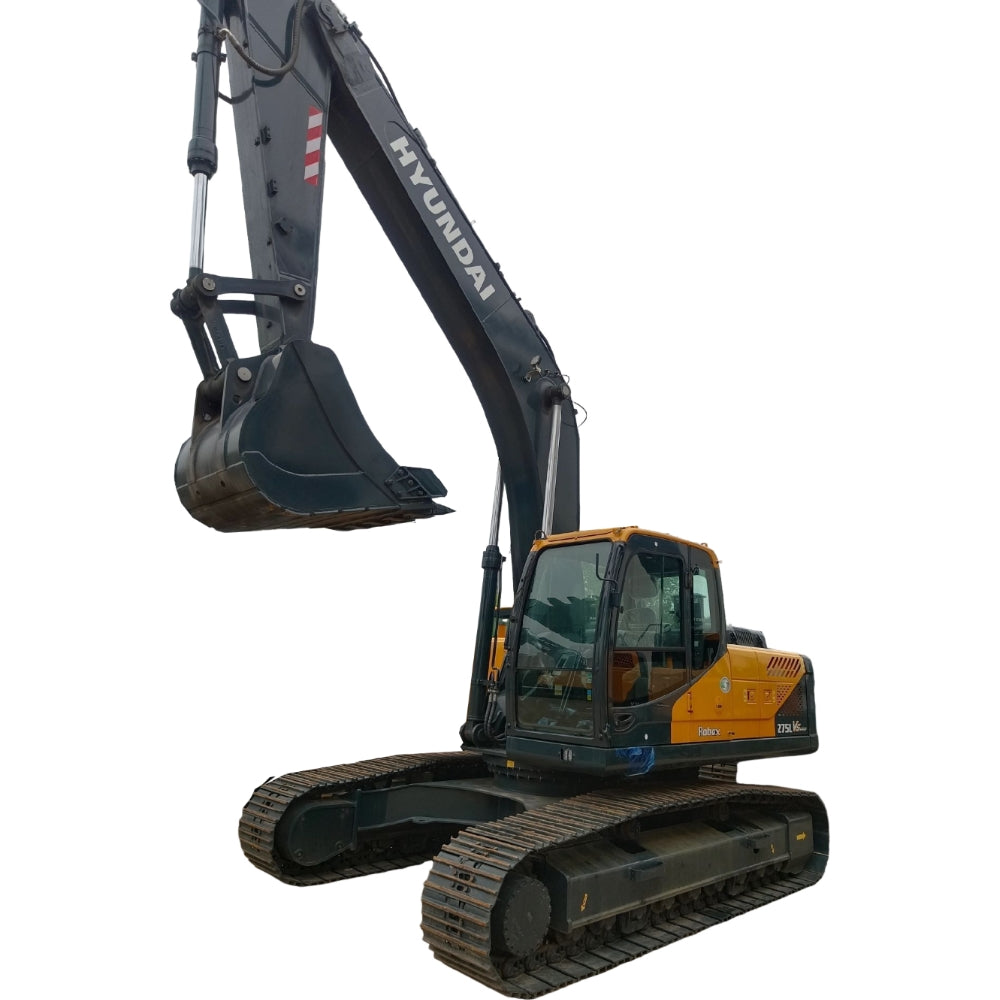

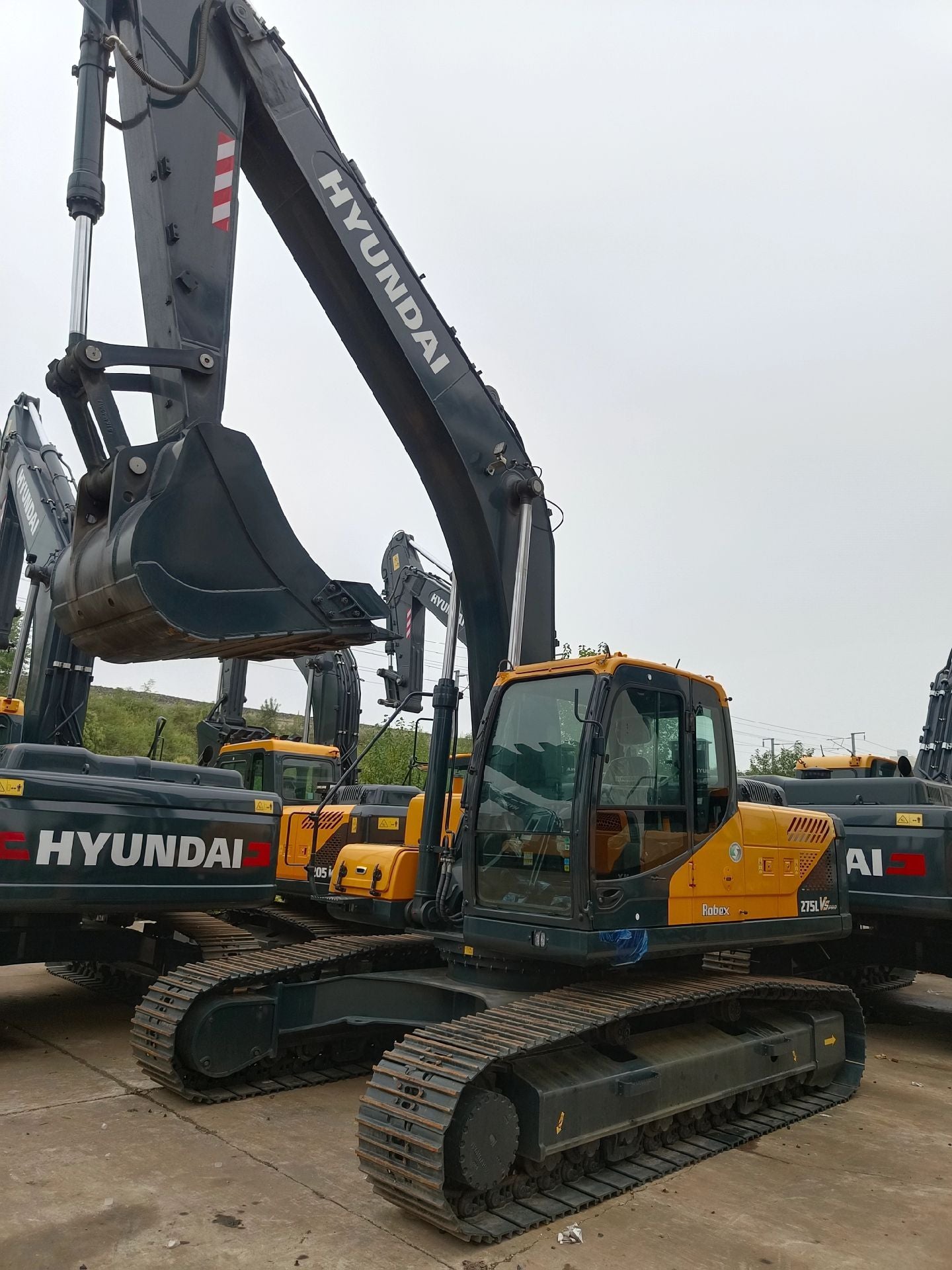

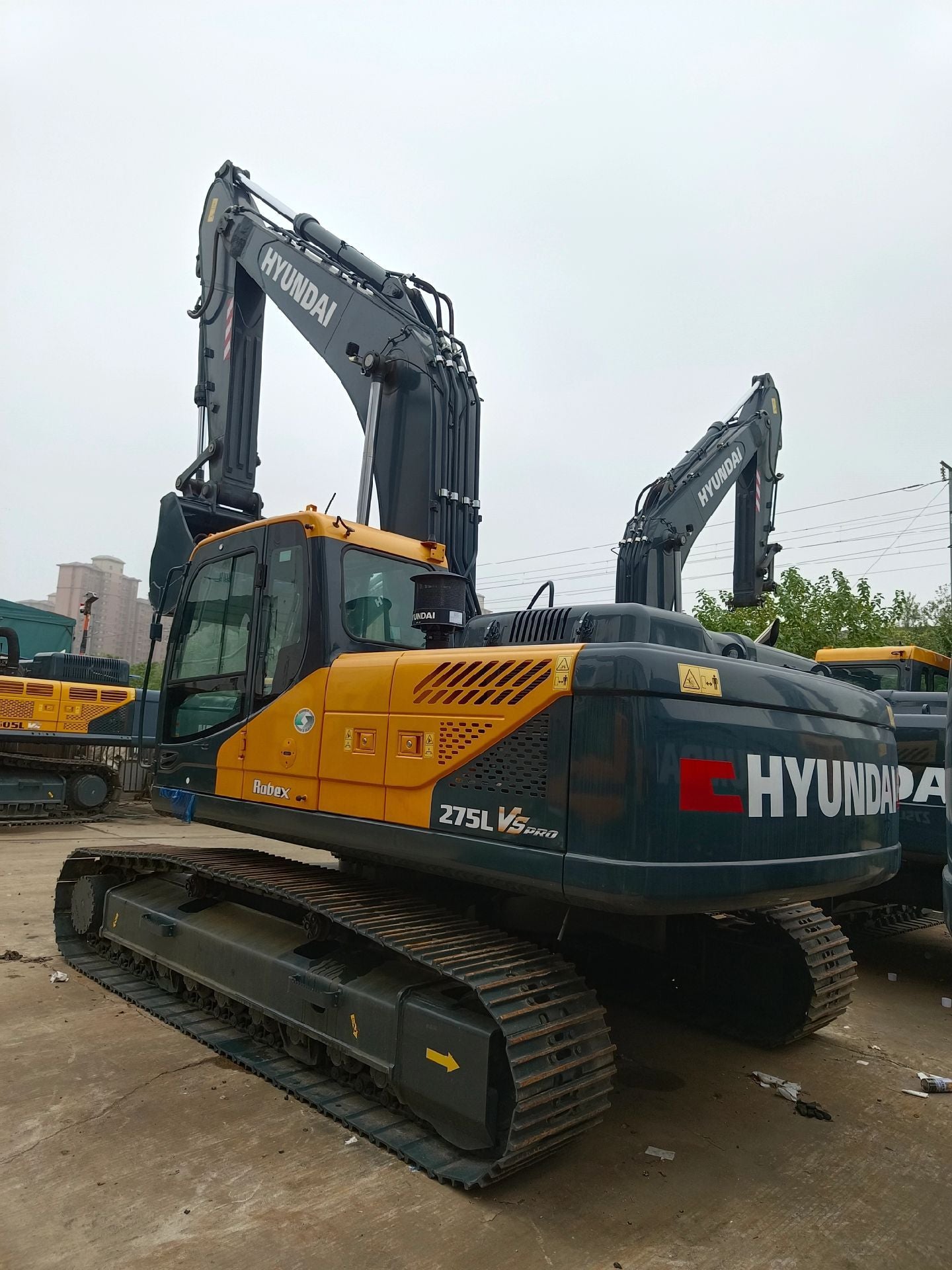

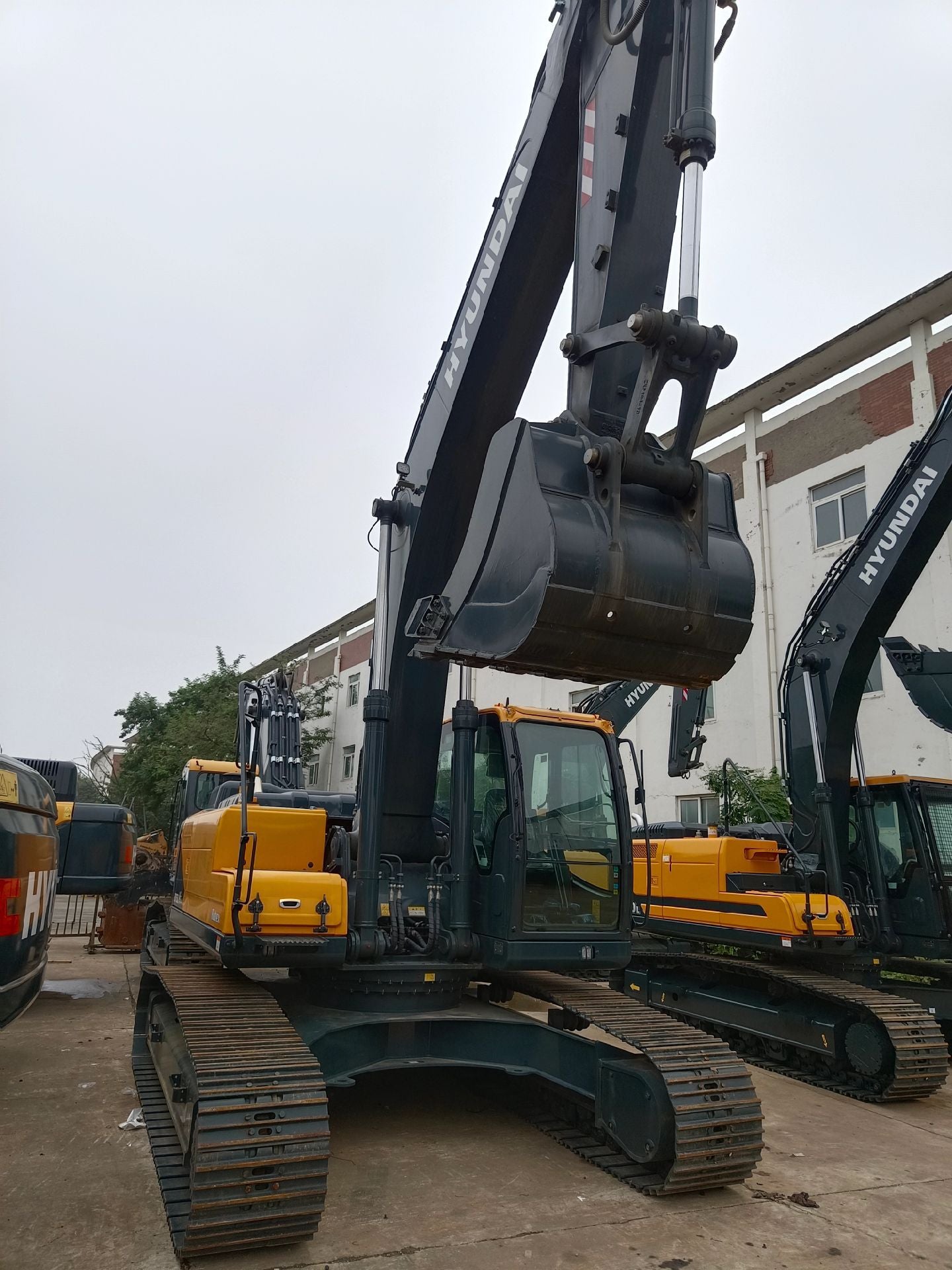

NEW HYUNDAI HX275L

$34,000.00 USD

Sale Sold out

Parameter	Details
Model	HYUNDAI HX275L (Crawler Excavator)
Operating Weight	27,050 kg
Engine Model	Cummins B7
Engine Power	150 kW (201 hp) @ 2,000 rpm
Max. Torque	890 N·m @ 1,300 rpm
Standard Bucket Capacity	1.35 m³ (Optional 1.62 m³)
Boom Length	5,850 mm
Arm Length	2,850 mm
Overall Length	10,050 mm
Overall Width	3,190 mm
Overall Height	3,040 mm
Tail Swing Radius	2,990 mm
Min. Ground Clearance	490 mm
Max. Digging Depth	6,740 mm
Max. Digging Height	10,260 mm
Max. Digging Reach	10,280 mm
Max. Dumping Height	6,940 mm
Travel Speed (Low/High)	3.24 km/h / 5.49 km/h
Swing Speed	10.2 rpm
Max. Gradeability	35° (70%)
Bucket Breakout Force (ISO)	181 kN
Arm Tearout Force (ISO)	128 kN
Emission Standard	Tier 4 Final/Euro Stage V
Fuel Tank Capacity	450 L
Hydraulic Tank Capacity	175 L
Main Hydraulic Pump Flow	2×234 L/min
