SANY

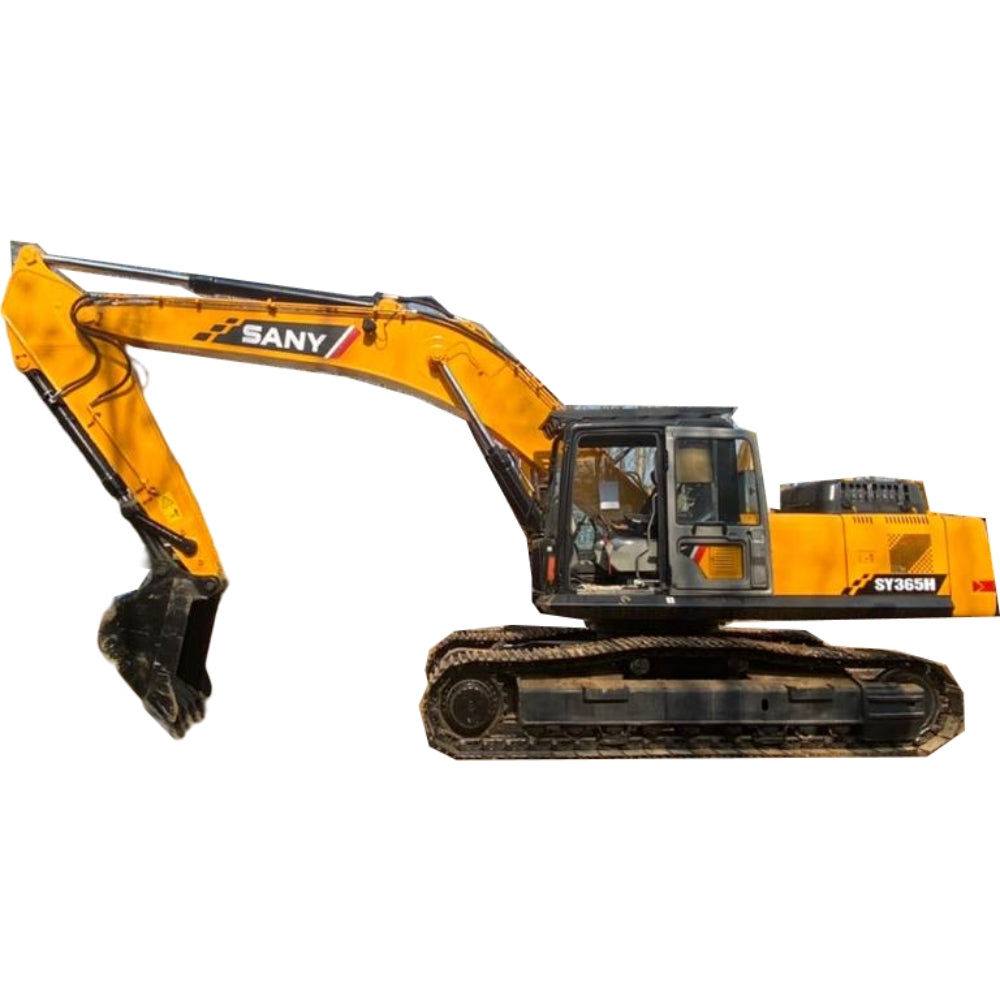

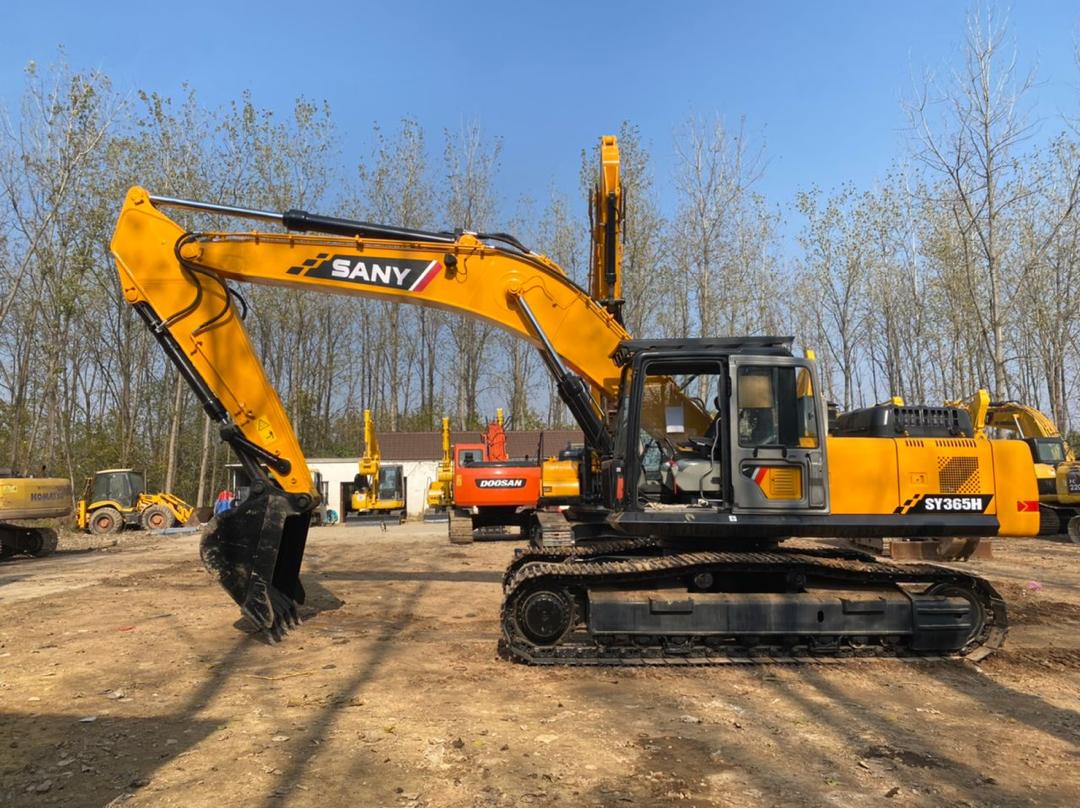

NEW SANY 365

NEW SANY 365

$80,000.00 USD
$80,000.00 USD
Sale Sold out

Here are the parameters of the NEW SANY SY365C in a tabular format in English:

Parameter Description
Model SY365C
Type Large Excavator
Operating Weight 36,700 kg (80,910 lb)
Engine Model Cummins QSL9
Rated Power 205 kW (275 hp)
Displacement 8.9 L
Emission Standard China IV (equivalent to EU Stage IV)
Fuel Tank Capacity 540 L (142.7 gal)
Hydraulic Tank Capacity 340 L (89.8 gal)
Engine Oil Capacity 29 L (7.7 gal)
Cooling System Capacity 48 L (12.7 gal)
Boom Length 6,470 mm (21' 3")
Stick (Arm) Length 3,178 mm (10' 5")
Maximum Digging Height 9,820 mm (32' 3")
Maximum Dumping Height 7,150 mm (23' 5")
Maximum Digging Depth 7,290 mm (23' 11")
Maximum Vertical Wall Digging Depth 6,480 mm (21' 3")
Maximum Reach at Ground Level 11,090 mm (36' 5")
Minimum Swing Radius 4,450 mm (14' 7")
Transport Length 11,100 mm (36' 5")
Transport Width 3,390 mm (11' 1")
Transport Height 3,600 mm (11' 10")
Upper Structure Width 3,020 mm (9' 11")
Cab Height 3,140 mm (10' 4")
Track Width (standard shoe) 800 mm (31")
Track Gauge 2,590 mm (8' 6")
Ground Clearance (minimum) 550 mm (22")
Tail Swing Radius 3,300 mm (10' 10")
Track Length on Ground 4,140 mm (13' 7")
Track Length 5,055 mm (16' 7")
Swing Speed (maximum) 9.8 RPM
Grade Capability 35°
Bucket Breakout Force (ISO) 192 kN (43,163 lbf)
Stick (Arm) Digging Force (ISO) 168 kN (37,768 lbf)
