SANY

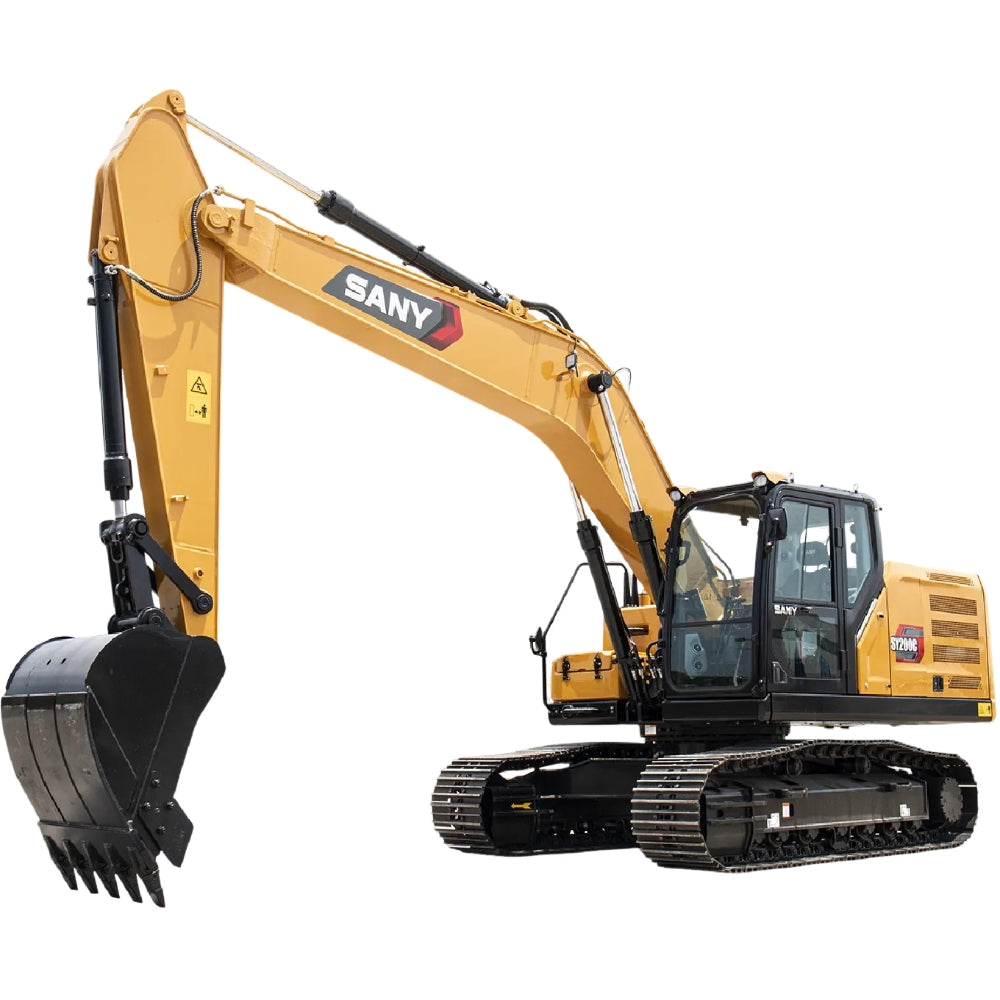

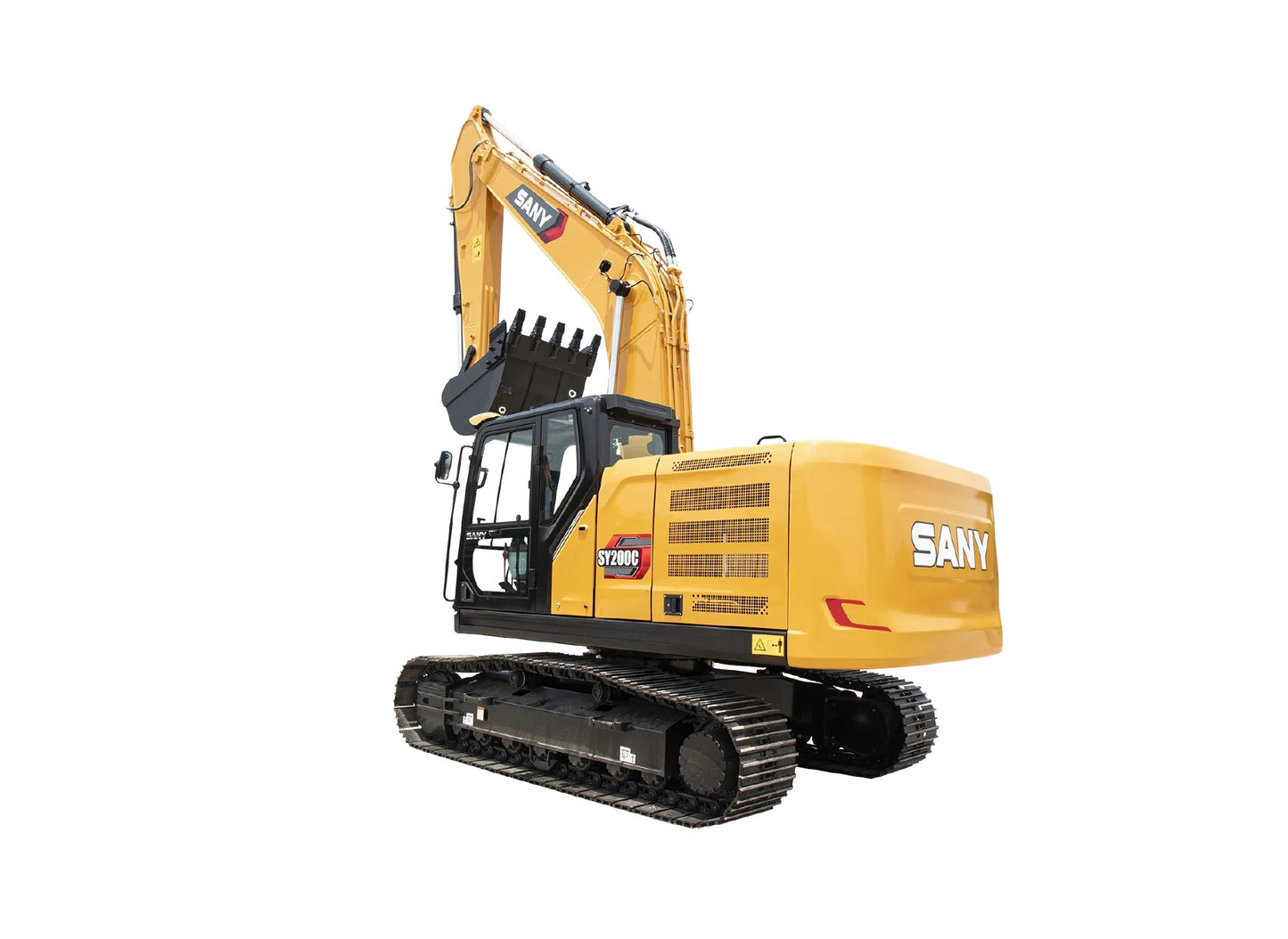

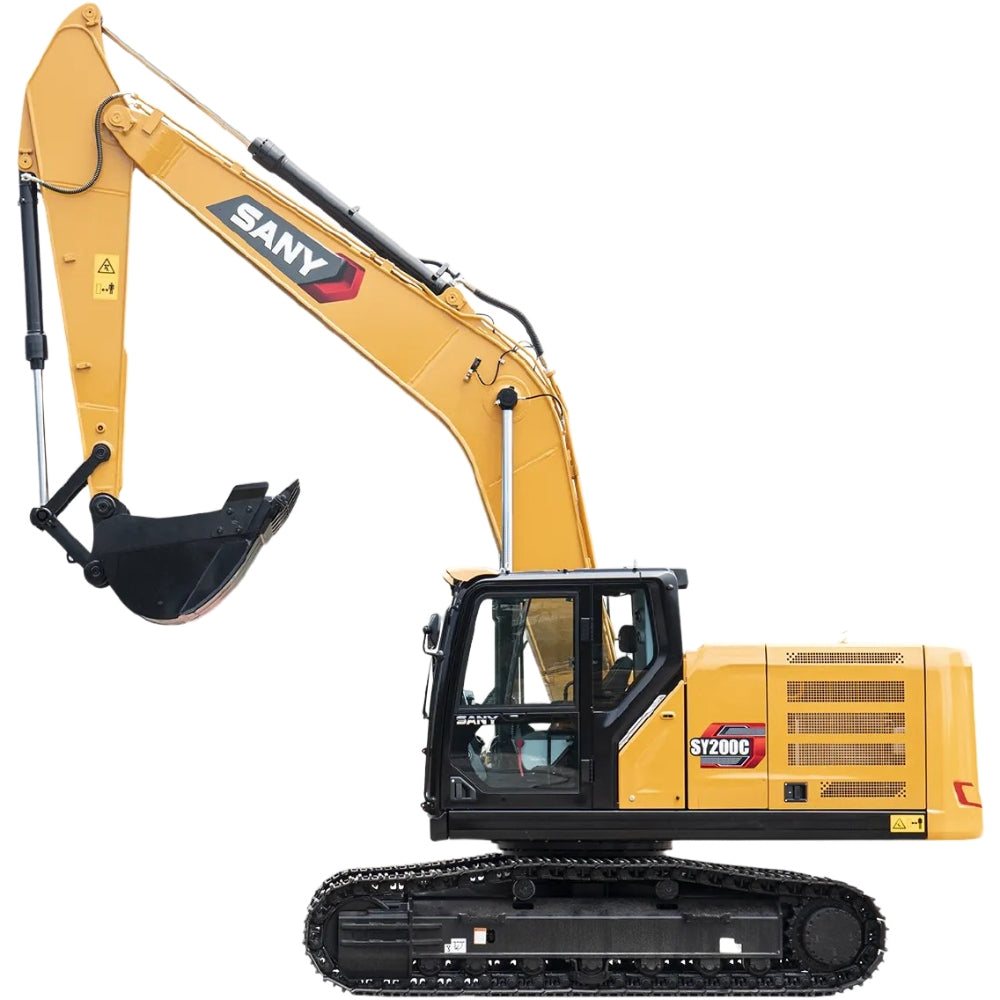

NEW SANY SY200C

NEW SANY SY200C

$45,000.00 USD
$45,000.00 USD
Sale Sold out

Here are the technical parameters of the NEW SANY SY200C in a tabular form in English:

Parameter Specification
Model SY200C
Type Medium-sized Hydraulic Excavator
Engine Brand Mitsubishi (or equivalent, e.g., 4M50)
Emission Standard National IV (or equivalent, depending on region)
Rated Power 118 kW @ 2000 rpm
Displacement 4.899 L
Operating Weight 21,500 kg
Bucket Capacity 0.8 - 1.0 m³ (typically 1.0 m³)
Travel Speed (High/Low) 5.4 km/h / 3.4 km/h
Swing Speed 11 - 11.6 rpm
Gradeability 70% (35°)
Ground Pressure 47.4 kPa
Bucket Digging Force 128 - 138 kN
Arm Digging Force 102 - 103 kN
Overall Length (Transport State) 9,680 mm
Overall Width 2,800 mm
Overall Height (Transport State) 3,440 mm
Standard Track Shoe Width 600 mm
Track Length 4,160 mm
Track Ground Contact Length 3,360 mm
Track Gauge 2,200 - 3,360 mm (depending on configuration)
Minimum Ground Clearance 440 - 470 mm
Fuel Tank Capacity 370 L
Hydraulic Oil Tank Capacity 240 L
