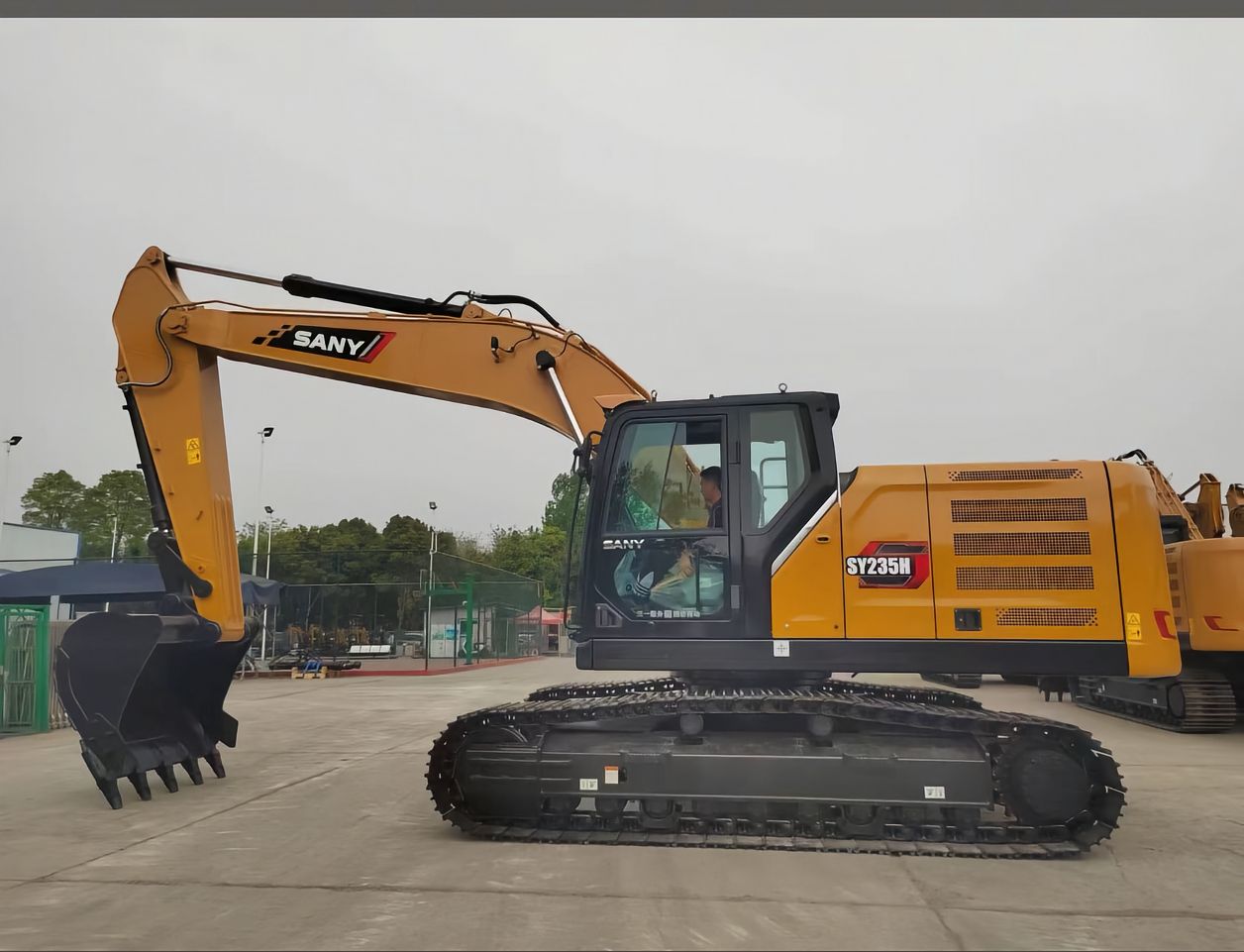

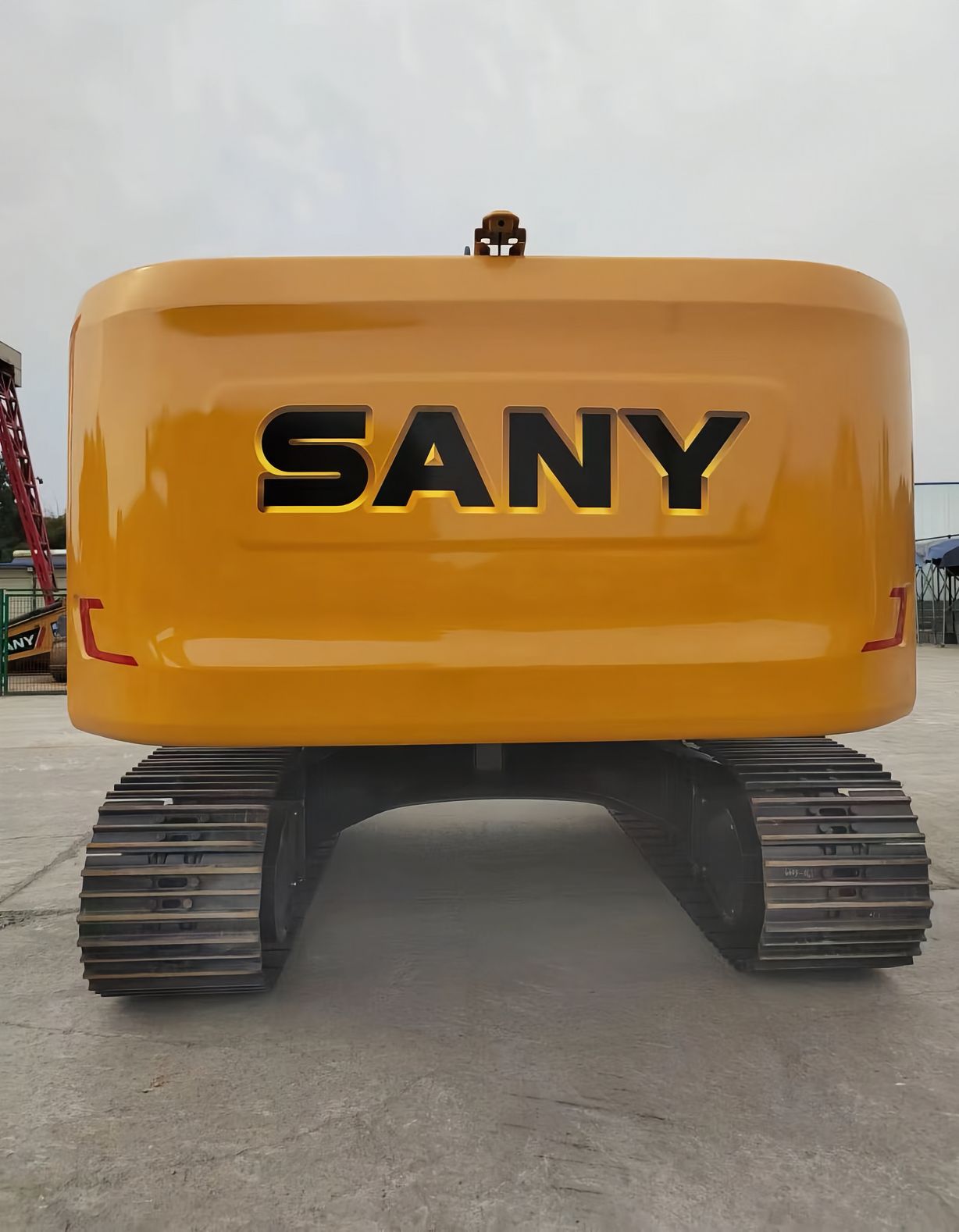

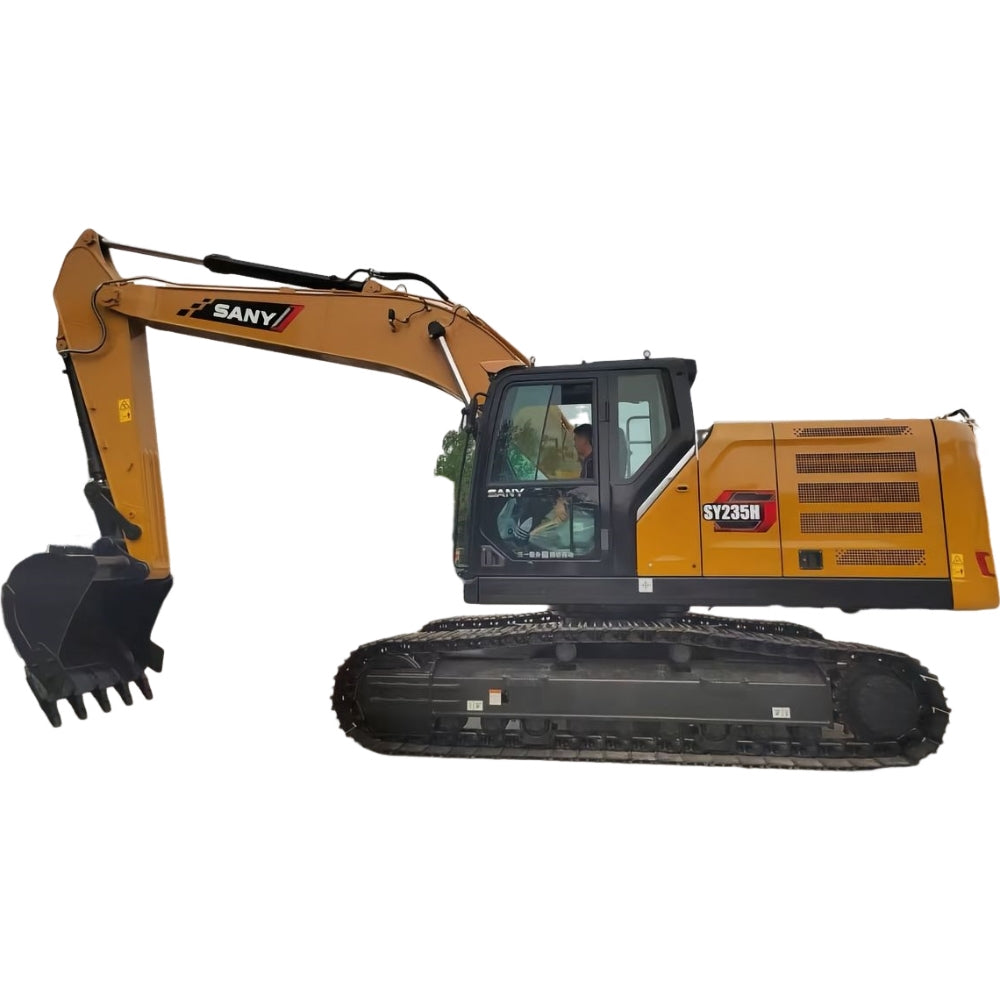

NEW SANY SY235H

NEW SANY SY235H

$46,000.00 USD
$46,000.00 USD
Sale Sold out

Here are the technical parameters of the NEW SANY SY235H in a tabular form in English:

Parameter Specification
Model SY235H
Type Medium-sized Hydraulic Excavator
Engine Brand Isuzu (4HK1) / Deutz (TCD5.7)
Emission Standard National IV (or equivalent, depending on region)
Rated Power 128 kW @ 2000 rpm (or 129 kW @ 2100 rpm for Deutz engine)
Displacement 5.193 L (Isuzu) / 5.7 L (Deutz)
Operating Weight 23,000 kg
Bucket Capacity 1.35 m³
Travel Speed (High/Low) 5.6 km/h / 3.5 km/h
Swing Speed 11.5 rpm
Gradeability 70% (35°)
Ground Pressure 51 kPa
Bucket Digging Force 158 kN
Arm Digging Force 124 kN
Overall Length (Transport State) 9,635 mm
Overall Width 2,980 mm
Overall Height (Transport State) 3,100 mm
Standard Track Shoe Width 600 mm
Track Gauge 2,380 mm
Minimum Ground Clearance 442 mm
Fuel Tank Capacity 370 L
Hydraulic Oil Tank Capacity 260 L
Engine Oil Capacity 25 L (Isuzu)
Coolant Capacity 34 L
