1 6

SANY

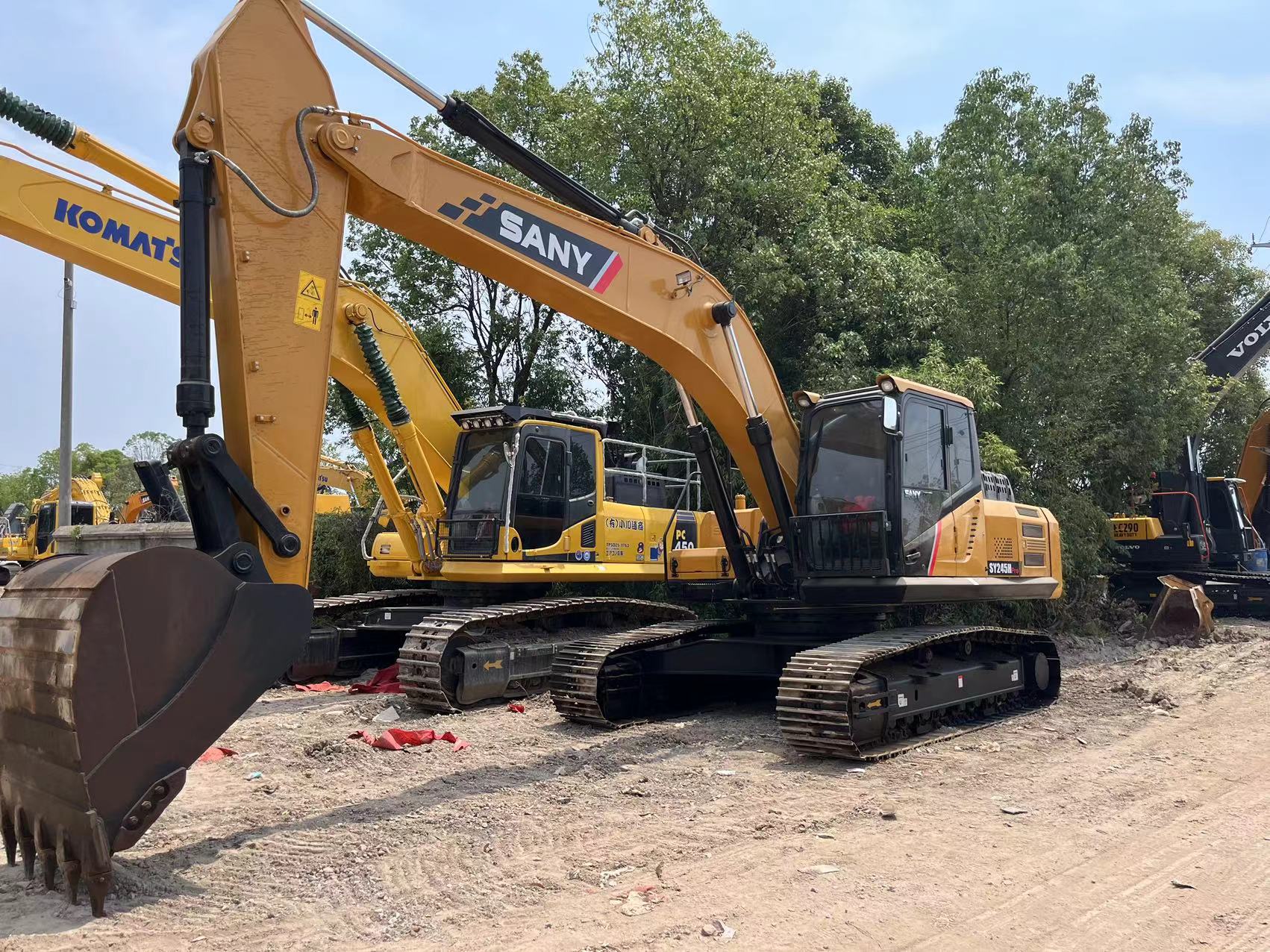

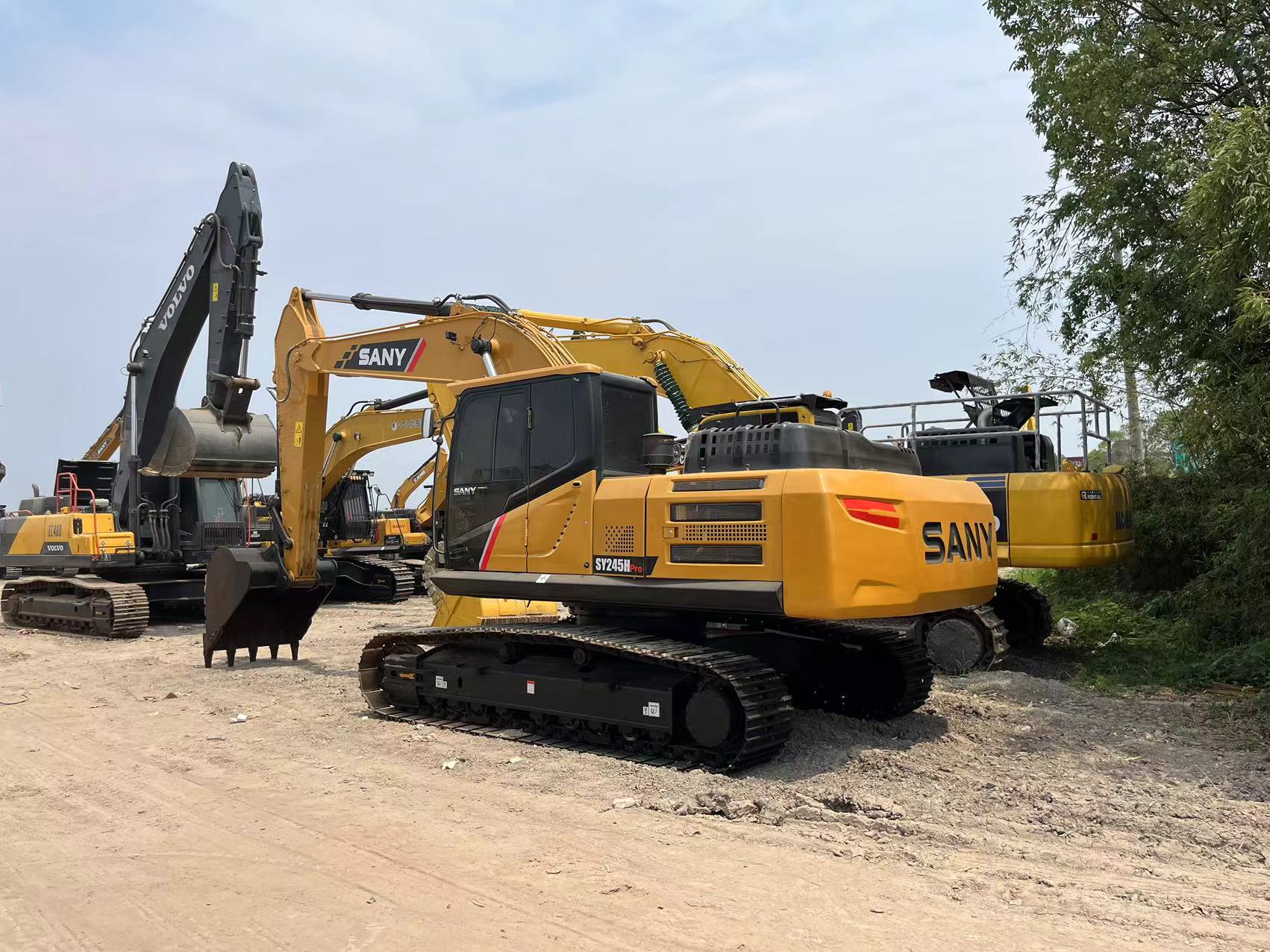

NEW SANY SY245H

NEW SANY SY245H

$51,000.00 USD
$51,000.00 USD
Sale Sold out

Here are the parameters of the NEW SANY SY245H in a tabular format in English:

Parameter Description
Model SY245H
Type Medium Excavator
Operating Weight 25,500 kg
Bucket Capacity 1.3-1.5 m³ (standard: 1.5 m³)
Engine Model Mitsubishi D06FRC
Rated Power 147 kW / 2100 rpm
Maximum Torque 750 N·m / 1350 rpm (some sources indicate 809 N·m / 1500 rpm)
Displacement 6.373 L
Emission Standard China IV (equivalent to EU Stage IV)
Fuel Tank Capacity 475 L
Hydraulic Oil Tank Capacity 277 L
Engine Oil Capacity 29 L
Coolant Capacity 30.9 L
Overall Length (Transport) 10,290 mm
Overall Width 3,190 mm
Overall Height (Transport) 3,255 mm
Track Width 2,590 mm
Minimum Ground Clearance 470 mm
Tail Swing Radius 3,105 mm
Ground Contact Length of Track 3,640 mm
Track Length 4,445 mm
Travel Speed (High/Low) 5.5 km/h / 3.74 km/h (some sources indicate 5.4 km/h / 3.4 km/h)
Swing Speed 10.6 rpm
Gradeability 70% (35°)
Ground Specific Pressure 52.5-53.2 kPa
Bucket Digging Force 175 kN
Arm Digging Force 120 kN
Maximum Horizontal Reach on Ground 10,225 mm
Maximum Digging Depth 6,705 mm
Maximum Vertical Reach 9,745 mm
Maximum Dumping Height 6,715 mm
Minimum Slewing Radius 3,800 mm
Maximum Digging Depth (Vertical Wall) 5,675 mm
View full details
