SANY

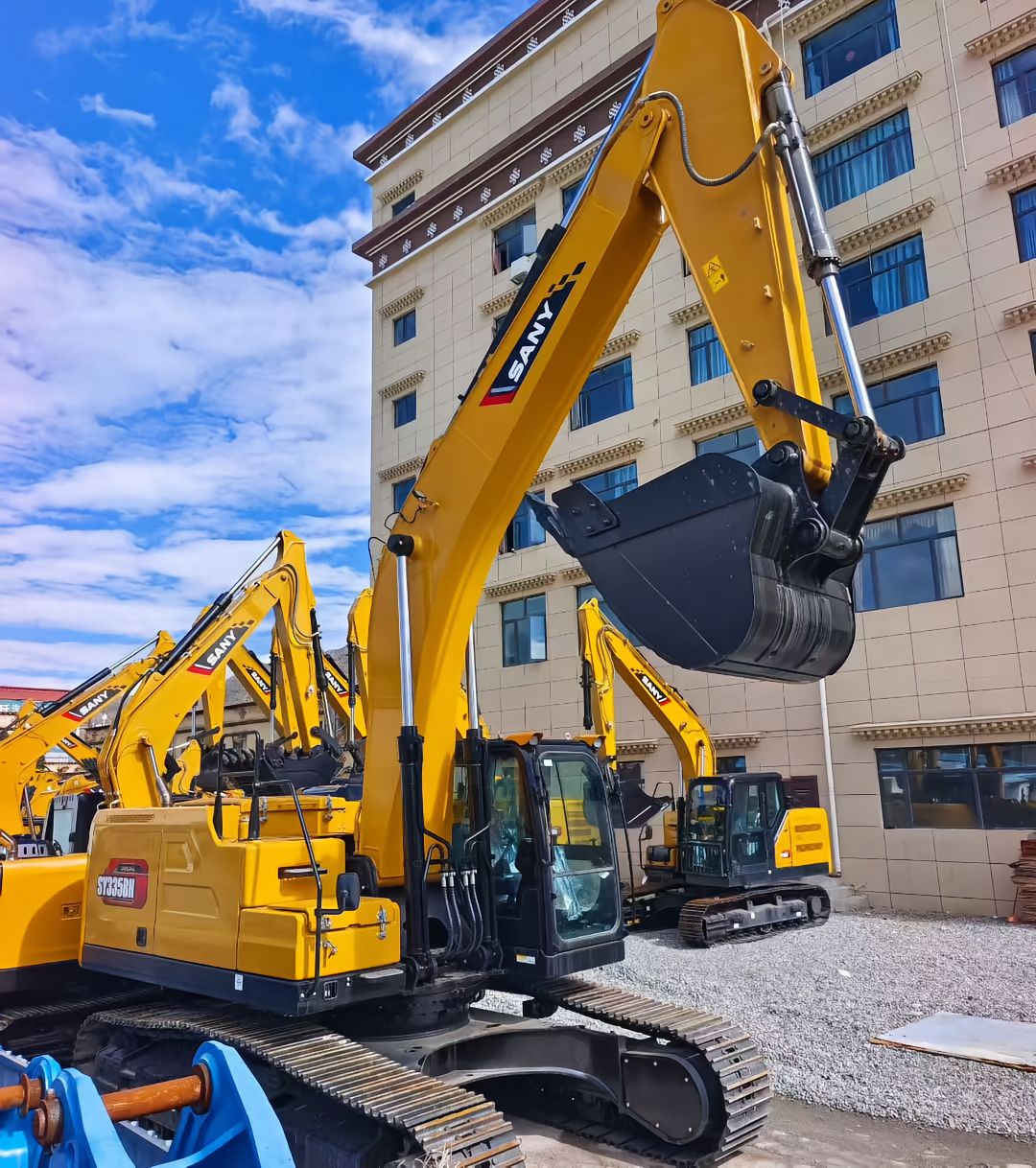

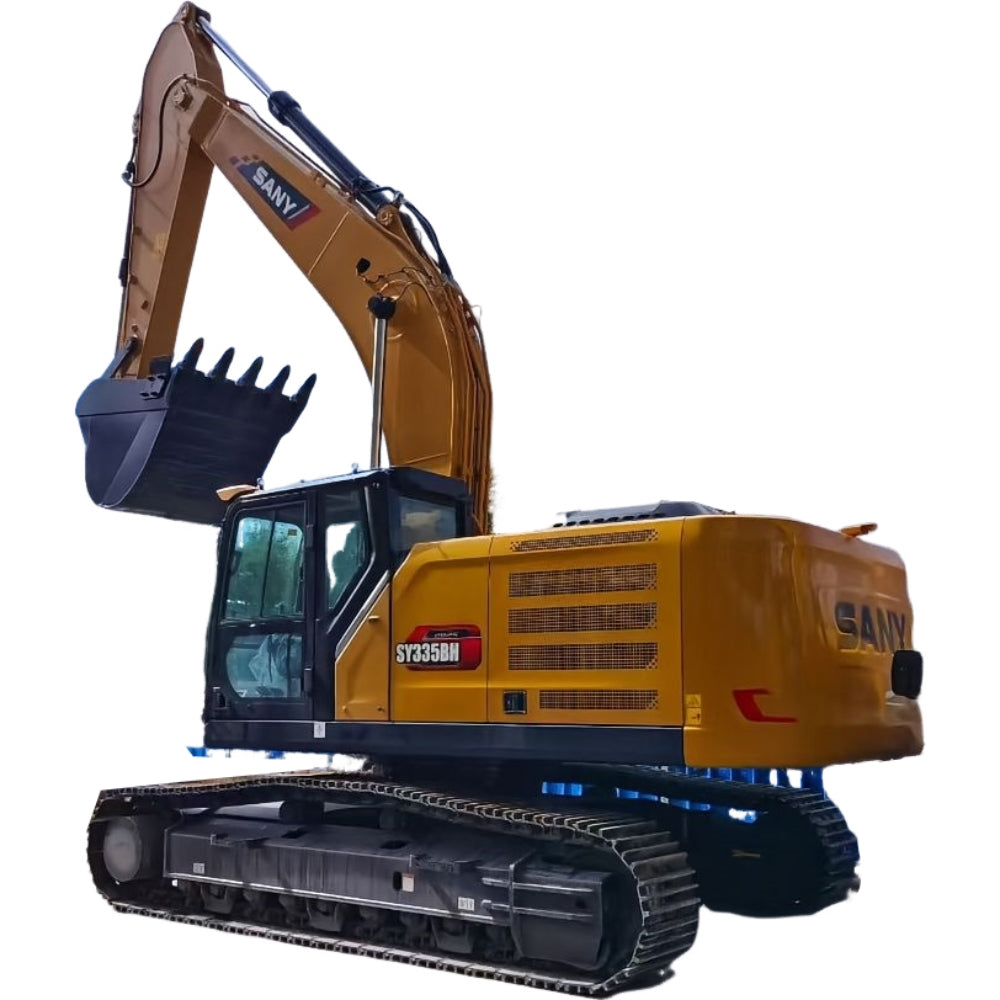

NEW SANY SY335BH
NEW SANY SY335BH
Regular price
$82,000.00 USD
Regular price
Sale price
$82,000.00 USD
Quantity
Couldn't load pickup availability
Here are the parameters of the NEW SANY SY335BH in a tabular format in English:
| Parameter | Description |
|---|---|
| Model | SY335BH |
| Type | Medium Hydraulic Excavator |
| Operating Weight | 32,500 kg |
| Bucket Capacity | 1.85-2.0 m³ (depending on the source) |
| Engine Model | Isuzu 6HK1 (or other models depending on the variant) |
| Engine Power | 210-212 kW / 1900-2000 rpm (depending on the engine model) |
| Overall Length (Transportation) | 10,667-10,700 mm (depending on the source) |
| Overall Width | 3,190 mm |
| Overall Height (Transportation) | 3,470 mm |
| Total Height (Top of Cab) | 3,280 mm |
| Upper Width | 3,175 mm |
| Standard Track Shoe Width | 600 mm |
| Gauge (Track Width) | 2,590 mm |
| Minimum Ground Clearance | 550 mm |
| Tail Radius of Gyration | 3,315 mm |
| Track Length | 5,040 mm |
| Ground Contact Length of Track | 4,134 mm |
| Travel Speed (High/Low) | 5.4/3.2 km/h (some sources indicate 6.0/3.5 km/h for high/low speed) |
| Swing Speed | 9.0 rpm |
| Gradeability | 70% (35°) |
| Ground Specific Pressure | 60.3 kPa |
| Bucket Digging Force | 204 kN |
| Arm Digging Force | 153 kN |
| Maximum Digging Height | 10,497 mm |
| Maximum Unloading Height | 7,359 mm |
| Maximum Excavation Depth | 6,815 mm |
| Maximum Digging Distance | 10,870 mm |
| Maximum Height at Minimum Radius of Gyration | 8,405 mm |
| Minimum Radius of Gyration | 4,000 mm |
