| Engine Model |
ISUZU 4BG1 (or equivalent, e.g., 4JJ1-XDJAG-01-C3 in some versions) |
| Rated Power |
72.7 kW (97.6 hp) @ 2200 rpm (or 73 kW/2000 rpm, 78.5 kW in some versions) |
| Displacement |
2.999 L (or 4.3 L in some versions) |
| Operating Weight |
14,100 kg (or 16,000 kg in some versions) |
| Bucket Capacity |
0.50 - 0.65 m³ (or 0.55 m³, 0.6 m³ in some versions) |
| Max. Digging Depth |
5,500 mm (or 5,468 mm, 5,700 mm in some versions) |
| Max. Digging Height |
8,610 mm (or 9,218 mm in some versions) |
| Max. Dumping Height |
6,115 mm (or 6,756 mm in some versions) |
| Max. Reach at Ground Level |
8,330 mm (or 8,338 mm in some versions) |
| Swing Speed |
12 rpm |
| Travel Speed (High/Low) |
5.5 km/h / 3.5 km/h (or 5.3 km/h / 3.1 km/h in some versions) |
| Gradeability |
70% (35°) |
| Ground Pressure |
43 kPa (or 41.0 kPa in some versions) |
| Fuel Tank Capacity |
240 L (or 270 liters in some versions) |
| Hydraulic System Capacity |
150 L |
| Track Width (Standard Shoe) |
500 mm (or 600 mm in some versions) |
| Track Gauge |
1,990 mm |

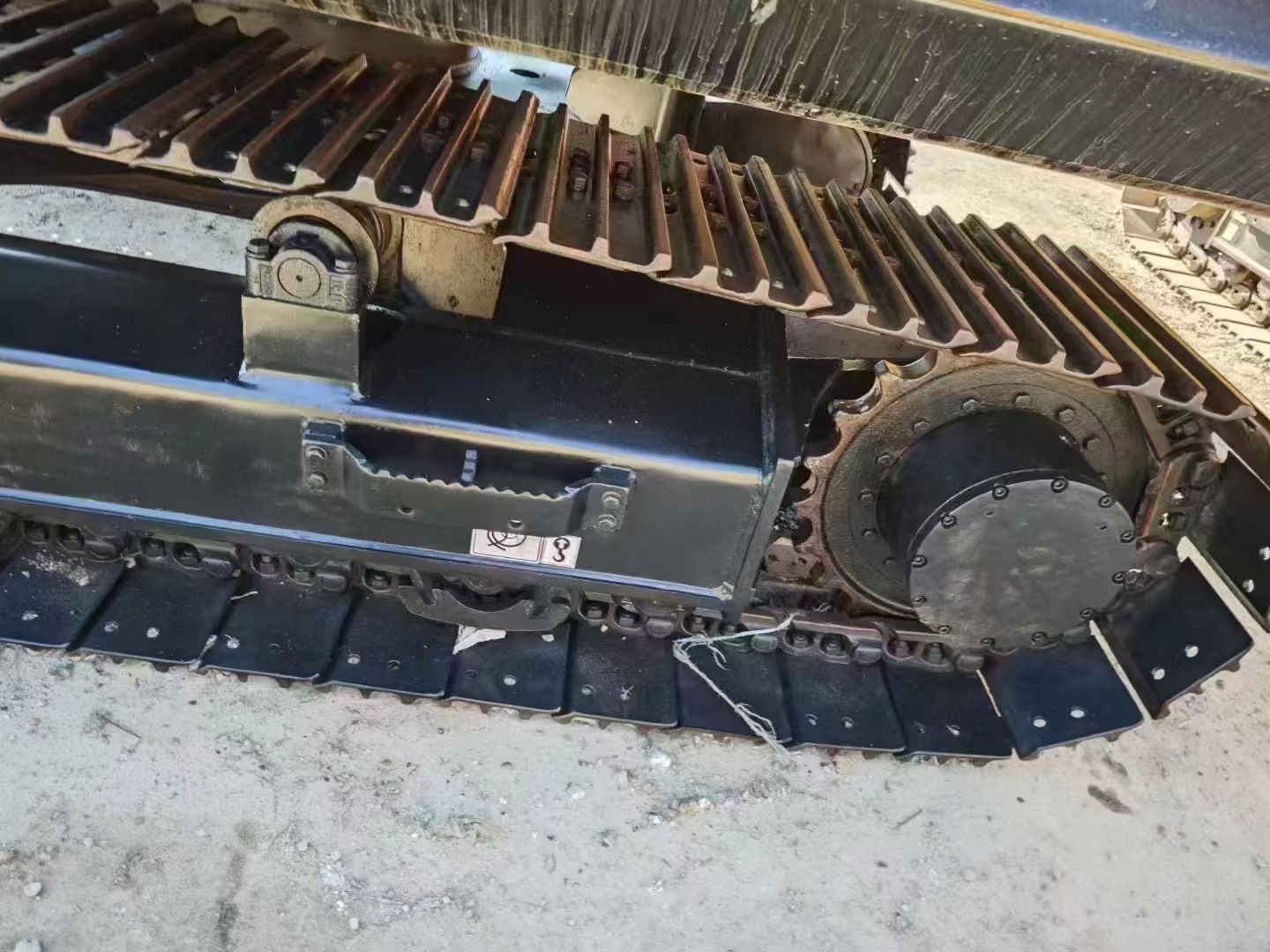

| Undercarriage |
Steel Track |
| Swing Motor |
Axial Piston with Swing Brake |
| Travel Motor |
Axial Piston with Park Brake |
| Hydraulic System |
Positive Flow Control with Pilot Control |
| Main Hydraulic Pump |
Axial Piston - Variable Displacement |
| Emission Level |
Tier 4 (or equivalent, depending on region) |
